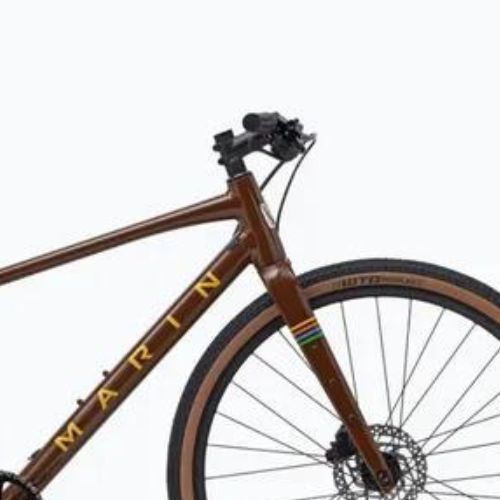

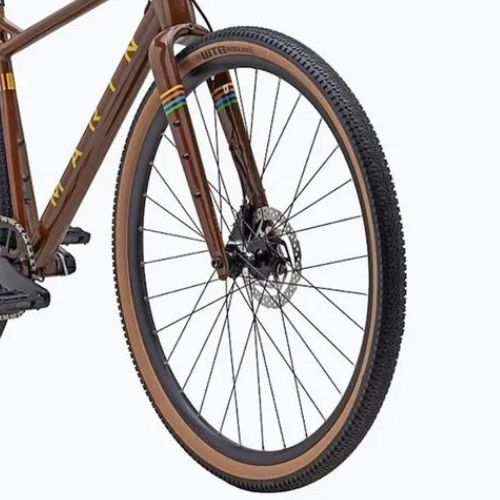

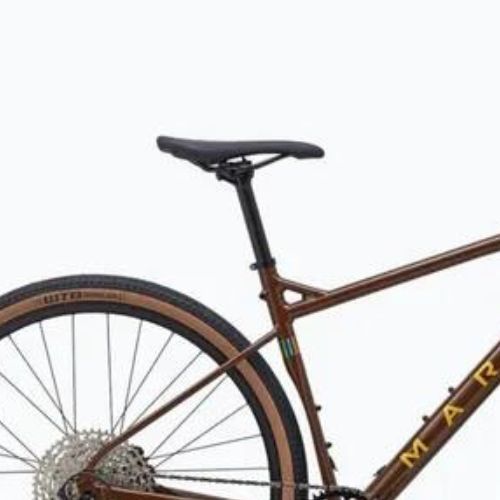

Marin DSX 2 gloss brown/yellow gravel bike

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code DSX 2 A-2482F-F1-17

Leading colour Brown

Brand Marin

Country of origin of the brand USA

Gender Male, Woman

Season Year-round

Handlebar stem material Aluminium

Crank mechanism Forged Aluminum, 42T Steel Narrow Wide Chainring

Grips Marin MTB, Closed End

Wheel size 28"

Frame Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, 142x12mm Thru-Axle

Derailleurs 1x12

Cassette / Freewheel Shimano Deore 12-Speed, 10-51T

Sport Bicycles

Rear derailleur (model) Shimano Deore 12-Speed

Handles Shimano Deore 12-Speed

Depreciation No

Fork material Carbon

Brakes (model) Shimano MT201/UR300 Flat Mount Hydraulic Disc, 160mm Rotor

Chain KMC X12

Type of derailleur Mechanical

Handlebar support Marin 3D Forged Alloy

Bar Marin Alloy

Pedals included Yes

Tyres WTB Riddler, 700Cx45mm

Frame material Aluminium

Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

spokes 14g Black Stainless Steel

Saddle Marin DSX

Steering wheel Marin MiniRiser

Brake type Hydraulic discs

Number of gears 12

Wheels Marin Aluminum Double Wall, 21mm Inner, Disc Specific

Folding condition of the bike Bike adjusted and pre-assembled

Hubs Shimano Forged Aluminum, 142x12mm, Microspline, Disc, 32H, Forged Aluminum, 100x12mm, Disc, 32H

Frame material Aluminium

Rudders FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Marin DSX 2 gloss brown/yellow gravel bike 2

Sizes table

Size	M
Height (cm)	168-178
A - STACK	572,5
B - REACH	405
	69,5
D - Steering tube (mm)	150
E - Kąt siodełka (°)	74
	480
	569,2
	279,5
	80
	425
	1060
	700,51
	50

Product description

Advantages

Aluminium frame

This bike model has been made with the right materials to ensure maximum comfort. Durable aluminium was used for the frame, which stands out for its lightness. In addition, this material is characterised by a high strength index and resistance to bending.

Hydraulic disc brakes

This model of bike uses a reliable type of brake, the hydraulic disc. This type provides high braking power and modulation regardless of road conditions. In addition, the brakes have a low failure rate.

28" wheels

The 28-inch wheels are characterised by prolonged wear and allow faster speeds, which are far easier to maintain. Compared to smaller sizes, these wheels provide better stability at higher speeds.

Carbon fork

The material used to make this fork is characterised by extreme lightness. The carbon fork is characterised by its high ability to absorb the power generated when riding over rough terrain and combines strength and low weight.
