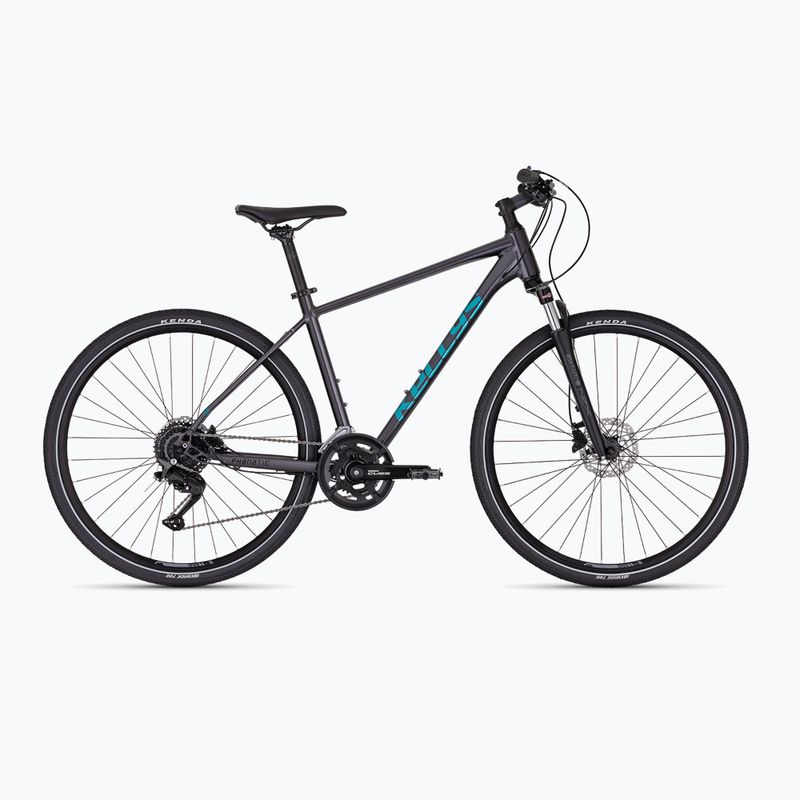

Kellys Phanatic 50 is a cross bike that combines performance with modern design. Equipped with a lightweight frame, suspension fork, and precise drivetrain, it provides comfort on various surfaces. The anthracite color gives it an elegant look, and reliable brakes ensure safety.

Basic data

Brand Kellys
Country of origin of the brand European Union
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour Grey
Model/product code Phanatic 50 76461
Code 2000143135

Frame

Frame KELLYS Crossforce Lite - tapered HT, internal routing, integrated kickstand mount
Frame material Aluminium

Components

Steering wheel KLS CRX 70 RiseBar - diam 31.8 mm / rise 25 mm / width 640 mm (S - M), 660 mm (L - XL)
Handlebar support KLS Advanced - diam 28.6 mm / bar bore 31.8 mm / 7° / length 90 mm (M - L), 110 mm (XL)
Grips KLS Token 2Density
Depreciation Front
Rudders Semi-integrated
Fork SR SUNTOUR NEX RL DS, 63 mm, coil / Remote Speed Lockout
Bar KLS Active - diam 30.9mm / length 400mm

Drive

Derailleurs 2x9
Number of gears 18
Front derailleur (model) SHIMANO Cues U4010-L (34.9 mm)
Rear derailleur (model) SHIMANO Cues U4020 (direct mount)
Handles SHIMANO Cues SL-U4010-9R Rapidfire Plus
Crank mechanism SHIMANO Cues U4010-2 (46x30T) - length 175 mm
Cassette / Freewheel SHIMANO Linkglide CS-LG300-9 (11-36T)
Chain SHIMANO Linkglide CS-LG500

Brakes

Brakes (model) Shimano MT200 Hydraulic Disc
Brake type Hydraulic discs

Wheels

Wheel size 28"
Wheels KLS Draft Disc 622x21 rims
Tyres SCHWALBE CX Comp 40-622 (700x38C) K-Guard, ReflectiveLine
Hubs SHIMANO TX505 Disc Center Lock
spokes Steel

Additional information

Pedals included Yes

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer KELLYS BICYCLES s.r.o. | Slnečná cesta 374, 922 01 Veľké Orvište, Słowacja | kellys@kellysbike.com

Kellys Phanatic 50 anthracite cross bike (76461)

Assembly condition and basic components

The Kellys Phanatic 50 anthracite cross bike is delivered in a pre-assembled and adjusted state. This model is equipped with a SHIMANO Linkglide CS-LG500 chain, which ensures smooth and reliable power transmission. The bike comes with pedals included, making it ready to use immediately after assembly is completed.

Drive system and gearing

The drive system design of the Kellys Phanatic 50 anthracite bike is based on SHIMANO Cues SL-U4010-9R Rapidfire Plus shifters, which allow precise gear changes. The bike is equipped with a SHIMANO Cues U4010-2 crankset with two chainrings (46x30T), as well as a SHIMANO Linkglide CS-LG300-9 cassette with an 11-36T range. This provides 18 gears, allowing adjustment of the gearing to various terrain conditions.

Suspension components and handlebar

The Kellys Phanatic 50 anthracite bike is equipped with an SR SUNTOUR NEX RL DS fork with front suspension and 63 mm travel. The fork features a Remote Speed Lockout function, enabling suspension lockout when riding on flat terrain. The KLS CRX 70 RiseBar handlebar with a diameter of 31.8 mm and a rise of 25 mm is available in two widths: 640 mm for sizes S - M and 660 mm for sizes L - XL, providing a comfortable riding position.

Wheels and additional components

The Kellys Phanatic 50 anthracite bike is equipped with 28-inch wheels, allowing smooth overcoming of terrain irregularities. SHIMANO TX505 Disc Center Lock hubs ensure durability and stability, while steel spokes further reinforce the wheel structure. KLS Token 2Density grips provide a comfortable and secure hold, which is important during longer rides.

Technical summary

The Kellys Phanatic 50 anthracite cross bike is a versatile model that combines precision craftsmanship with modern technical solutions. Thanks to high-quality SHIMANO components and a solid construction, it is an excellent choice for those seeking a reliable bike for diverse off-road applications.

Feedback

There are no reviews yet, be the first!

Review this product

Kellys Phanatic 50 anthracite cross bike

Kellys Phanatic 50 anthracite cross bike

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Kellys Phanatic 50 anthracite cross bike

No opinion

Bike assembly service available

Size Sizes table
Choose an Option...

Choose an Option

Sizes table

    Below you will find information that will help you choose the right size when purchasing the Phanatic 50 bike from the Kellys brand.

    Size S M XL
    Height (cm) 155-170 165-180 175-190
    S/T (mm) 480 530 580
    L (mm) 591 610 630
    Reach (mm) 402 418 435
    Stack (mm) 619 628 638
    H/T (mm) 130 140 150
    S/T (°) 73 73 73
    H/T (°) 70,5 70,5 70,5
    BB (mm) 57 57 57
    RC (mm) 452 452 452
    WB (mm) 1091 1111 1131
