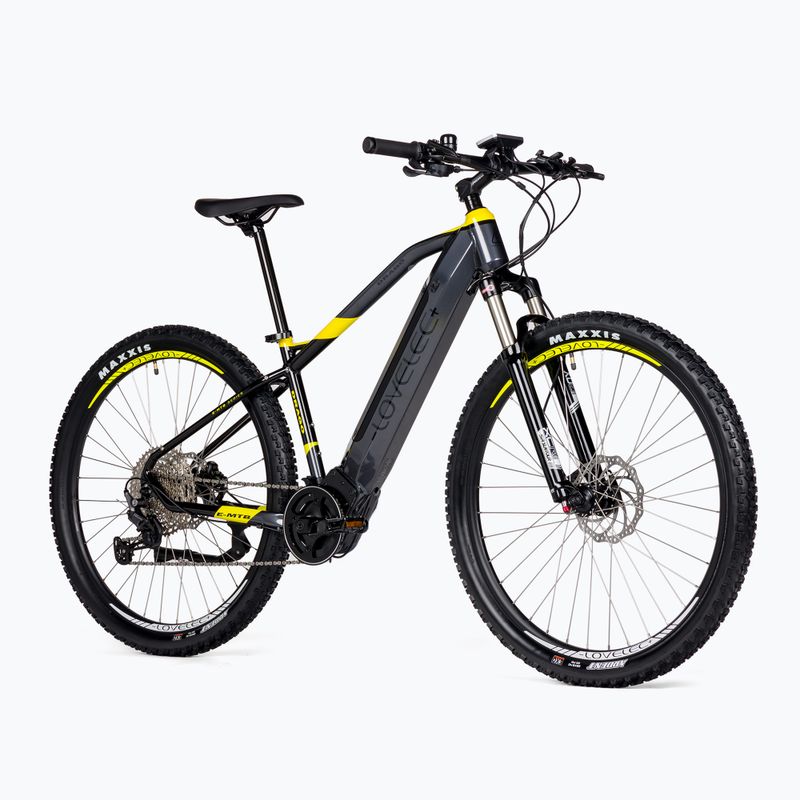

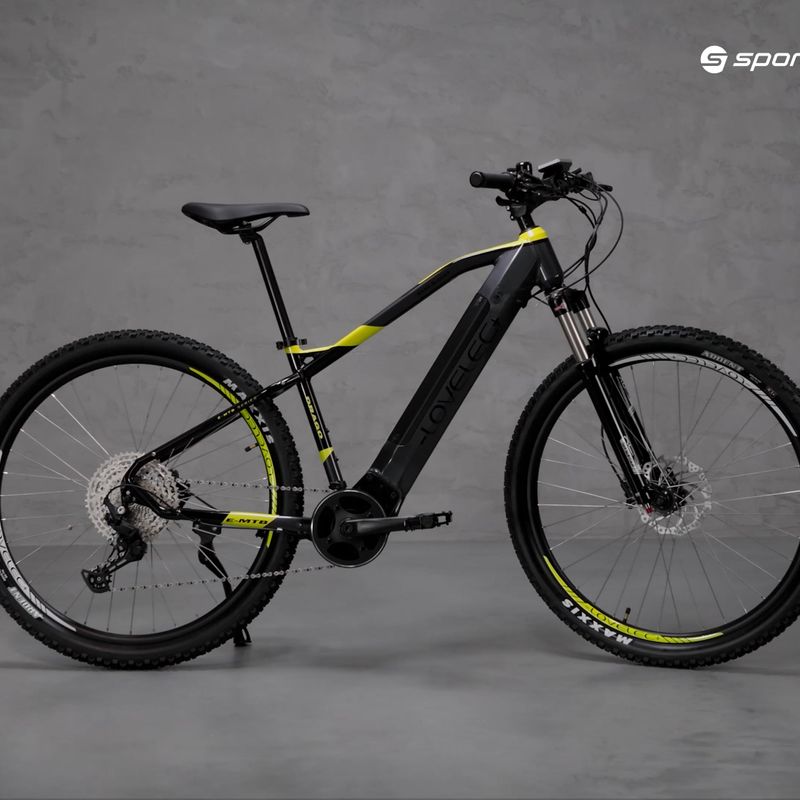

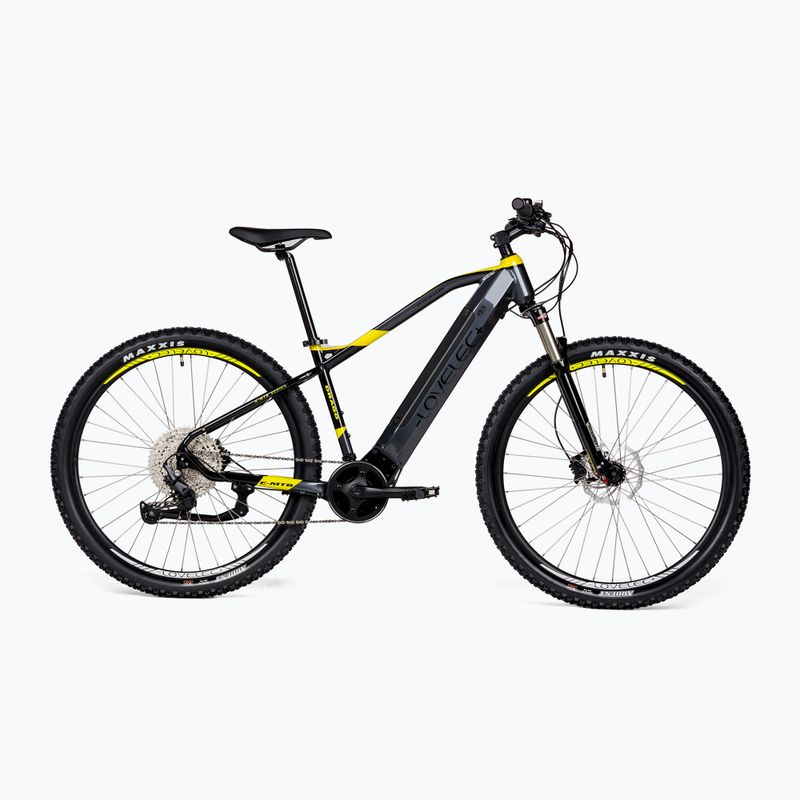

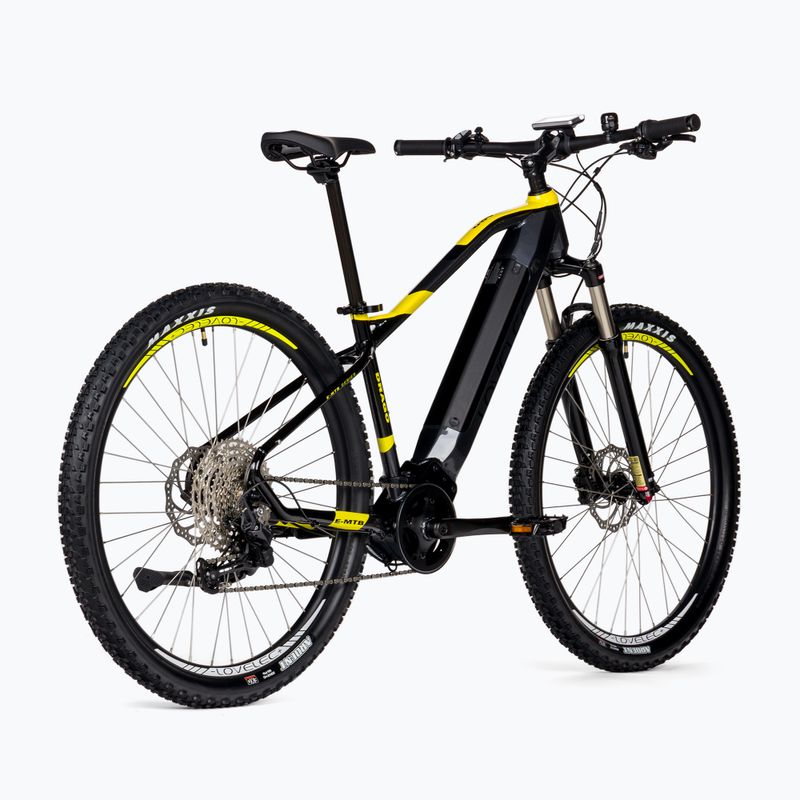

LOVELEC Drago 20Ah grey-yellow electric bicycle B400252

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model/product code Drago 20Ah B400252

Leading colour Grey

Brand LOVELEC

Country of origin of the brand European Union

Gender Male, Woman

Season Year-round

Engine location Central

Engine power 250 W

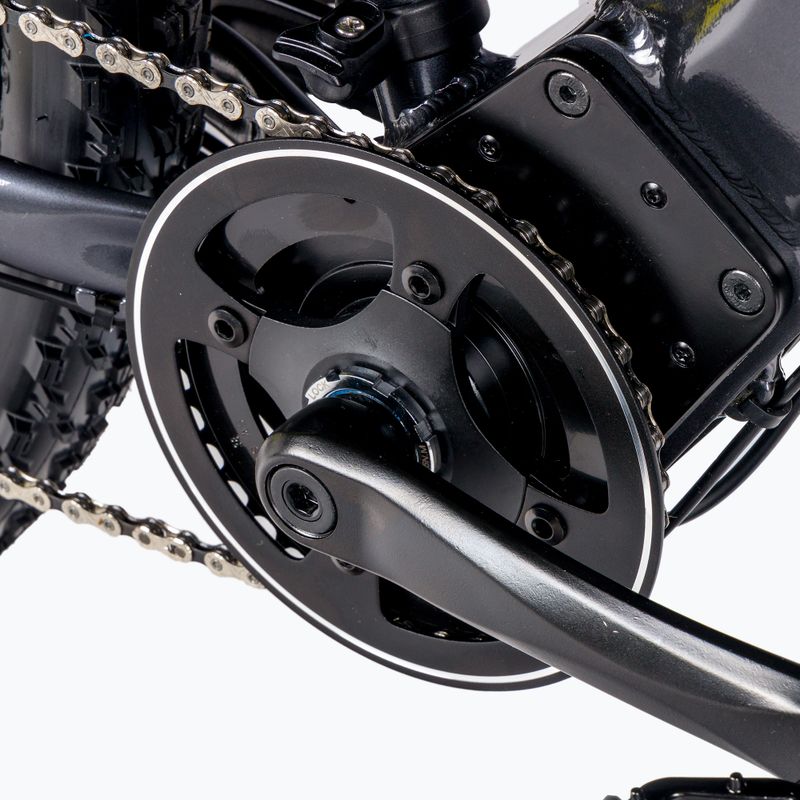

Crank mechanism Prowheel, 175mm

Wheel size 29"

Frame 17", 19", 20,5"

Derailleurs 1x11

Sport Bicycles

Cassette / Freewheel SunRace CSMS7 11-51T

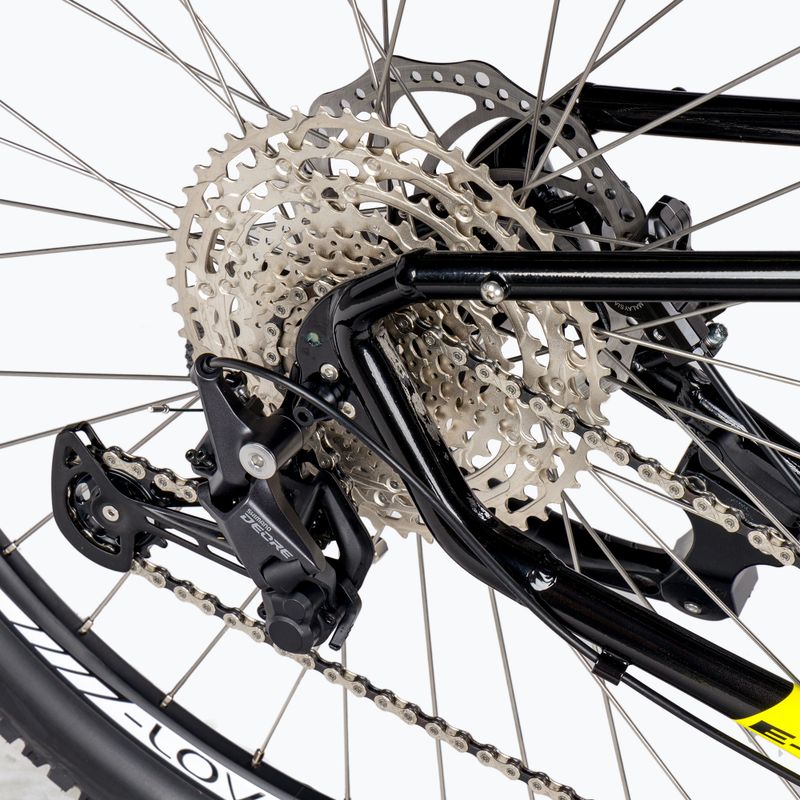

Rear derailleur (model) Shimano Deore 11-51 11-speed

Depreciation Front

Battery location In the frame

Brakes (model) Shimano MT501

Purpose MTB

Maximum range 165 km

Chain KMC

Tubeless ready tyres Yes

Tyres Maxxis Ardent, 29 x 2.4

Frame material Aluminium

Fork Suntour X1 Air

Charger EN CE 36V 2A

Engine model DAPU

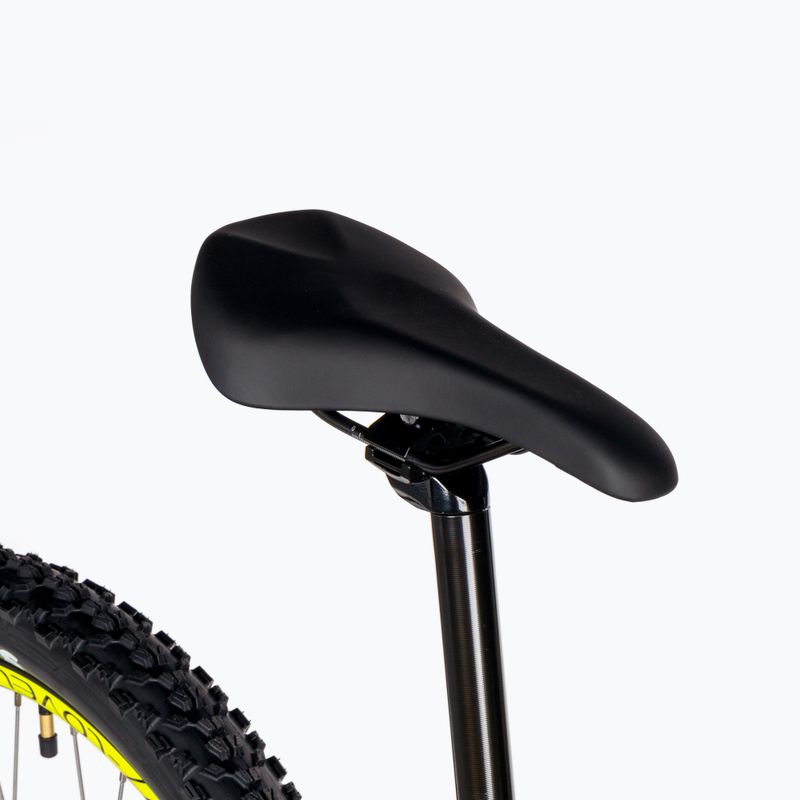

Saddle Selle Royal

Weight of bike (estimated) 24,5 kg

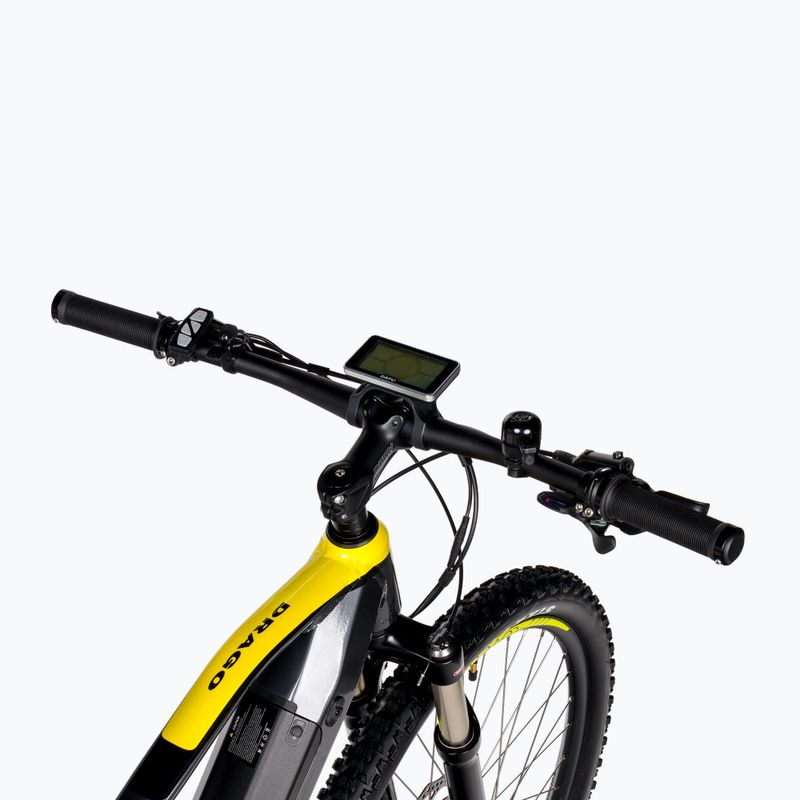

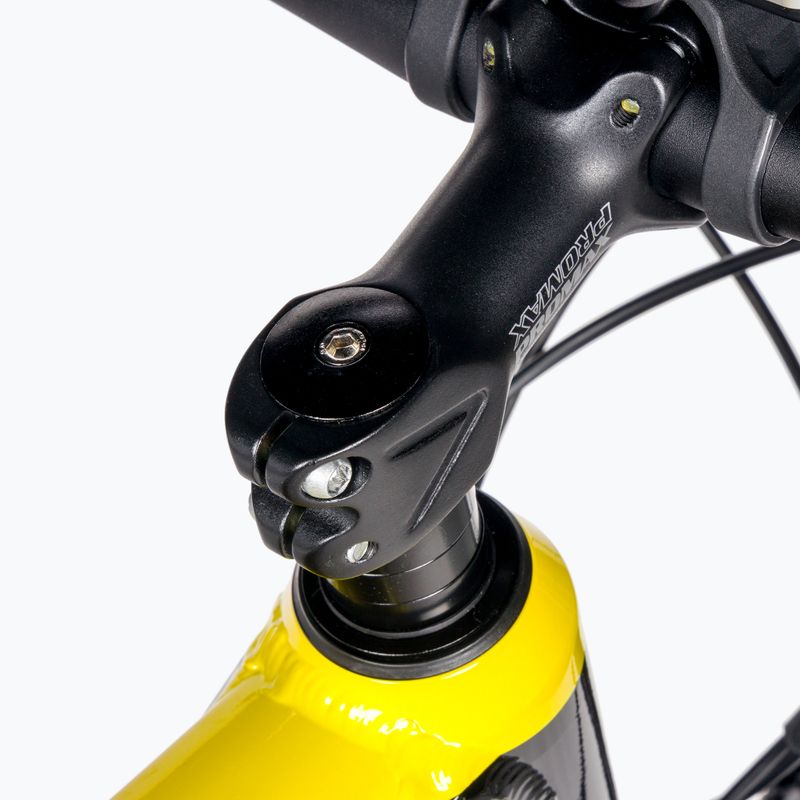

Steering wheel Promax, 720mm

Maximum engine power 750 W

Brake type Hydraulic discs

Number of gears 11

Battery capacity 20Ah

Stan złożenia roweru Bike adjusted and pre-assembled

Hubs Modus

Maximum torque 95 Nm

Battery type Lithium-ion

Maximum speed 25 km/h

Maximum user weight 140 kg

LOVELEC Drago 20Ah grey-yellow electric bicycle B400252 2

LOVELEC Drago 20Ah grey-yellow electric bicycle B400252

Sizes

Size	17"	19"	20,5"
Height (cm)	160-175	175-188	185-195
A - angle of the head tube	67	67	67
B - seat tube angle (mm)	72	72	72
C - effective top tube length (mm)	605	620,9	635
D - top tube length (mm)	578,2	590,5	604,4
E - seat tube length (mm)	430	480	520
F - rear triangle length (mm)	480	480	480
G wheels base (mm)	1166,7	1182,6	1198,6
H - head tube height (mm)	130	130

Product description

Advantages

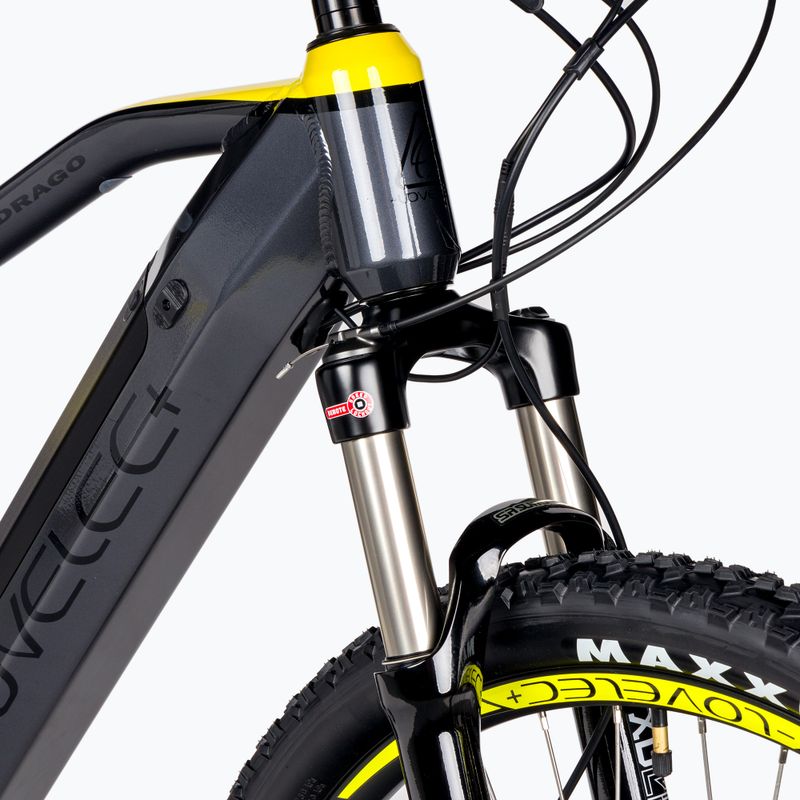

Front cushioning

The cushioning makes cycling over uneven ground much more pleasant and comfortable. This model is equipped with front suspension, which ensures safety and absorbs the force when the front wheel hits an obstacle.

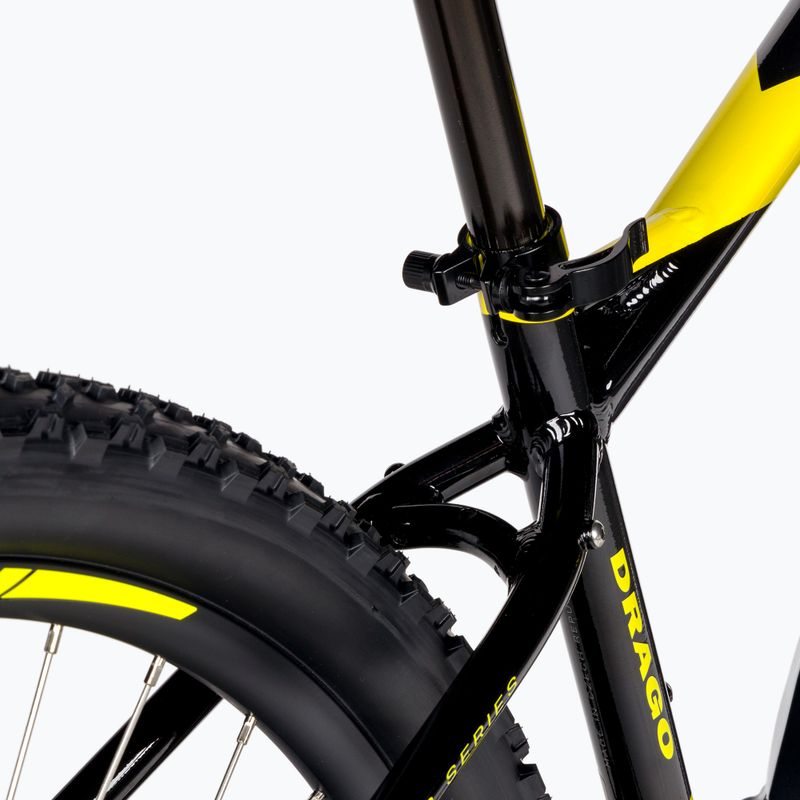

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

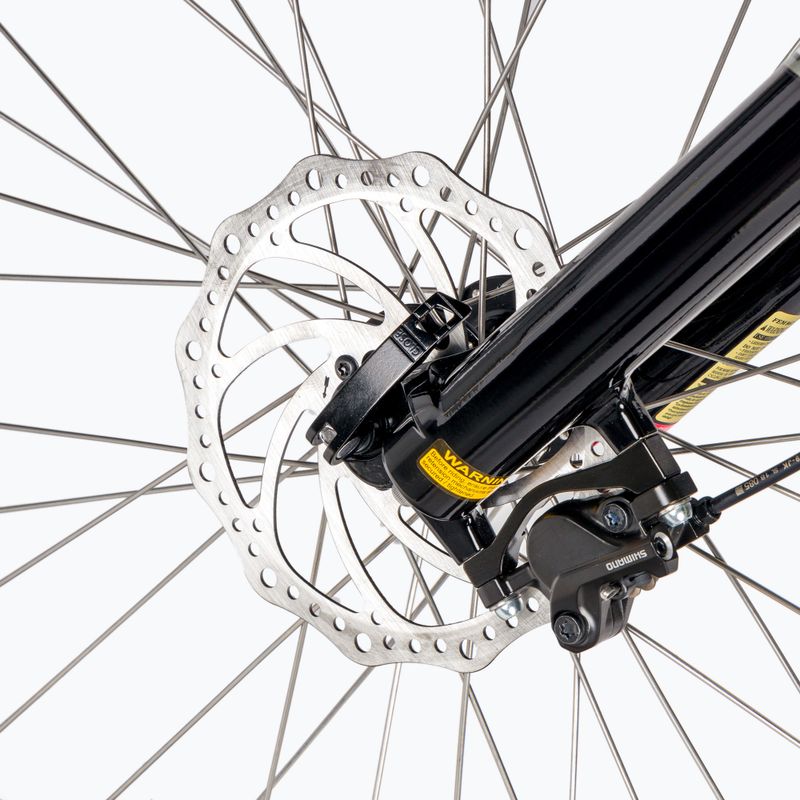

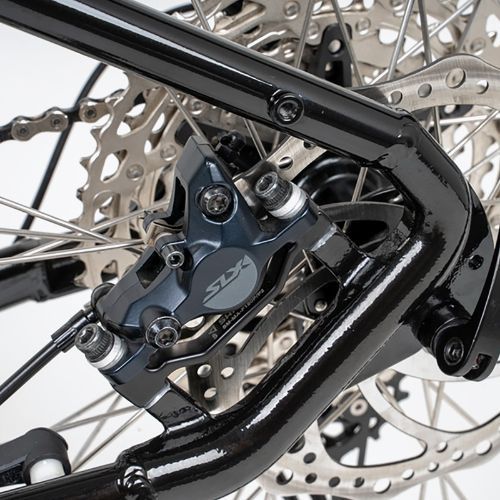

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

Tubeless ready tyres

Thanks to the use of Tubeless Ready (TLR) technology, the tyres are resistant to punctures and lower pressures can be applied. Furthermore, the system eliminates the problem of Snake Bite ", i.e. puncturing the inner tube by pinching it against the rim."

Drive 1x11

The 1x11 derailleurs used on this e-bike model guarantee smooth gradation and allow effortless gear changes. The large gear range allows you to adapt the gear to the current road conditions.

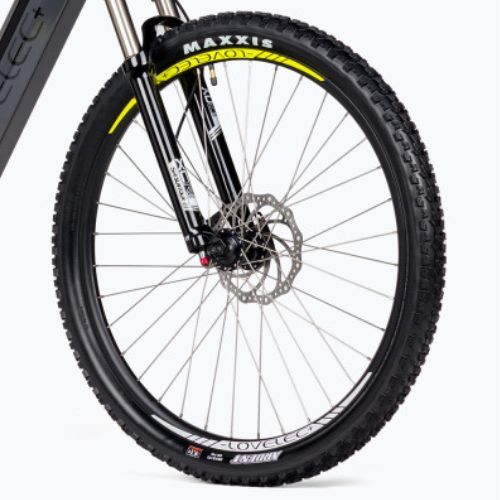

29" wheels

The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over difficult terrain. This size guarantees good stability when riding at higher speeds."
