Orbea MX 24 XC is a lightweight and durable children's mountain bike. Ideal for off-road riding, equipped with reliable components and a suspension fork. An excellent choice for young cyclists.

Basic data

Brand Orbea
Country of origin of the brand Spain
Sport Bicycles
Gender Boy, Girl
Season Year-round
Leading colour Orange
Model/product code MX 24 XC R00524KK
Code 2000103809

Frame

Frame Orbea MX 24 6061 Aluminum 2021, 135x9 QR, V-Brake + IS Disc Mount, 27.2 Seat Post, Internal Cable Routing
Frame material Aluminium

Components

Steering wheel Orbea Alu integrated cockpit 540mm
Depreciation Front
Rudders VP-Z104PD 1-1/8" Semi-Cartridge
Fork SR Suntour XCT-JR w/Preload adjuster Coil 50mm QR
Saddle DDK D2405 256x138mm
Bar Alloy 27.2x300mm Offset 0

Drive

Derailleurs 1x7
Number of gears 7
Rear derailleur (model) Shimano Altus M310
Handles Shimano SL-M315
Crank mechanism Extra light 36t, 152mm, w/Chainguard
Cassette / Freewheel Shimano TZ31 14-34t 7-Speed
Chain KMC Z7 GYBR

Brakes

Brakes (model) Junior alloy V-brake
Brake type Mechanical jaws

Wheels

Wheel size 24"
Wheels Orbea Alloy 24"
Tyres Kenda Booster K1277 24x2.20" 30TPI

Additional information

Mudguards Orbea Custom fork
Pedals included Yes
Side wheels No
Maximum user weight 50 kg
Age of child 6-10 years
User height range 125 - 150 cm
Height to saddle 66,4 - 81 cm

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | info@orbea.com

Orbea MX 24 XC 2024 mango/black children's bike (R00524KK)

Orbea MX 24 XC 2024 is a children's bike designed to enable young cyclists to experience true freedom and joy of riding. This model perfectly combines a lightweight construction with comfort and control, making it an excellent choice for children eager to develop their cycling passion.

The frame made of 6061 aluminum guarantees an optimal balance between low weight and durability. This alloy is known for its high resistance to corrosion and mechanical damage, which translates into a long lifespan of the bike. The frame design includes a QR 135x9 mounting system and compatibility with V-brake and IS Disc Mount brakes, thereby increasing the versatility of the bike.

Orbea MX 24 stands out with internal cable routing, which not only enhances aesthetics but also protects the cables from damage and dirt. This solution ensures smoother component operation and reduces the need for frequent maintenance. Additionally, the frame is equipped with Orbea Custom fork mudguards, protecting young riders from mud and water during rides in varying weather conditions.

Excellent grip and stability on different surfaces are made possible by Kenda Booster K1277 tires measuring 24x2.20" with a 30TPI casing. These durable tires provide confidence and control when cornering and riding on varied terrain, which is crucial for the safety of young cyclists.

Comfortable and controlled riding is thanks to the SR Suntour XCT-JR fork with preload spring tension adjustment and a 50 mm travel. This fork effectively absorbs terrain irregularities, resulting in a smoother and more comfortable ride, increasing control over the bike, especially when riding on uneven surfaces.

Product Details

Orbea MX 24 XC 2024 mango/black children's bike

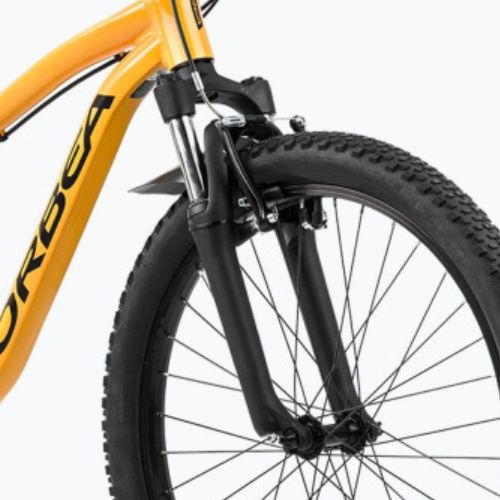

Effective braking

Effective braking is thanks to the Junior alloy V-brake, which has been designed specifically for young cyclists. These brakes offer excellent stopping power and control, which is crucial when riding in challenging terrain. With them, children can feel confident and safe, having full control over their bike during descents and sudden stops.

Orbea MX 24 XC 2024 mango/black children's bike

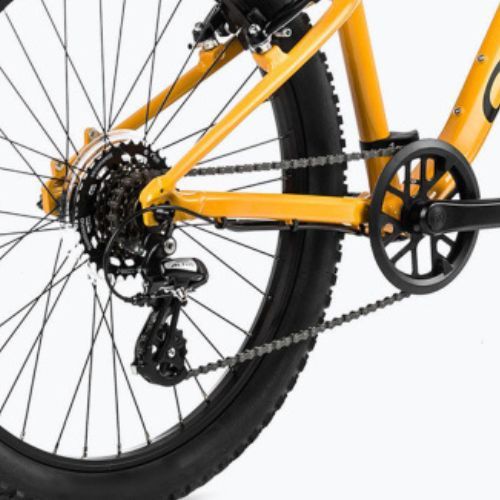

Precise gear change

Precise gear shifting is achieved through the use of the Shimano Altus M310 rear derailleur. This system provides smooth and reliable gear changes, making it easier to adapt the bike to various terrain conditions and increasing pedalling efficiency. As a result, young cyclists can enjoy a smooth and comfortable ride.

Orbea MX 24 XC 2024 mango/black children's bike

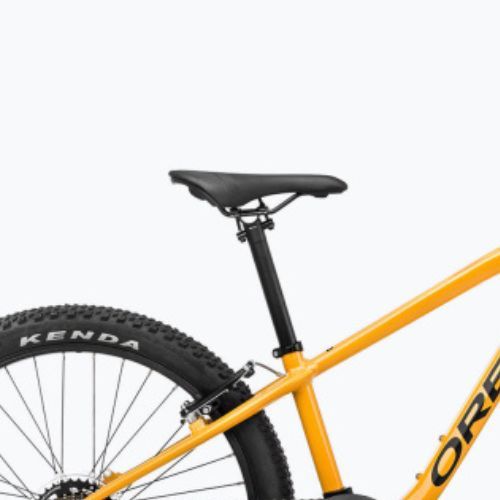

Comfortable saddle

The DDK D2405 saddle, measuring 256x138 mm, provides comfort during long rides. This ergonomic saddle is designed to meet the needs of young cyclists, offering support and comfort while riding, reducing fatigue and discomfort.

Orbea MX 24 XC 2024 mango/black children's bike

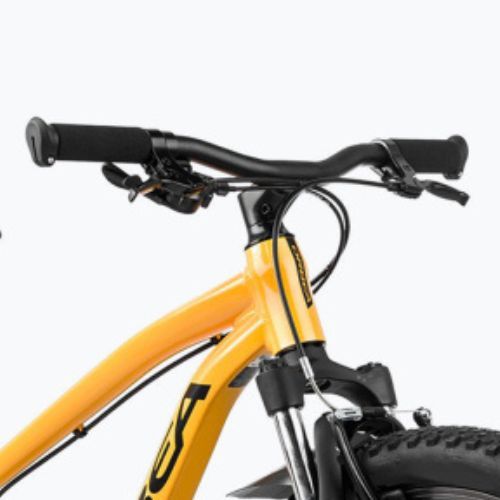

Stable and comfortable riding position

A stable and comfortable riding position is thanks to the Orbea Alu integrated cockpit handlebar, which is 540 mm wide. The ergonomic shape of the handlebar allows for a secure grip and control over the bike, which is crucial when riding in challenging terrain. The wide handlebar enhances the bike's stability and manoeuvrability, which is important during fast descents and technical sections of the trail.

Feedback

There are no reviews yet, be the first!

Review this product

Orbea MX 24 XC 2024 mango/black children's bike

Orbea MX 24 XC 2024 mango/black children's bike

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Orbea MX 24 XC 2024 mango/black children's bike

No opinion

Bike assembly service available

Size OS Sizes table
Choose an Option...

Choose an Option

Sizes table

    Size OS
    Size (inches) OS
    Height (cm) 125-150
    A - Seat tube (mm) 300
    B - Horizontal pipe (mm) 486
    C - Steerer tube (mm) 100
    D - Rear triangle (mm) 395
    E - Support height (mm) 280
    F - Support lowering (mm) 35
    G - Wheelbase (mm) 962
    H - Head angle 68
    I - Seat tube angle (°) 74
    J - Crossover (mm) 575
    K - Reach (mm) 355
    L - Stack (mm) 456
    M - Fork (mm) 366
