The electric bike Orbea Vibe Mid H30 EQ provides a smooth ride thanks to its versatile drivetrain and comfortable design, perfect for daily commuting and recreational rides.

Basic data

Brand Orbea
Country of origin of the brand Spain
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour Beige
Model/product code Vibe Mid H30 EQ R30649W1
Purpose City/urban
Code 2000097378

Frame

Frame Orbea Vibe Mid Bar Hydro 6061, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire
Frame material Aluminium

Components

Steering wheel Alloy 31.8mm 12mm Rise 700mm
Handlebar support Alloy forged, -6º, ICR
Depreciation No
Rudders Acros Alloy 1-1/2" Internal Cable Routing
Fork Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm
Fork material Carbon fibre
Saddle Selle Royal Lift 1404 HRN 266x170mm
Bar Alloy, 27.2mm, Setback 20

Drive

Derailleurs 1x8
Number of gears 8
Rear derailleur (model) Shimano Acera M3020
Handles Shimano SL-M315
Crank mechanism CR01, Forged alloy, 42t, w/Chainguard
Cassette / Freewheel Shimano CS-HG400 11-40t 8-Speed
Chain KMC X8

Brakes

Brakes (model) Shimano MT200 Hydraulic Disc
Brake type Hydraulic discs

Wheels

Wheel size 28"
Wheels Alloy, Tubeless, 700c, 21c
Tyres Kenda K1052 700x45C Reflective type+puncture protection
Hubs Orbea Thru Axle 12x100mm M12x2 P1 Hollow - front hub
Tubeless ready wheels Yes

Engine

Engine model Mahle motor hub X35 Plus 25kmh ( brushless )
Engine location Hub
Engine power 250 W
Maximum torque 40 Nm

Battery

Battery capacity 248 Wh
Charger Mahle X35

Additional information

Support Yes
Bell Yes
Lighting Yes
Mudguards Yes
Luggage carrier Yes
Pedals included Yes

Warnings and producer's data

Standards, certificates CE
Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | info@orbea.com

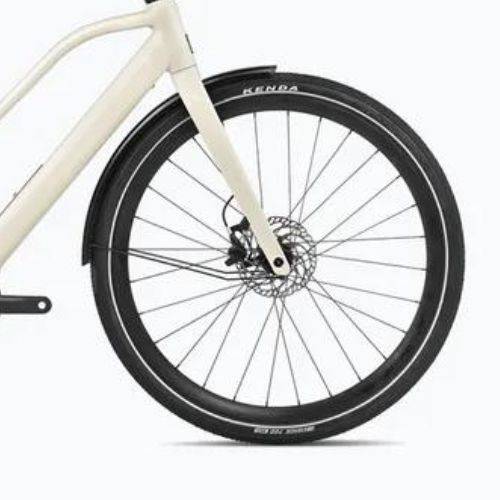

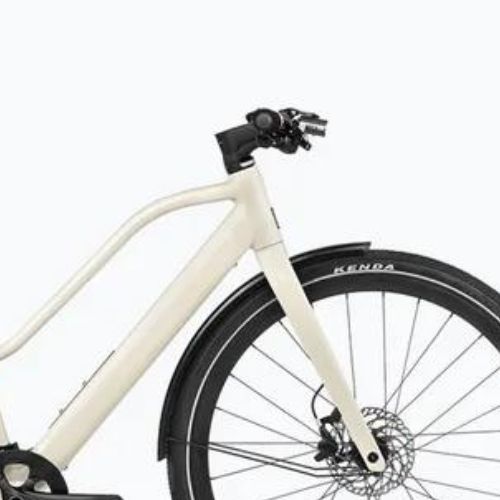

Electric bicycle Orbea Vibe Mid H30 EQ 36V 6.9Ah 248Wh 2024 ivory white (R30649W1)

Orbea Vibe Mid H30 EQ Electric Bike is the perfect combination of urban functionality and ease of use. It was designed with a modern lifestyle in mind, offering an elegant, reliable, and lightweight means of transport that works perfectly both in apartments and workplaces.

The Enough Energy Concept is a new way of riding an electric bike. Vibe is a new type of ebike – minimalist, integrated, and elegant, without large, cumbersome components that could disrupt the riding experience. This allows the user to feel that less "e" can ultimately deliver more "bike".

The Orbea Urban Geometry concept was designed with urban bike use in mind. A more upright riding position provides better visibility and comfort, giving the rider a sense of security. The perfect balance and responsive handling make the bike stable yet agile. The low-bar frame option makes mounting the bike easier for people with reduced mobility or those wearing restrictive clothing.

The Ebikemotion X35 Plus System is the heart of the Vibe bike. The rear hub motor is a key element of the Enough Energy concept. The advanced drive system provides smooth and reliable assistance at levels designed to discreetly boost the rider's power. The hub motor minimizes resistance when pedaling without assistance, allowing for nearly inertial pedaling. The Vibe torque simulation algorithm mimics the power applied to the pedals to deliver more power when needed and save energy during light pedaling.

Vibe has only one external cable connection, enabling easy removal of the rear wheel. The cable is carefully hidden under the rear triangle and concealed beneath a smoothly integrated cover. Battery access is located under the bottom bracket, which is also invisible, and the stem cover blends seamlessly into the top tube.

The battery is one of the most noticeable components of the eBike system, so every effort was made to find the lightest, smallest, and most discreet unit. The Enough Energy concept in the Vibe model provides sufficient energy, eliminating the need for a large, heavy battery that must be removed from the bike.

The Orbea Urban Speed frame is made of 6000 series aluminum, ensuring lightness and durability. Orbea Tube Shaping technology and Flat Mount disc brakes installed as standard add modernity and functionality. The 135x9 QR axle spacing provides stability and smoothness, which is crucial both in urban traffic and on long distances.

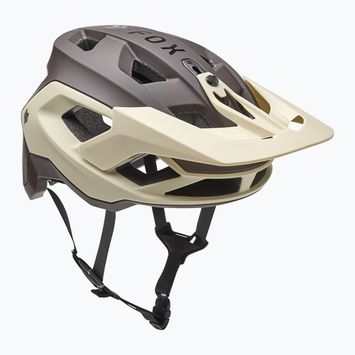

Fox Racing Speedframe 5050 cream bike helmet
Size
55-59 cm (M)
59-63 cm (L)
Choose an Option...

Choose an Option

  • 55-59 cm (M) €129.99 €109.99
  • 59-63 cm (L) €129.99 €109.99
Add to Wish List
Elite FLY Tex 550 ml cycling bottle beige
Size
550 ml
Choose an Option...

Choose an Option

  • 550 ml €7.19
Add to Wish List
Battery for SRAM eTap/eTap AXS/Eagle AXS derailleurs black 00.3018.102.000
Size
OS
Choose an Option...

Choose an Option

  • OS €66.99 €54.99
Add to Wish List
SP CONNECT Bike Bundle Universal Phone Clamp SPC+ kit
Size
OS
Choose an Option...

Choose an Option

  • OS €47.99 €35.99
Add to Wish List
Knog Plus Twinpack front+rear bike light set 12144
Size
40 + 20 lm
Choose an Option...

Choose an Option

  • 40 + 20 lm €39.99 €29.99
Add to Wish List
Topeak Joe Blow Max Hp bicycle floor pump black T-TJB-M2B
Size
OS
Choose an Option...

Choose an Option

  • OS €39.99 €29.99
Add to Wish List
Feedback

There are no reviews yet, be the first!

Review this product

Electric bicycle Orbea Vibe Mid H30 EQ 36V 6.9Ah 248Wh 2024 ivory white

Electric bicycle Orbea Vibe Mid H30 EQ 36V 6.9Ah 248Wh 2024 ivory white

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Electric bicycle Orbea Vibe Mid H30 EQ 36V 6.9Ah 248Wh 2024 ivory white

No opinion

Bike assembly service available

Size Sizes table
Choose an Option...

Choose an Option

Sizes table

    Size S M L
    Height (cm) 150-165 165-175 175-190
    A - Seat tube (mm) 455 490 525
    B - Horizontal pipe (mm) 517 540 562
    C - Steerer tube (mm) 108 140 160
    D - Rear triangle (mm) 435 435 435
    E - Support height (mm) 280 280 280
    F - Support lowering (mm) 76 76 76
    G - Wheelbase (mm) 1026 1048 1040
    H - Head angle 70 70,5 71,5
    I - Seat tube angle (°) 75 74,5 74
    J - Crossover (mm) 723 732 747
    K - Reach (mm) 380 395 400
    L - Stack (mm) 546 580 600
    M - Fork (mm) 410 410 410
