Basic data

Sport Bicycles
Brand Marin
Leading colour Gold
Season Year-round
Model/product code Rift Zone XR GX 29 A-1260X-X2-19
Gender Male, Woman
Country of origin of the brand USA
Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Code 2000101934

Frame

Frame Series 3 6061 Aluminum, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle
Frame material Aluminium

Components

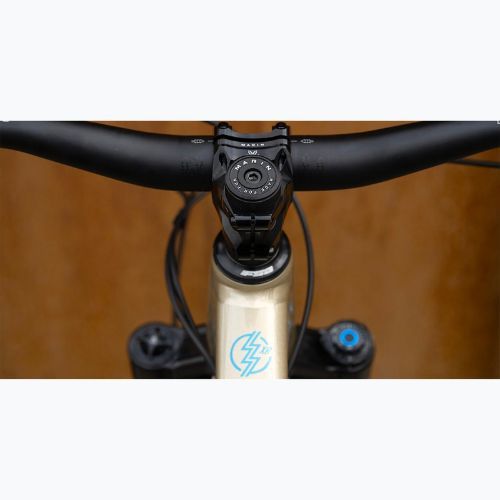

Steering wheel Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Handlebar support Marin CNC, 35mm Length, 35mm Bar Bore
Grips Marin Grizzly Lock On
Depreciation Full
Rudders FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

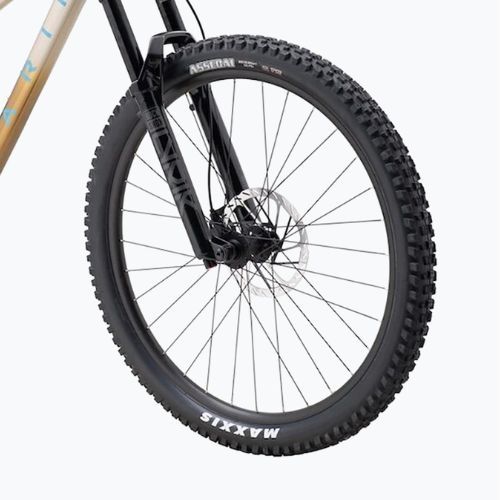

Fork RockShox Lyrik Select+, 150mm Travel, 29" wheels, 110x15 Maxle Stealth, 42mm Offset
Damper Fox Float X, Performance Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x55mm, M8x30mm, M8x25mm
Saddle Marin Speed Concept
Bar TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm

Drive

Derailleurs 1x12
Number of gears 12
Rear derailleur (model) SRAM GX Eagle Lunar
Handles SRAM GX Eagle Lunar MMX Mount
Suport SRAM DUB MTB 73

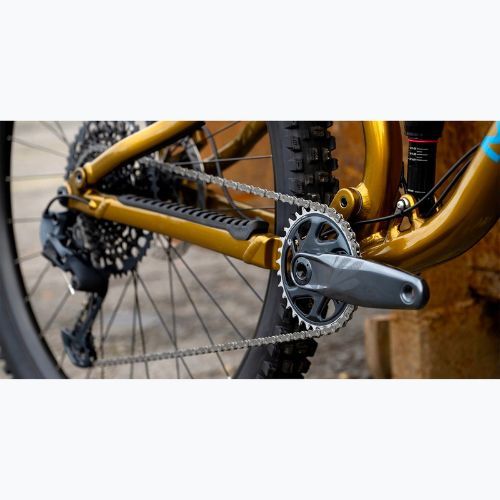

Crank mechanism SRAM GX Eagle, 32T, 55MM CL, 170MM Length
Cassette / Freewheel SRAM XG 1275 Eagle Cassette 10-52T
Chain SRAM NX Eagle

Brakes

Brakes (model) SRAM DB8 4-Piston Hydraulic Disc
Brake type Hydraulic discs
Brake discs 200 mm front / 180 mm rear

Wheels

Wheel size 29"
Wheels Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
Tyres Maxxis Assegai, 29x2.5", MAXX TERAA, EXO, Tubeless Compatible
Hubs Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h, Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H
spokes 14g Black Stainless Steel
Tubeless ready wheels Yes
Tubeless ready tyres Yes

Additional information

Pedals included No
Folding condition of the bike Bike adjusted and pre-assembled

Warnings and producer's data

Producer Marin Bikes | 1450 Technology Lane, Suite 100, Petaluma, CA 94954, USA | [email protected] | MOTOR-LAND SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ | Kolejowa 362/364 05-092 Dziekanów Nowy Polska | [email protected]

Advantages

Aluminium frame
When designing this bike, the focus was on selecting the right materials to ensure the highest quality. Therefore, the frame is made of aluminium, which combines durability and low weight.
Hydraulic disc brakes
This mountain bike model uses hydraulic disc brakes, which have a very low failure rate, so they will be trouble-free even during frequent use. The undoubted advantage is greater braking power and modulation.
Tubeless ready tyres
The use of TLR (Tubeless Ready) technology has made it possible to use lower pressures and makes the tyres resistant to punctures. What's more, the system rules out the problem of ‘Snake Bite’, i.e. puncturing the inner tube by pinching it against the rim.
Full shock absorption
Allows easier traversing of off-road obstacles. Front and rear shock absorbers provide maximum wheel traction control and a balanced ride on the ground. The full suspension bike is very comfortable and soft to ride.
Drive 1x12
This bike uses 1x12 derailleurs, which provide smooth gradation and allow effortless gear changes. The large range of gear ratios allows you to adapt the gear to your current needs.
29" wheels
The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over difficult terrain. This size guarantees good stability when riding at higher speeds.
-27%
Bicycle helmet Alpina Roca black matte
You save €60.00 €219.99
€159.99
Size
56-58 cm
59-60 cm
Choose an Option...

Choose an Option

  • 56-58 cm €219.99 €159.99
  • 59-60 cm €219.99 €159.99
Add to Wish List
-19%
Elite bicycle kit Custom Race Plus basket + Elite Fly Tex Maillot Jaune 550 ml bottle black
You save €5.00 €26.99
€21.99
Size
550 ml
Choose an Option...

Choose an Option

  • 550 ml €26.99 €21.99
Add to Wish List
-18%
Zefal Magnum Pro 975ml smoked black/cyan blue/gray bicycle bottle
You save €2.00 €10.99
€8.99
Size
975 ml
Choose an Option...

Choose an Option

  • 975 ml €10.99 €8.99
Add to Wish List
-7%
Elite Crono CX Kit 500 ml bicycle bottle + basket black
You save €2.00 €28.99
€26.99
Size
OS
Choose an Option...

Choose an Option

  • OS €28.99 €26.99
Add to Wish List
Feedback

There are no reviews yet, be the first!

Review this product

Marin Rift Zone XR GX 29 gloss brown/light blue mountain bicycle

Marin Rift Zone XR GX 29 gloss brown/light blue mountain bicycle

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Marin Rift Zone XR GX 29 gloss brown/light blue mountain bicycle

No opinion

Size Sizes table
Choose an Option...

Choose an Option

Sizes table

    Size S M L XL
    Height (cm) 160-168 168-178 178-188 188-193
    A - STACK 623,6 628,2 637,3 641,8
    B - REACH 435 460 485 515
    65,5 65,5 65,5 65,5
    D - Steering tube (mm) 110 115 125 130
    E - Kąt siodełka (°)
    77 77 77 77
    390 400 425 430
    579 605 632,1 663,2
    343 343 343 343
    35 35 35 35
    430 430 430 430
    1170 1205,1 1234,4 1266,3
    690,2 691,2 701,7 700,5
    44 44 44 44
