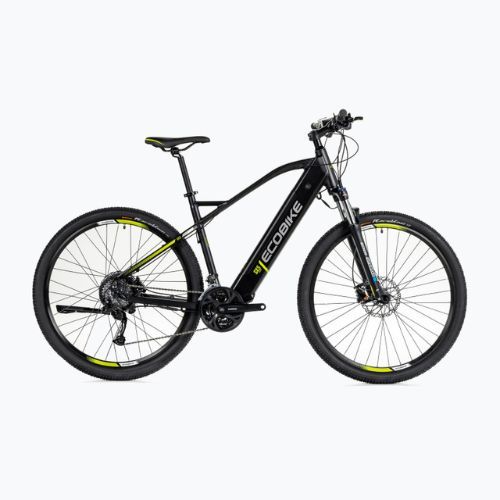

The electric bike Ecobike SX5/X-CR features a powerful and maintenance-free BAFANG motor that drives the rear wheel.

Basic data

Brand EcoBike
Country of origin of the brand Poland
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour Black
Model/product code SX5/X-CR LG 16Ah 1010403
Purpose MTB
Code 2000008030

Frame

Frame 20", of hydroformed aluminium
Frame material Aluminium

Components

Steering wheel Zoom MTB-AL-312BT
Grips Velo VLG-776-12D3 + VLP-171
Depreciation Front
Fork SunTour XCM
Saddle Velo VL-3363 NP1
Bar Promax MA-47 (31,8 mm x 90 mm)

Drive

Derailleurs 3x9
Number of gears 27
Front derailleur (model) Shimano Altus FD-M371 3-speed
Rear derailleur (model) Shimano Alivio ARDM03100SGS 9-speed
Handles Shimano Altus SL-M2000
Crank mechanism Shimano AFCM371C422CL
Cassette / Freewheel SunRace MFE90 9CU / 13-32T / 9-speed
Chain KMC X9 112 L

Brakes

Brakes (model) Shimano AMT200KLF9RX080 (hydraulic)
Brake type Hydraulic discs

Wheels

Wheel size 29"
Wheels Reinforced three-chamber wheels, Sapim spokes, 29"
Tyres Continental Race King 27.5" x 2.2
spokes Sapim 13G / Front wheel: 290 mm / Rear wheel: 255 mm

Engine

Engine model Bafang
Engine location Hub
Engine power 250 W
Maximum engine power 560 W
Maximum torque 45 Nm
Maximum speed 35 km/h ( assistance limited to 25 km/h in the settings)

Battery

Battery type Lithium-ion
Battery capacity 576 Wh
Battery location In the frame
Maximum range 130 km
Charger 220-240V 42V / 2A / Type D

Additional information

Support Yes
Lighting No, reflectors
Mudguards No
Luggage carrier No
Maximum user weight 125 kg
Weight of bike (estimated) 25,5 kg

Warnings and producer's data

Standards, certificates CE
Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

EcoBike SX5/X-CR LG electric bike 16Ah black 1010403 (1010403)

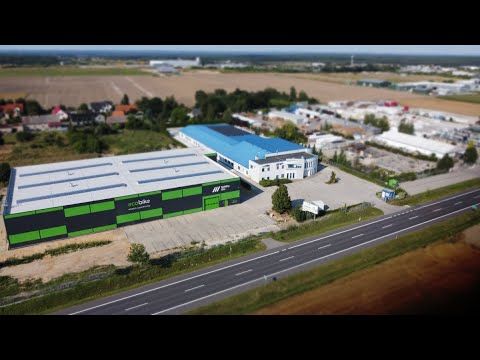

Ecobike is one of the first and largest electric bike manufacturers in Poland. When the asphalt ends and the road becomes unpredictable, there is no room for experiments. You need a bike you can rely on. Meet the SX5. A MTB E-bike that will not hesitate to take you further than others.

The total weight of all bike components - motor, battery, frame, and equipment. Ecobike electric bikes are characterized by the lowest weight-to-motor power ratio.

Ecobike electric bike SX5/X-CR features a solid, fully aluminum frame construction. The central BAFANG motor with a torque of up to 45 Nm provides a pleasant feeling of assistance while riding. The battery with a range of up to 130 km provides enough energy even for long trips.

The 250 W power of the electric bike motor translates into the maximum speed at which the motor will assist riding. Some Ecobike electric bikes offer a motor power selection option, allowing assistance up to 25, 35, or 45 km/h - depending on the traffic regulations of the given country.

Product Details

EcoBike SX5/X-CR LG electric bike 16Ah black 1010403

Durable and reliable equipment

High-quality Alivio gear shifters and Shimano hydraulic brakes have been used, along with the excellent SunTour XCM fork and very strong Continental Race King tyres on reinforced rims with SAPIM spokes.
EcoBike SX5/X-CR LG electric bike 16Ah black 1010403

BAFANG drive

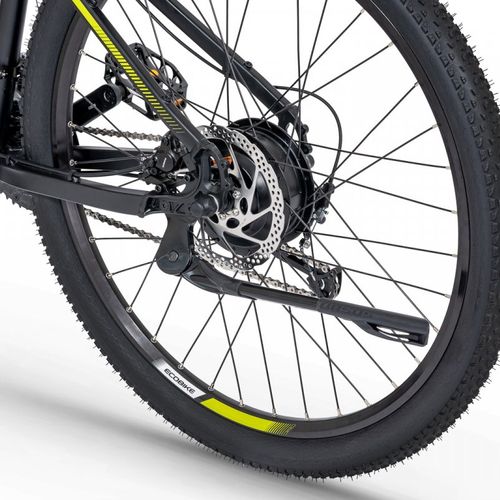

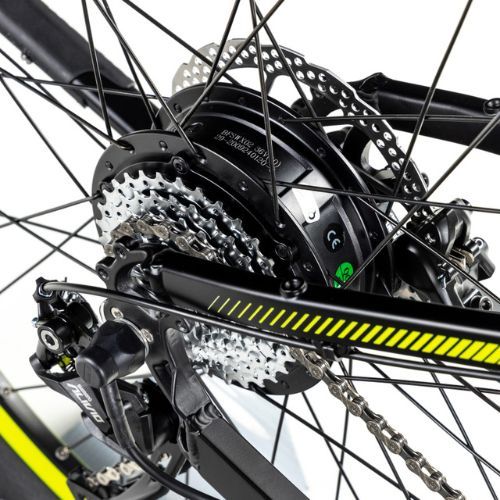

For an exceptional riding experience and reliable assistance, there is a proven electrical system that Ecobike has been using for years and continues to refine. The powerful and maintenance-free Bafang motor, which drives the rear wheel, will allow you to conquer inclines and won’t back down even in challenging conditions.

EcoBike SX5/X-CR LG electric bike 16Ah black 1010403

Minimalist control panel

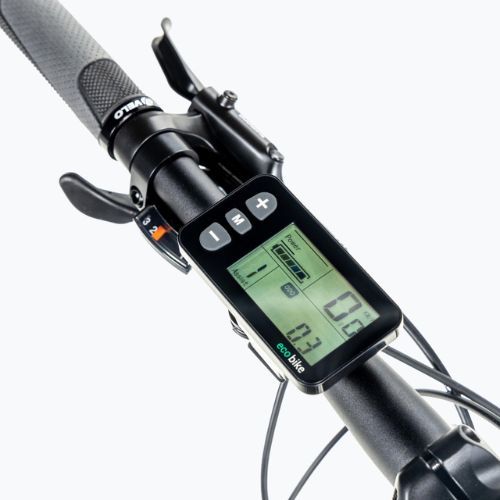

The Ecobike SX5/X-CR is equipped with an easy-to-use control panel, from which you can read the most important parameters and select the settings that suit you best. Next to it, there is also a throttle lever that can be configured according to your needs.

EcoBike SX5/X-CR LG electric bike 16Ah black 1010403

Durable and aesthetically pleasing frame

The Ecobike SX looks like it was drawn in one stroke, but its design is the result of complex work. The frame has been designed to accommodate the entire battery while maintaining good ergonomics and being sturdy at the same time.

EcoBike SX5/X-CR LG electric bike 16Ah black 1010403
  1. 100%

    plPatryk

    Sensational price!!!

    With discount code best price I found online! Equipment well protected for transport. Assembled, checked, everything works. Greetings!!!

    Translated.Show original
  2. 100%

    plR. Rafalski

    Mega satisfied

    Great equipment, fast shipping. Shop staff with a lot of willingness to help, best regards!

    Translated.Show original

Review this product

EcoBike SX5/X-CR LG electric bike 16Ah black 1010403

EcoBike SX5/X-CR LG electric bike 16Ah black 1010403

Overall rating
Please enter the order number under which you purchased this product at Sportano.

EcoBike SX5/X-CR LG electric bike 16Ah black 1010403

Bike assembly service available

Size 20" Sizes table
Choose an Option...

Choose an Option

Sizes table

    Frame size 20"
    Height (cm) 178-195
    A - Rura pozioma (mm) 610
    B - Rura sterowa (mm) 160
    C - Rura podsiodłowa (mm) 508
    D - Wheel base (mm) 1124
    E - Kąt siodełka (°)
    73
    F - Kąt główki (°) 70
