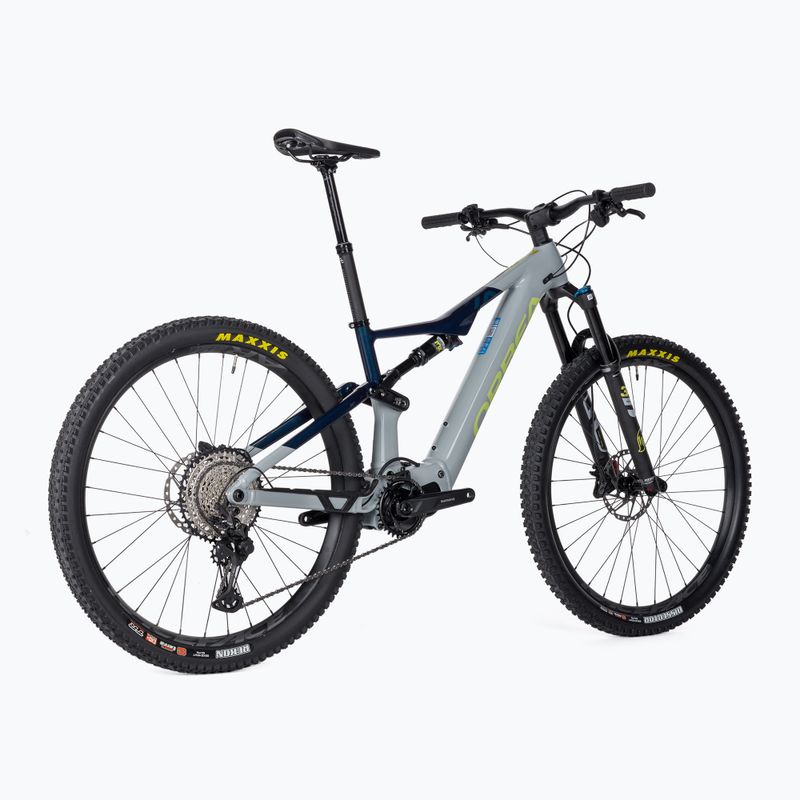

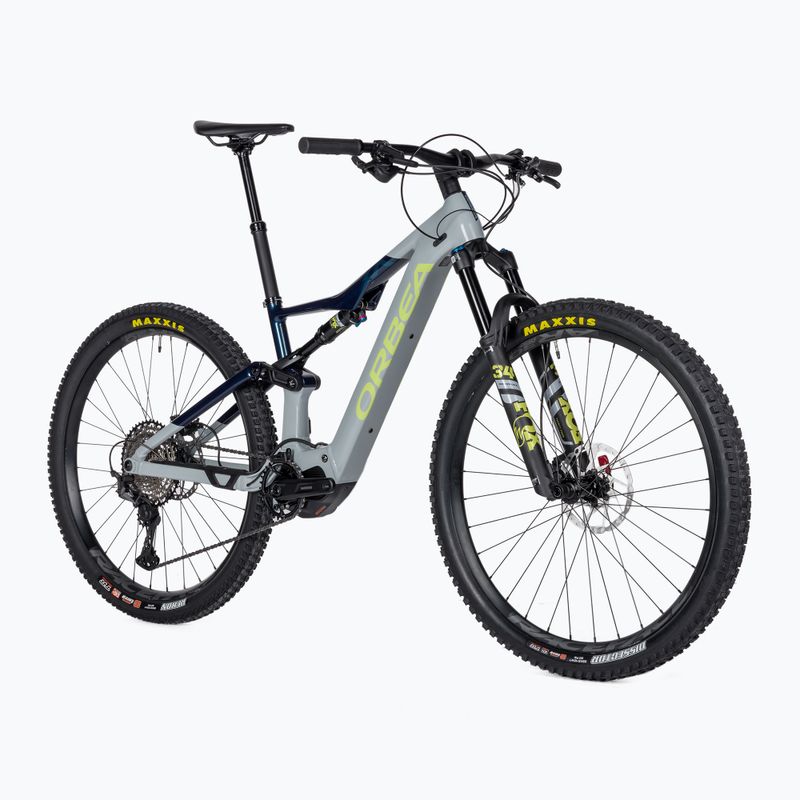

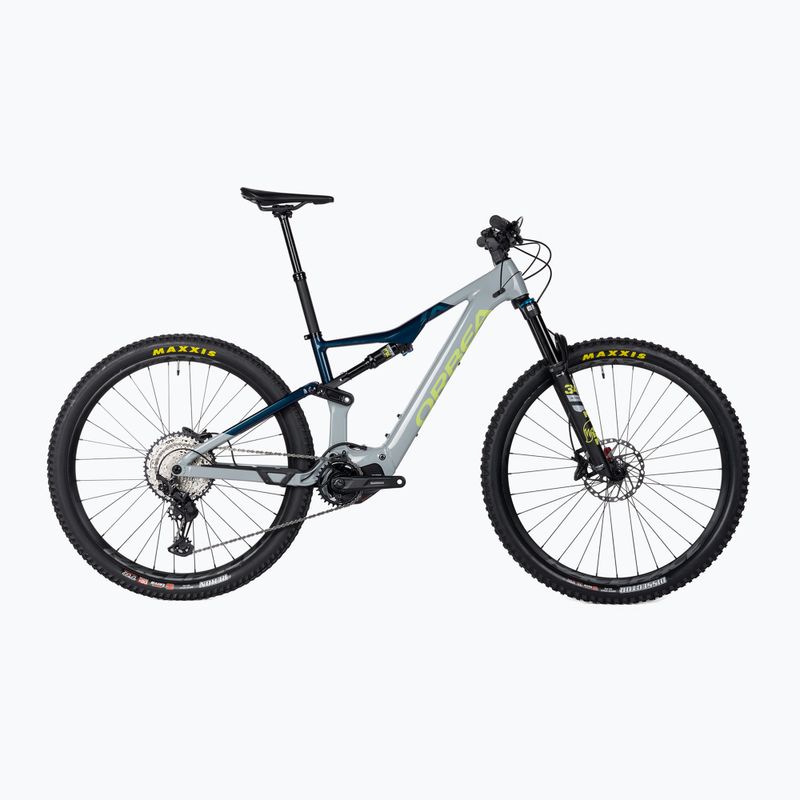

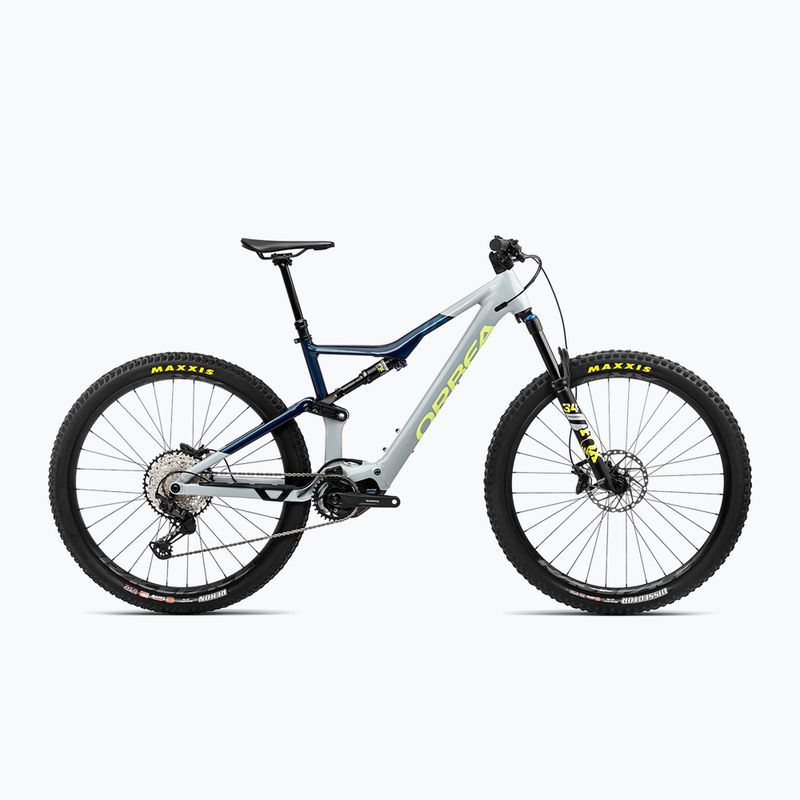

Orbea Rise H20 2023 electric bike grey-blue N37105V6

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model/product code Rise H20 N37105V6

Leading colour Grey

Brand Orbea

Country of origin of the brand Spain

Gender Male, Woman

Season Year-round

Engine location Central

Engine power 250 W

Crank mechanism Shimano Steps EM600

Wheel size 29"

Frame Orbea Rise Hydro 140mm travel 29" Boost 12x148

Derailleurs 1x12

Sport Bicycles

Cassette / Freewheel Shimano CS-M7100 10-51t 12-Speed

Rear derailleur (model) Shimano XT M8100 SGS Shadow Plus

Handles Shimano SLX M7100 I-Spec EV

Depreciation Full

Battery location In the frame

Brakes (model) Shimano M6120 Hydraulic Disc

Purpose MTB

Maximum range 120 km

Chain Shimano M6100

Tubeless ready tyres Yes

Type of derailleur Mechanical

Handlebar support OC Mountain Control MC20, 0º

Tyres Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR / Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR

Frame material Aluminium

Fork Fox 34 Float Performance 140 3-Position QR15x110

Charger Orbea 2.Generation eBike Smart charger 42V/2-4A

Pedals included No

Engine model Shimano EP6

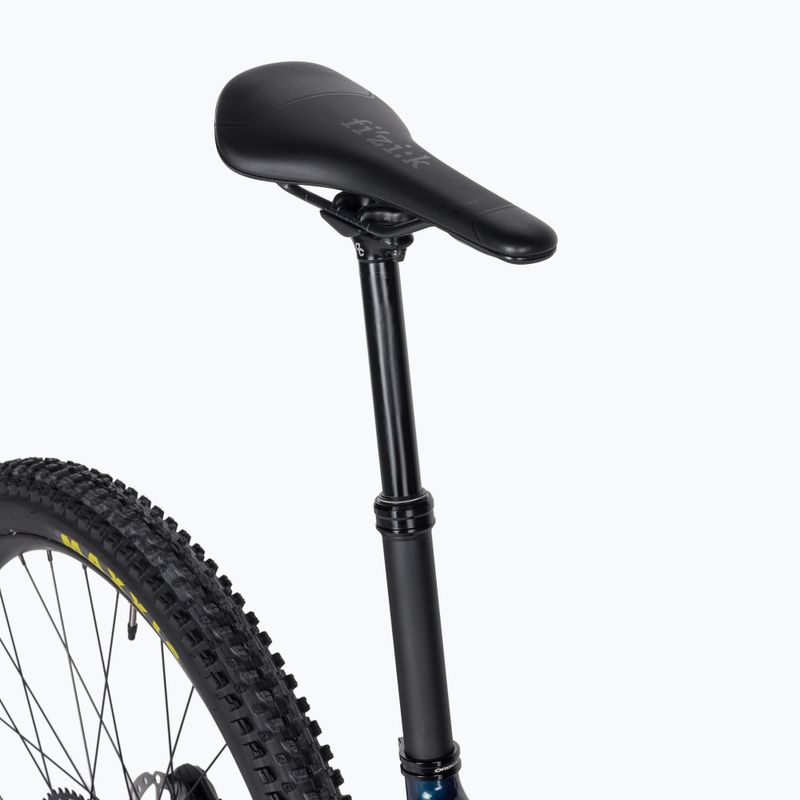

Saddle Fizik Taiga S-alloy rail

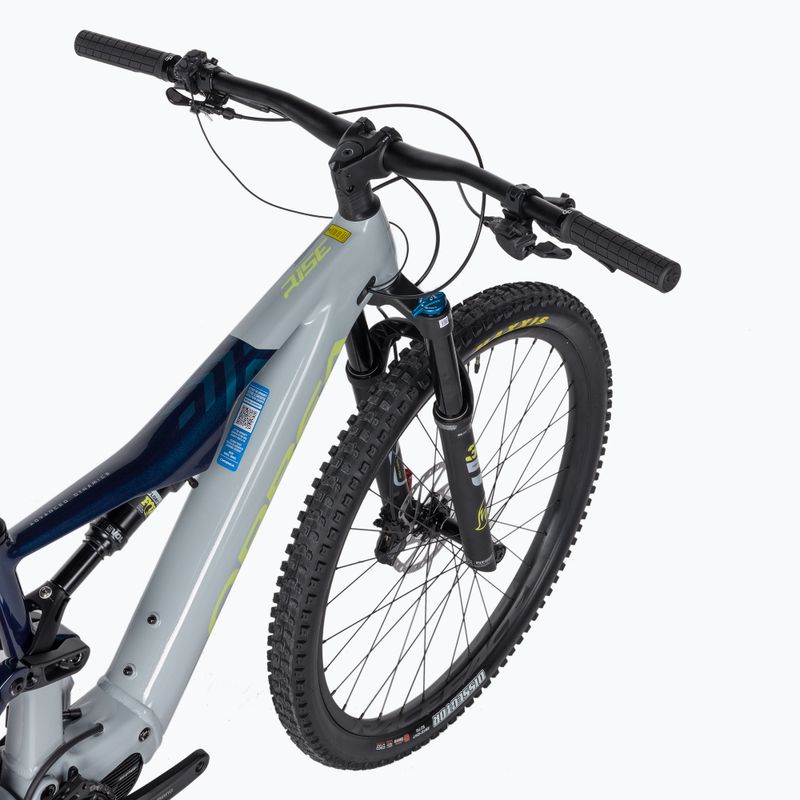

Steering wheel OC Mountain Control MC31, Rise20, Width 800

Brake type Hydraulic discs

Number of gears 12

Wheels Race Face AR 30c Tubeless Ready

Handlebar width 800 mm

Battery capacity 540 Wh

Stan złożenia roweru Bike adjusted and pre-assembled

Maximum torque 85 Nm

Battery type Lithium-ion

Tubeless ready wheels Yes

Axle type 148 x 12 mm, 110 x 15 mm

Rudders Acros Alloy 1-1/8 - 1-1/2" Integrated

Orbea Rise H20 2023 electric bike grey-blue N37105V6 2

Sizes

Size	S	M	L	XL
Height (cm)	150-165	160-175	170-185	180-198
A - Seat tube (mm)	381	419	457	508
B - Horizontal pipe (mm)	565	592	619	649
C - Steerer tube (deg)	95	105	120	140
D - Rear triangle (mm)	445	445	445	445
E - Support height (mm)	336	336	336	336
F - Support lowering (mm)	35/32	35/32	35/32	35/32
G - Wheelbase (mm)	1180	1205	1229	1255
H - Head angle	66/65,5	66/65,5	66/65,5	66/65,5
I - Saddle angle	77/76,5	77/76,5	77/76,5	77/76,5
J - Crossover (mm)	710	736	766	776
K - Reach (mm)	425	450	474	500
L - Stack (mm)	604	613	627	646
M - Fork (mm)	547	547	547	547

Product description

Advantages

Carbon frame

The use of a carbon frame on this model of bike makes it extremely light and resilient, making use much more comfortable. In addition, the carbon frame effectively dampens vibrations when negotiating bumps.

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

Full shock absorption

Full suspension, i.e. both the front and rear wheels, allows you to negotiate obstacles in difficult terrain more comfortably. A bike with full suspension provides more grip and efficiency.

Drive 1x12

The 1x12 derailleurs used on this e-bike model guarantee smooth gradation and allow effortless gear changes. The large gear range allows you to adapt the gear to the current road conditions.

29" wheels

The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over difficult terrain. This size guarantees good stability when riding at higher speeds."
