EcoBike Even 14.5 Ah electric bike white 1010201

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model/product code Even/Even 14.5 Ah el. 1010201

Leading colour White

Brand EcoBike

Country of origin of the brand Poland

Gender Male, Woman

Season Year-round

Engine location Hub

Engine power 250 W

Crank mechanism Topwheel 52T

Wheel size 20"

Derailleurs 1x6

Sport Bicycles

Cassette / Freewheel Shimano MF-TZ500 14-28T 6

Rear derailleur (model) Shimano Tourney 6-speed

Handles Shimano Tourney Revo 6

Depreciation Front

Battery location Under saddle

Brakes (model) Promax TX - 117

Purpose City/urban

Maximum range 120 km

Chain KMC

Type of derailleur Mechanical

Handlebar support Zoom 9° / 70 mm

Bar Zoom 27.2 / 350 mm

Tyres Schwalbe Big Apple 20 x 2.0

Frame material Aluminium

Fork RST CARVE－P－20, 20 mm

Engine model Bafang

Saddle Selle Royal Freeway

Weight of bike (estimated) 22,5 kg

Steering wheel Promax 640 mm 25.4

Maximum engine power 320 W

Brake type V-Brake

Number of gears 6

Wheels Reinforced three-chamber wheels

Battery capacity 14,5 Ah

Stan złożenia roweru Bike adjusted and pre-assembled

Maximum torque 32 Nm

Battery type Lithium-ion

EcoBike Even 14.5 Ah electric bike white 1010201 2

Sizes

Frame size	15,5"
Height (cm)	155-185
A - Rura pozioma (mm)	568,9
B - Rura sterowa (mm)	140
C - Rura podsiodłowa (mm)	275
D - Wheel base (mm)	1071,7
E - Kąt siodełka (°)	72,6
F - Kąt główki (°)	70,9

Product description

Advantages

Front cushioning

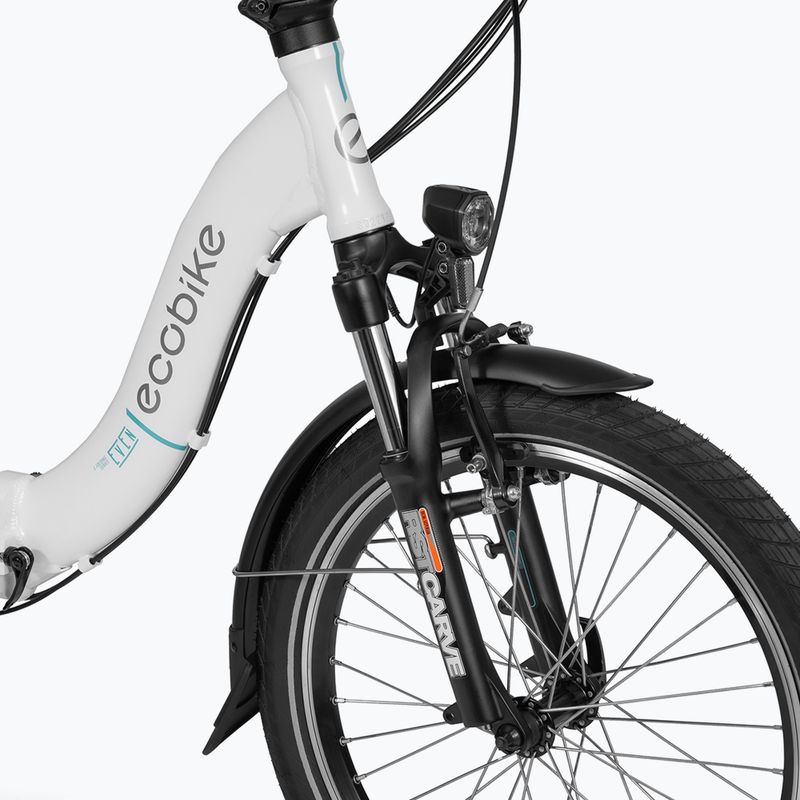

The cushioning makes cycling over uneven ground much more pleasant and comfortable. This model is equipped with front suspension, which ensures safety and absorbs the force when the front wheel hits an obstacle.

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

V-brake type

A particular model of bicycle is equipped with V-Brake. This type is characterised by its ease of fitting and maintenance and its high durability. V-Brakes are used on most bicycles because of their versatility.
