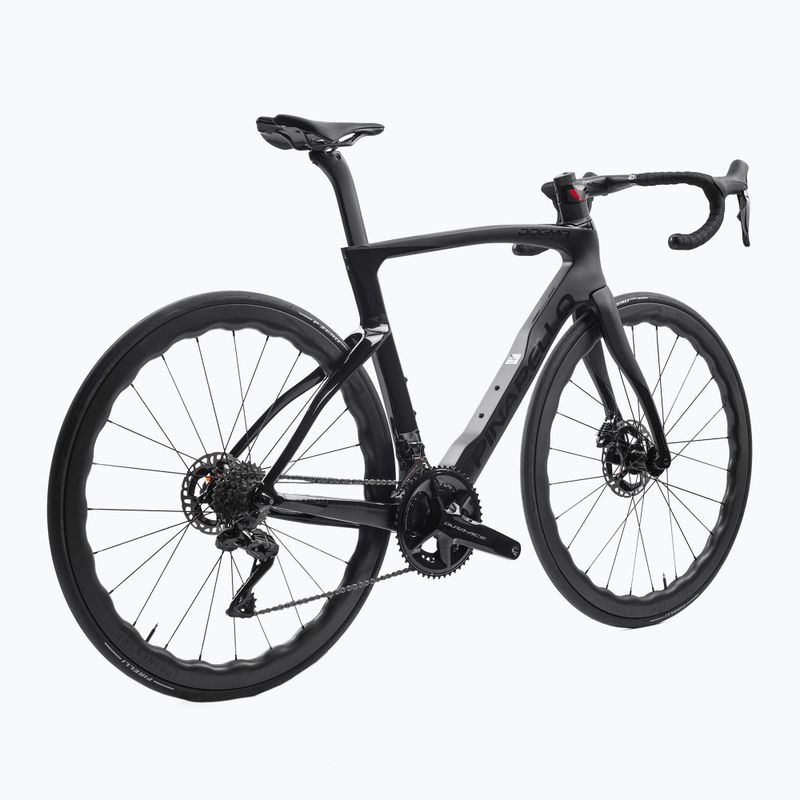

Pinarello Dogma F Disc Dura Ace Di2 2x12 road bike black C1609270182-20717

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code Dogma F Disc Dura Ace Di2 2x12 R9200 Princeton GRT4540DB C1609270182-20717

Leading colour Black

Brand Pinarello

Country of origin of the brand Italy

Gender Male, Woman

Season Year-round

Crank mechanism Dura Ace R9200 50-34t

Wheel size 28"

Frame TorayCa T1100 1K Dream Carbon with Nanoalloy technology, TiCR™ cable routing, Italian BB, UCI certification

Derailleurs 2x12

Cassette / Freewheel Shimano Dura Ace CS-R9200 11-30T, 12-speed

Sport Bicycles

Rear derailleur (model) Shimano Dura Ace Di2 RD-R9200 12s

Handles Shimano Dura Ace Di2 2x12

Handlebar width 44 cm

Fork material Carbon

Chain Shimano Dura Ace CN-HG 12S

Type of derailleur Electronic

Bar Pinarello Aero Seatpost with 3D printed Titanium Top Seatclamp and bolts

Frame material Carbon

Fork F Onda with ForkFlap™ flap

Type of Product Aero/Race

Brakes (model) Shimano Dura Ace DI2 R9270

Saddle MOST LYNX Carbon 143mm

Steering wheel Integrated MOST Talon Ultra Lite UD (MY22)

Brake type Hydraulic discs

Brake discs Shimano Dura Ace BR-R9200 160 mm front, 140 mm rear

Number of gears 24

Front derailleur (model) Dura Ace DI2 R9200

Tyres Pirelli P Zero Race 25mm - Black

Stan złożenia roweru Bike adjusted and pre-assembled

Hubs TUNE

Axle type 142 x 12 mm, 100 x 12 mm

Wheels PRINCETON GRIT 4540 DB HG11

Pinarello Dogma F Disc Dura Ace Di2 2x12 road bike black C1609270182-20717 2

Sizes

Size	430	465	500	515	530	540	550	560	575	595	620
CE - Rura podsiodłowa (realna długość)	425	450	465	485	500	510	520	525	540	560	600
L - Efektywna dlugość górnej rury	500	515	525	535	545	550	557	565	575	587	620
A [°] - Kąt rury podsiodłowej	74,4	74,4	74	73,7	73,7	73,4	73,4	73	73	72,4	72
B [°] - Kąt główki	69,5	70,5	71,4	72	72,5	72,8	72,8	73,2	73,7	73,4	73,4
P - Długość tylnego trójkąta	406	406	406	406	406	408	408	408	408	408	411
T - Główka ramy	97	104	109	114	123	131	142	149,5	163	199	239
D - Opuszczenie supportu	67	72	72	72	72	72	72	72	72	67	67
R - wysunięcie widelca	43	43	43	43	43	43	43	43	43	43	43
G - Długość widelca (oś główki)	373	373	373	373	373	373	373	373	373	373	373
REACH	351,4	364,8	372,1	378	383,3	385	388,8	390,7	396,7	393,3	410,1
STACK	502,4	517,6	525,4	532,3	542,6	551,2	561,6	570,2	584,8	613,3	651,7

Product description

Advantages

Carbon frame

The frame of this road bike has been made from extremely lightweight carbon, so carrying the bike is not a problem. Carbon is distinguished by the fact that it is very effective in reducing the force of vibrations generated when riding over rough terrain.

Hydraulic disc brakes

This road bike is equipped with hydraulic disc brakes, which have an extremely low failure rate, ensuring trouble-free use, even during frequent use. In addition, they are distinguished by their greater braking power and modulation.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.

Carbon fork

The fork on this bike is made of carbon, which is characterised by its extreme lightness and ability to absorb the power generated when riding over rough terrain. This material combines strength and low weight.
