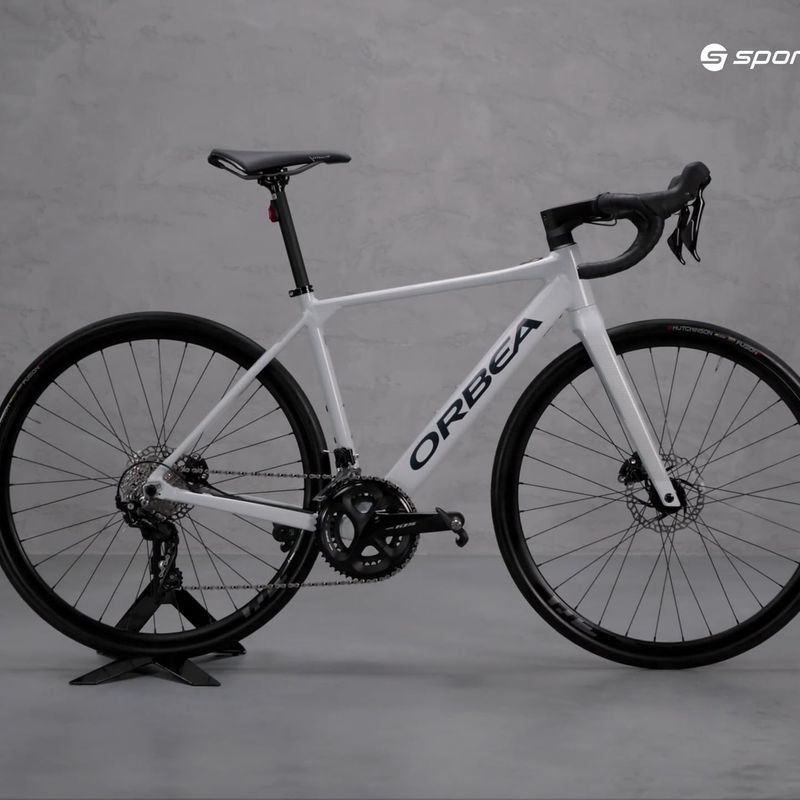

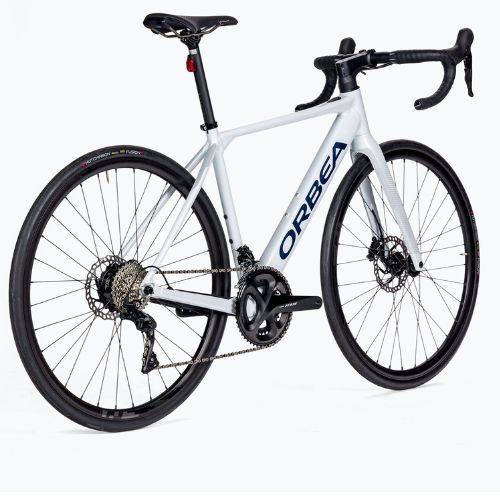

Electric bike Orbea Gain D30 white

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model/product code Gain D30

Leading colour White

Brand Orbea

Country of origin of the brand Spain

Gender Woman

Season Year-round

Engine location Central

Engine power 250 W

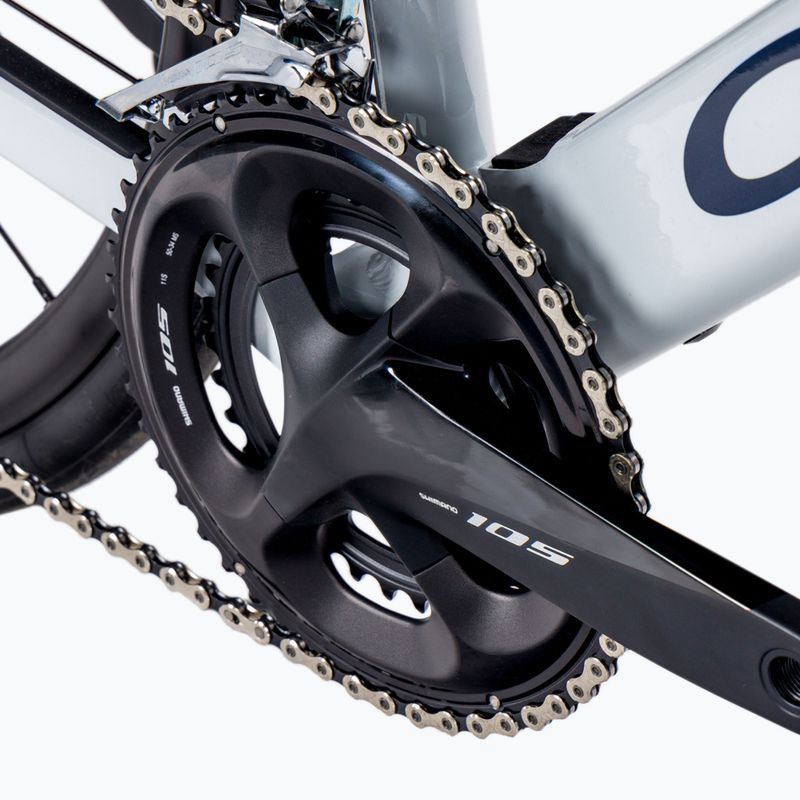

Crank mechanism Shimano 105 R7000 34x50t

Wheel size 28"

Frame Orbea Gain Hydro 6061 Hydroform Aluminum 2021, ICR cable routing

Derailleurs 2x11

Sport Bicycles

Cassette / Freewheel Shimano 105 R7000 11-32t 11-Speed

Rear derailleur (model) Shimano 105 R7000 GS

Handles Shimano ST-7020

Depreciation No

Battery location In the frame

Fork material Carbon

Brakes (model) Shimano R7070 Hydraulic Disc

Purpose Road

Maximum range 100 km

Chain KMC X11

Type of derailleur Mechanical

Handlebar support OC1 31.8mm interface -6º

Bar OC 27.2 Offset 0, for integrated light

Tyres Hutchinson Fusion 5 Performance TLR 700x30

Frame material Aluminium

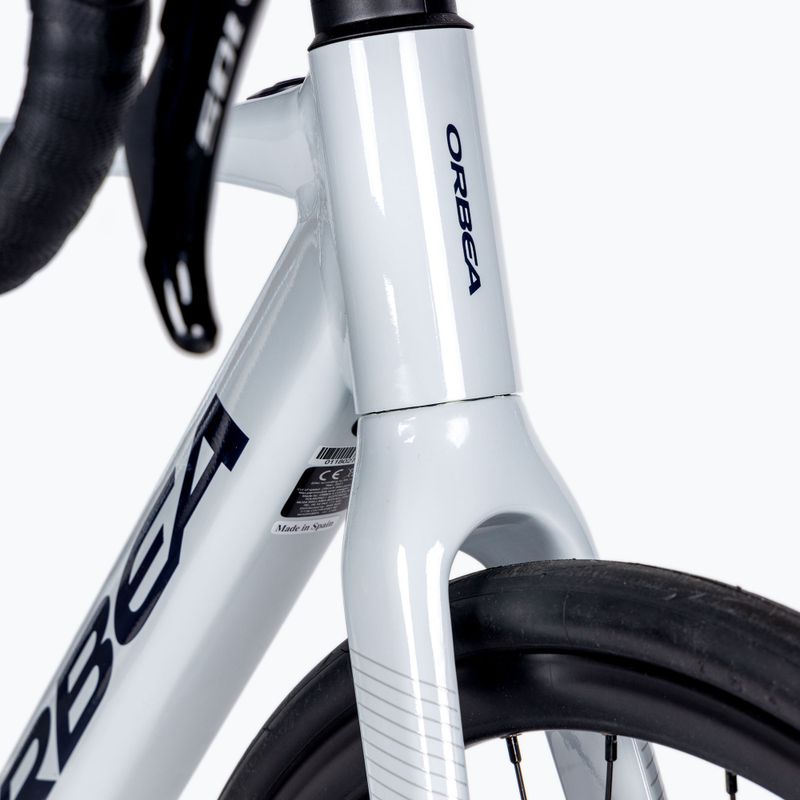

Fork Gain Hydro

Charger Ebikemotion X35

Engine model Ebikemotion X35 Plus 25kmh

Saddle Selle Royal Asphalt GR

Weight of bike (estimated) 14,2 kg

Steering wheel OC2 Road, reach 80mm, drop 125mm

Brake type Hydraulic discs

Number of gears 22

Front derailleur (model) Shimano 105 R7000

Wheels Ready GR

Battery capacity 6,9Ah

Stan złożenia roweru Bike adjusted and pre-assembled

Hubs Orbea Thru Axle 12x100mm M12x2 P1 Hollow - front hub

Battery type Lithium-ion

Maximum user weight 120 kg

Rudders Acros Alloy 1-1/2" Internal Cable Routing

Sizes

Size	S	M	L	XL
Height (cm)	160-170	170-180	180-190	190-200
A - Seat tube (mm)	485	515	545	575
B - Horizontal pipe (mm)	530	547	571	589
C - Steerer tube (deg)	122	146	172	196
D - Rear triangle (mm)	420	420	420	420
E - Support height (mm)	267	267	267	267
F - Support lowering (mm)	74	74	74	74
G - Wheelbase (mm)	1002	1017	1036	1050
H - Head angle	71,5	72	72	72,5
I - Saddle angle	74,5	74,5	74	74
J - Crossover (mm)	749,5	773,83	798,36	817,55
K - Reach (mm)	377	388	399	410
L - Stack (mm)	550	575	600	625
M - Fork (mm)	400	400	400	400

Product description

Advantages

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

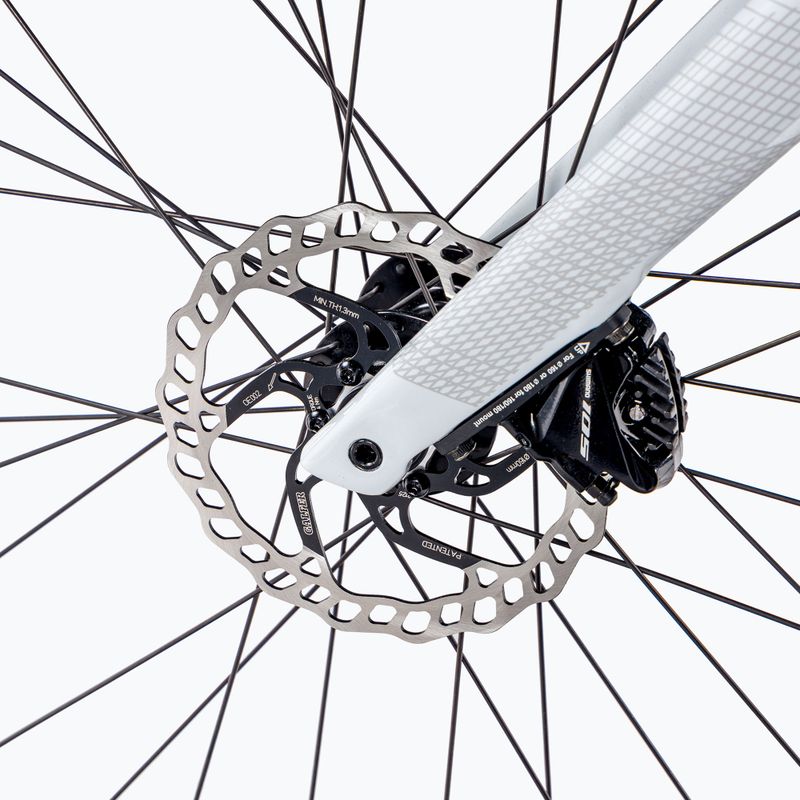

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.

Drive 1x11

The 1x11 derailleurs used on this e-bike model guarantee smooth gradation and allow effortless gear changes. The large gear range allows you to adapt the gear to the current road conditions.
