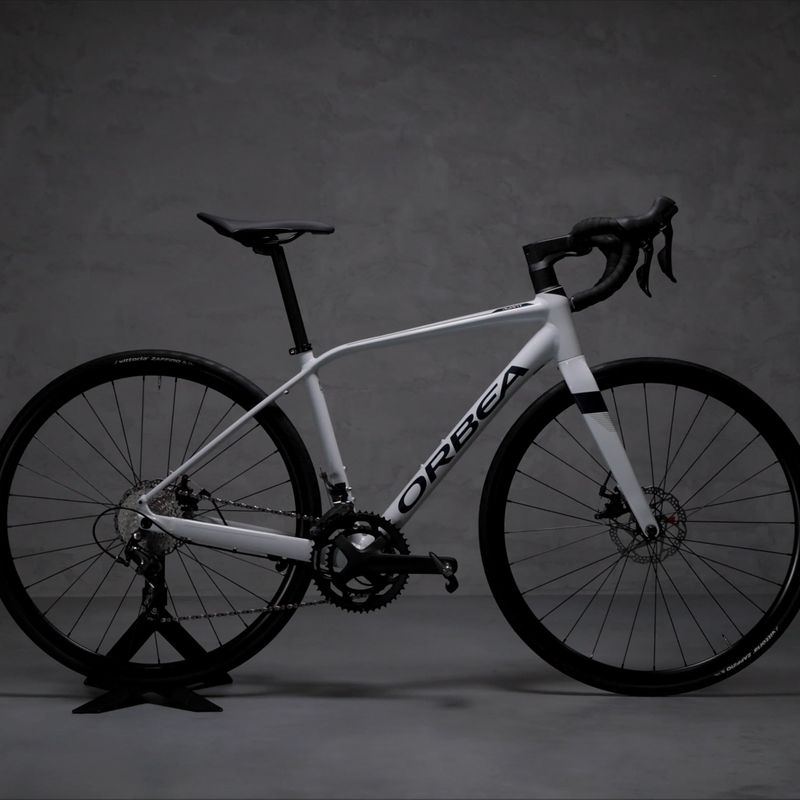

Orbea road bike Avant H40-D white-grey M10249BH

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code Avant H40-D M10249BH

Leading colour White

Brand Orbea

Country of origin of the brand Spain

Gender Male, Woman

Season Year-round

Handlebar stem material Aluminium

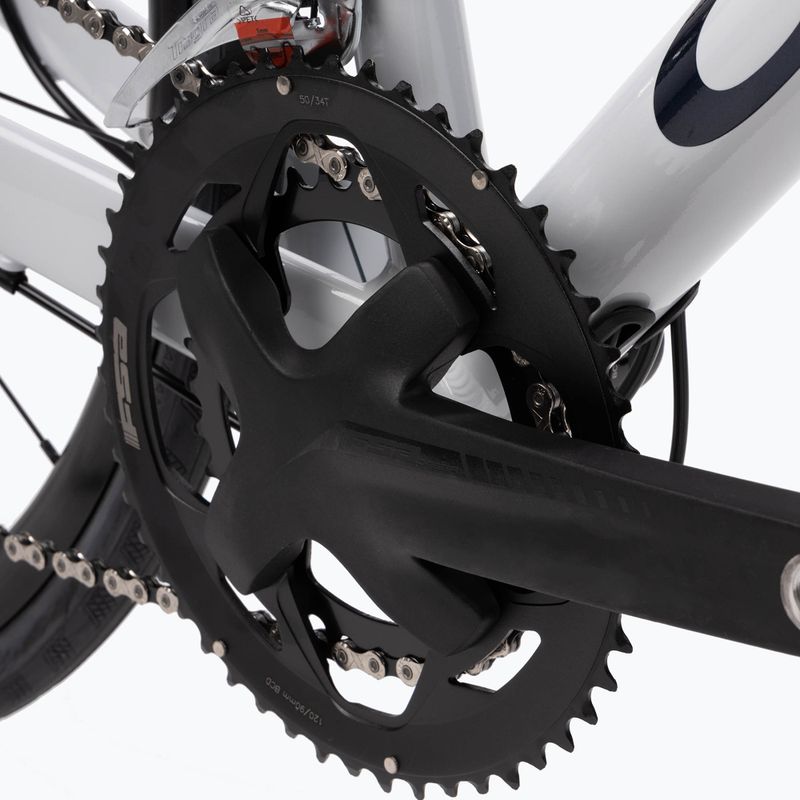

Crank mechanism FSA Omega Megaexo 34x50t

Wheel size 28"

Frame Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5" ICR, BB 68mm – BCS english, internal cable routing

Derailleurs 2x10

Cassette / Freewheel Sun Race CSMS1 11-34t 10-Speed

Sport Bicycles

Rear derailleur (model) Shimano Tiagra 4700 GS

Handles Shimano Tiagra ST-4700

Handlebar material Aluminium

Fork material Carbon, Aluminium

Chain KMC X10

Type of derailleur Mechanical

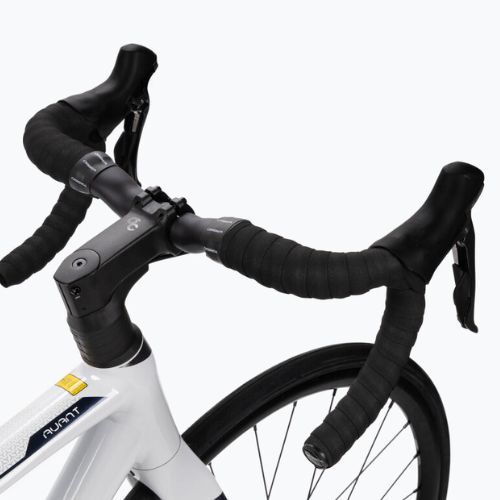

Handlebar support OC RP21 Road Performance ICR, -6º, IFC01 Computer mount interface

Bar Alloy 27.2 Offset 20

Frame material Aluminium

Fork Orbea carbon fork 2021, aluminium steerer, 1-1/8" head tube

Type of Product Endurance

Brakes (model) Tektro MD-C550 Mechanical Disc

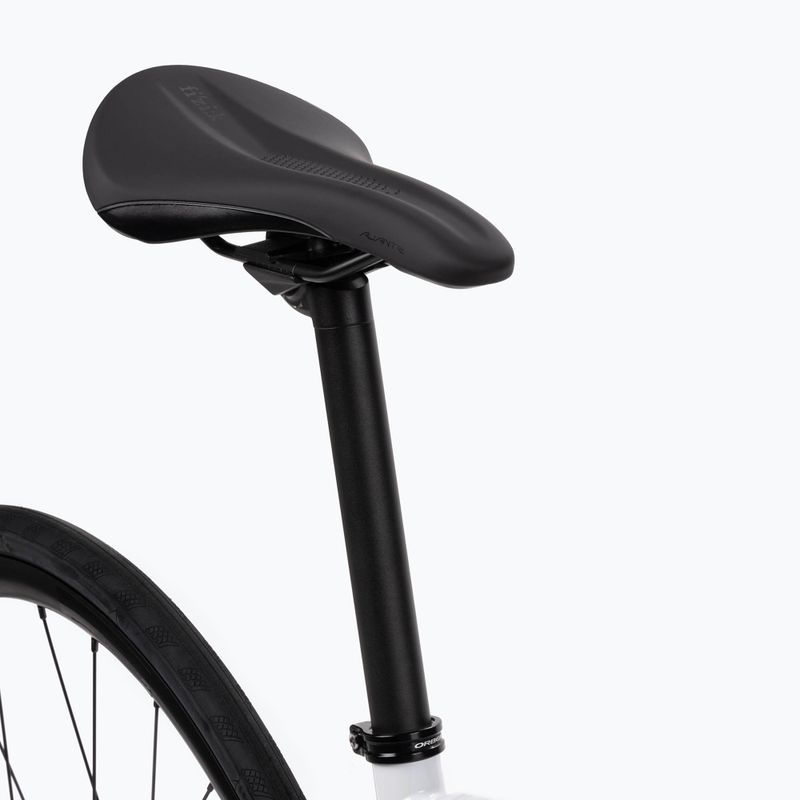

Saddle Fizik Aliante R5

Brake type Mechanical discs

Number of gears 20

Front derailleur (model) Shimano Tiagra 4700

Tyres Vittoria Zafiro V Rigid bead 700x28c

Stan złożenia roweru Bike adjusted and pre-assembled

Hubs Orbea Thru Axle 12x100mm M12x2 P1 Solid - front hub, Orbea Thru Axle 12x142mm M12x2 P1 Solid - rear hub

Wheels Orbea wheel: Corsa with 12mm E-Thru hubset Shimano RS470 28H

Frame material Aluminium

Rudders Acros Alloy 1-1/2" Internal Cable Routing

Orbea road bike Avant H40-D white-grey M10249BH 2

Orbea road bike Avant H40-D white-grey M10249BH

Sizes

Size	49	51	53	55	57
Height (cm)	160-166	167-172	173-179	180-185	186-191
A - Seat tube (mm)	445	470	495	520	545
B - Horizontal pipe (mm)	511	526	539	553	569
C - Steerer tube (deg)	141	161	180	201	221
D - Rear triangle (mm)	425	425	425	425	425
E - Support height (mm)	264	264	266	266	266
F - Support lowering (mm)	75	75	73	73	73
G - Wheelbase (mm)	996	1004	1006	1020	1029
H - Head angle	71,5	71,9	72,4	73,5	72,6
I - Saddle angle	74	73,75	73,5	73,5	73
J - Crossover (mm)	738	761	790	809	833
K - Reach (mm)	370	375	380	390	395
L - Stack (mm)	545	565	585	605	625
M - Fork (mm)	370	370	370	370	370

Product description

Advantages

Aluminium frame

The frame of this road bike is made of durable aluminium, which stands out for its high resistance to scratches and damage, in addition to its low weight, so carrying the bike is not a problem.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.

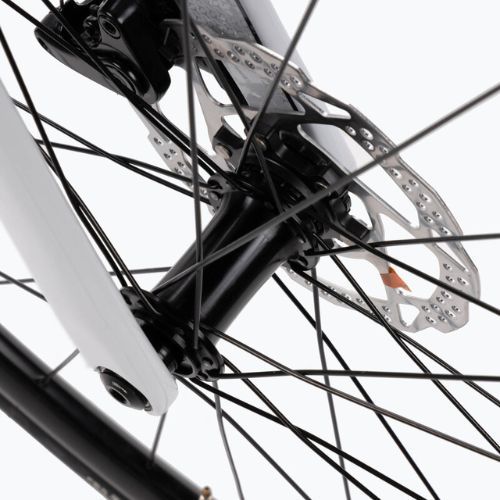

Mechanical disc brakes

This road bike is equipped with mechanical disc brakes, which have an extremely low failure rate and high braking power. In addition, their uncomplicated design ensures easy serviceability.

Carbon fork

The fork on this bike is made of carbon, which is characterised by its extreme lightness and ability to absorb the power generated when riding over rough terrain. This material combines strength and low weight.
