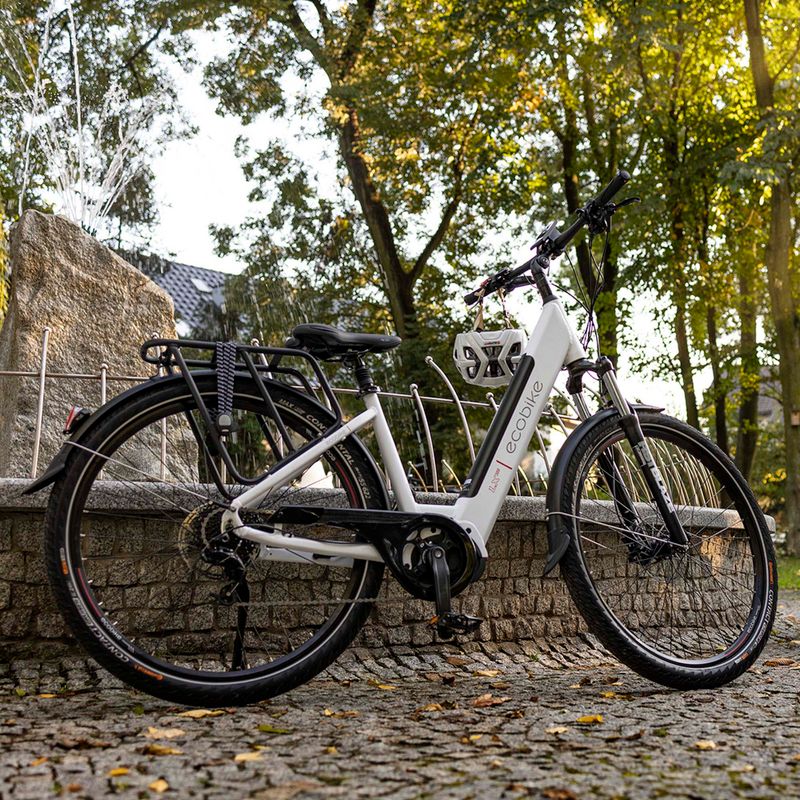

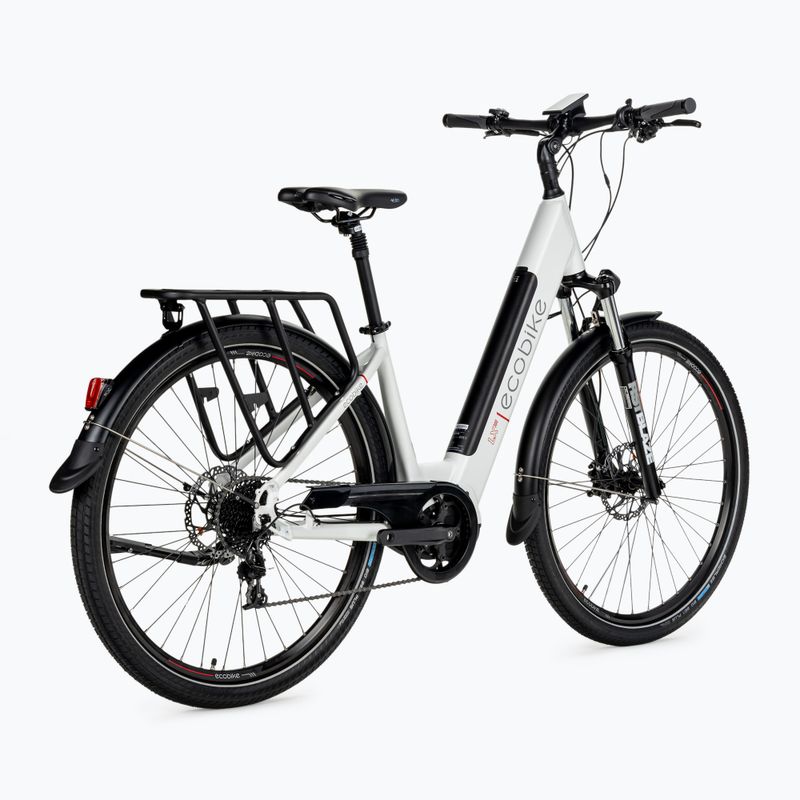

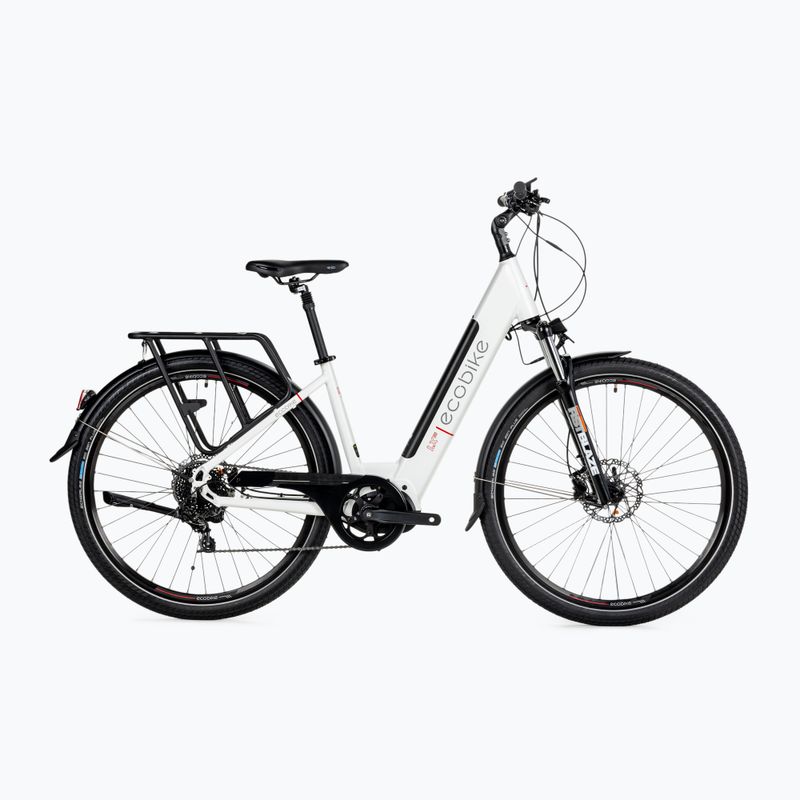

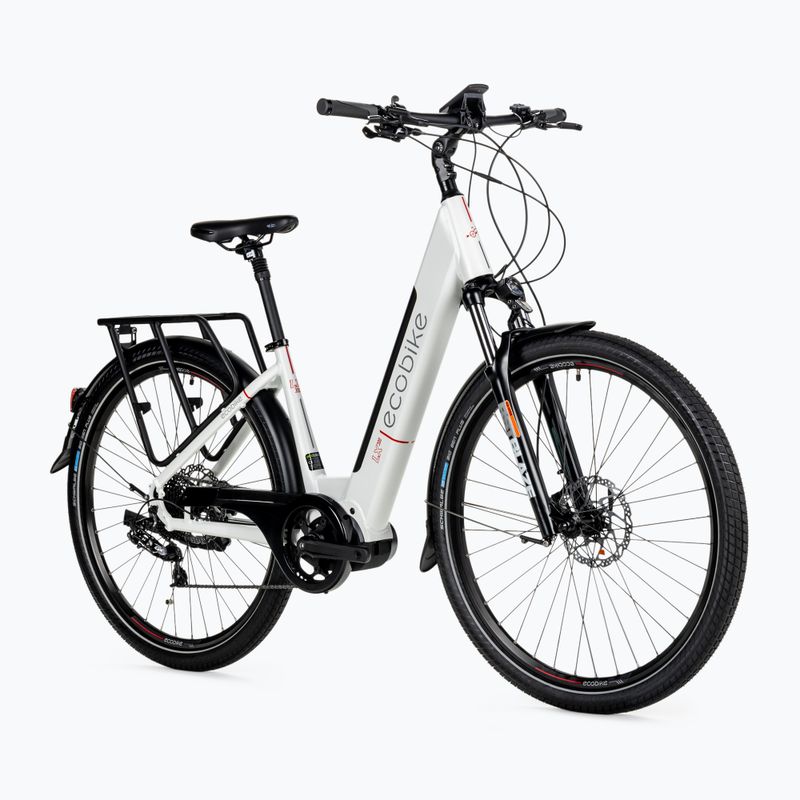

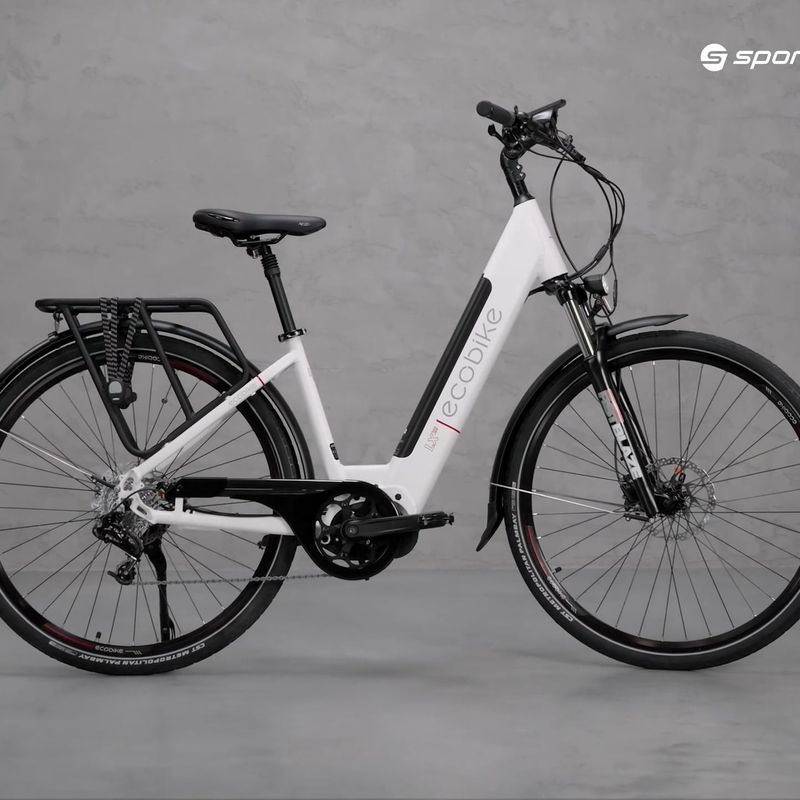

EcoBike LX300 Greenway electric bicycle white 1010306

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model/product code 1010306

Leading colour White

Brand EcoBike

Country of origin of the brand Poland

Gender Male, Woman

Season Year-round

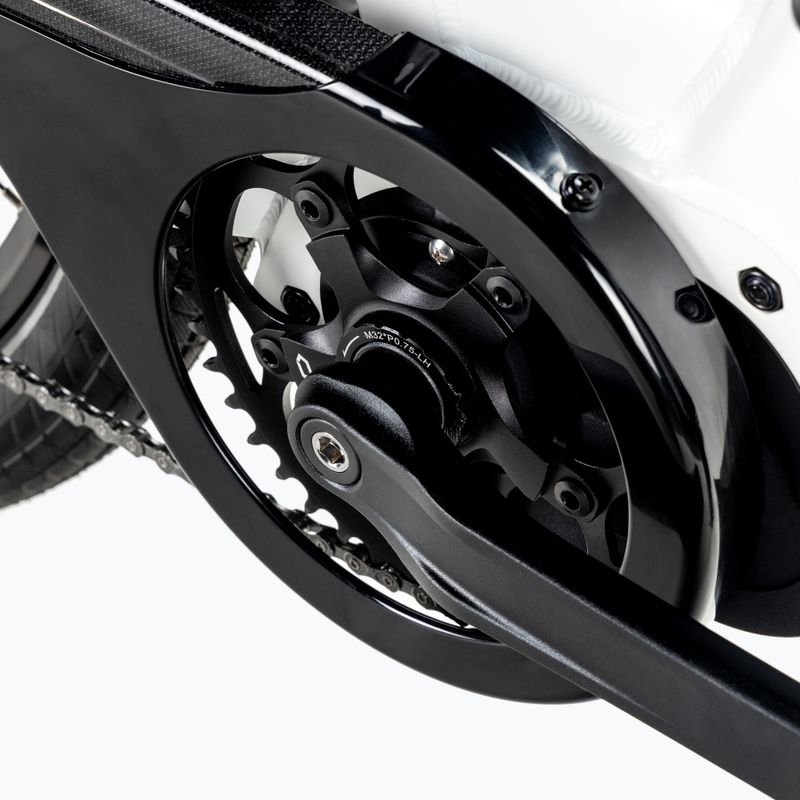

Engine location Central

Handlebar stem material Aluminium

Engine power 250 W

Wheel size 28"

Frame 17" hydroformed aluminium

Derailleurs 1x10

Sport Bicycles

Cassette / Freewheel SRAM CS PG 1020 11-36

Rear derailleur (model) SRAM GX - 10-speed

Handles SRAM SL GX 10SP

Depreciation Front

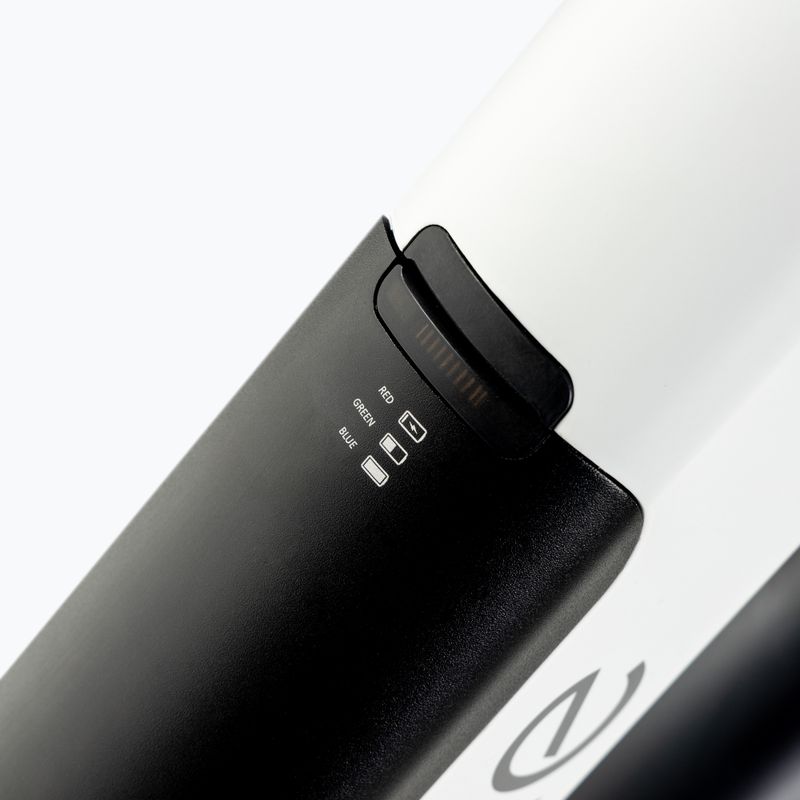

Battery location In the frame

Handlebar material Aluminium

Brakes (model) Shimano MT200

Purpose Trekking

Maximum range 80 km

Chain KMC E10S 122L

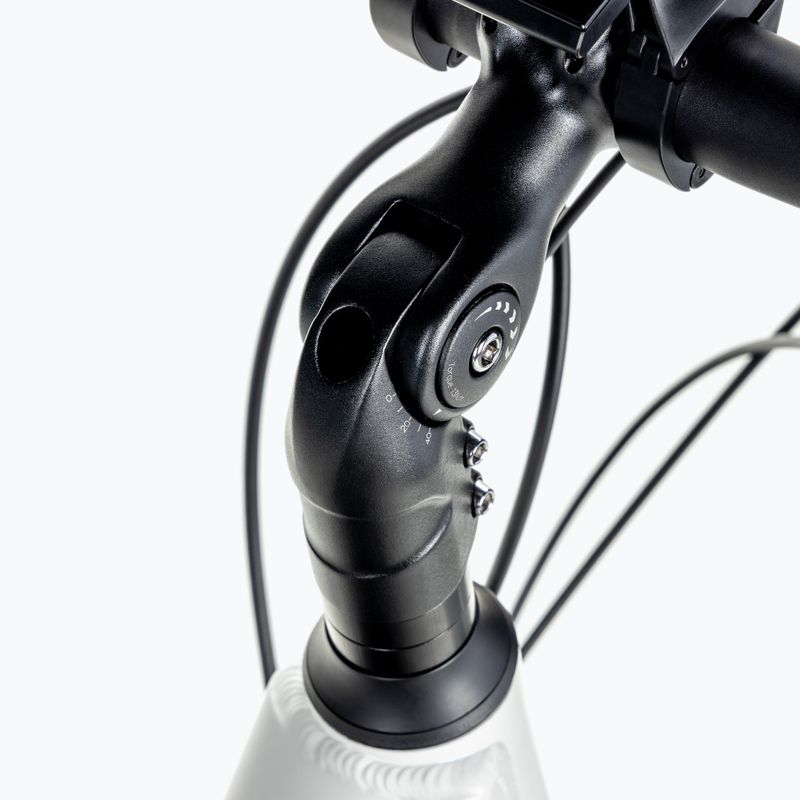

Handlebar support Promax MA-595S (31,8 mm x 90 mm)

Bar Zoom SP-C255 (27,2 mm x 350 mm)

Tyres 28 x 2.20 Continental ContCruiser, /28 x 2.0 CST Palmbay, /Mitas CityHopper 28x2.0

Frame material Aluminium

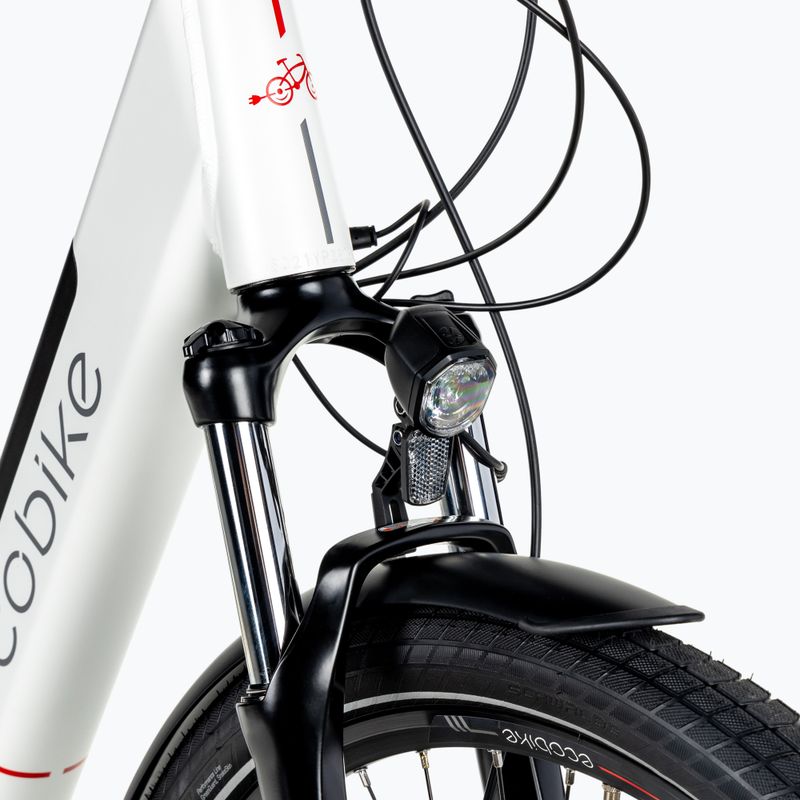

Fork RST BLAZE TNL 29 (stroke: 100 mm)

Charger 100-240V/54.6V 3A D type

Engine model Ananda

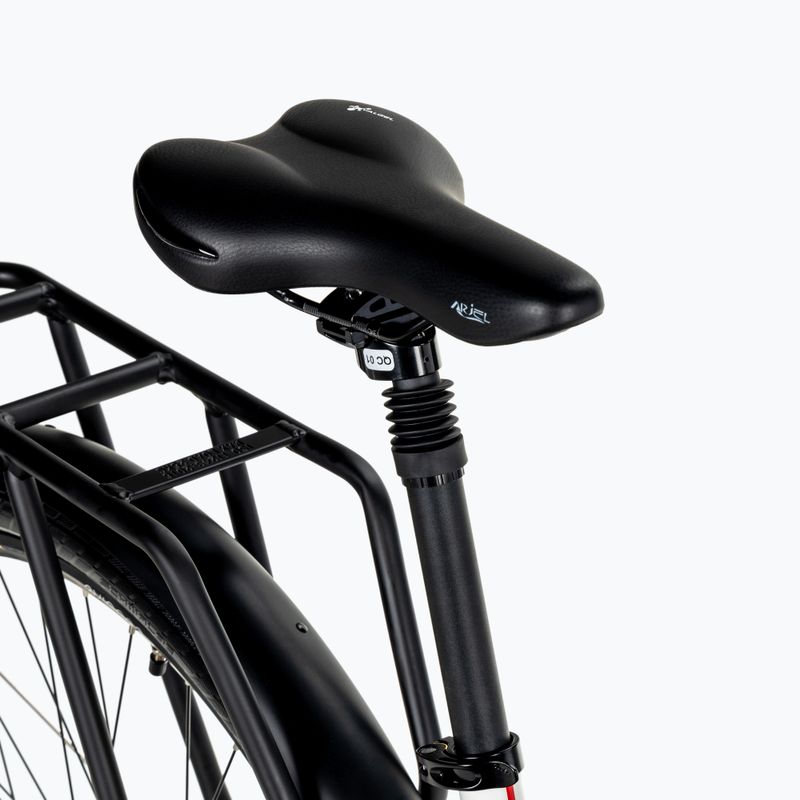

Saddle SunTour ARIEL-A058H

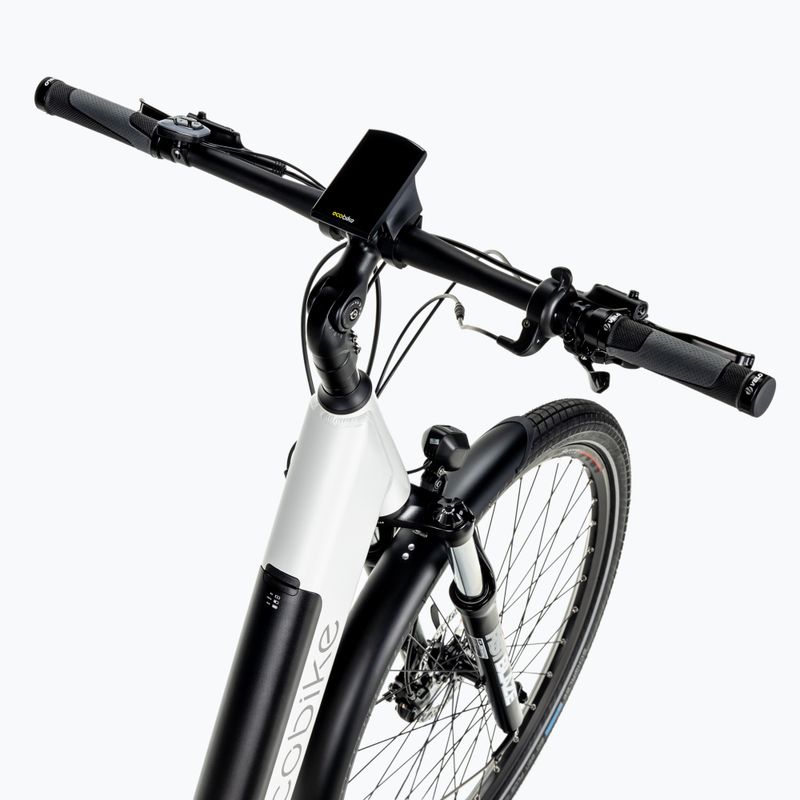

Steering wheel Zoom MTB-AL-312BT (22,2 mm x 31,8 mm x 720 mm)

Maximum engine power 840 W

Brake type Hydraulic discs

Number of gears 10

Wheels Reinforced three-chamber wheels, Sapim spokes

Battery capacity 10,4Ah

Stan złożenia roweru Bike adjusted and pre-assembled

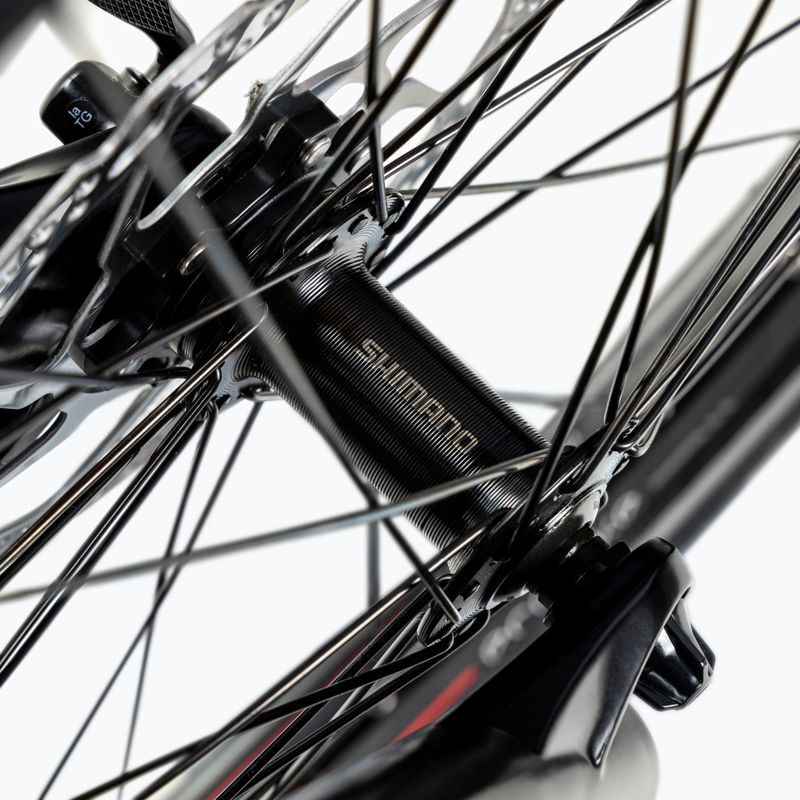

Hubs KY-SN6F QR M9*13G*36H*100W- front hub, KT-SN6R - QR M10*13G*36H*135W - rear hub

Maximum torque 110 Nm

Battery type Lithium-ion

Maximum speed 45 km/h ( assistance limited to 25 km/h in the settings)

Maximum user weight 125 kg

Frame material Aluminium

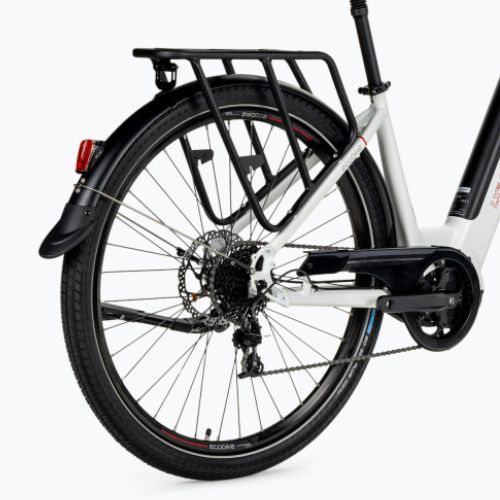

EcoBike LX300 Greenway electric bicycle white 1010306 2

EcoBike LX300 Greenway electric bicycle white 1010306

Sizes

Size	17
Height (cm)	160-178
A - Rura pozioma (mm)	586,2
B - Rura sterowa (mm)	170
C - Rura podsiodłowa (mm)	432
D - Wheel base (mm)	1109,2
E - Kąt siodełka (°)	73
F - Kąt główki (°)	70

Product description

Advantages

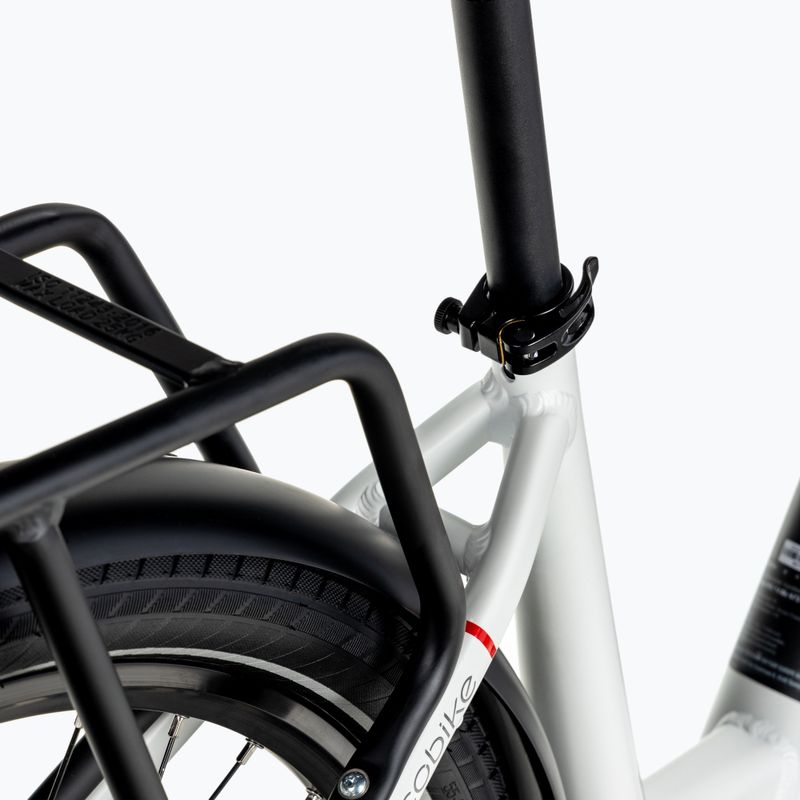

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Long range

This e-bike model has been designed to guarantee the highest possible level of quality. That is why the bike has been equipped with an optimised battery that provides a long range and freedom to explore the terrain.

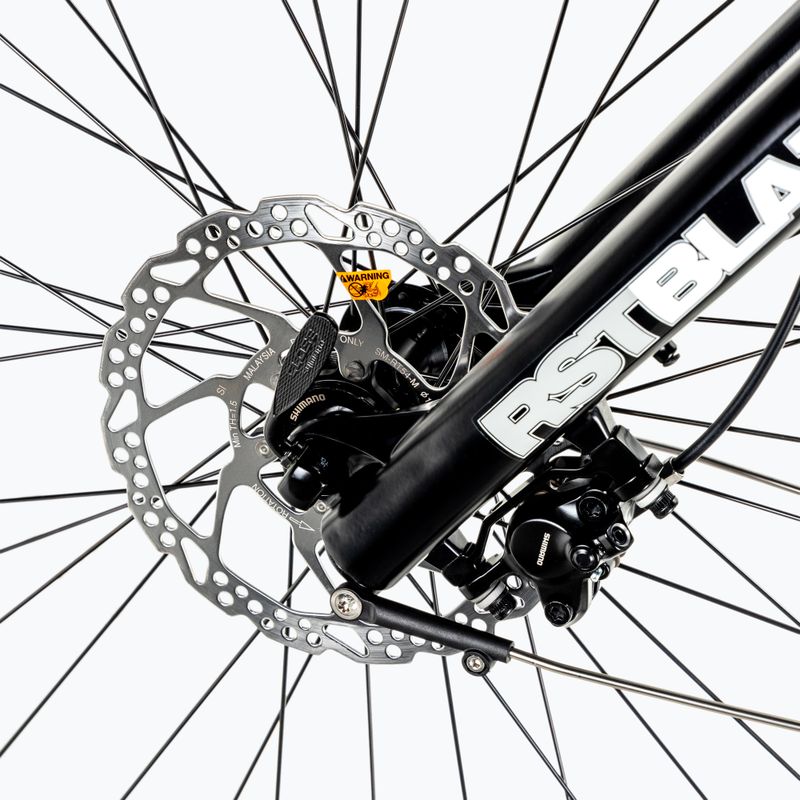

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.

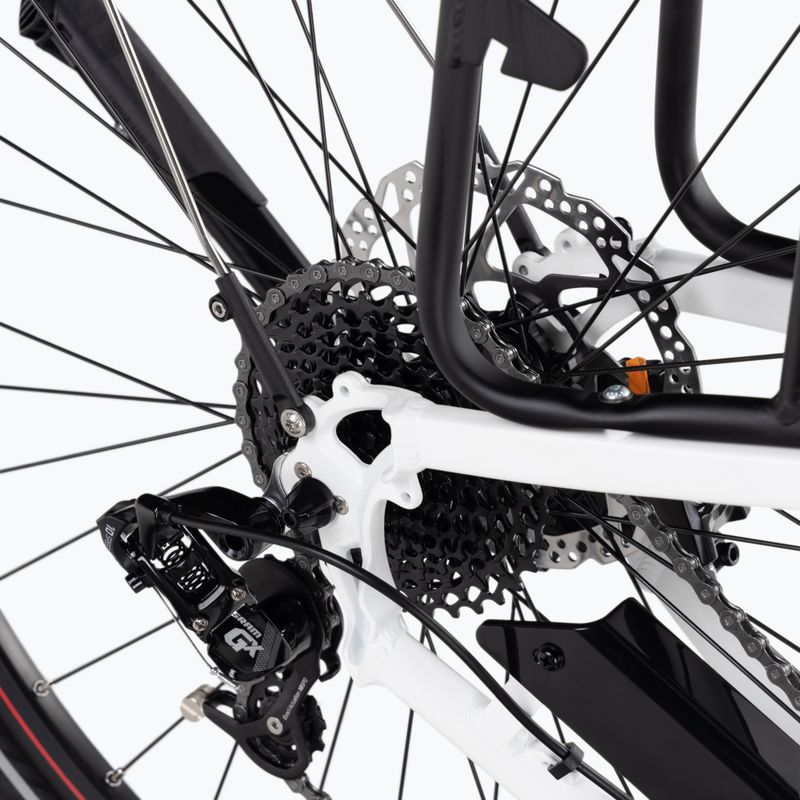

Drive 1x10

The 1x10 derailleurs used on this e-bike model guarantee smooth gradation and allow effortless gear changes. The large gear range allows you to adapt the gear to the current road conditions.
