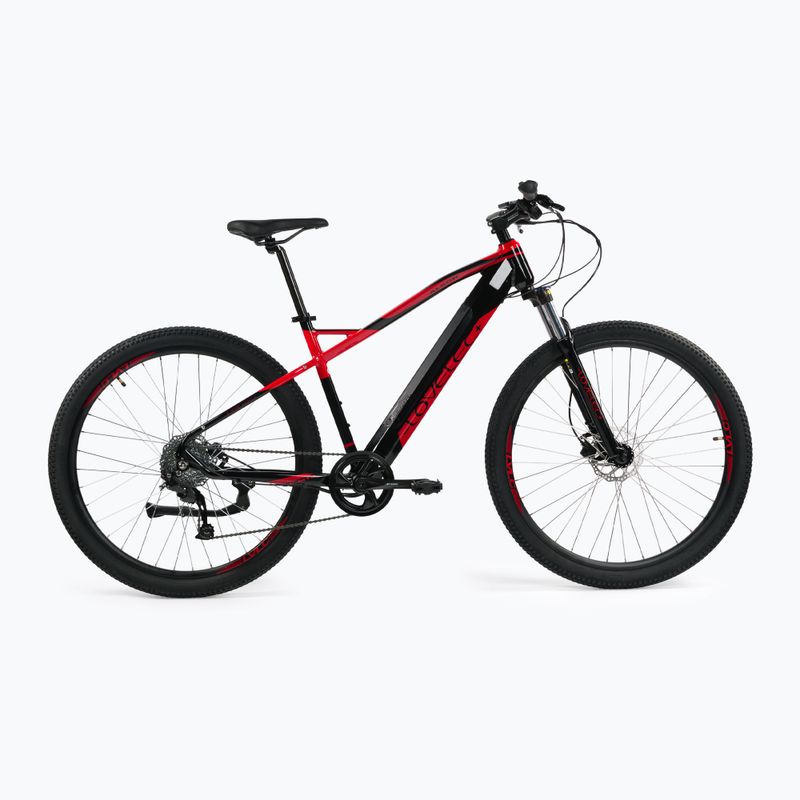

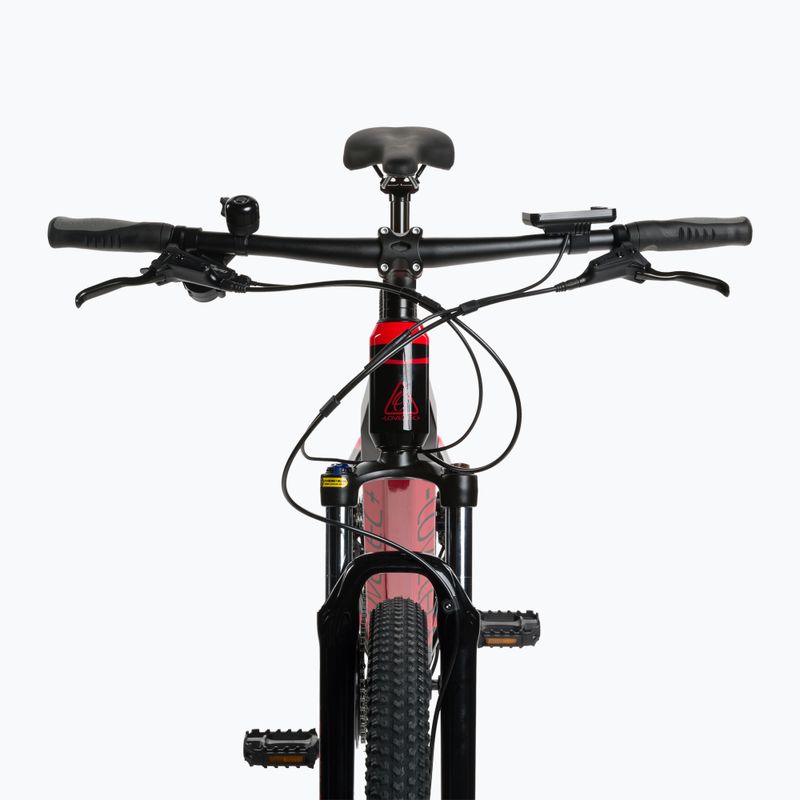

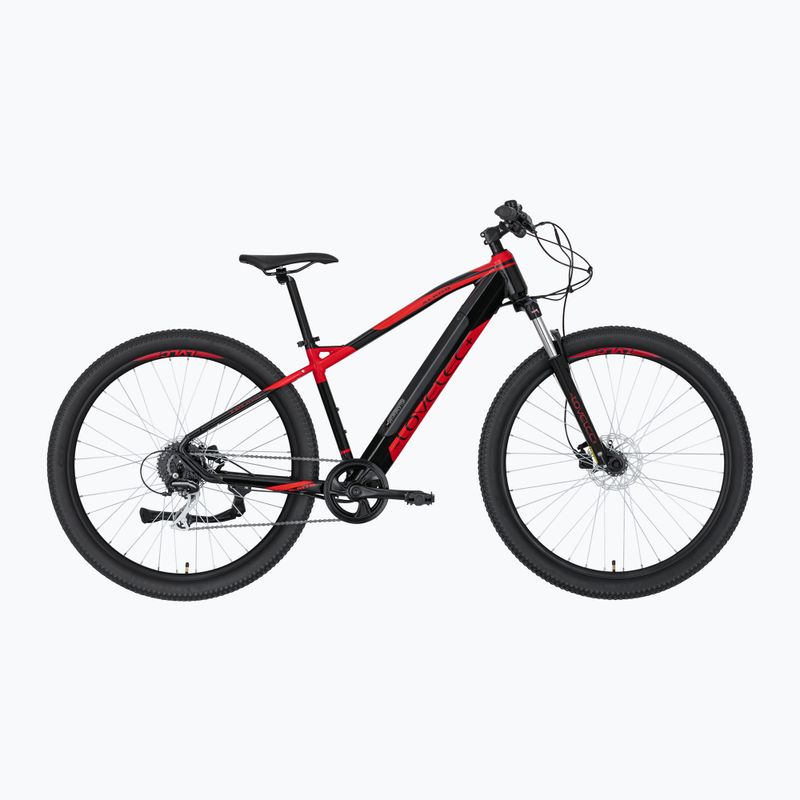

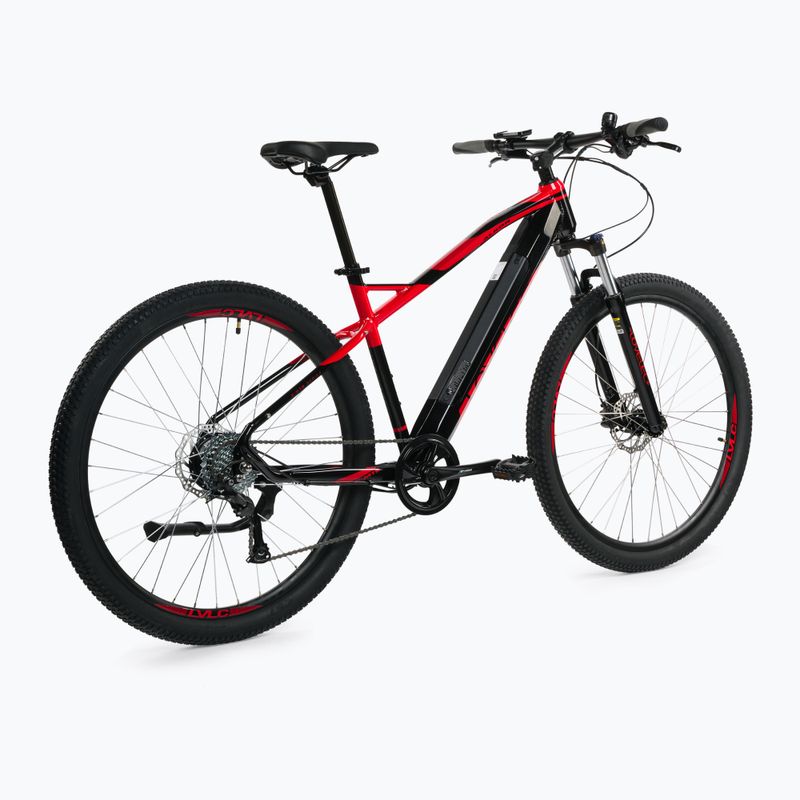

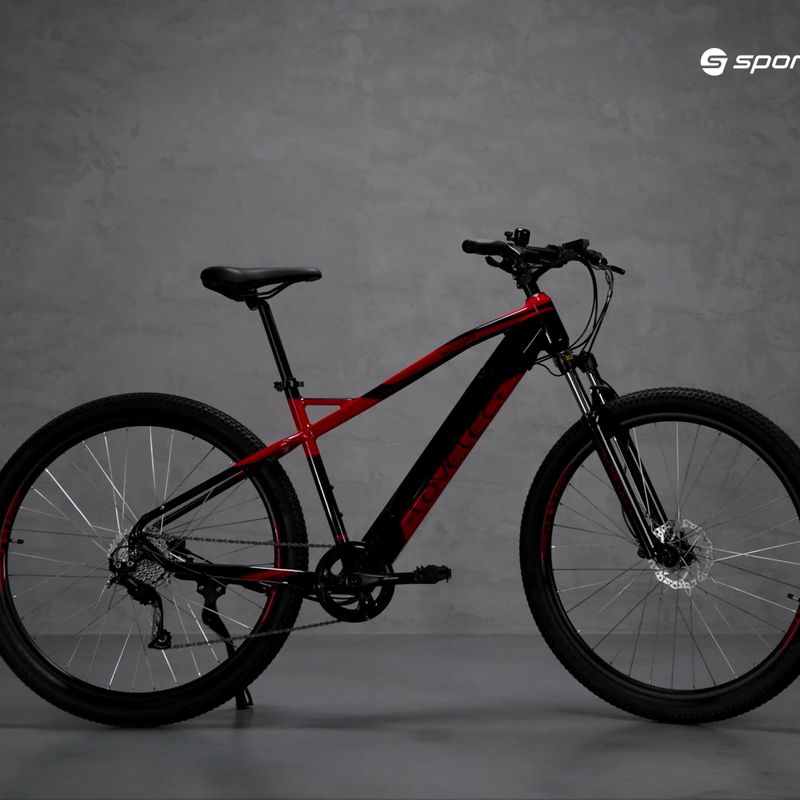

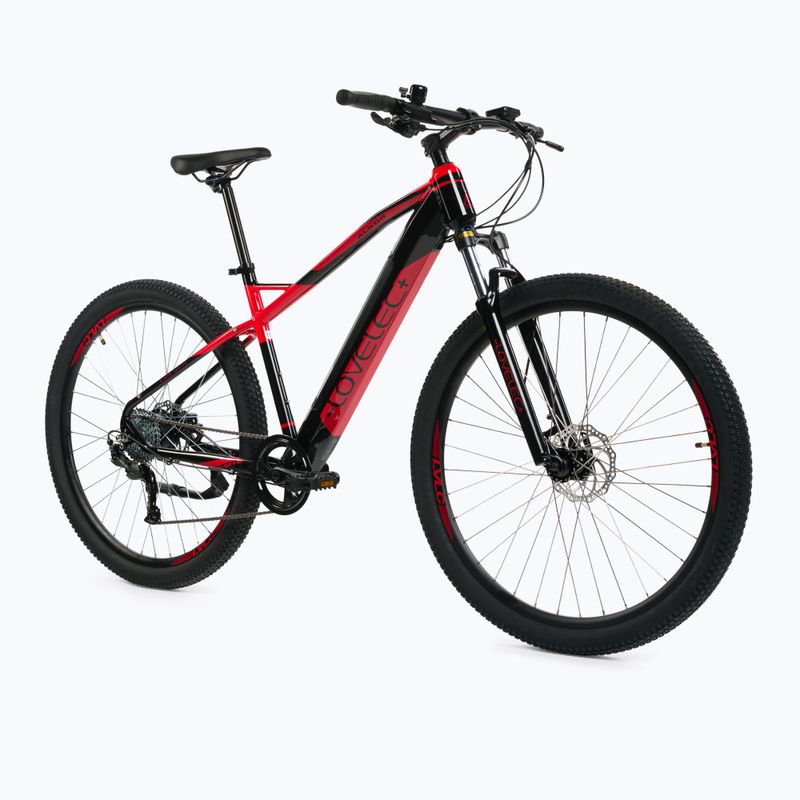

LOVELEC Alkor 15Ah electric bicycle black-red B400239

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model/product code Alkor 15Ah B400239

Leading colour Black

Brand LOVELEC

Country of origin of the brand European Union

Gender Male, Woman

Season Year-round

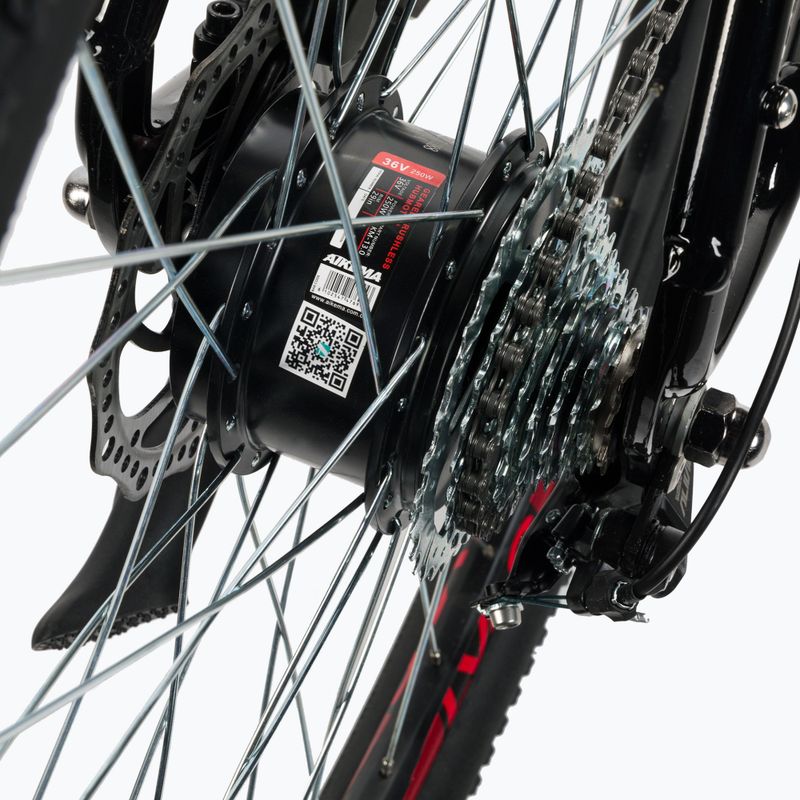

Engine location Hub

Engine power 250 W

Wheel size 29"

Frame 17", 19", From aluminium

Derailleurs 1x9

Sport Bicycles

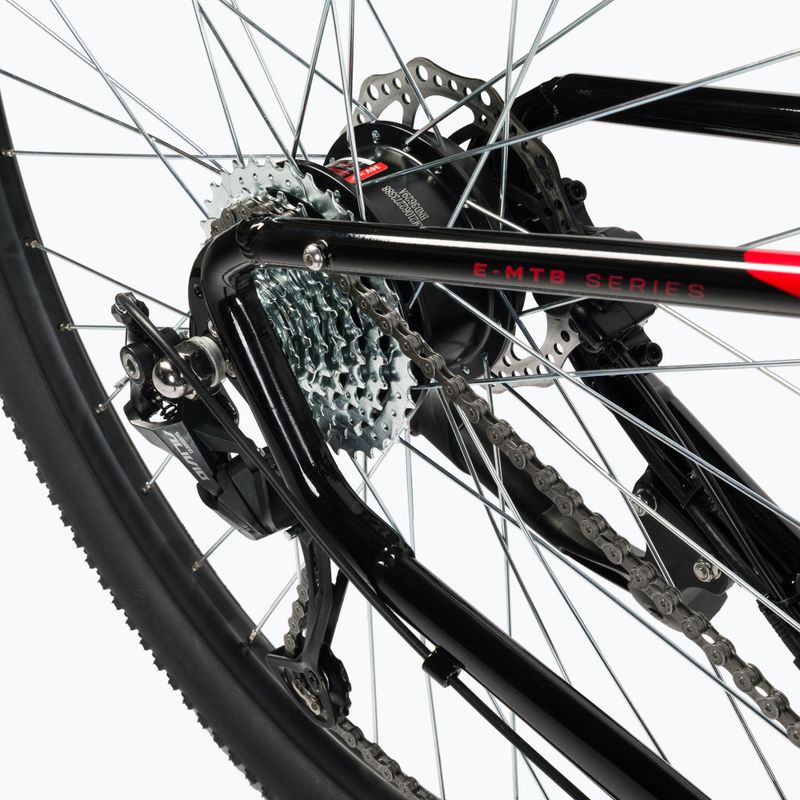

Cassette / Freewheel SunRace CSM909 11-34T

Rear derailleur (model) Shimano Alivio 9-speed

Depreciation Front

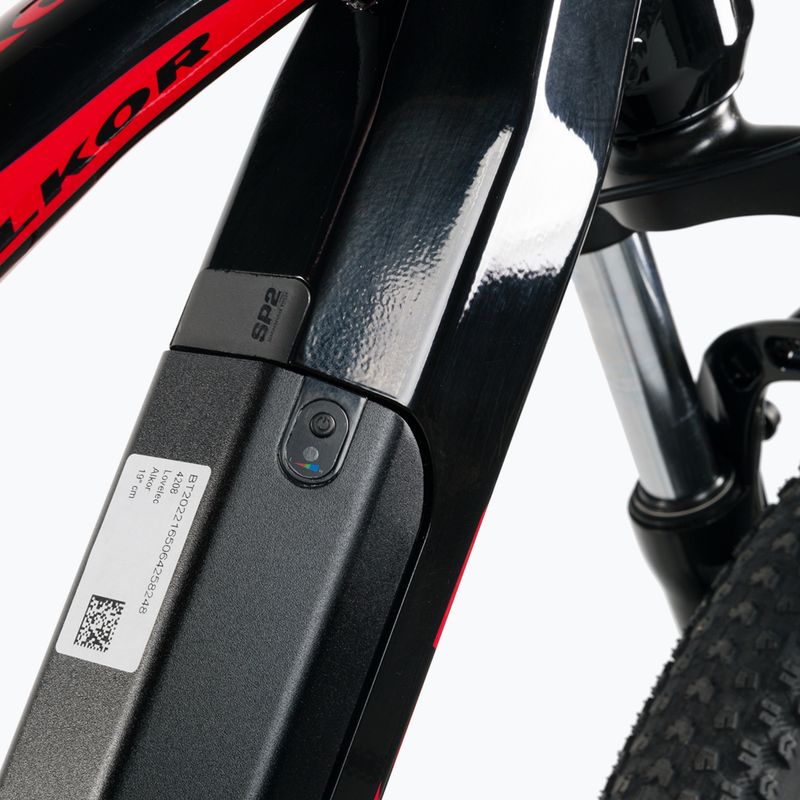

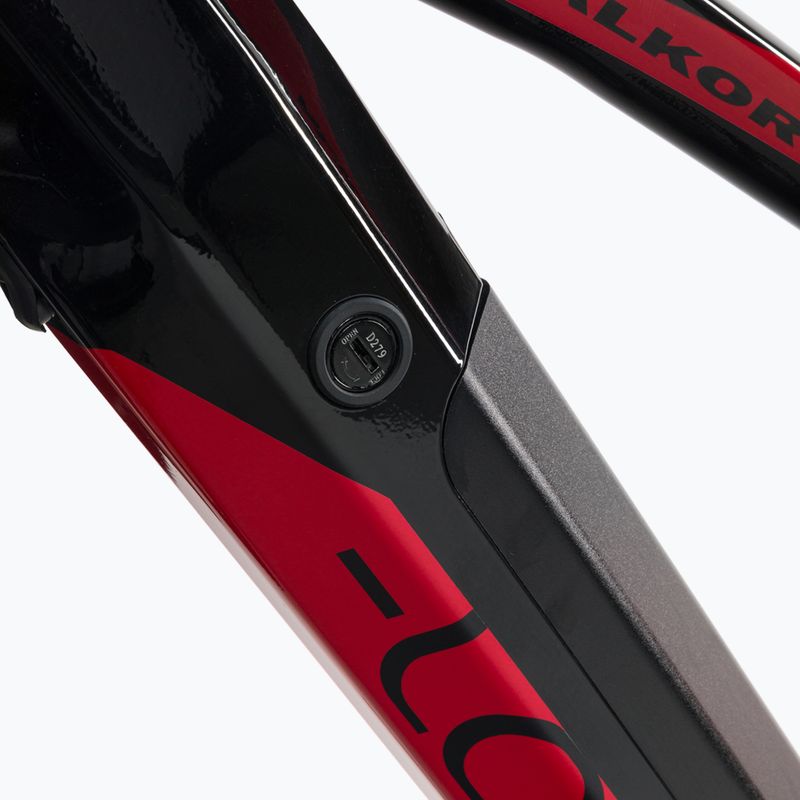

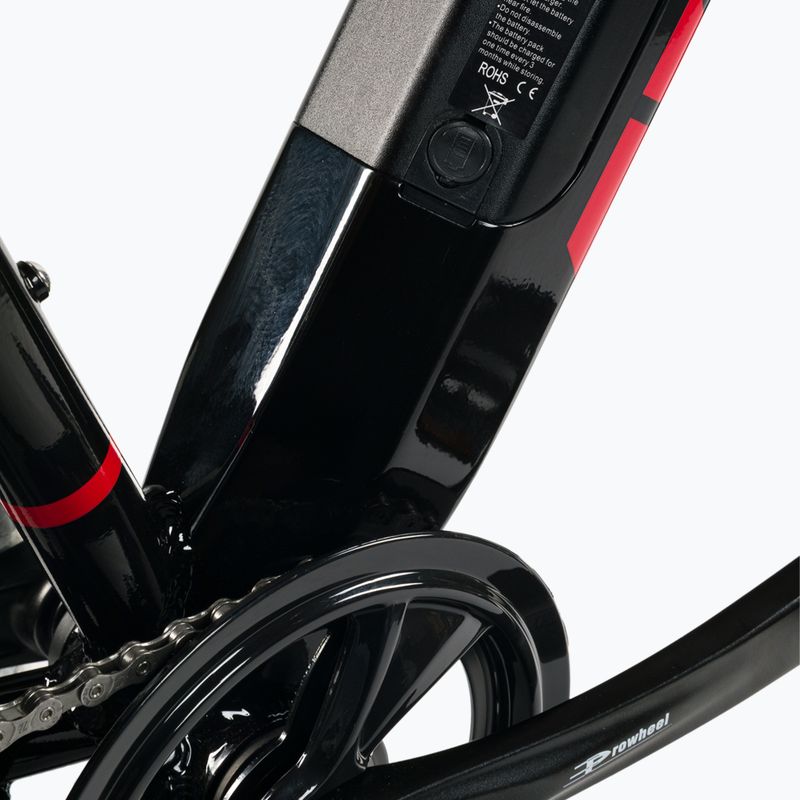

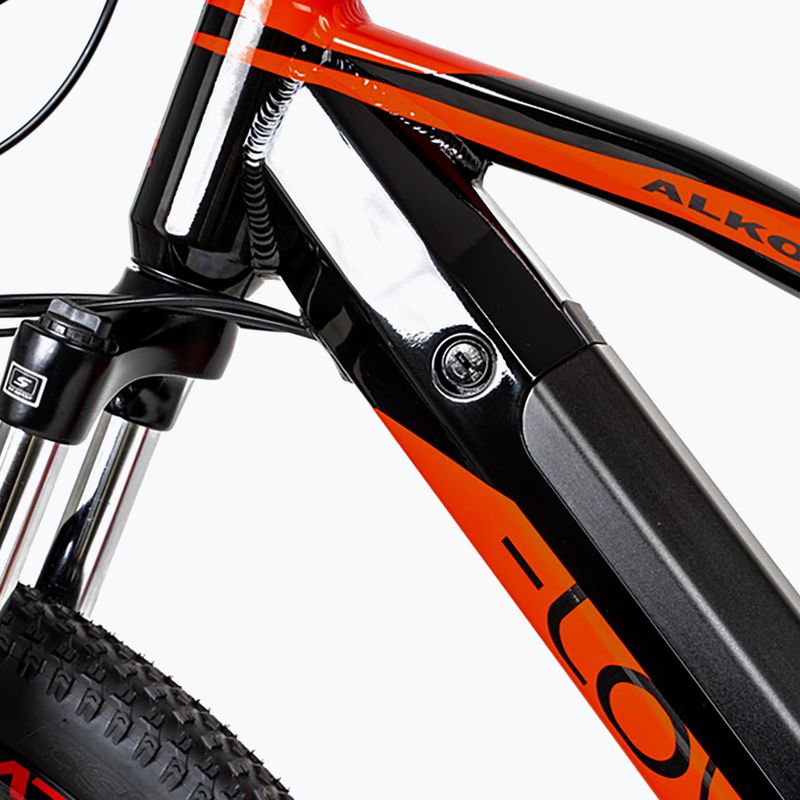

Battery location In the frame

Brakes (model) Tektro HD-T275

Purpose MTB

Maximum range 130 km

Chain KMC

Tyres CST C1820, 29 x 2.35

Frame material Aluminium

Fork Zoom 525 AMS ML/O

Charger EN CE 36V 2A

Engine model AKM ( brushless )

Weight of bike (estimated) 22 kg

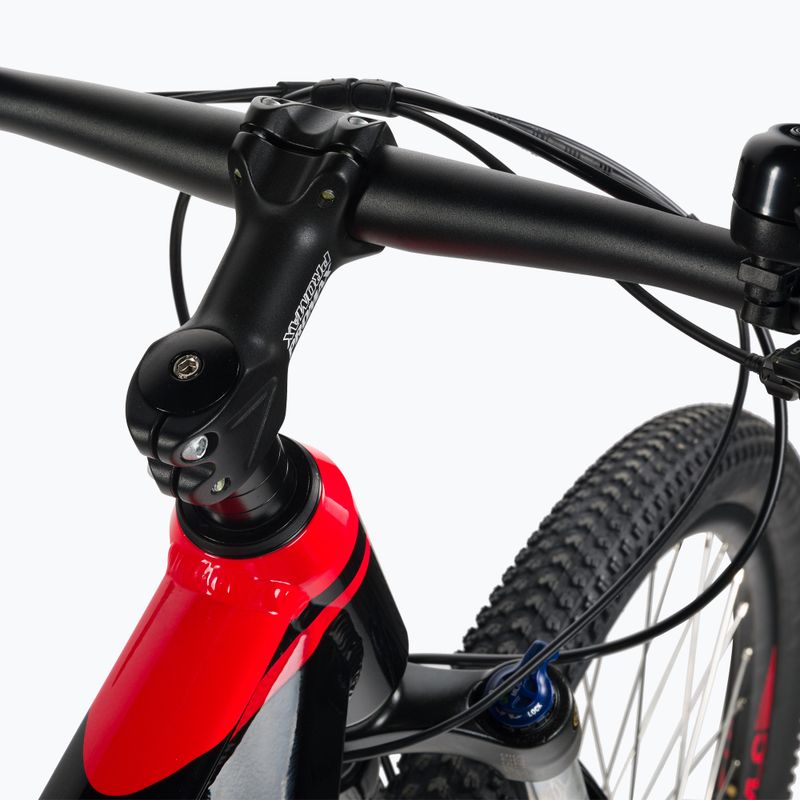

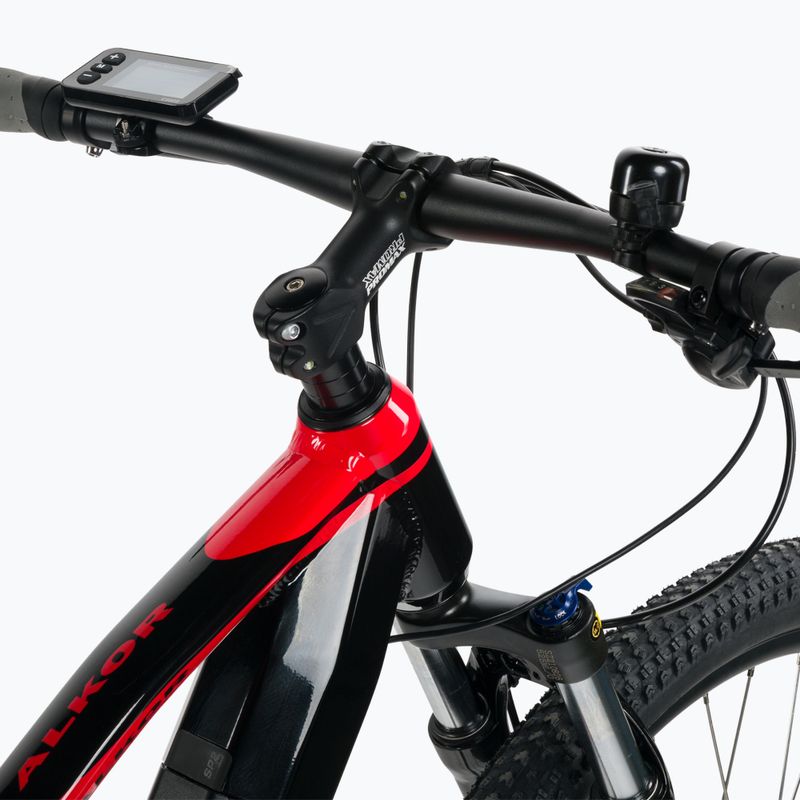

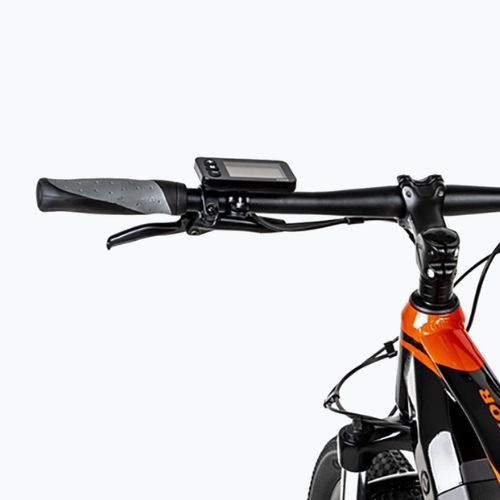

Steering wheel Promax, 720mm

Maximum engine power 500 W

Brake type Hydraulic discs

Number of gears 9

Battery capacity 15Ah

Stan złożenia roweru Bike adjusted and pre-assembled

Hubs Modus

Maximum torque 60 Nm

Battery type Lithium-ion

Maximum speed 25 km/h

Maximum user weight 140 kg

LOVELEC Alkor 15Ah electric bicycle black-red B400239 2

LOVELEC Alkor 15Ah electric bicycle black-red B400239

Sizes

Size	17"	19"
Height (cm)	160-175	175-188
A - angle of the head tube	67	67
B - seat tube angle (mm)	72	72
C - effective top tube length (mm)	605	620,9
D - top tube length (mm)	578,2	590,5
E - seat tube length (mm)	430	480
F - rear triangle length (mm)	480	480
G wheels base (mm)	1166,7	1182,6
H - head tube height (mm)	130	130

Product description

Advantages

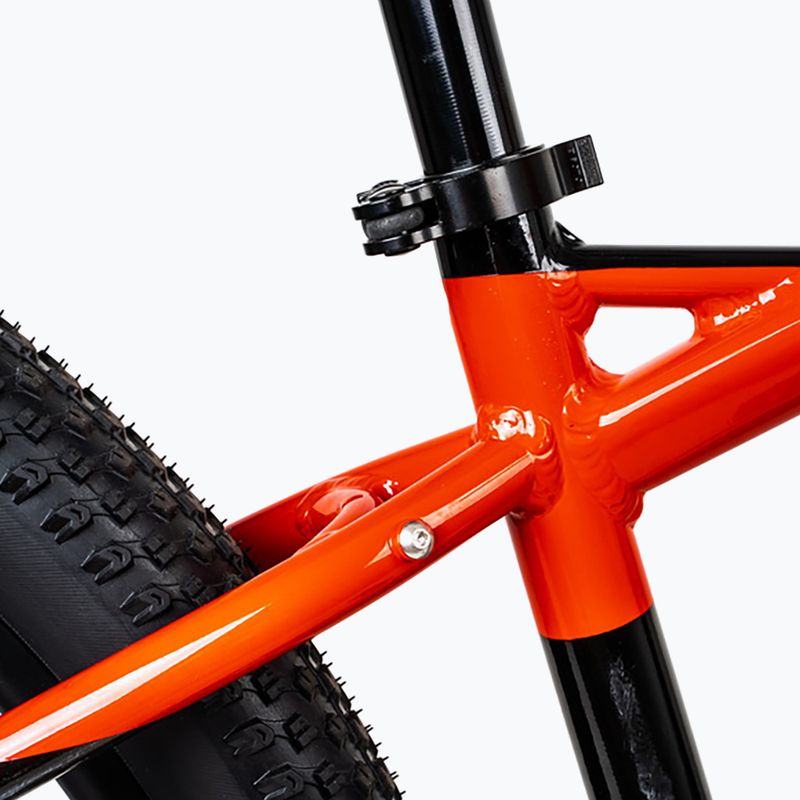

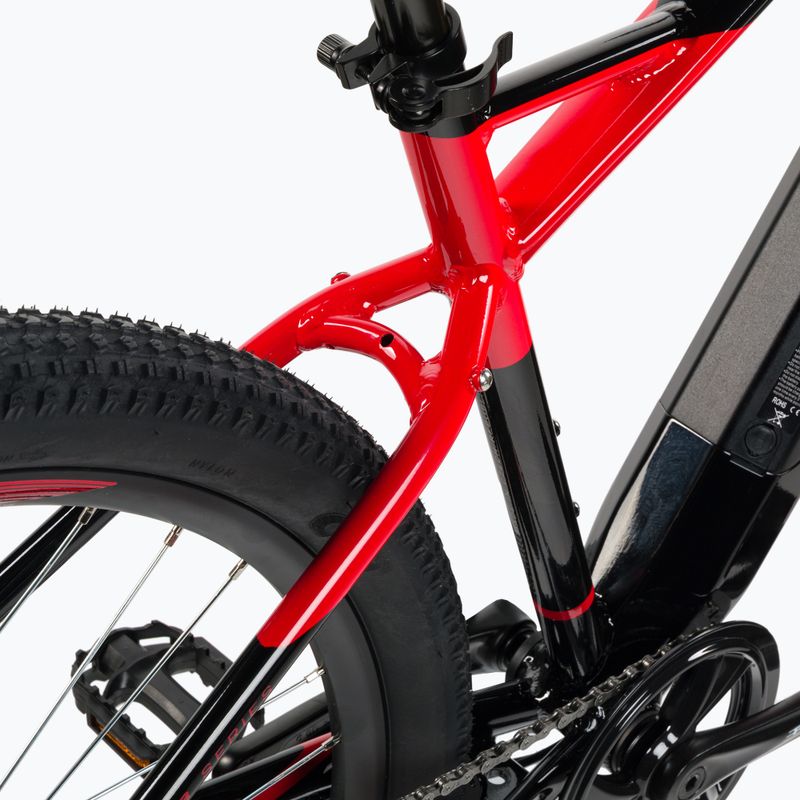

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Long range

This e-bike model has been designed to guarantee the highest possible level of quality. That is why the bike has been equipped with an optimised battery that provides a long range and freedom to explore the terrain.

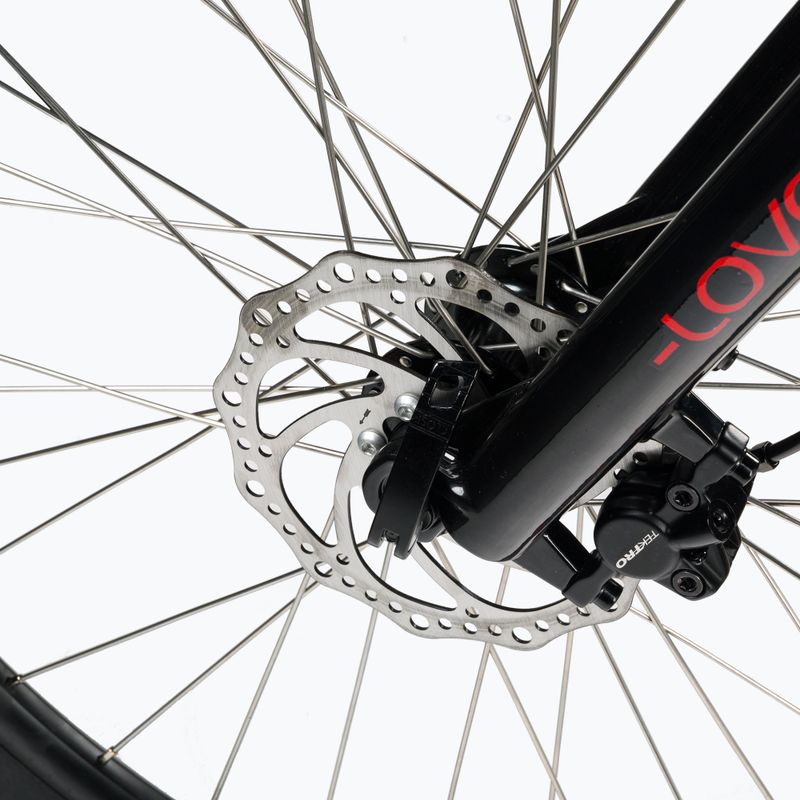

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

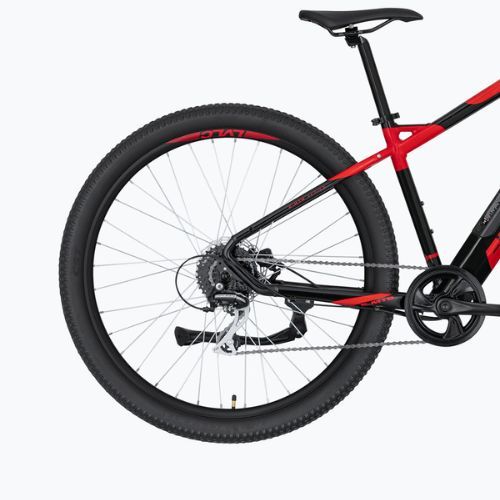

29" wheels

The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over difficult terrain. This size guarantees good stability when riding at higher speeds."
