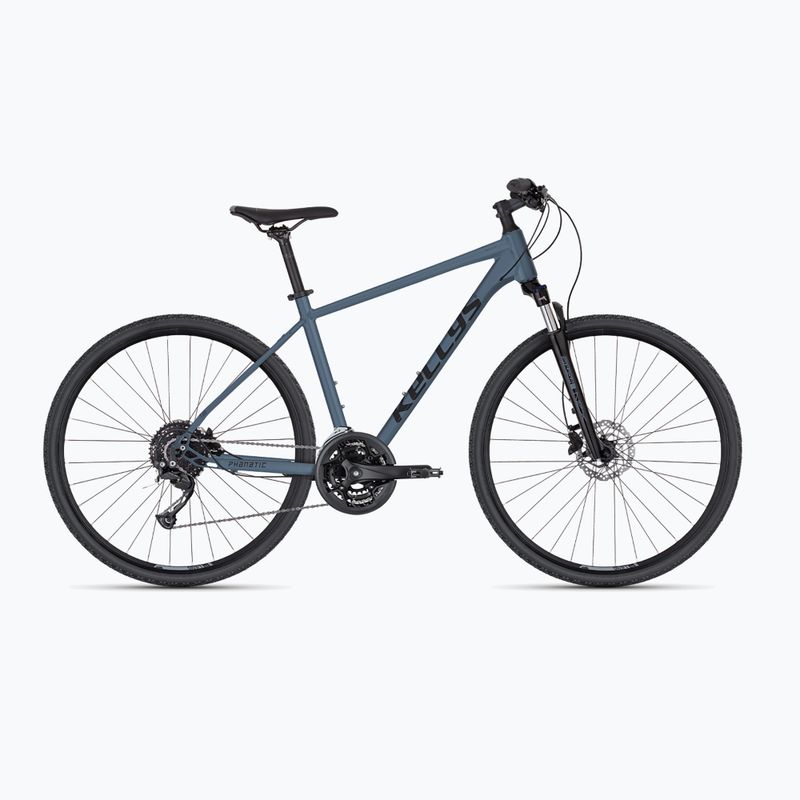

The Kellys Phanatic 20 cross bike is a versatile model for daily riding and weekend trips. The lightweight frame, comfortable geometry, and suspension fork ensure comfort on asphalt and gravel roads, while the universal drivetrain allows for efficient navigation of varied terrain.

Basic data

Brand Kellys
Country of origin of the brand European Union
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour Grey
Model/product code Phanatic 20 86222
Code 2000206115

Frame

Frame KELLYS Crossforce Lite - tapered HT, internal routing, integrated kickstand mount
Frame material Aluminium

Components

Steering wheel KLS CRX 70 RiseBar - diam 31.8 mm / rise 25 mm / width 640 mm (S - M), 660 mm (L - XL)
Handlebar support KLS Advanced - diam 28.6 mm / bar bore 31.8 mm / 7° / length 90 mm
Grips KLS Token 2Density
Depreciation Front
Rudders Semi-integrated
Fork SR SUNTOUR NEX HLO DS, 63 mm, coil spring
Bar KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M - XL)

Drive

Derailleurs 3x9
Number of gears 27
Front derailleur (model) SHIMANO TOURNEY TY601
Rear derailleur (model) SHIMANO M370 (direct mount)
Handles microSHIFT Marvo M859 Xpress Shifter
Suport Cartridge (122mm)
Crank mechanism SHIMANO TY501 (48x38x28T) - length 170 mm (S), 175 mm (M - XL)
Cassette / Freewheel SHIMANO CS-HG200-9 (11-34T)
Chain KMC Z9

Brakes

Brakes (model) TEKTRO Hydraulic Disc
Brake type Hydraulic discs
Brake discs 160 mm front / 160 mm rear

Wheels

Wheel size 28"
Wheels KLS Draft Disc 622x21 rims
Tyres INNOVA 44-622 (700x42C)
Hubs KLS Firework Disc
spokes Steel

Additional information

Pedals included Yes

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer KELLYS BICYCLES s.r.o. | Slnečná cesta 374, 922 01 Veľké Orvište, Słowacja | kellys@kellysbike.com

Cross bike Kellys Phanatic 20 steel (86222)

Kellys Phanatic 20 steel cross bike is a unique model designed for enthusiasts of riding on diverse terrain. Its solid construction is based on a lightweight aluminium frame, ensuring durability and user comfort. The bike is equipped with 28-inch wheels, allowing for smooth riding on both asphalt roads and gravel paths, while the spokes made of steel further reinforce the entire structure.

Advanced technologies and components

The Kellys Phanatic 20 steel cross bike features a modern front suspension system, thanks to the SR SUNTOUR NEX HLO DS fork with a 63 mm travel and coil spring, which effectively dampens shocks on uneven surfaces. This model is equipped with TEKTRO Hydraulic Disc brakes, which provide efficient and precise braking even in difficult conditions. The set also includes microSHIFT Marvo M859 Xpress Shifter thumb shifters, enabling quick and smooth gear changes.

Comfort and ease of riding

The Kellys Phanatic 20 steel cross bike has been designed with user comfort in mind, as evidenced by the use of KLS Token 2Density grips and the KLS CRX 70 RiseBar handlebar with adjustable width and rise. The KLS Active seat post allows for adjustment of the saddle height to individual needs, enhancing riding ergonomics. The included pedals and the SHIMANO TY501 crankset with three chainrings ensure stability and efficiency in energy transfer during pedaling.

High-quality Shimano components

The Kellys Phanatic 20 steel cross bike stands out due to its use of high-quality Shimano components. The SHIMANO CS-HG200-9 cassette and SHIMANO TOURNEY TY601 and SHIMANO M370 derailleurs guarantee precise operation of the drivetrain. With 27 gears, the user has a wide range of ratios at their disposal, allowing for easy climbs and high-speed riding on flat terrain.

Kellys Phanatic 20 steel cross bike - features:

  • Light and durable aluminium frame;
  • Front suspension with SR SUNTOUR NEX HLO DS fork with 63 mm travel;
  • TEKTRO Hydraulic Disc brakes ensuring effective braking;
  • microSHIFT Marvo M859 Xpress Shifter thumb shifters for smooth gear changes;
  • 28-inch wheels with KLS Draft Disc 622x21 rims;
  • SHIMANO TY501 crankset with three chainrings;
  • SHIMANO TOURNEY TY601 and SHIMANO M370 derailleurs for precise drivetrain operation;
  • KLS CRX 70 RiseBar handlebar with adjustable width and rise;
  • KLS Token 2Density grips for user comfort;
  • KLS Active seat post enabling saddle height adjustment;
  • 27 gears providing a wide range of ratios;
  • Included pedals for immediate use;
  • INNOVA 44-622 (700x42C) tyres for versatile riding.
Feedback

There are no reviews yet, be the first!

Review this product

Cross bike Kellys Phanatic 20 steel

Cross bike Kellys Phanatic 20 steel

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Cross bike Kellys Phanatic 20 steel New

No opinion

Bike assembly service available

Size Sizes table
Choose an Option...

Choose an Option

Sizes table

    Below you will find information to help you choose the right size when purchasing the bike by Kellys.

    Size S M L XL
    Height (cm) 155-170 165-180 175-190 185-200
    S/T (mm) 430 480 530 580
    L (mm) 570 591 610 630
    Reach (mm) 384 402 418 435
    Stack (mm) 609 619 628 638
    H/T (mm) 120 130 140 150
    S/T (°) 73 73 73 73
    H/T (°) 70,5 70,5 70,5 70,5
    BB (mm) 57 57 57 57
    RC (mm) 452 452 452 452
    WB (mm) 1070 1091 1111 1131
