Kellys Tygon R10 Air P 29" Electric Bike 36V 20Ah 725Wh is a modern and versatile model that combines riding comfort with electric assistance. Its lightweight design, stable geometry, and powerful motor ensure a smooth, comfortable, and dynamic ride on various terrains.

Basic data

Brand Kellys
Country of origin of the brand European Union
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour Grey
Model/product code Tygon R10 Air P 29" 36V/20Ah/725Wh 81863
Purpose MTB
Code 2000191897

Frame

Frame KELLYS TYGON R-series
Frame material Aluminium

Components

Steering wheel KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 720 mm
Handlebar support KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / length 60 mm
Grips KLS Poison OneLockon
Depreciation Front
Rudders FSA 1.5 semi-integrated
Fork SR SUNTOUR XCR32-AIR LOR DS (29"), 120 mm, air / Speed Lockout / 15 mm thru axle
Saddle Selle Royal Vivo
Bar KLS Active - diam 30.9 mm / length 350 mm

Drive

Derailleurs 1x9
Number of gears 9
Rear derailleur (model) SHIMANO Cues U4000 (direct mount)
Handles SHIMANO Cues SL-U4000-9R Rapidfire Plus
Crank mechanism MIRANDA Delta (36T) - length 170 mm
Cassette / Freewheel SHIMANO Linkglide CS-LG400-9 (11-41T)
Chain SHIMANO Linkglide CN-LG500

Brakes

Brakes (model) Shimano MT200 Hydraulic Disc
Brake type Hydraulic discs
Brake discs 180 mm / 180 mm

Wheels

Wheel size 29"
Wheels KLS Draft 23 Disc 622x23 (32 holes)
Tyres CHWALBE Smart Sam 57-622 (29"x2.25) / SCHWALBE Rapid Rob 57-622 (29"x2.25)
Axle type 110 x 15 mm, 181 x 12 mm
Hubs SHIMANO TC500-15-B / MT400-B Disc Center Lock (32 holes)

Engine

Engine model PANASONIC GX Ultimate
Engine location Central
Engine power 250 W
Maximum torque 95 Nm

Battery

Battery type Lithium-ion
Battery capacity 725 Wh

Additional information

Pedals included Yes

Warnings and producer's data

Standards, certificates CE
Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.
Producer KELLYS BICYCLES s.r.o. | Slnečná cesta 374, 922 01 Veľké Orvište, Słowacja | kellys@kellysbike.com

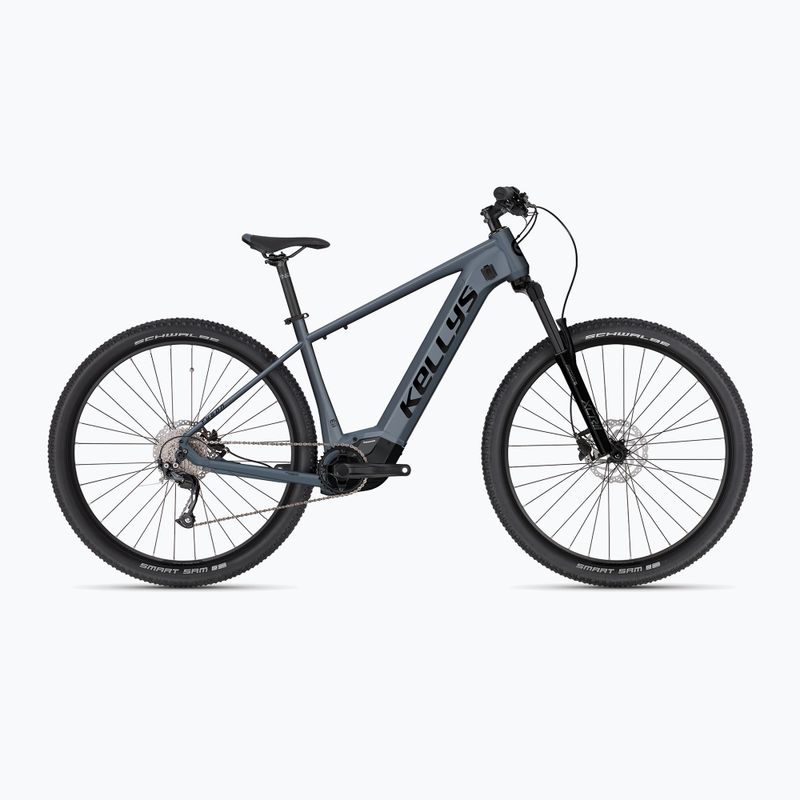

Electric bike Kellys Tygon R10 Air P 29" 36V 20Ah 725Wh steel blue (81863)

Kellys Tygon R10 Air P 29" Electric Bike 36V 20Ah 725Wh Steel Blue is an excellent solution for enthusiasts of off-road and urban cycling. Equipped with an aluminium frame, it provides lightness and durability, which is particularly important during long rides. The SR SUNTOUR XCR32-AIR front suspension with 120 mm of travel guarantees riding comfort in challenging terrain conditions.

Advanced Technologies and Components

The Kellys Tygon R10 Air P 29" electric bike features a PANASONIC GX Ultimate motor with a power of 250 W, ensuring a smooth ride even under heavy loads. A maximum torque of 95 Nm allows for easy ascent of steep inclines. Thanks to the use of a lithium-ion battery with a capacity of 725 Wh, the user can enjoy long rides without the need for frequent recharging.

Precise Control and Safety

The Kellys Tygon R10 Air P 29" electric bike offers precise control with SHIMANO Cues SL-U4000-9R Rapidfire Plus shifters and a 9-speed SHIMANO Cues U4000 rear derailleur. Hydraulic disc brakes Shimano MT200 guarantee effective braking and safety in all conditions. The 29-inch wheels with SCHWALBE Smart Sam and Rapid Rob tires provide excellent traction and stability while riding.

High-Quality Components and Comfort

The KLS Active RiseBar handlebar and Selle Royal Vivo saddle ensure high comfort during use. Additionally, the bike is equipped with KLS Poison OneLockon grips that guarantee a secure hold, while the KLS Active seat post and MIRANDA Delta crankset complete the setup, offering robustness and durability.

Kellys Tygon R10 Air P 29" Electric Bike - Features:

  • Aluminium frame for lightness and durability;
  • SR SUNTOUR XCR32-AIR front suspension with 120 mm travel;
  • PANASONIC GX Ultimate motor with 250 W power;
  • Maximum torque of 95 Nm for easy climbing;
  • Lithium-ion battery with a capacity of 725 Wh;
  • Hydraulic disc brakes Shimano MT200 for effective braking;
  • SHIMANO Cues SL-U4000-9R Rapidfire Plus shifters;
  • 9-speed SHIMANO Cues U4000 rear derailleur;
  • 29-inch wheels with SCHWALBE Smart Sam and Rapid Rob tires;
  • KLS Active RiseBar handlebar for precise control;
  • Selle Royal Vivo saddle for riding comfort;
  • KLS Poison OneLockon grips for a secure hold.
