Kellys Phanatic 20 28" combines a sporty character with everyday functionality. Thanks to its lightweight frame, solid equipment, and large wheels, it can handle any terrain, offering comfort and riding pleasure regardless of the conditions.

Basic data

Brand Kellys
Country of origin of the brand European Union
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour Blue
Model/product code Phanatic 20 82108
Code 2000164233

Frame

Frame KELLYS Crossforce Lite - tapered HT, internal routing, integrated kickstand mount
Frame material Aluminium

Components

Steering wheel KLS CRX 70 RiseBar - diam 31.8 mm / rise 25 mm / width 640 mm (S - M), 660 mm (L - XL)
Handlebar support KLS Advanced - diam 28.6 mm / bar bore 31.8 mm / 7° / length 90 mm (M - L), 110 mm (XL)
Grips KLS Token 2Density
Depreciation Front
Rudders Semi-integrated
Fork SR SUNTOUR NEX HLO DS, 63 mm, coil spring
Bar KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M - XL)

Drive

Derailleurs 3x9
Number of gears 27
Front derailleur (model) SHIMANO TY601 (31.8 mm)
Rear derailleur (model) SHIMANO Altus M370
Handles microSHIFT Marvo M859 Xpress Shifter
Suport Cartridge (122mm)
Crank mechanism SHIMANO TY501 (48x38x28T) - length 170 mm (S), 175 mm (M - XL)
Cassette / Freewheel SHIMANO CS-HG200-9 (11-34T)
Chain KMC Z9

Brakes

Brakes (model) TEKTRO Hydraulic Disc
Brake type Hydraulic discs
Brake discs 160 mm front / 160 mm rear

Wheels

Wheel size 28"
Wheels KLS Draft Disc 622x21 rims
Tyres INNOVA 44-622 (700x42C)
Hubs KLS Firework Disc
spokes Steel

Additional information

Pedals included Yes

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer KELLYS BICYCLES s.r.o. | Slnečná cesta 374, 922 01 Veľké Orvište, Słowacja | kellys@kellysbike.com

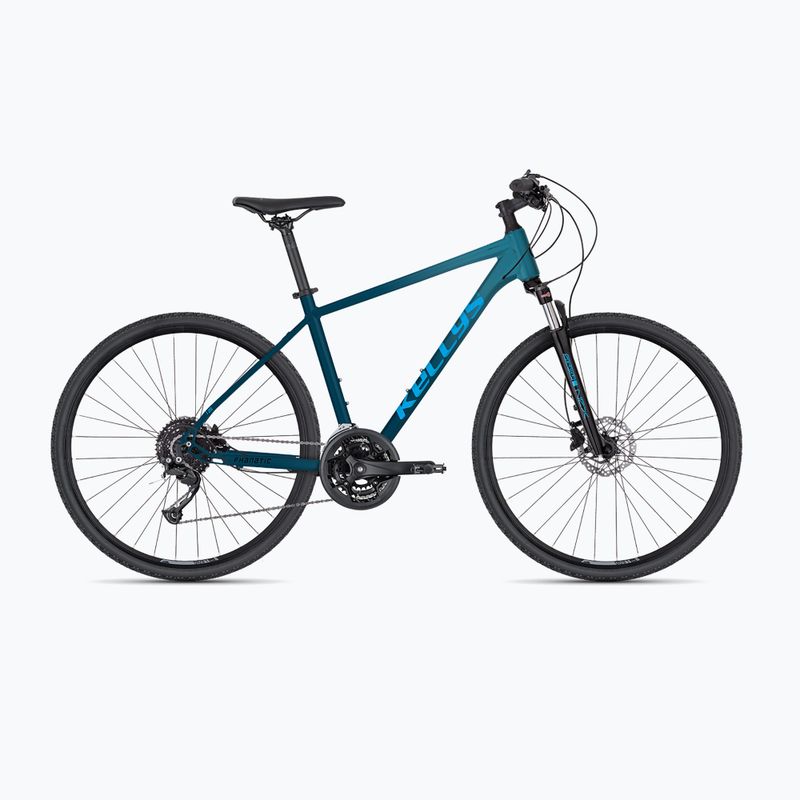

Kellys Phanatic 20 blue cross bike (82108)

Kellys Phanatic 20 blue cross bike is a technically advanced two-wheeler that combines durability, functionality, and riding comfort. It is an ideal choice for those looking for a bike that performs well both on asphalt roads and on more demanding trails.

Frame and construction

The frame of the Kellys Phanatic 20 bike is made of aluminum, which ensures its lightness and durability. This model uses KELLYS Crossforce Lite technology with a tapered head tube, allowing for precise handling and stability. Additionally, the frame features internal cable routing and an integrated kickstand mount, enhancing the aesthetics and functionality of the construction.

Drive system and derailleurs

The bike is equipped with a 27-speed drive system, using SHIMANO Altus M370 derailleurs at the rear and SHIMANO TY601 at the front. The SHIMANO TY501 crankset offers three chainrings with 48x38x28T teeth. The SHIMANO CS-HG200-9 cassette with an 11-34T range enables smooth gear changes, which is crucial on varied terrain.

Brakes and wheels

The safety of Kellys Phanatic 20 users is ensured by TEKTRO hydraulic disc brakes, featuring 160 mm discs at the front and rear. KLS Draft Disc rims and KLS Firework Disc hubs, combined with INNOVA 44-622 tires, guarantee confident handling on diverse surfaces.

Components and riding comfort

The SR SUNTOUR NEX HLO DS fork with 63 mm suspension improves riding comfort, especially on uneven terrain. The KLS CRX 70 RiseBar handlebar and KLS Active seatpost are designed with ergonomics and comfort in mind. The KLS Advanced stem and KLS Token 2Density grips provide a secure hold and stable control over the bike.

Warranty and additional equipment

The Kellys Phanatic 20 bike comes with a 2-year frame warranty, which can be extended to 5 years upon registration. Pedals are also included in the set, allowing for immediate use. All these features make this model a versatile choice for demanding cyclists.


Feedback

There are no reviews yet, be the first!

Review this product

Kellys Phanatic 20 blue cross bike

Kellys Phanatic 20 blue cross bike

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Kellys Phanatic 20 blue cross bike

No opinion

Size Sizes table
Choose an Option...

Choose an Option

Sizes table

    Below you will find information to help you choose the right size when purchasing the bike by Kellys.

    Size S M L XL
    Height (cm) 155-170 165-180 175-190 185-200
    S/T (mm) 430 480 530 580
    L (mm) 570 591 610 630
    Reach (mm) 384 402 418 435
    Stack (mm) 609 619 628 638
    H/T (mm) 120 130 140 150
    S/T (°) 73 73 73 73
    H/T (°) 70,5 70,5 70,5 70,5
    BB (mm) 57 57 57 57
    RC (mm) 452 452 452 452
    WB (mm) 1070 1091 1111 1131
