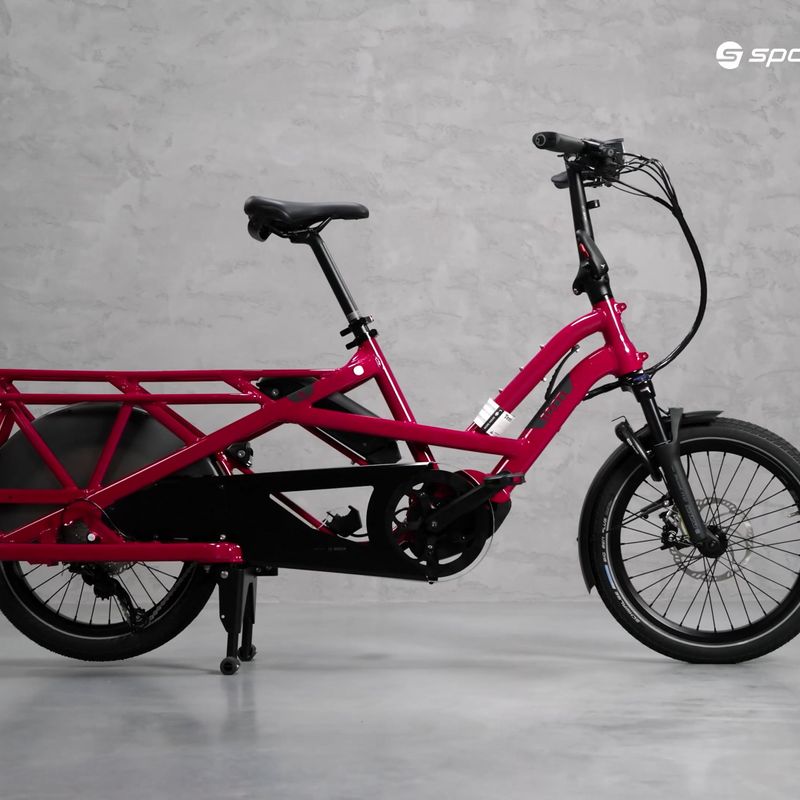

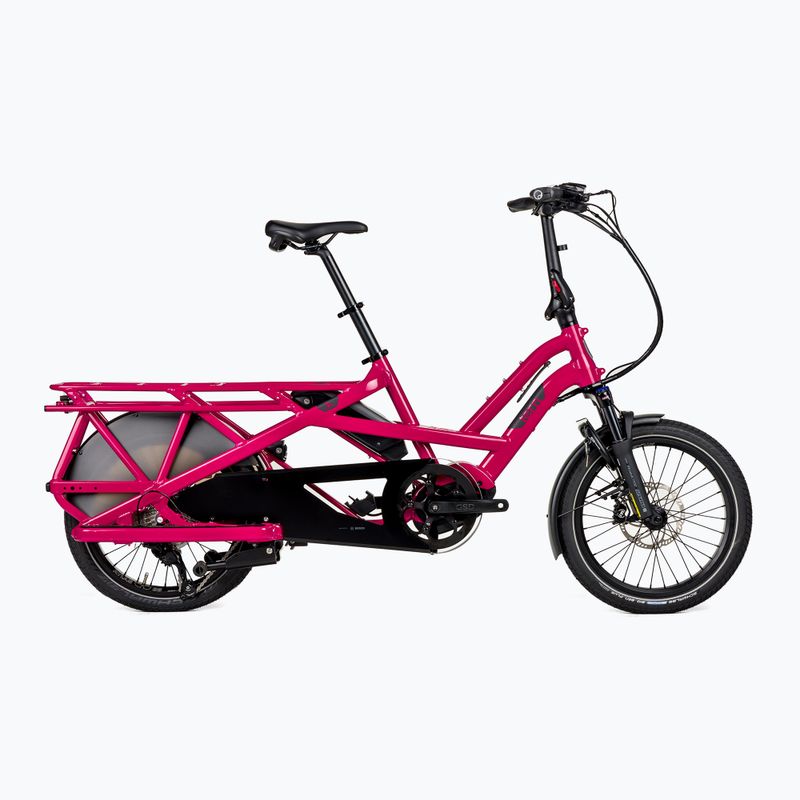

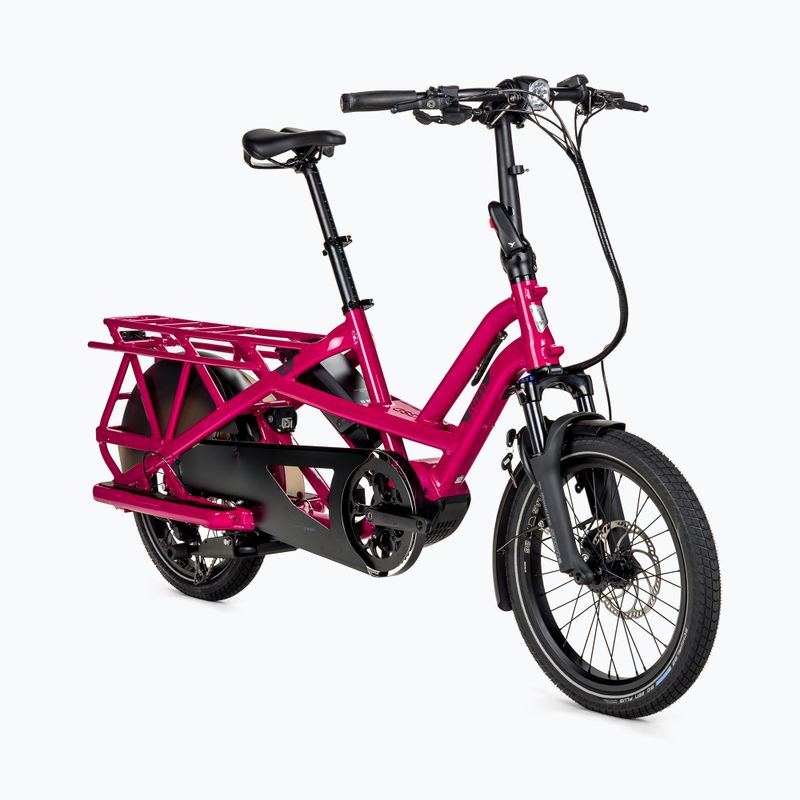

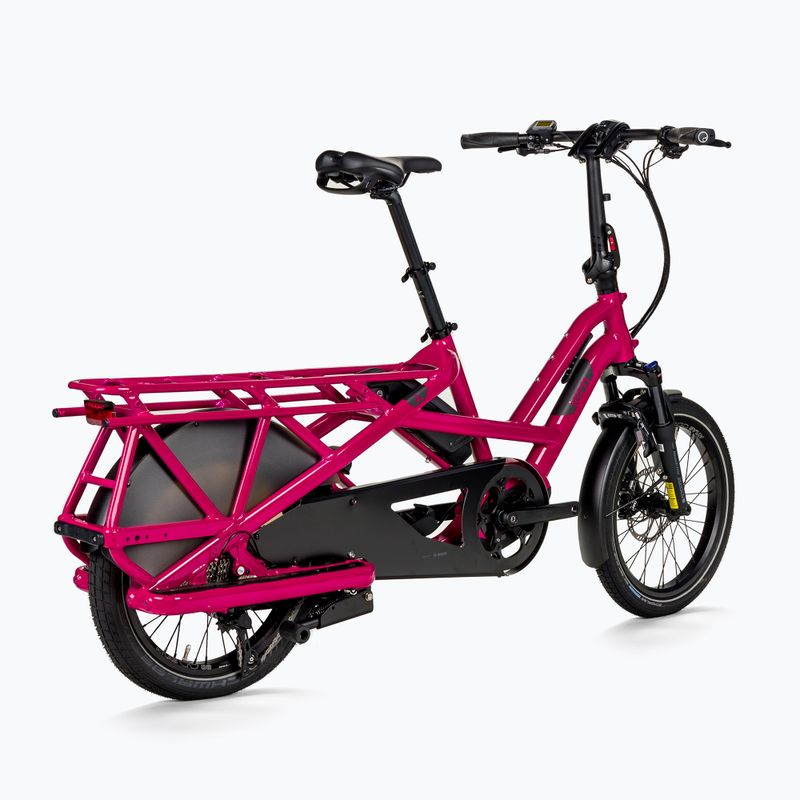

Electric bike Tern GSD S10 Cargo Lina purple

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model/product code GSD S10 Cargo Line

Leading colour Purple

Brand Tern

Country of origin of the brand Outside the European Union

Gender Male, Woman

Season Year-round

Engine location Central

Engine power 250 W

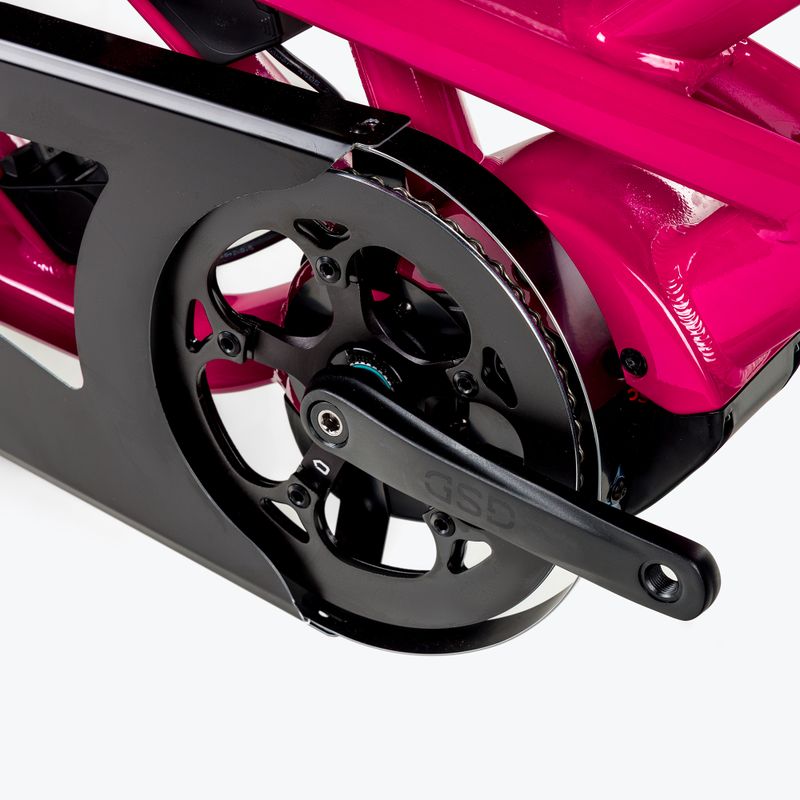

Crank mechanism Tern GSD custom, forged 6061-AL DH crankarm

Wheel size 20"

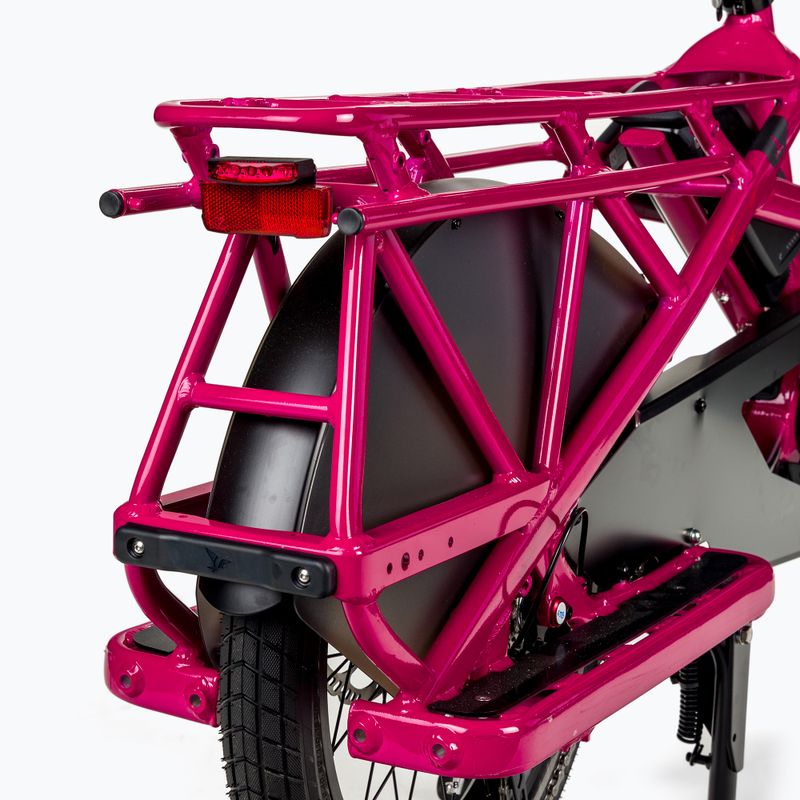

Frame Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg

Derailleurs 1x10

Sport Bicycles

Cassette / Freewheel Shimano 11-36T, 10 spd

Rear derailleur (model) Shimano Deore Shadow+

Depreciation Front

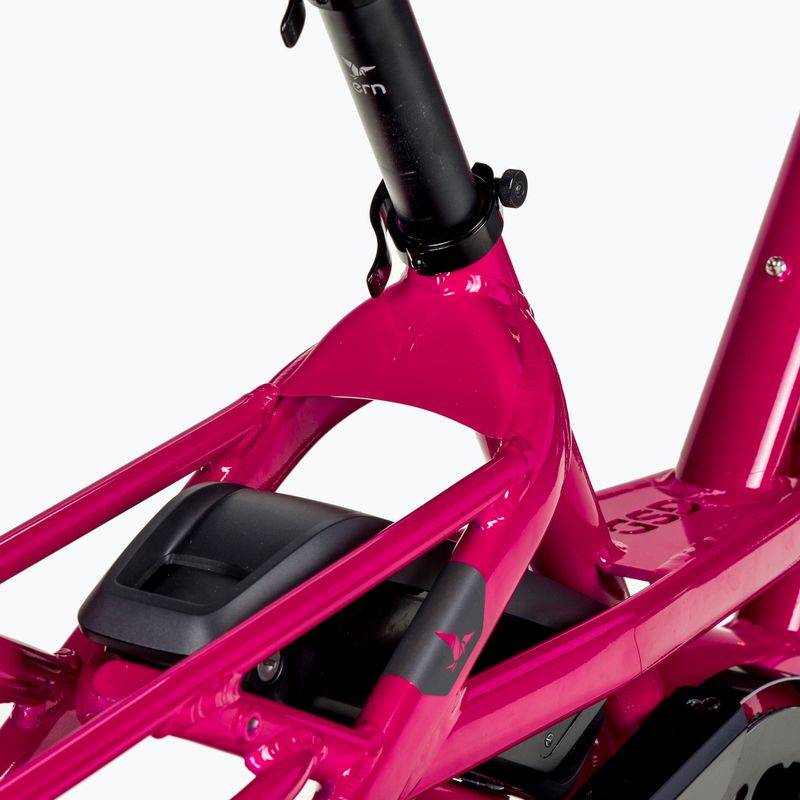

Battery location Under saddle

Brakes (model) Magura MT5

Purpose City/urban

Maximum range 195 km

Chain 10 spd, DHT for eBike, GST corrosion resistant coating

Bar Tern Telescope, 34.9 mm, Lite 2014-AL

Tyres Rear: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex, Front: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex

Frame material Aluminium

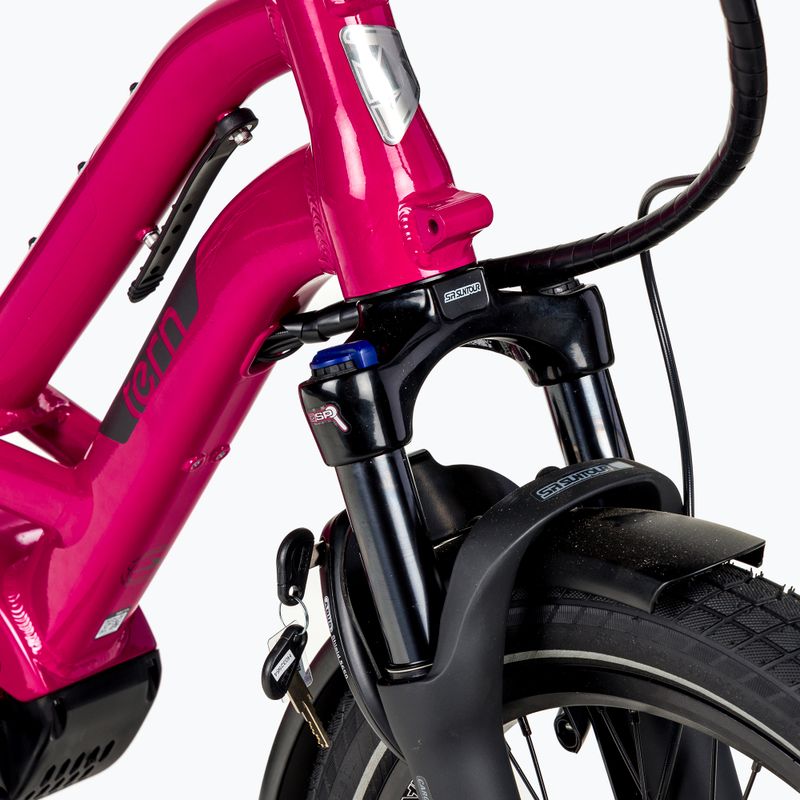

Fork Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg

Charger 220V, 4A

Engine model Bosh Cargo Line

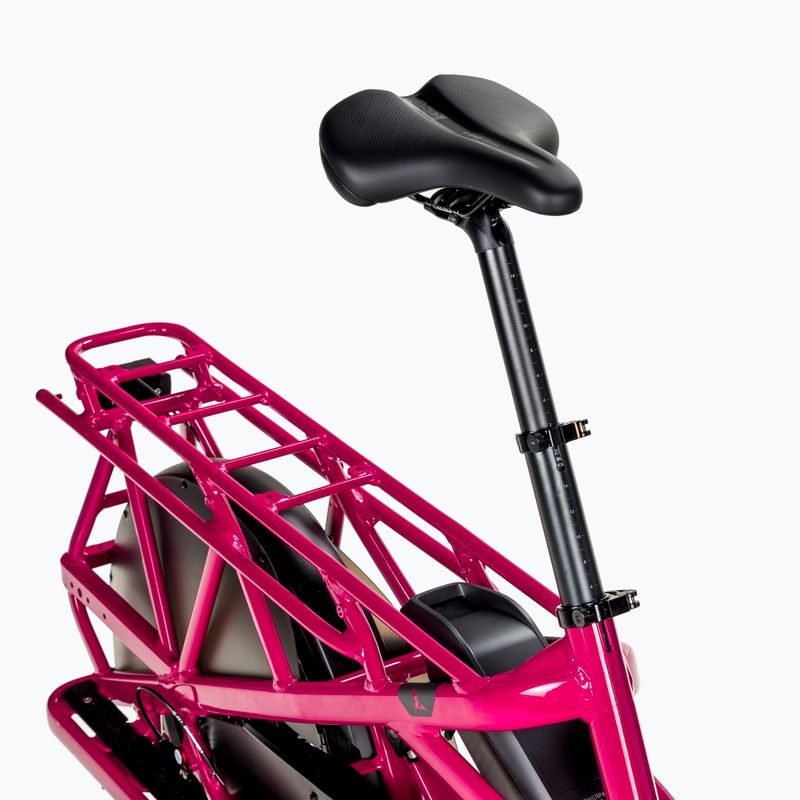

Saddle Tern GSD by Velo

Weight of bike (estimated) 33,58 kg

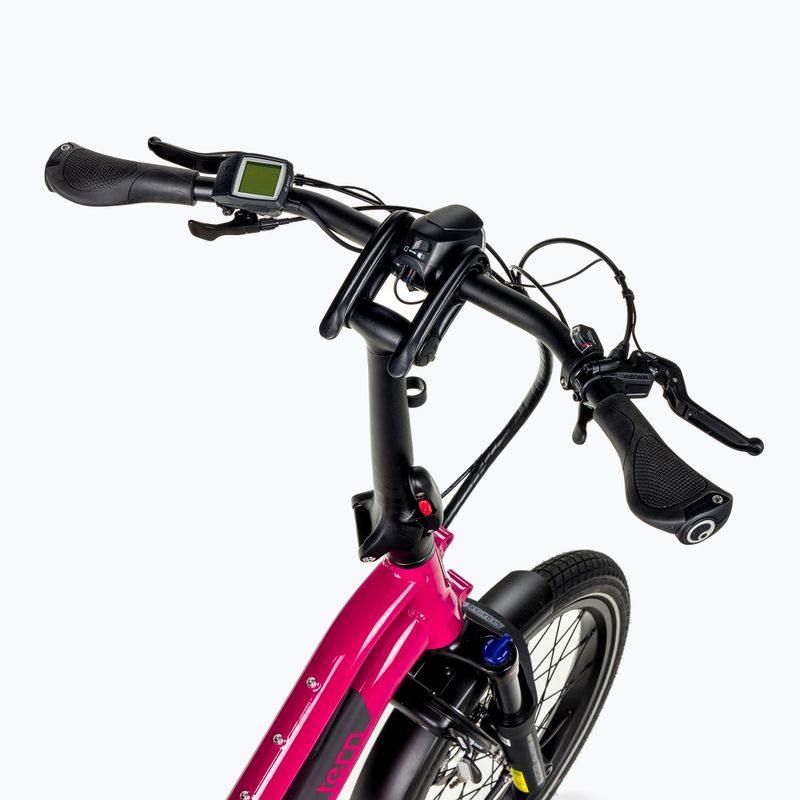

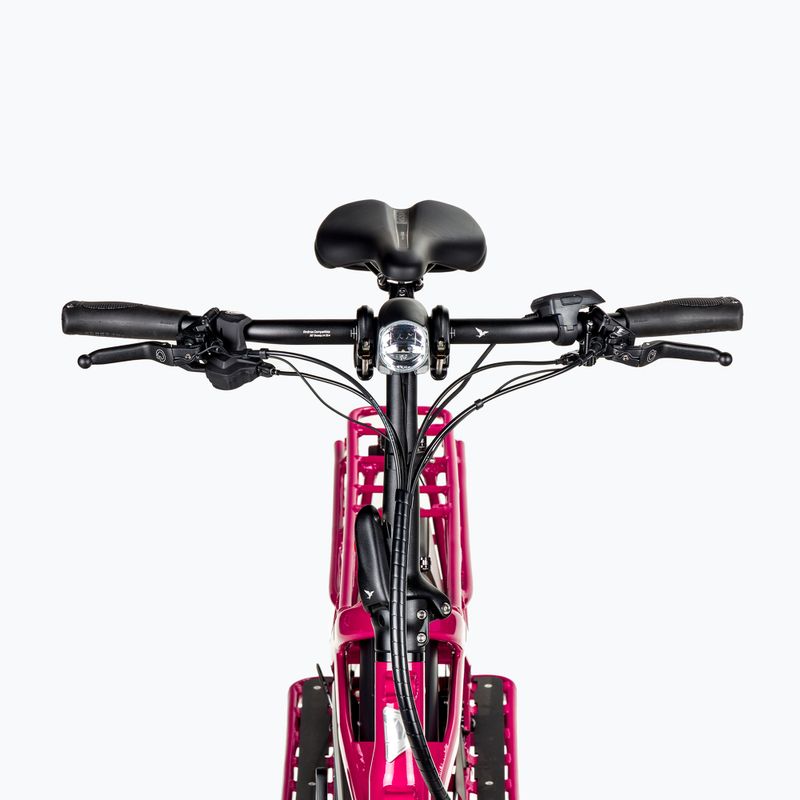

Steering wheel Tern Sweep, 6061-AL, Tern Andros adapted

Brake type Hydraulic discs

Number of gears 10

Battery capacity 400 Wh, 900 Wh

Stan złożenia roweru Bike adjusted and pre-assembled

Hubs Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing - front hub, Tern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design - rear hub

Maximum torque 85 Nm

Battery type Lithium-ion

Maximum speed 25 km/h

Tubeless ready wheels No

Maximum user weight 120 kg

Rudders Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated

Electric bike Tern GSD S10 Cargo Lina purple 2

Electric bike Tern GSD S10 Cargo Lina purple

Sizes

Height (cm)	150-195
Size after folding (cm)	69,3 x 15,9 x 32,7
Size when unfolded (cm)	176 x 40,5 x 83
Distance from saddle to pedals (cm)	49-59
Seatpost to handlebar distance (cm)	69-105

Product description

Advantages

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Long range

This e-bike model has been designed to guarantee the highest possible level of quality. That is why the bike has been equipped with an optimised battery that provides a long range and freedom to explore the terrain.

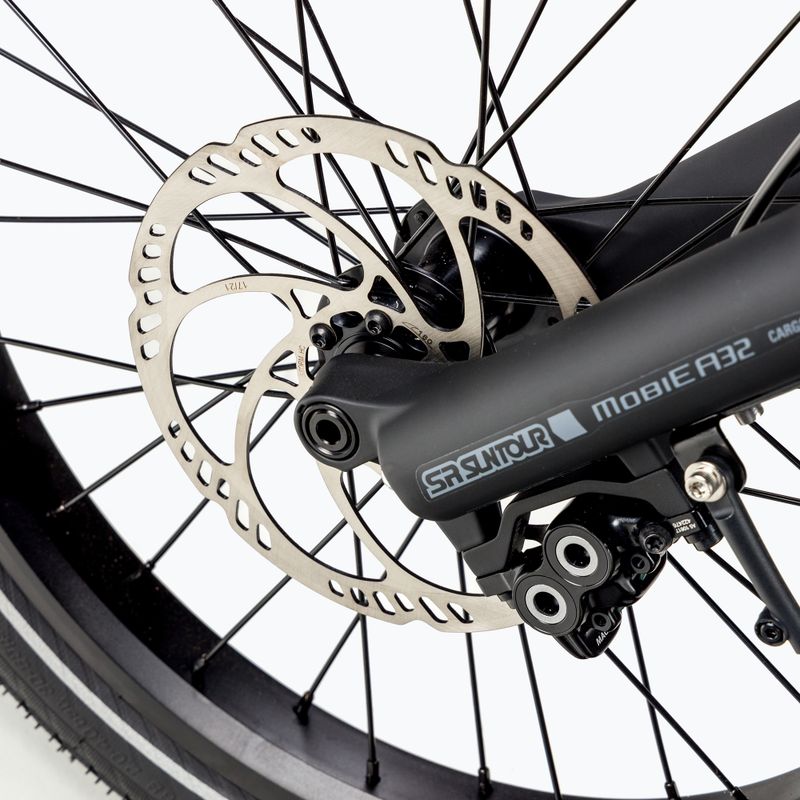

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

Drive 1x10

The 1x10 derailleurs used on this e-bike model guarantee smooth gradation and allow effortless gear changes. The large gear range allows you to adapt the gear to the current road conditions.
