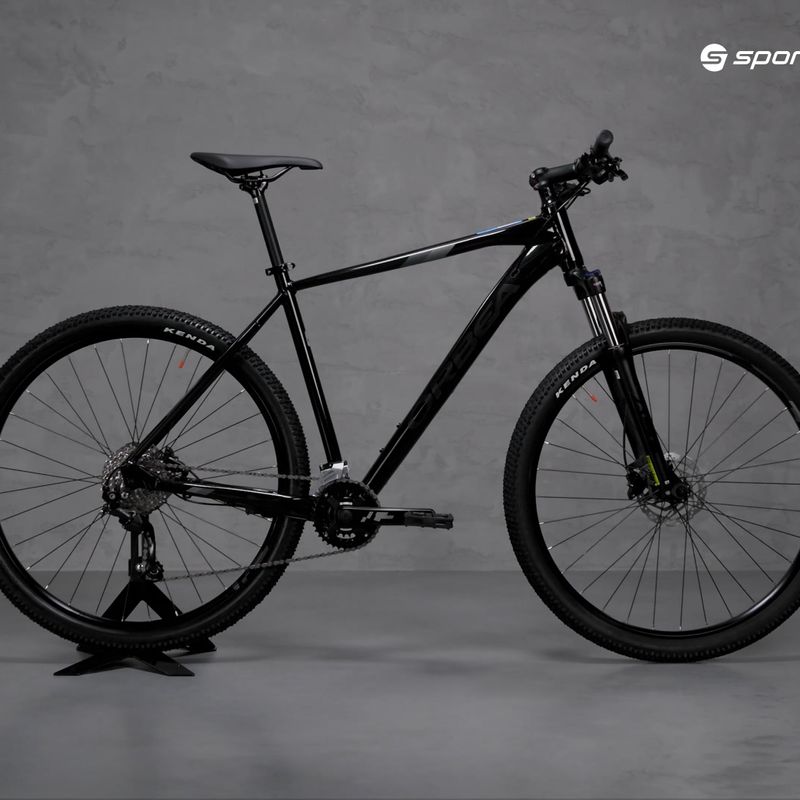

Orbea MX 29 40 mountain bike black

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code MX 29 40

Leading colour Black

Brand Orbea

Country of origin of the brand Spain

Gender Male, Woman

Season Year-round

Crank mechanism Alloy forged 22x36t 9S

Wheel size 29"

Frame Orbea MX Alloy only disc

Derailleurs 2x9

Cassette / Freewheel Sun Race CSM989 11-36t 9-Speed

Sport Bicycles

Rear derailleur (model) Shimano Alivio M3100 SGS Shadow

Handles Shimano Alivio SL-M3100

Depreciation Front

Brakes (model) Shimano MT200 Hydraulic Disc

Chain Shimano HG53 9-Speed

Handlebar support Alloy 31.8mm interface 7º

Bar Alloy 27.2 Offset 0

Tyres Kenda K1153 2.35" 30TPI

Weight of bike (estimated) 14,87 kg

Frame material Aluminium

Fork SR Suntour XCT 30 Coil 100mm QR

Saddle Selle Royal 2058 DRN

Steering wheel Alloy Flat 31.8mm 720mm

Brake type Hydraulic discs

Number of gears 18

Front derailleur (model) Shimano M2020 31.8mm

Wheels Orbea Black Rock 23c Disc

Stan złożenia roweru Bike adjusted and pre-assembled

Rudders VP-Z104PD 1-1/8" Semi-Cartridge

Sizes

Size	M	L	XL
Height (cm)	164-180	178-190	185-200
A - Seat tube (mm)	430	470	540
B - Horizontal pipe (mm)	559	578	618
C - Steerer tube (deg)	104	115	138
D - Rear triangle (mm)	450	450	450
E - Support height (mm)	305	305	305
F - Support lowering (mm)	65	65	65
G - Wheelbase (mm)	1078	1098	1139
H - Head angle	70	70	70
I - Saddle angle	74	74	74
J - Crossover (mm)	823,17	837,09	881,73
K - Reach (mm)	397	397	430
L - Stack (mm)	623	633	655
M - Fork (mm)	506	506	506

Product description

Advantages

Front cushioning

The cushioning on the bike provides comfort when negotiating bumps in the road. This model features front wheel cushioning, which absorbs the force when hitting an obstacle and increases the level of safety.

Aluminium frame

The aluminium frame is characterised by its high resistance to scratches and damage. In addition, this material is characterised by its low weight, which makes carrying the bike no problem.

Hydraulic disc brakes

This mountain bike is equipped with hydraulic disc brakes, which have a very low failure rate so that use will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

29" wheels

The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over rough terrain. This size guarantees good stability when riding at higher speeds."
