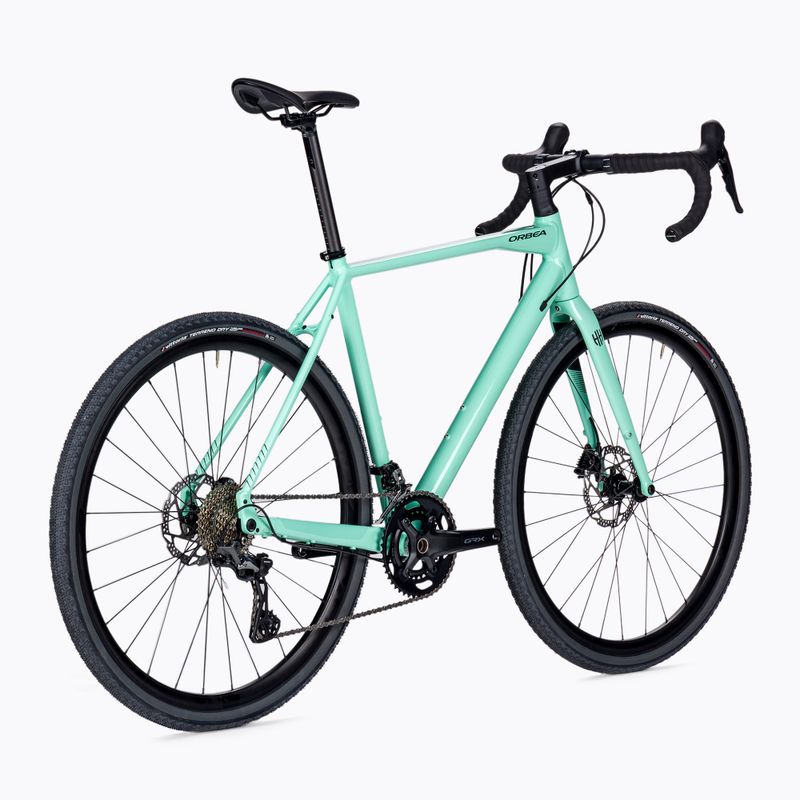

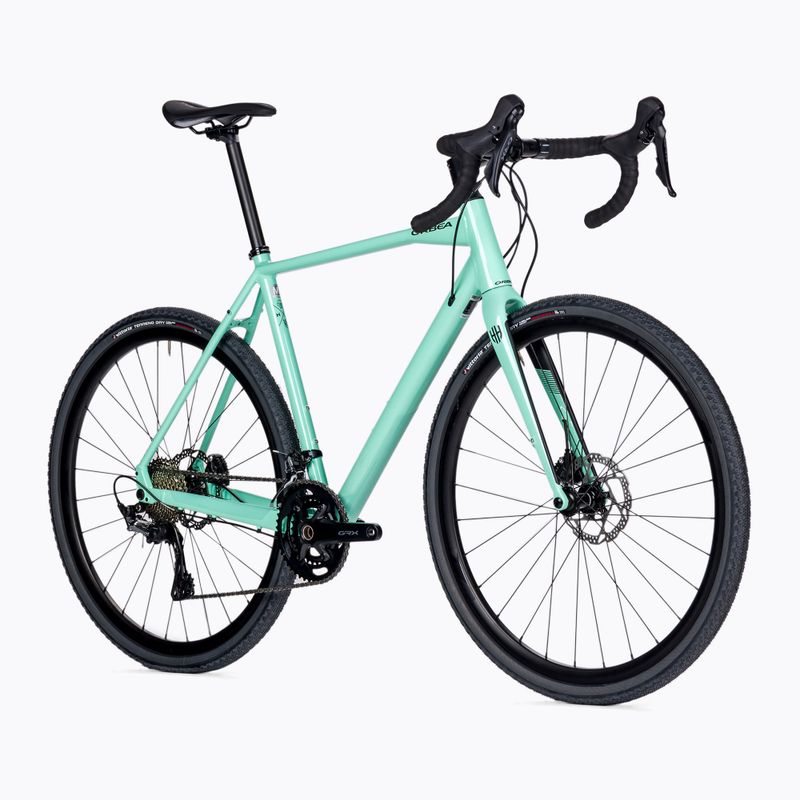

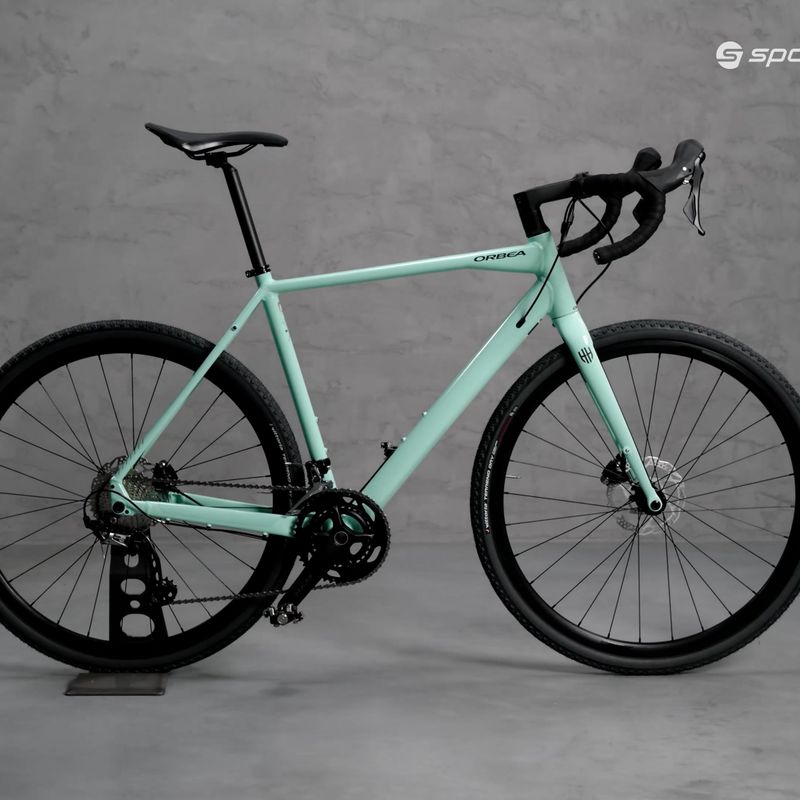

The Orbea Terra H30 bike is a vehicle dedicated to riding on gravel, dirt, or forest trails.

Basic data

Brand Orbea
Country of origin of the brand Spain
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour Green
Model/product code TERRA H30
Purpose Gravel
Code 2000022591

Frame

Frame Orbea Terra Hydro disc, hydroformed triple butted aluminium, DT internal cable routing, MMS system
Frame material Aluminium

Components

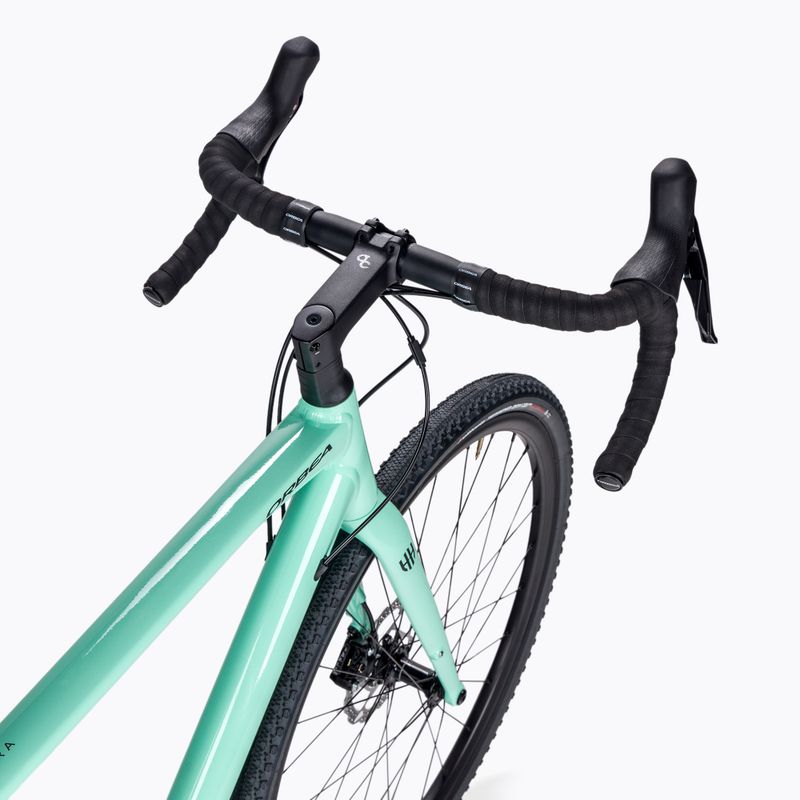

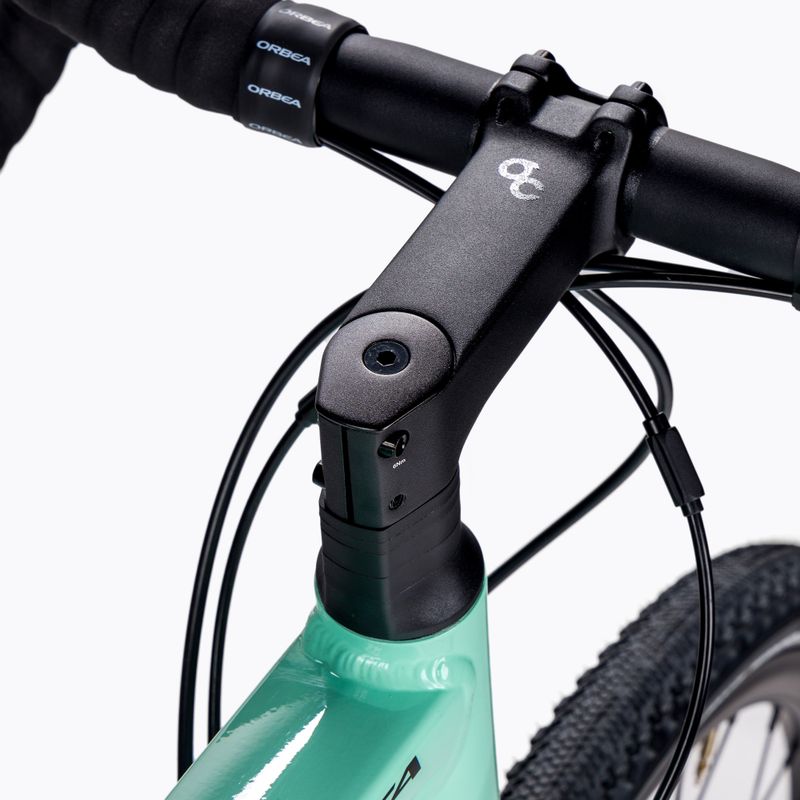

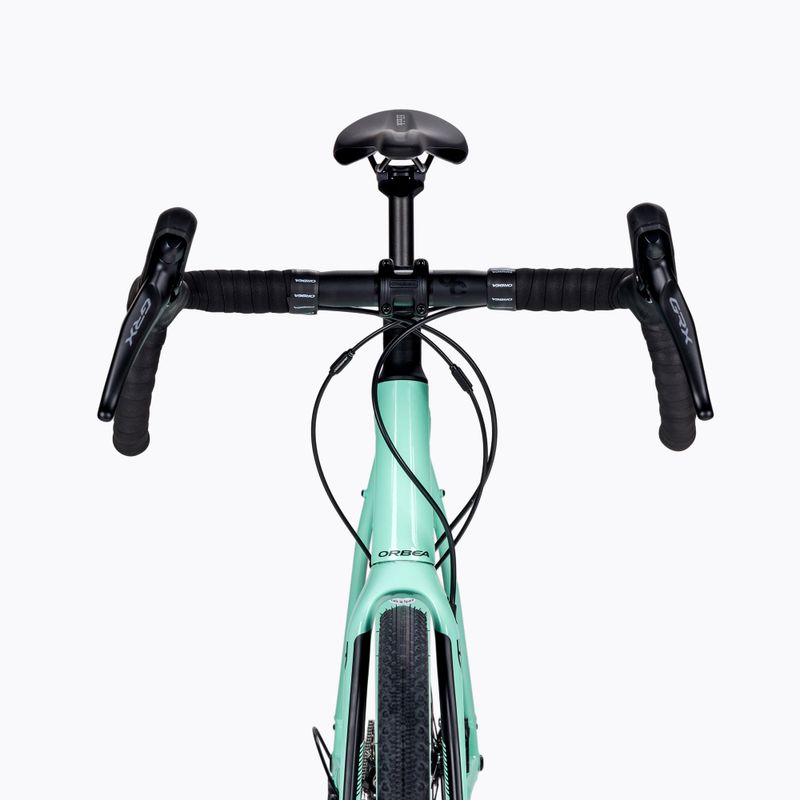

Steering wheel OC1 All Road, reach 80mm, drop 125mm, flare 12º
Handlebar support OC1 31.8mm interface -6º
Depreciation No
Rudders FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings

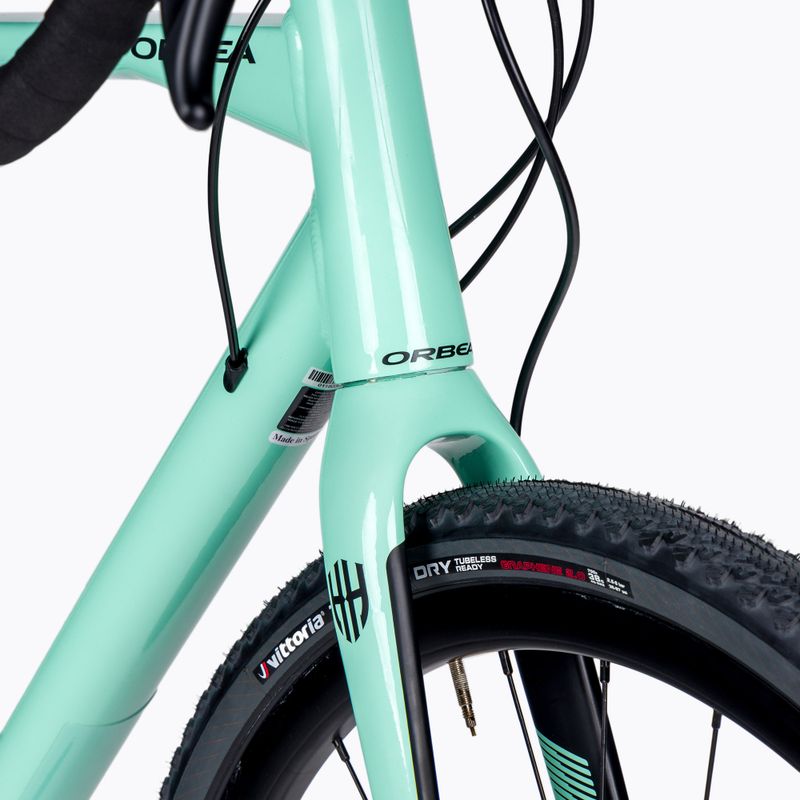

Fork Orbea Terra OMP, full carbon steerer, MMS system
Fork material Carbon fibre

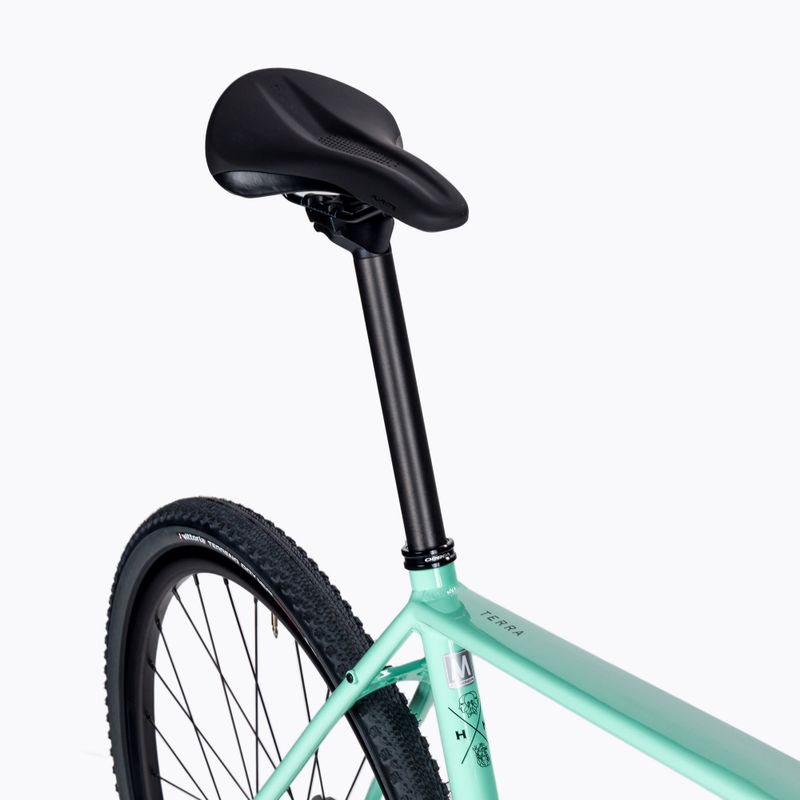

Saddle Selle Royal Seta RS
Bar OC2 27.2 Offset 20

Drive

Type of derailleur Mechanical
Derailleurs 2x11
Number of gears 22
Front derailleur (model) Shimano GRX RX810
Rear derailleur (model) Shimano RD-RX810
Handles Shimano ST-RX600

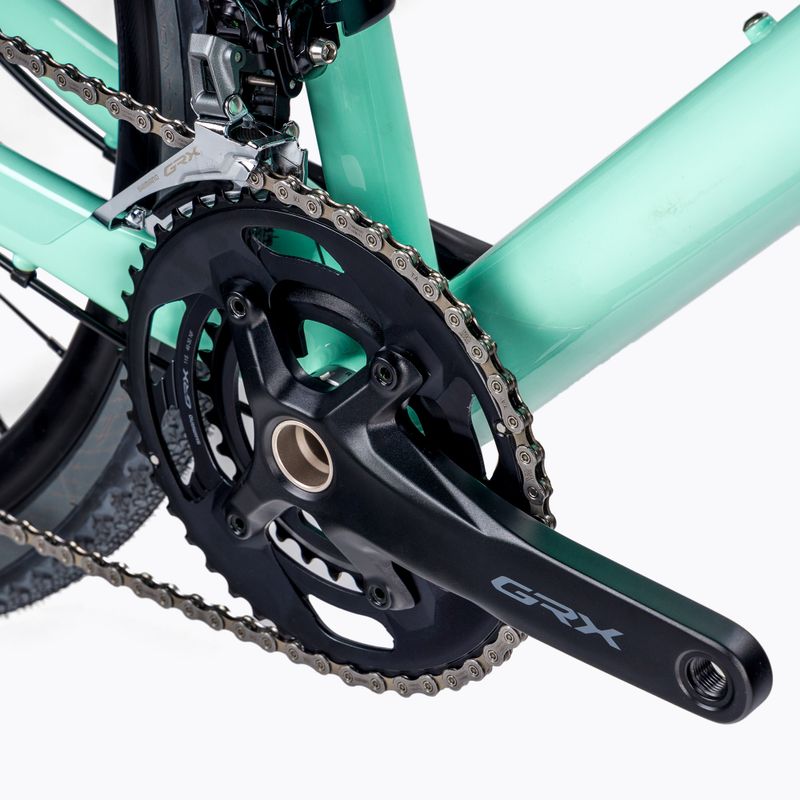

Crank mechanism Shimano GRX RX600 30x46t
Cassette / Freewheel Shimano 105 R7000 11-34t 11-Speed
Chain Shimano HG 601

Brakes

Brakes (model) Shimano RX400 Hydraulic disc
Brake type Hydraulic discs

Wheels

Wheel size 28"
Wheels Orbea wheel: Ready GR with 12mm E-Thru hubset Shimano RS470 28H
Tyres Vittoria Terreno Dry Gravel G2.0 TNT 700x38c

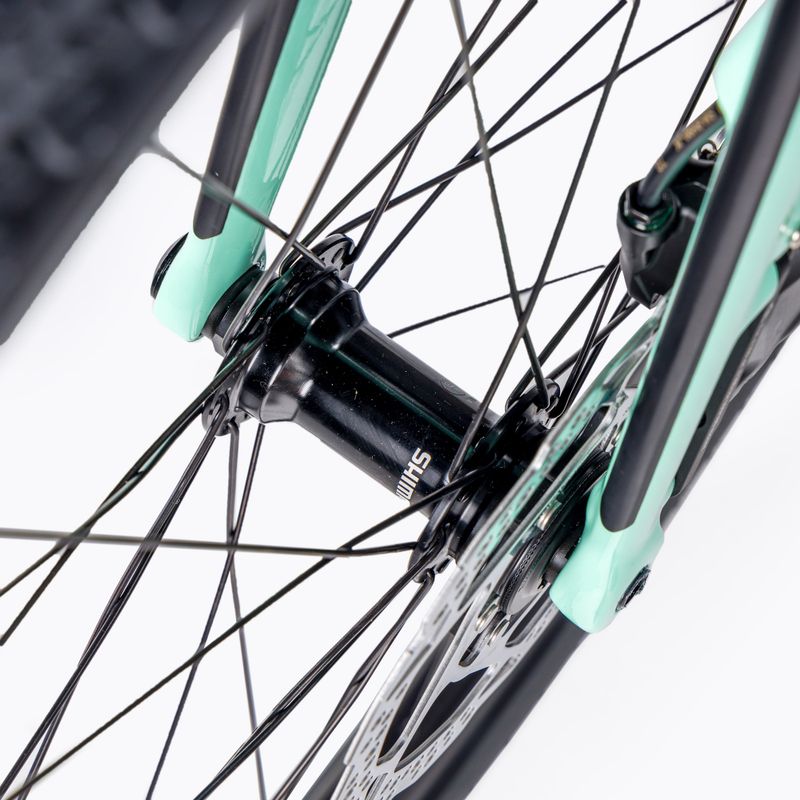

Hubs Orbea Thru Axle 12x100mm M12xP1.5 Hollow - front hub, Orbea Thru Axle 12x142mm M12xP1.5 Hollow - rear hub

Additional information

Lighting No
Mudguards No
Luggage carrier No

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | info@orbea.com

Gravel bike Orbea Terra H30 green (TERRA H30)

Designed from the ground up for gravel riding, Terra H30 provides full comfort for adventures on the road, dirt trails, or during nighttime journeys on rough roads. The bike's geometry guarantees balanced, precise handling and maximum control while riding.

Maintaining control, speed, and comfort with this gravel bike, you will enjoy riding in any conditions. Advanced hydroformed aluminum used in the frame construction and optimized tube sizes ensure maximum comfort during long rides, and integrated rear rack mounting points allow for mounting various spacious panniers. The Terra H30 fork features a durable crown, rounded blade profiles, longer fork legs, and the best OMR design to provide an excellent combination of comfort, tire clearance, and torsional stiffness.

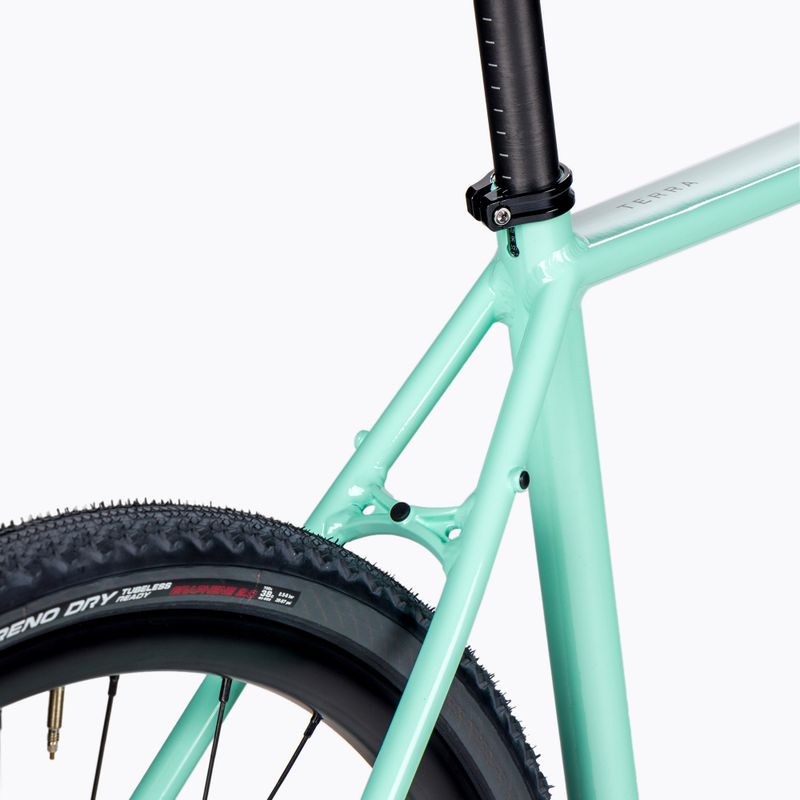

Terra H30 can be equipped with 700c x 45 tires, offering speed and efficiency on dirt roads, or 650b x 50 tires, providing exceptional durability and riding comfort if you need a bit more grip. The use of a shorter seat tube with a slightly slacker angle allows for greater flex of the 27.2 mm seatpost. Additionally, material has been removed from the seat tube near the bottom bracket to precisely tune its stiffness. Both of these design features optimize vibration absorption and vertical compliance.

Orbea offers a lifetime warranty on the frames of its bikes, with no usage limitations and regardless of the frame material. The condition is registering the bike on the manufacturer's website within 30 days of purchase.

Product Details

Gravel bike Orbea Terra H30 green

Cable management

The cabling in this model has been partially routed within the bike frame. This reduces the chance of snagging the cables while riding off-road, which positively contributes to increased riding safety.

Gravel bike Orbea Terra H30 green

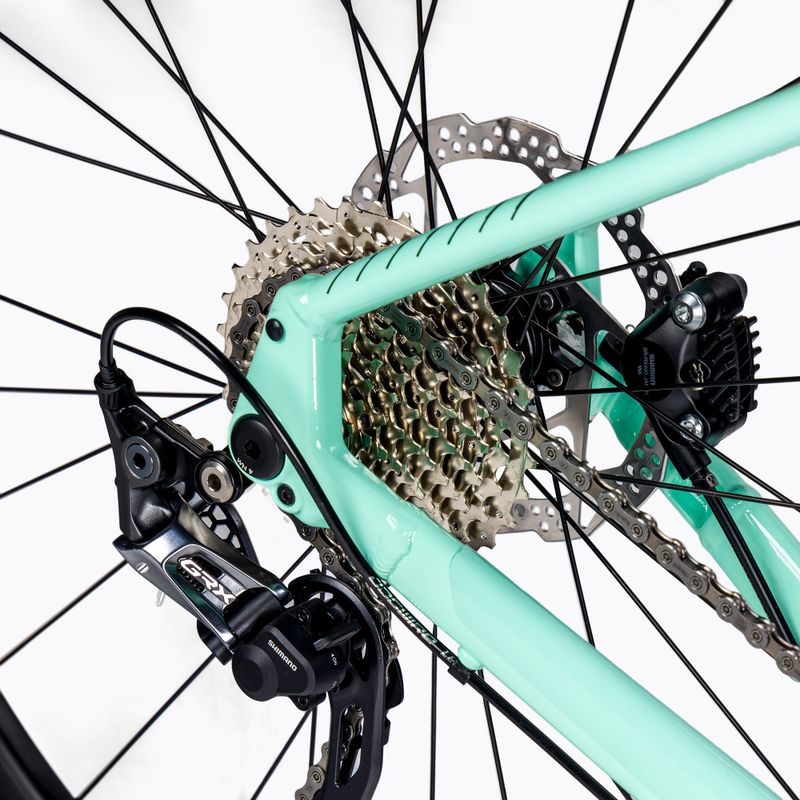

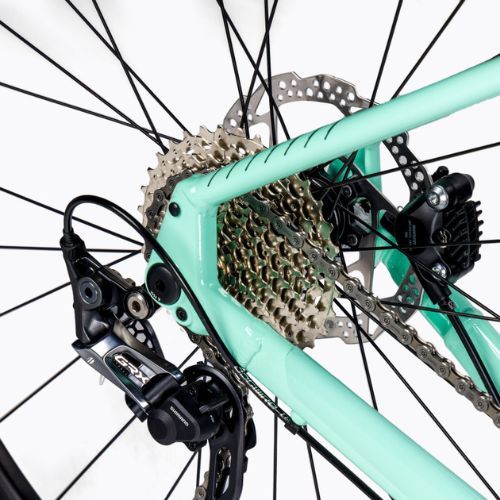

GRX RD-RX810 rear derailleur

This is a precise rear derailleur from the renowned Japanese manufacturer Shimano, designed for 11-speed drivetrain systems. Thanks to the integrated chain stabilising mechanism, this derailleur offers excellent performance in all terrains. At the same time, it operates quietly, and gear changes are very precise and smooth. It features Shimano's Shadow RD+ technology, which reduces impact on the rear triangle and prevents the chain from falling off. A simple and effective solution that is much more efficient and comfortable.

Gravel bike Orbea Terra H30 green

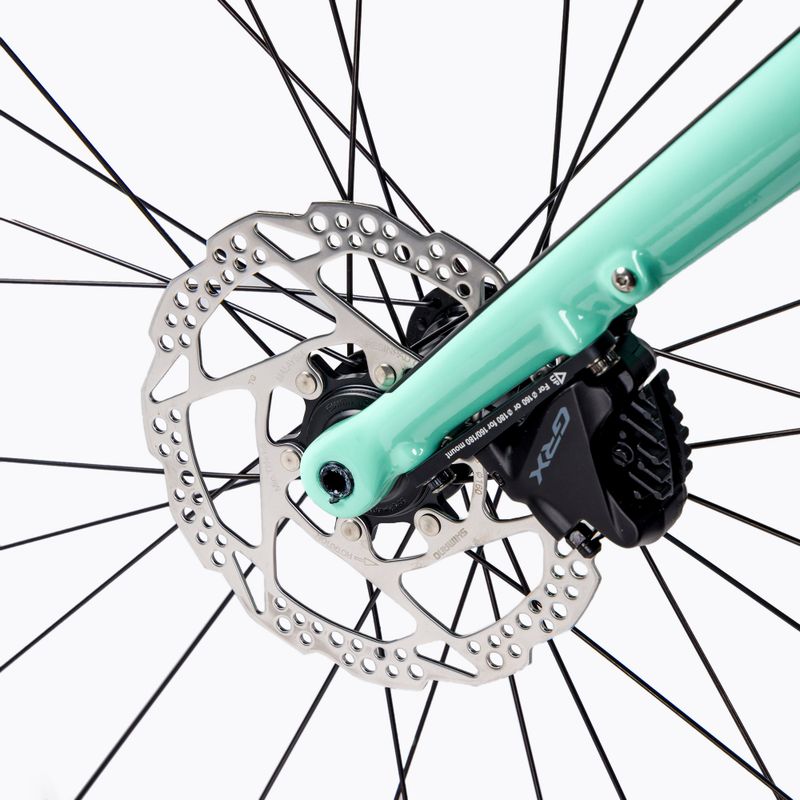

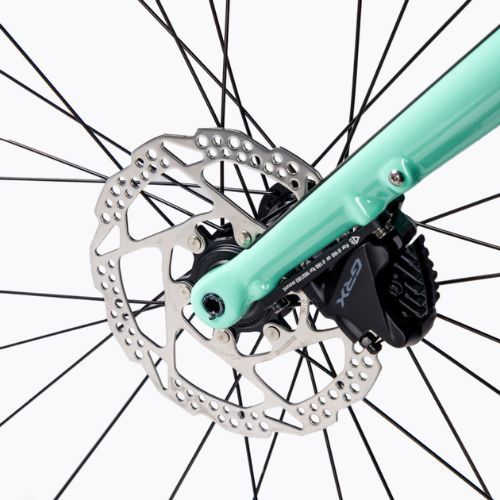

Hydraulic disc brakes

SHIMANO GRX BR-RX400 with a low-profile FlatMount design for greater control in diverse and often technically challenging terrain. An easy and clean bleeding system. Even on rough, uneven surfaces, they provide adequate braking power and precision.

Gravel bike Orbea Terra H30 green

Shimano chain

High-quality Shimano HG 601 chain. Coated with new SIL-TEC technology, which reduces rolling resistance and noise while riding. Enables smooth and easy gear shifting. Excellent wear resistance.

Gravel bike Orbea Terra H30 green

Tyre clearance

A variety of wheel and tyre size options allows the Terra bike to reach places that regular road models cannot, easily tackling difficult terrain and greatly expanding the range you can cover.
