ATTABO men's mountain bike ALPE 3.0 19" grey

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code ALPE 3.0 ATB-ALP019-M3G

Leading colour Grey

Brand ATTABO

Country of origin of the brand Poland

Gender Male

Season Year-round

Crank mechanism Shimano Tourney / 170 mm

Grips Rubber 125 mm

Wheel size 29"

Derailleurs 3x8

Cassette / Freewheel SHIMANO CS-HG200-8 (12-32T)

Sport Bicycles

Rear derailleur (model) SHIMANO ACERA RD-M3020

Depreciation Front

Handlebar material Aluminium

Brakes (model) Shimano MT200 Hydraulic Disc

Brake discs 160 mm front / 160 mm rear

Chain KMC Z8.3

Handlebar support ZOOM +7° / 70 mm (17"), 80 mm (19"), 90 mm (21")

Bar ZOOM 31.6 mm

Pedals included Yes

Tyres Kenda AMRAK 29x2.20"

Weight of bike (estimated) 15,3 kg (19"), 15,4 kg (17")

Frame material Aluminium

Fork SR Suntour XCT30 29 100mm

Saddle BKS-1043

Steering wheel ZOOM, 6° Backsweep, 720 mm

Brake type Hydraulic discs

Number of gears 24

Front derailleur (model) Shimano Altus FD-310

Wheels Aluminium rims, double-chambered

Hubs Aluminium with sealed machine bearings

Rudders NECO 1-1/8" semi-integrated

ATTABO men's mountain bike ALPE 3.0 19" grey 2

Sizes table

Below you will find information that will help you choose the right size when purchasing the Alpe 3.0 men's bike from ATTABO.

Frame size	17	19	21
Wheel size	29	29	29
Height (cm)	174-180	180-186	180-195
Weight (kg)	15,2	15,3	-
A	70	70	70
B REACH	380	410	-
C STACK	650	660	-
D BB DROP	60	58	-
E Height of handlebars (mm)	1050	1050	-
F Length of top tube measured horizontally (mm)	565	590	605
G Wheels base (mm)	1098	1125	-
H Seat tube angle (°)	74	74	74
Section height (mm)	-	-	-
Saddle height range (mm)	820-1030	880-1085	-
Crank arm length (mm)	170	170	170

Product description

Advantages

Front cushioning

The cushioning on the bike provides comfort when negotiating bumps in the road. This model features front wheel cushioning, which absorbs the force when hitting an obstacle and increases the level of safety.

Aluminium frame

The aluminium frame is characterised by its high resistance to scratches and damage. In addition, this material is characterised by its low weight, which makes carrying the bike no problem.

Hydraulic disc brakes

This mountain bike is equipped with hydraulic disc brakes, which have a very low failure rate so that use will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

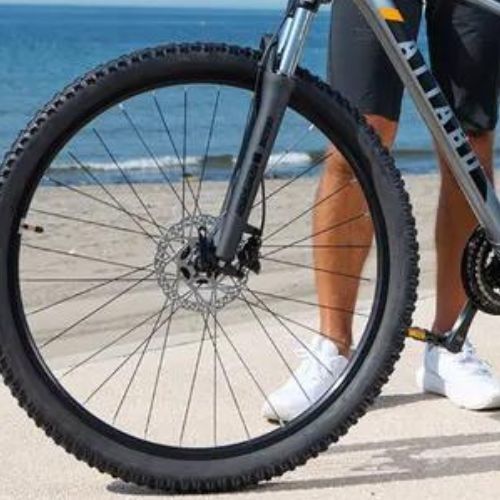

29" wheels

The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over rough terrain. This size guarantees good stability when riding at higher speeds.
