Orbea Kemen Mid 40 is an excellent electric city bike that combines style and functionality. Equipped with a powerful motor and a high-capacity battery, it ensures smooth riding over long distances. Its sturdy construction and modern design make it an ideal choice for daily commuting.

Basic data

Brand Orbea
Country of origin of the brand Spain
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour Green
Model/product code Kemen Mid 40 R36518VA
Purpose City/urban, Trekking
Code 2000103913

Frame

Frame Orbea Kemen Mid Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12
Frame material Aluminium

Components

Steering wheel OC Mountain Control MC31, Rise20, Width 800
Handlebar support Alloy forged, 35mm interface, -6º, ICR
Depreciation Front
Rudders FSA 1-1/2" Integrated Aluminium Cup
Fork SR Suntour XCR34 LO R Air 100mm Q15x110 Boost
Saddle Selle Royal Vivo Ergo
Bar Alloy 31.6x300mm offset 0

Drive

Type of derailleur Mechanical
Derailleurs 1x8
Number of gears 8
Rear derailleur (model) Shimano Acera M3020
Handles Shimano SL-M315
Crank mechanism Shimano Steps EM600
Cassette / Freewheel Shimano CS-HG400 11-40t 8-Speed
Chain KMC X8

Brakes

Brakes (model) Shimano MT200 Hydraulic Disc
Brake type Hydraulic discs

Wheels

Wheel size 29"
Wheels Alloy, Tubeless, 29", 29c, 32H
Tyres Urban 47-622, Puncture Protection, Reflex

Engine

Engine model Shimano EP600
Engine location Central
Engine power 250 W
Maximum torque 85 Nm

Battery

Battery capacity 540 Wh
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A

Additional information

Support Yes
Lighting Yes
Mudguards Yes
Luggage carrier Yes
Pedals included Yes

Warnings and producer's data

Standards, certificates CE
Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | info@orbea.com

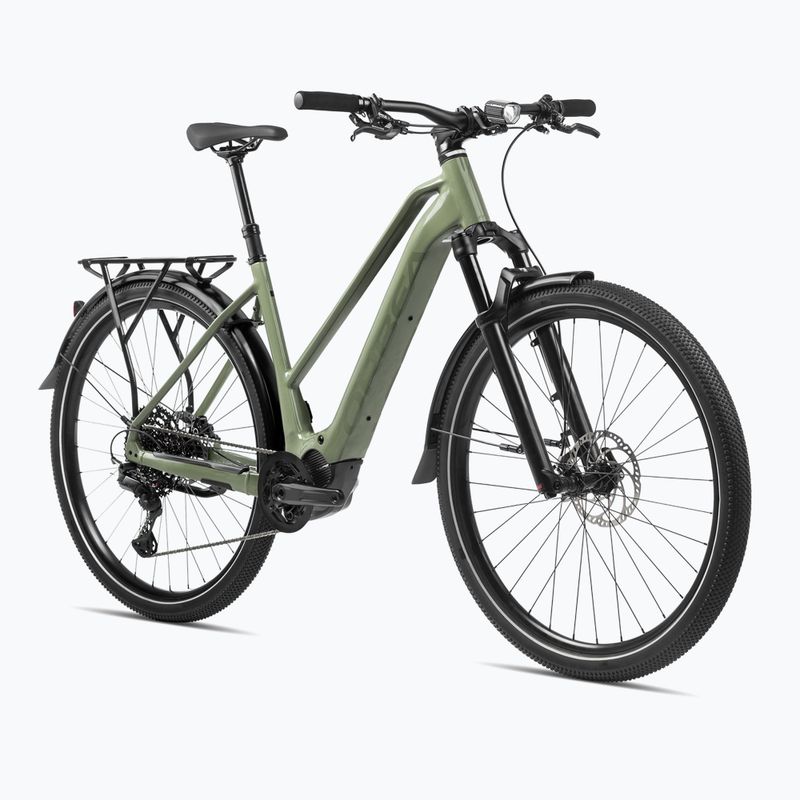

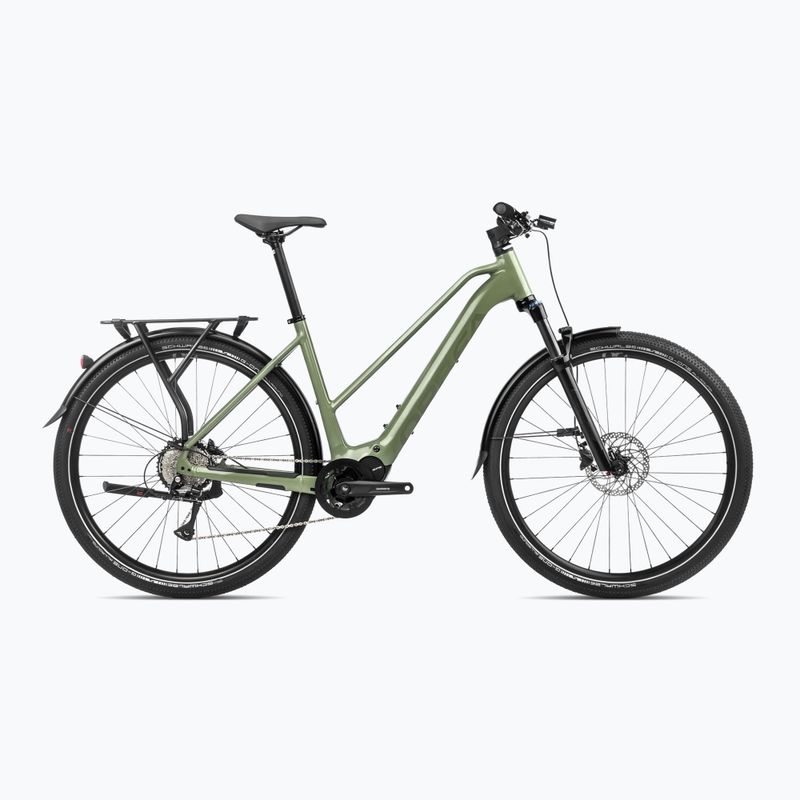

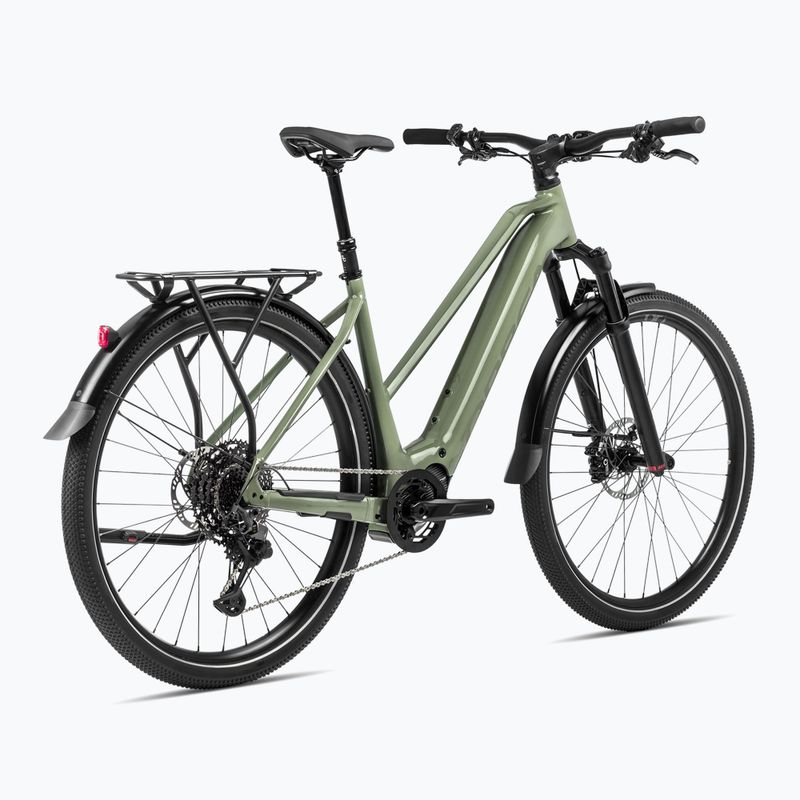

Orbea electric bike Kemen Mid 40 540Wh 2024 urban green (R36518VA)

Orbea Kemen Mid 40 is a versatile electric bike designed with comfort and functionality in mind. This model combines elegant design with modern technologies, offering reliable support for daily commutes as well as longer trips. Thanks to an efficient electric drive and solid components, the Kemen Mid 40 is an excellent choice for those seeking a comfortable and efficient means of transportation.

The frame of the Orbea Kemen Mid 40 bike is made of high-quality aluminum, which ensures its durability and lightness. The hydroforming process allows for precise shaping of the tubes, which translates into better riding characteristics and bike aesthetics. The frame features internal cable routing, which not only improves the bike's appearance but also protects the cables from damage and dirt, ensuring longer component lifespan.

Additionally, the frame has been designed with comfortable and stable riding in mind, offering integrated mounts for fenders and a rack. This makes the bike ready for various weather conditions and different types of terrain. The frame is also compatible with wide tires, increasing its versatility.

The Orbea Kemen Mid 40 bike is equipped with a Shimano EP600 motor, which offers 250 W power and 85 Nm torque. This advanced drive provides smooth and quiet assistance, enabling speeds up to 25 km/h. The Shimano EP600 motor is known for its efficiency and reliability, making it an ideal choice for urban and trekking bikes. The battery with a capacity of 540 Wh provides enough energy for long rides and daily commutes to work.

The SR Suntour XCR34 LO R Air fork with 100 mm travel provides excellent suspension, which translates into riding comfort on uneven surfaces. The Boost system with a 15x110 mm axle increases the stiffness and stability of the front wheel, which is crucial for precise bike handling.

Feedback

There are no reviews yet, be the first!

Review this product

Orbea electric bike Kemen Mid 40 540Wh 2024 urban green

Orbea electric bike Kemen Mid 40 540Wh 2024 urban green

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Orbea electric bike Kemen Mid 40 540Wh 2024 urban green

No opinion

Bike assembly service available

Size Sizes table
Choose an Option...

Choose an Option

Sizes table

    Below you will find information that will help you choose the right size when purchasing the Kemen Mid 40 electric bike by Orbea.

    Size M
    Height (cm) 165-180
    A - Seat tube (mm) 453
    B - Horizontal pipe (mm) 576
    C - Steerer tube (mm) 115
    D - Rear triangle (mm) 445
    E - Support height (mm) 307,5
    F - Support lowering (mm) 63
    G - Wheelbase (mm) 1142
    H - Head angle 67
    I - Seat tube angle (°) 75
    J - Crossover (mm) 740
    K - Reach (mm) 415
    L - Stack (mm) 624
    M - Fork (mm) 513,5
    Rake 44
