Basic data

Sport Bicycles
Brand Orbea
Leading colour Silver
Season Year-round
Model/product code Oiz M30 R23507N2
Gender Male, Woman
Country of origin of the brand Spain
Code 2000103865

Frame

Frame Orbea Oiz Carbon OMR, Fiberlink, Boost, BSA, SIC, UFO, I-line shock
Frame material Carbon fibre

Components

Steering wheel OC Mountain Performance MP30, Width 760
Handlebar support OC Mountain Performance MP21, -6º
Depreciation Full
Rudders Alloy 1-1/2", Black Oxidated Bearing
Fork Fox 34 Float SC Performance 120 Grip Remote Push to Lock QR15x110
Damper Fox Float SL Performance 120mm Remote Push-lock Evol custom tune190x45mm
Saddle Selle Italia Model X FecAlloy Rail 145x248mm
Bar OC Mountain Control MC21, 31.6mm, Dropper

Drive

Derailleurs 1x12
Number of gears 12
Rear derailleur (model) Shimano SLX M7100 SGS Shadow Plus
Handles Shimano Deore M6100 I-Spec EV
Crank mechanism Shimano MT511 32t
Cassette / Freewheel Shimano CS-M6100 10-51t 12-Speed
Chain Shimano M6100

Brakes

Brakes (model) Shimano M6100 Hydraulic Disc
Brake type Hydraulic discs

Wheels

Wheel size 29"
Wheels Alloy, Tubeless, 25c, 32H
Tyres Maxxis Rekon Race 2.40" WT 120 TPI Exo TLR

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | [email protected]

Other data

Service label Bike assembly service available

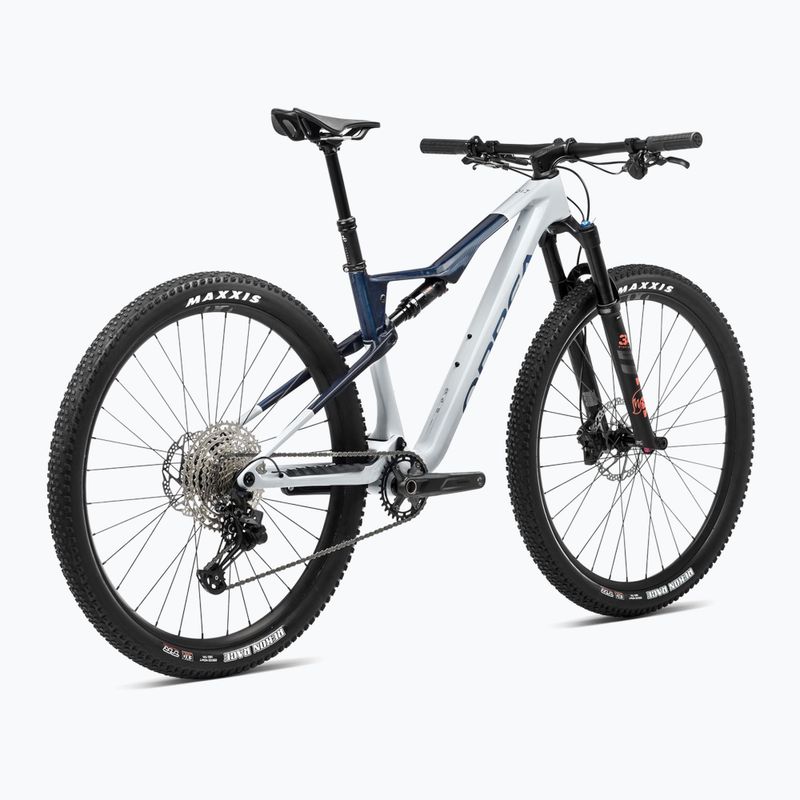

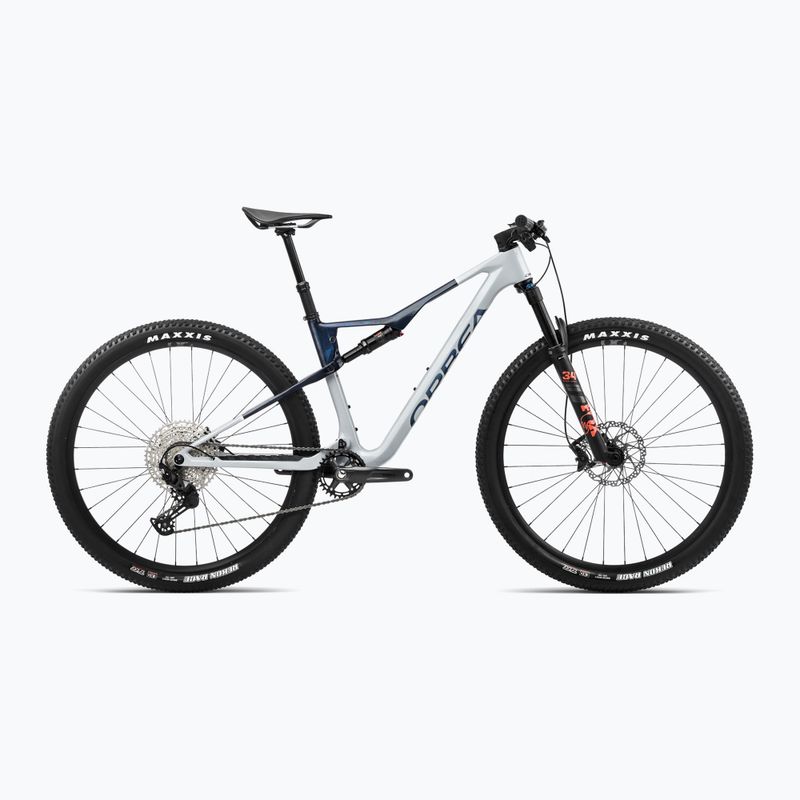

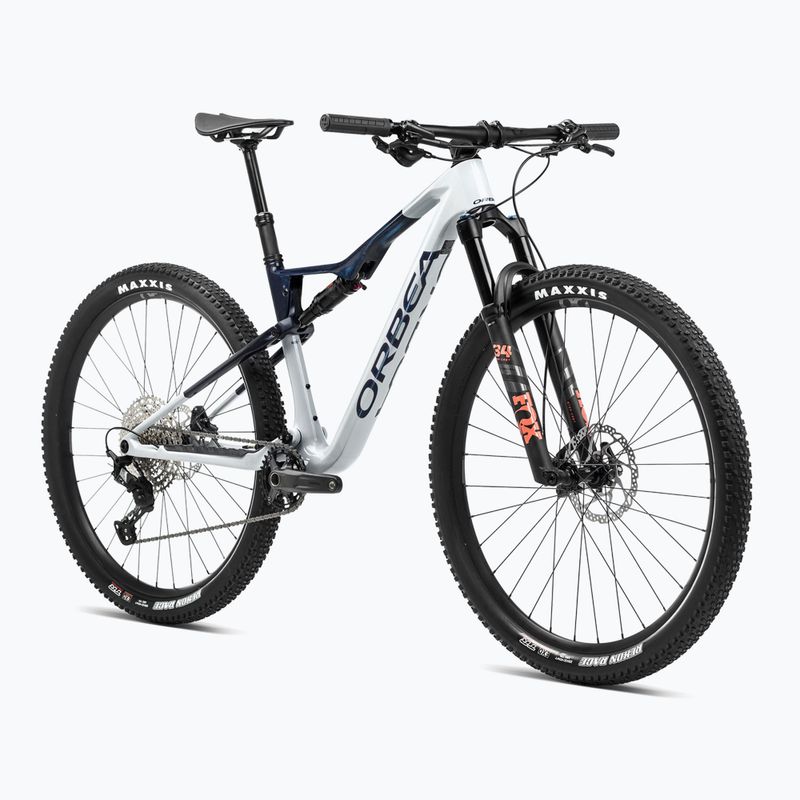

Orbea Oiz M30 2024 halo silver/blue carbon view mountain bike (R23507N2)

Advantages

Carbon frame
When designing this bike, the focus was on selecting the right materials to ensure the highest quality. Therefore, the frame is made of carbon, which combines lightness and resilience in addition to effectively damping vibrations.
Hydraulic disc brakes
This mountain bike model uses hydraulic disc brakes, which have a very low failure rate, so they will be trouble-free even during frequent use. The undoubted advantage is greater braking power and modulation.
Full shock absorption
Allows easier traversing of off-road obstacles. Front and rear shock absorbers provide maximum wheel traction control and a balanced ride on the ground. The full suspension bike is very comfortable and soft to ride.
Drive 1x12
This bike uses 1x12 derailleurs, which provide smooth gradation and allow effortless gear changes. The large range of gear ratios allows you to adapt the gear to your current needs.
29" wheels
The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over difficult terrain. This size guarantees good stability when riding at higher speeds.
UVEX bike helmet Viva 3 black S4109840115
Size
52-57 cm
56-62 cm
Choose an Option...

Choose an Option

  • 52-57 cm €66.99 €52.99
  • 56-62 cm €66.99 €52.99
Add to Wish List
CamelBak Podium Chill bicycle bottle 710 ml black
Size
710 ml
Choose an Option...

Choose an Option

  • 710 ml €19.99
Add to Wish List
Elite bicycle kit Custom Race Plus basket + Elite Fly Tex Maillot Jaune 550 ml bottle black
Size
550 ml
Choose an Option...

Choose an Option

  • 550 ml €23.99 €21.99
Add to Wish List
Bike stand Orbea Onna/MX black
Size
27.5"-29"
Choose an Option...

Choose an Option

  • 27.5"-29" €42.99
Add to Wish List
Feedback

There are no reviews yet, be the first!

Review this product

Orbea Oiz M30 2024 halo silver/blue carbon view mountain bike

Orbea Oiz M30 2024 halo silver/blue carbon view mountain bike

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Orbea Oiz M30 2024 halo silver/blue carbon view mountain bike

No opinion

Bike assembly service available

Size Sizes table
Choose an Option...

Choose an Option

Sizes table

    Below you will find information that will help you choose the right size when purchasing the Oiz M30 bike by Orbea.

    Size M L
    Height (cm) 165-180 178-190
    A - Seat tube (mm) 432 460
    B - Horizontal pipe (mm) 598 623
    C - Steerer tube (mm) 90 100
    D - Rear triangle (mm) 432 432
    E - Support height (mm) 333 333
    F - Support lowering (mm) 42 42
    G - Wheelbase (mm) 1163 1189
    H - Head angle 67 67
    I - Seat tube angle (°) 76,5 76,5
    J - Crossover (mm) 741 741
    K - Reach (mm) 450 472
    L - Stack (mm) 596 606
    M - Fork (mm) 531 531
    You save €450.00 €4,529.00
    €4,079.00
