The road bike Orbea Orca Aero M30i LTD is the perfect choice for ambitious cyclists who want to achieve maximum speed and performance. Thanks to its aerodynamic carbon frame, it offers excellent riding characteristics and top-level comfort.

Basic data

Brand Orbea
Country of origin of the brand Spain
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour White
Model/product code Orca Aero M30i LTD R12755AP
Type of Product Aero/Race
Code 2000103828

Frame

Frame Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1,5", BB 386, powermeter compatible, Speed release compatible
Frame material Carbon fibre

Components

Steering wheel OC Road Aero RA11 Carbon, Reach 80, Drop 125
Handlebar support OC Road Performance RP10, -8º
Rudders FSA 1-1/2" Integrated Aluminium Cup
Fork Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
Fork material Carbon fibre
Saddle Prologo Scratch-M5 Pas T2.0 size 140mm
Bar OC Road Aero RA10 Carbon, SB0/25, w/Micro tilt adjustment

Drive

Type of derailleur Electronic
Derailleurs 2x12
Number of gears 24
Front derailleur (model) Shimano 105 Di2 R7150
Rear derailleur (model) Shimano 105 Di2 R7150
Handles Shimano Di2 R7170
Crank mechanism Shimano 105 R7100 36x52t
Cassette / Freewheel Shimano 105 R7100 11-34t 12-Speed
Chain Shimano M7100

Brakes

Brakes (model) Shimano R7170 Hydraulic Disc
Brake type Hydraulic discs

Wheels

Wheel size 28"
Wheels OQUO Road Performance RP35 PRO
Tyres Vittoria Corsa N.Ext G2.0 Foldable 700x28c
Hubs Orbea Thru Axle 12x100mm M12x2 P1 Lite - front hub, Orbea Thru Axle 12x142mm M12x2 P1 Lite - rear hub

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | info@orbea.com

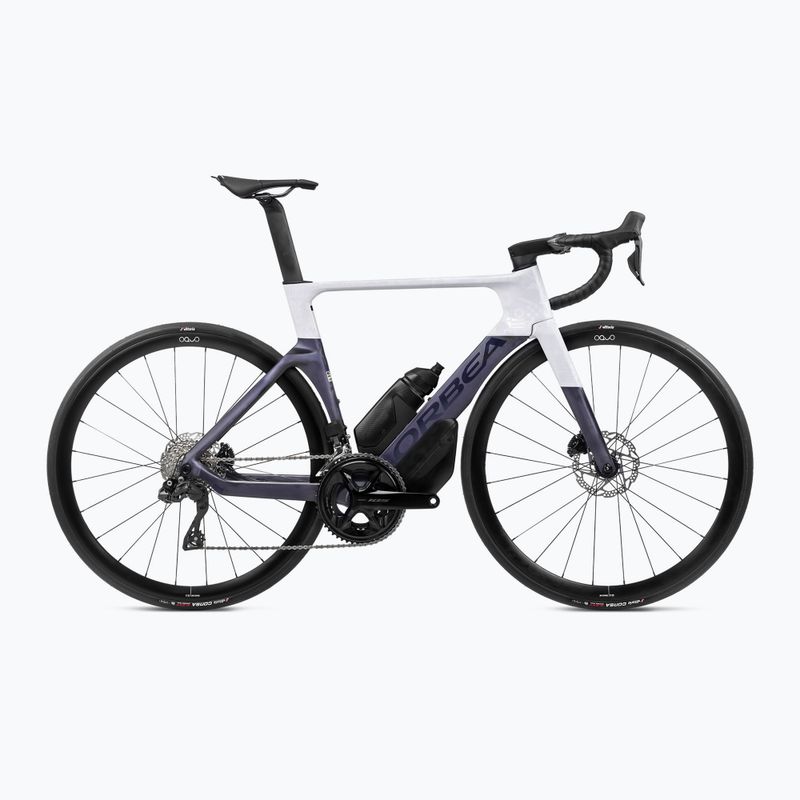

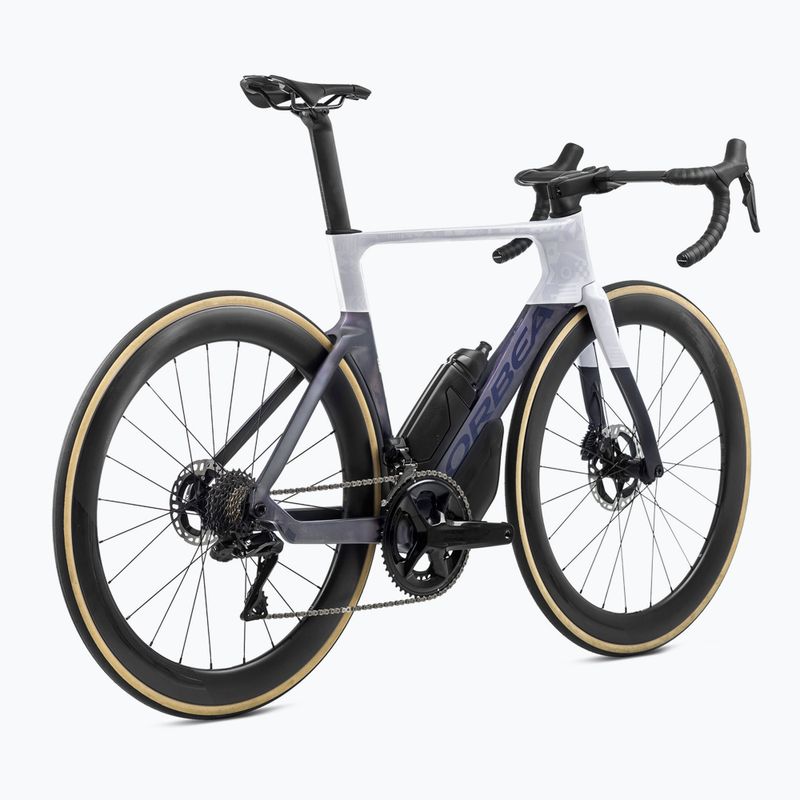

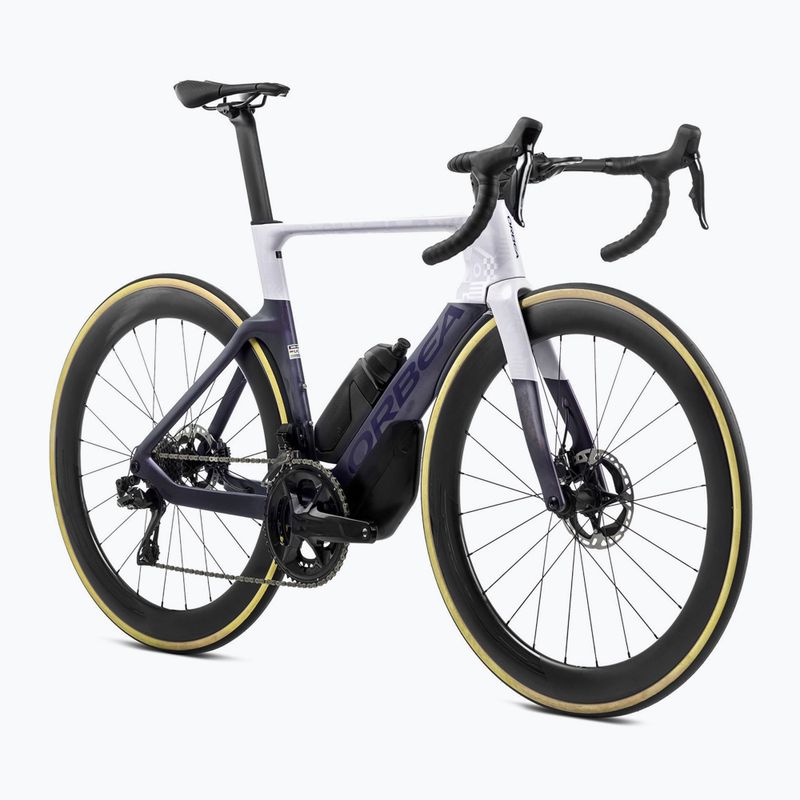

Orbea Orca Aero M30i LTD 2024 tanzanite/lilac lilac road bike (R12755AP)

The road bike Orbea Orca Aero M30i LTD was created with maximum speed and performance in mind. This advanced model, focused on aerodynamics, stiffness, and low weight, offers unforgettable riding experiences, giving every cyclist an advantage in the race for speed. Orca Aero combines technology and passion, meeting both the emotional and rational needs of riders.

The Orca Aero M30i LTD frame is made from the highest quality carbon, which guarantees exceptional stiffness and lightness. The monocoque construction using OMX carbon and compatibility with a power meter and Speed Release system make this frame stand out with high performance and functionality. Precise frame shaping for airflow and optimization of cross-sections and smooth transitions minimize air resistance, resulting in faster and more efficient riding.

The OC Road Aero seatpost RA10 Carbon with Micro tilt adjustment and 0/25 mm offset is made of carbon, providing lightness and durability. Its aerodynamic design reduces air resistance, which increases riding efficiency. The Micro tilt adjustment allows for precise saddle position fitting, enhancing comfort and pedaling efficiency, enabling the cyclist to achieve better results on the route.

The OMX ICR fork is made entirely of carbon, ensuring excellent stiffness and lightness. The tapered steerer tube 1-1/8" - 1.5" and 12x100 mm thru-axles increase stability and steering precision. The carbon fork provides excellent vibration damping, which enhances comfort when riding on uneven surfaces.

The Orca Aero M30i LTD bike is equipped with a Shimano 105 R7100 11-34t 12-Speed cassette, offering a wide range of gears. This allows for efficient pedaling on both flat sections and steep climbs. The Shimano 105 R7100 cassette is known for its reliability and precise operation, ensuring smooth and trouble-free gear changes.

Vittoria Corsa N.Ext G2.0 Foldable 700x28c tires provide excellent grip and low rolling resistance. These tires are ideal for fast riding on smooth surfaces while offering good puncture resistance. Vittoria Corsa N.Ext G2.0 are characterized by durability and long lifespan, allowing for safe and comfortable riding over a long time.

Advantages

Carbon frame
The frame of this road bike has been made from extremely lightweight carbon, so carrying the bike is not a problem. Carbon is distinguished by the fact that it is very effective in reducing the force of vibrations generated when riding over rough terrain.
Hydraulic disc brakes
This road bike is equipped with hydraulic disc brakes, which have an extremely low failure rate, ensuring trouble-free use, even during frequent use. In addition, they are distinguished by their greater braking power and modulation.
28" wheels
The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.
Electronic derailleurs
This model uses the state-of-the-art solution of electronic derailleurs, which are characterised by high quality and precision. This type allows instant gear changes.
Carbon fork
The fork on this bike is made of carbon, which is characterised by its extreme lightness and ability to absorb the power generated when riding over rough terrain. This material combines strength and low weight.
Aerodynamic design
This bike model has been designed with attention to every element. Therefore, a unique aerodynamic design has been used, which provides an amazing look and makes the bike provide lower drag.
Feedback

There are no reviews yet, be the first!

Review this product

Orbea Orca Aero M30i LTD 2024 tanzanite/lilac lilac road bike

Orbea Orca Aero M30i LTD 2024 tanzanite/lilac lilac road bike

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Orbea Orca Aero M30i LTD 2024 tanzanite/lilac lilac road bike

No opinion

Bike assembly service available

Size Sizes table
Choose an Option...

Choose an Option

Sizes table

    Size 49 51 53 55 57
    Height (cm) 160-166 167-172 173-179 180-185 186-191
    A - Seat tube (mm) 474 499 524 544 589
    B - Horizontal pipe (mm) 520,8 532,9 545,5 557,5 587
    C - Steerer tube (mm) 100,8 117,2 134,9 155,2 200,4
    D - Rear triangle (mm) 408 408 408 408 408
    E - Support height (mm) 260/263 260/263 262/265 262/265 262/265
    F - Support lowering (mm) 76 76 74 74 74
    G - Wheelbase (mm) 971 974,8 976,1 996,9 1010,8
    H - Head angle 71,5 72,2 72,8 73 73,2
    I - Seat tube angle (°) 74 73,7 73,5 73,5 73,2
    J - Crossover (mm) 728,5 753,1 778 794 838,8
    K - Reach (mm) 376 380 385 391 404
    L - Stack (mm) 505 523 542 562 606
    M - Fork (mm) 370 370 370 370 370
