Orbea Laufey 20 H20 is a mountain bike for children, designed for intense adventures. Equipped with a lightweight frame, a suspension fork, and high-quality components, it provides comfort and confidence on every terrain.

Basic data

Brand Orbea
Country of origin of the brand Spain
Sport Bicycles
Gender Boy, Girl
Season Year-round
Leading colour Yellow
Model/product code Laufey 20 H20 R00820KM
Code 2000103812

Frame

Frame Orbea Laufey 20 6061 Aluminum 2021, 135x9 QR, Post Mount Disc Mount, 31,6 Seat Post, Internal Cable Routing, Removable hanger
Frame material Aluminium

Components

Steering wheel Alloy, 31.8mm, riser, 560mm
Handlebar support Race Face Ride
Grips OC Lock On
Depreciation Front
Rudders VP-Z104PD 1-1/8" Semi-Cartridge
Fork SR Suntour XCM HLO SL Air JR 80mm QR
Saddle Selle Royal Vivo Junior
Bar OC Mountain Control MC21, 31.6mm, Dropper

Drive

Derailleurs 1x9
Number of gears 9
Rear derailleur (model) Shimano Altus M2000 SGS Shadow
Handles Shimano SL-M2010
Crank mechanism Extra light 32t, 127mm, w/Chainguard
Cassette / Freewheel Sun Race CSM989 11-36t 9-Speed
Chain KMC X9

Brakes

Brakes (model) Clarks M2 Hydraulic Disc w/Kids Lever
Brake type Hydraulic discs

Wheels

Wheel size 20"
Wheels Mach1 Klixx 23c Tubeless Ready
Tyres Schwalbe Rocket Ron Perf Foldable, 20x2.25

Additional information

Mudguards Orbea Custom fork
Pedals included Yes
Side wheels No
Maximum user weight 40 kg
Age of child 4-8 years
User height range 110 - 135 cm
Height to saddle 58 - 70,6 cm

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | info@orbea.com

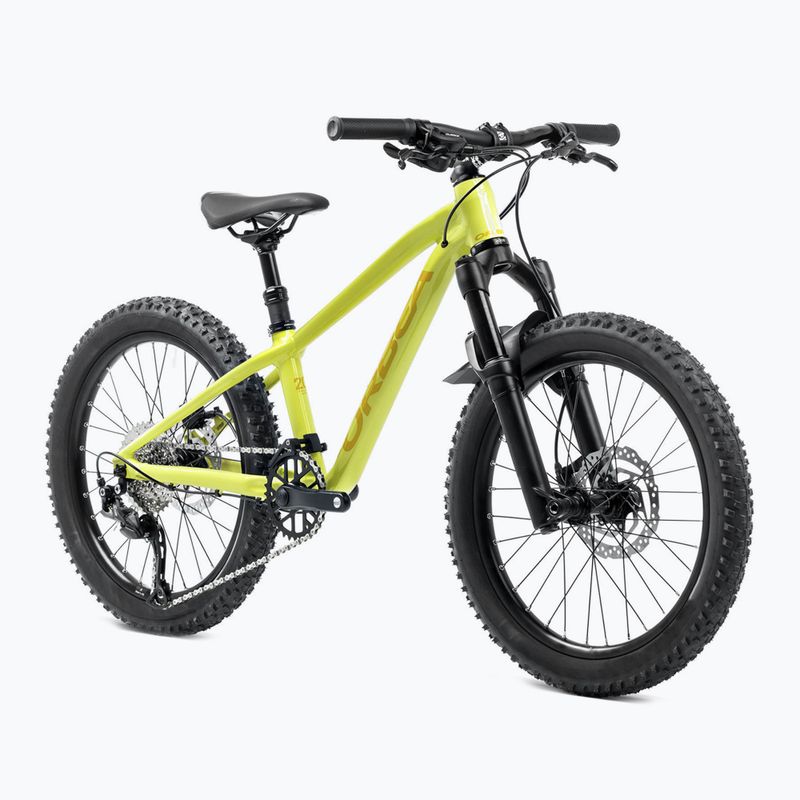

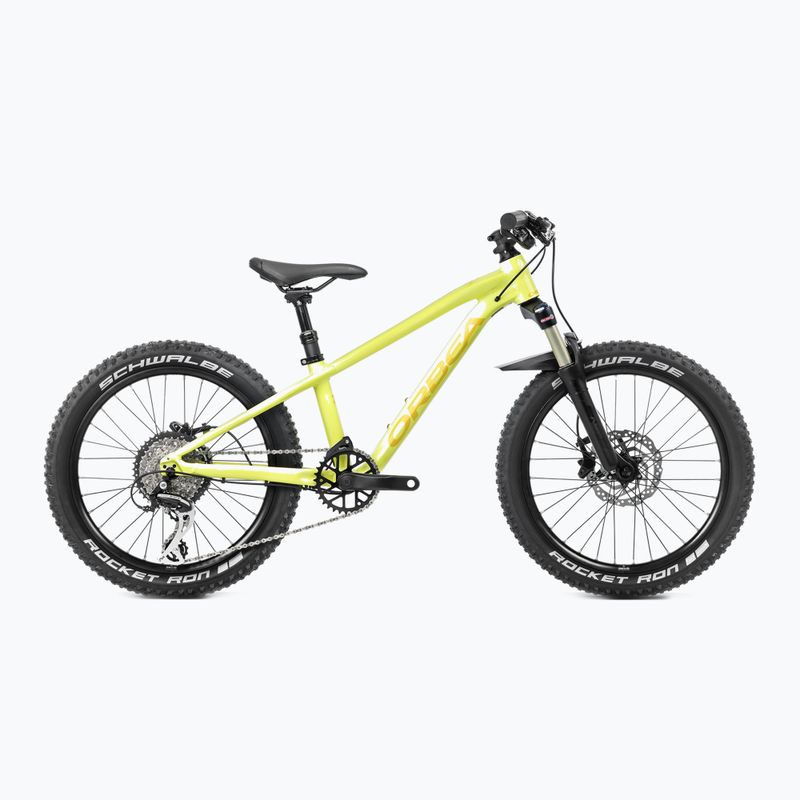

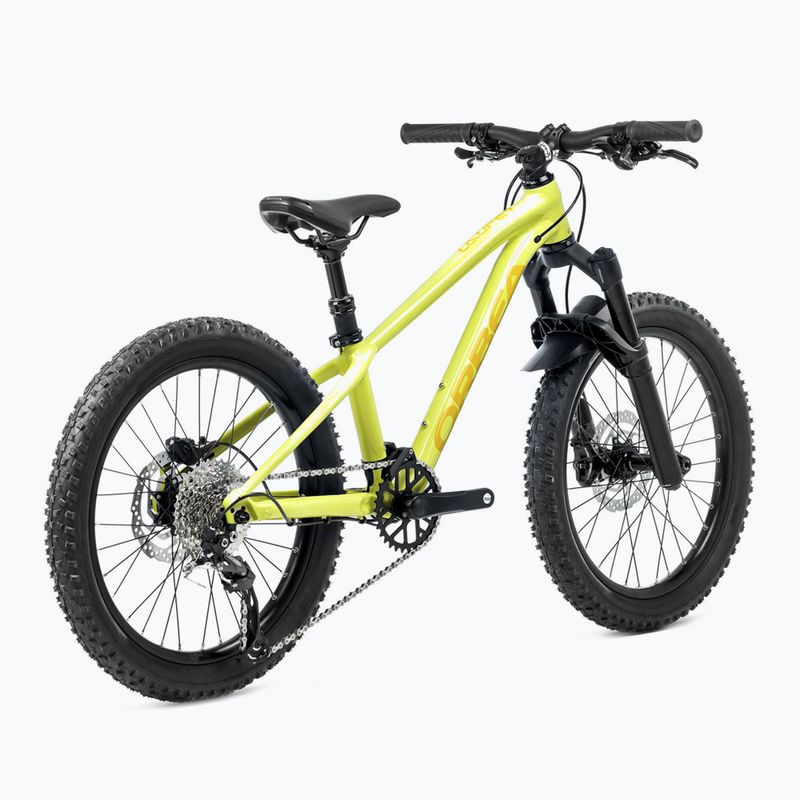

Orbea children's bike Laufey 20 H20 2024 lime/yellow (R00820KM)

Young enthusiasts of two wheels will find in the Orbea Laufey 20 H20 2024 the perfect companion for trail adventures. This compact yet sturdy trail bike meets the expectations of both beginners and more experienced young cyclists ready for exciting journeys.

Being a miniaturized version of its adult counterpart, the Orbea Laufey 20 H20 2024 was designed with durability in mind. This enables confident riding on varied terrain. The solid frame was designed for intensive use, guaranteeing long-lasting performance and reliability.

The construction of this bike is based on a frame built from premium 6061 aluminum, offering the perfect balance between low weight and durability. This aluminum alloy is known for its high resistance to rust and physical damage, making the bike well-suited for challenging trails and intensive use.

The frame features several modern design solutions that enhance its functionality and aesthetics. Internal cable routing not only improves the bike’s appearance but also protects the cables from damage and dirt, resulting in smoother operation and less maintenance. The QR 135x9 mounting system and Post Mount Disc allow for easy installation of disc brakes and other components, increasing the bike’s versatility.

The Orbea Laufey 20 H30 2024 bike is equipped with a OC Mountain Control MC21, 31.6 mm, Dropper seatpost, which allows for easy adjustment of saddle height while riding. The dropper post enables quick lowering or raising of the saddle, which enhances comfort and control during descents and climbs. This feature is especially useful on technical trails where saddle height changes can significantly impact riding performance and safety.

The heart of the suspension is the SR Suntour XCM HLO SL Air JR fork, offering 80 mm of travel and QR mounting. This unit effectively absorbs shocks and vibrations on uneven trails, providing young cyclists with a smooth and comfortable ride.

Traction is provided by Schwalbe Rocket Ron Perf Foldable tires in size 20x2.25. These durable tires guarantee excellent grip on various surfaces, which is crucial when exploring demanding terrains. Thanks to them, young riders can enjoy safe and confident riding.

The bike is equipped with compact fenders that protect against mud and water in adverse weather conditions. These lightweight yet effective components complement the aluminum cranks and chainrings, contributing to reducing the bike’s weight while maintaining its durability. This solution makes the bike lighter and more efficient, helping young cyclists tackle challenging trails more easily.

Feedback

There are no reviews yet, be the first!

Review this product

Orbea children's bike Laufey 20 H20 2024 lime/yellow

Orbea children's bike Laufey 20 H20 2024 lime/yellow

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Orbea children's bike Laufey 20 H20 2024 lime/yellow

No opinion

Bike assembly service available

Size OS Sizes table
Choose an Option...

Choose an Option

Sizes table

    Size OS
    Height (cm) 110-135
    A - Seat tube (mm) 257
    B - Horizontal pipe (mm) 450
    C - Steerer tube (mm) 90
    D - Rear triangle (mm) 350
    E - Support height (mm) 248
    F - Support lowering (mm) 23
    G - Wheelbase (mm) 904
    H - Head angle 66
    I - Seat tube angle (°) 74
    J - Crossover (mm) 505
    K - Reach (mm) 322
    L - Stack (mm) 447
    M - Fork (mm) 388
