Orbea Laufey 20 H30 is the perfect bike for young riders. With a strong frame and efficient suspension, it provides excellent handling on varied trails. The perfect choice for mountain adventures.

Basic data

Brand Orbea
Country of origin of the brand Spain
Sport Bicycles
Gender Boy, Girl
Season Year-round
Leading colour Blue
Model/product code Laufey 20 H30 R00720KP
Code 2000103811

Frame

Frame Orbea Laufey 20 6061 Aluminum 2021, 135x9 QR, Post Mount Disc Mount, 31,6 Seat Post, Internal Cable Routing, Removable hanger
Frame material Aluminium

Components

Steering wheel Alloy, 31.8mm, riser, 560mm
Handlebar support Race Face Ride
Grips OC Lock On
Depreciation Front
Rudders VP-Z104PD 1-1/8" Semi-Cartridge
Fork SR Suntour XCM HLO SL Air JR 80mm QR
Saddle Selle Royal Vivo Junior
Bar Digit Alloy 31,6x250mm Offset 0

Drive

Derailleurs 1x9
Number of gears 9
Rear derailleur (model) Shimano Altus M2000 SGS Shadow
Handles Shimano SL-M2010
Crank mechanism Extra light 32t, 127mm, w/Chainguard
Cassette / Freewheel Sun Race CSM989 11-36t 9-Speed
Chain KMC X9

Brakes

Brakes (model) Clarks M2 Hydraulic Disc w/Kids Lever
Brake type Hydraulic discs

Wheels

Wheel size 20"
Wheels Mach1 Klixx 23c Tubeless Ready
Tyres Schwalbe Rocket Ron Perf Foldable, 20x2.25

Additional information

Mudguards Orbea Custom fork
Pedals included Yes
Side wheels No
Maximum user weight 40 kg
Age of child 4-8 years
User height range 110 - 135 cm
Height to saddle 58 - 70,6 cm

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | info@orbea.com

Orbea children's bike Laufey 20 H30 2024 slate blue/blue stone (R00720KP)

Young enthusiasts of two wheels will find the Orbea Laufey 20 H30 2024 to be the perfect companion for trail adventures. This compact yet sturdy trail bike meets the expectations of both beginners and more experienced young cyclists ready for exciting journeys.

Being a miniaturized version of its adult counterpart, the Orbea Laufey 20 H30 2024 is built with durability in mind. This enables confident riding on varied terrain. The solid frame is designed for intensive use, ensuring long-lasting performance and reliability.

The construction of this bike is based on a frame made from premium 6061 aluminum, offering the perfect balance between low weight and durability. This aluminum alloy is known for its high resistance to rust and physical damage, making the bike well-suited for challenging trails and intensive use.

The frame features several modern design solutions that enhance its functionality and aesthetics. Internal cable routing not only improves the bike’s appearance but also protects the cables from damage and dirt, resulting in smoother operation and less maintenance. The QR 135x9 mounting system and Post Mount Disc allow for easy installation of disc brakes and other components, increasing the bike’s versatility.

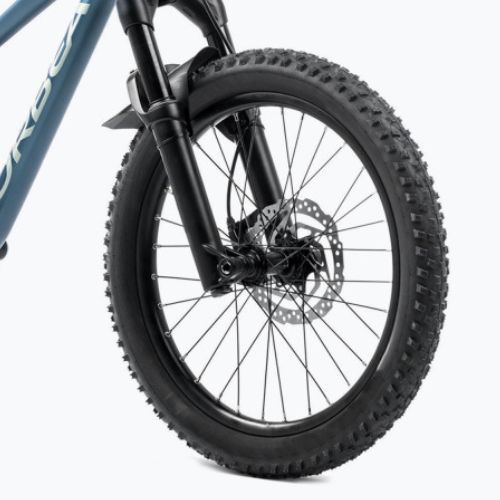

The bike is equipped with a SR Suntour XCM HLO SL Air JR fork with 80 mm travel and QR mounting. The suspension provides comfort on uneven trails, absorbing shocks and vibrations, allowing for a smoother and more comfortable ride for young cyclists.

The bike comes with Schwalbe Rocket Ron Perf Foldable tires sized 20x2.25. These durable tires provide excellent grip on various surfaces, which is crucial when riding in tough terrain. This allows young riders to enjoy safe and confident riding.

The bike is equipped with mini fenders that protect the rider from mud and water when riding in difficult weather conditions. These fenders are lightweight and discreet, yet very effective. The crankset and chainrings made from aluminum help reduce the bike’s weight while providing strength and durability. As a result, the bike is lighter and more efficient, making it easier for young cyclists to tackle challenging trails.

Product Details

Orbea children's bike Laufey 20 H30 2024 slate blue/blue stone

Braking

Clarks M2 hydraulic brakes provide excellent stopping power and control in all conditions. The technology of hydraulic disc brakes offers better modulation and greater braking force compared to traditional mechanical brakes. This allows young cyclists to feel confident and safe, having full control over their bike during descents and sudden stops.

Orbea children's bike Laufey 20 H30 2024 slate blue/blue stone

Gear shifting

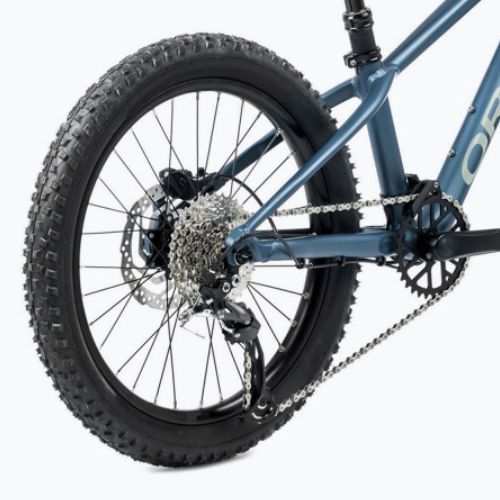

The bike is equipped with a Shimano Altus M2000 SGS Shadow rear derailleur, which offers exceptional precision and smooth gear shifting. The Shadow technology has been designed for more demanding terrain conditions, ensuring that the derailleur is tucked away and less exposed to damage when riding on rough terrain.

Orbea children's bike Laufey 20 H30 2024 slate blue/blue stone

Comfortable driving

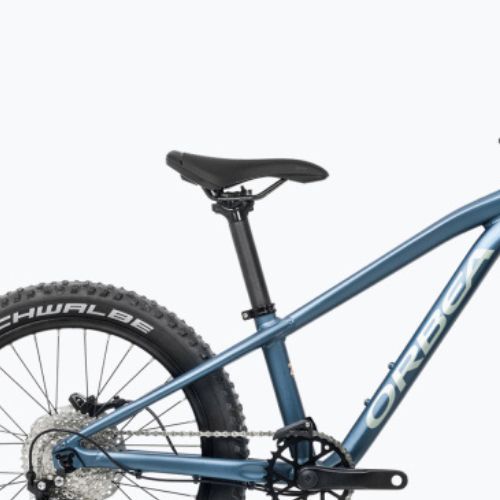

The bicycle is equipped with a Selle Royal Vivo Junior saddle, which provides comfort during long rides. The ergonomic saddle is tailored to the needs of young cyclists, ensuring comfort and support while riding.

Orbea children's bike Laufey 20 H30 2024 slate blue/blue stone

Certain leadership

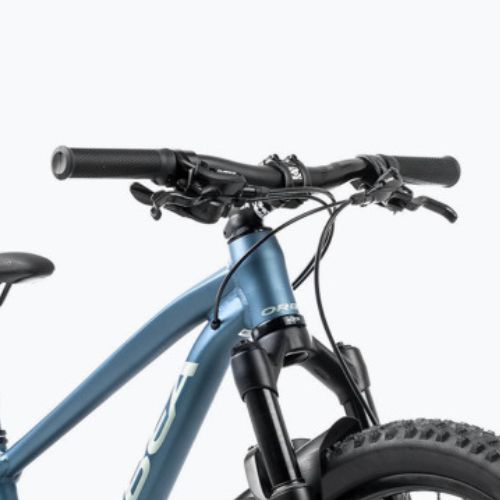

Alloy handlebars with a diameter of 31.8 mm and a width of 560 mm with a rise provide a comfortable riding position. The ergonomic shape of the handlebars allows for a secure grip and control over the bike, which is crucial when riding in difficult terrain.

Feedback

There are no reviews yet, be the first!

Review this product

Orbea children's bike Laufey 20 H30 2024 slate blue/blue stone

Orbea children's bike Laufey 20 H30 2024 slate blue/blue stone

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Orbea children's bike Laufey 20 H30 2024 slate blue/blue stone

No opinion

Bike assembly service available

Size OS Sizes table
Choose an Option...

Choose an Option

Sizes table

    Below you will find information that will help you choose the right size when buying a child's Laufey 20 bike from Orbea.

    Size OS
    Height (cm) 110-135
    A - Seat tube (mm) 257
    B - Horizontal pipe (mm) 450
    C - Steerer tube (mm) 90
    D - Rear triangle (mm) 350
    E - Support height (mm) 248
    F - Support lowering (mm) 23
    G - Wheelbase (mm) 904
    H - Head angle 66
    I - Seat tube angle (°) 74
    J - Crossover (mm) 505
    K - Reach (mm) 322
    L - Stack (mm) 447
    M - Fork (mm) 388
