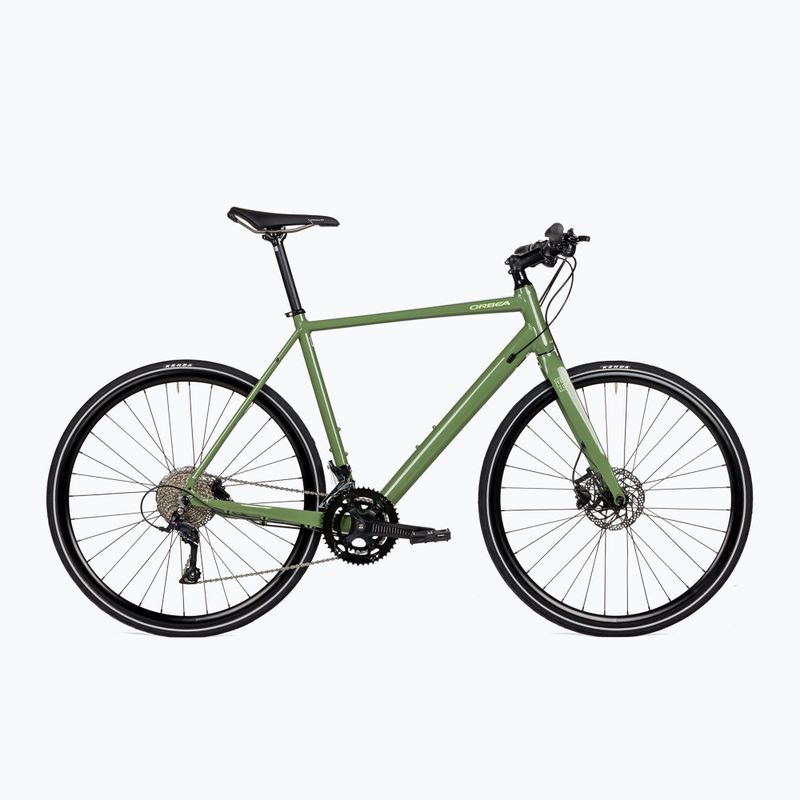

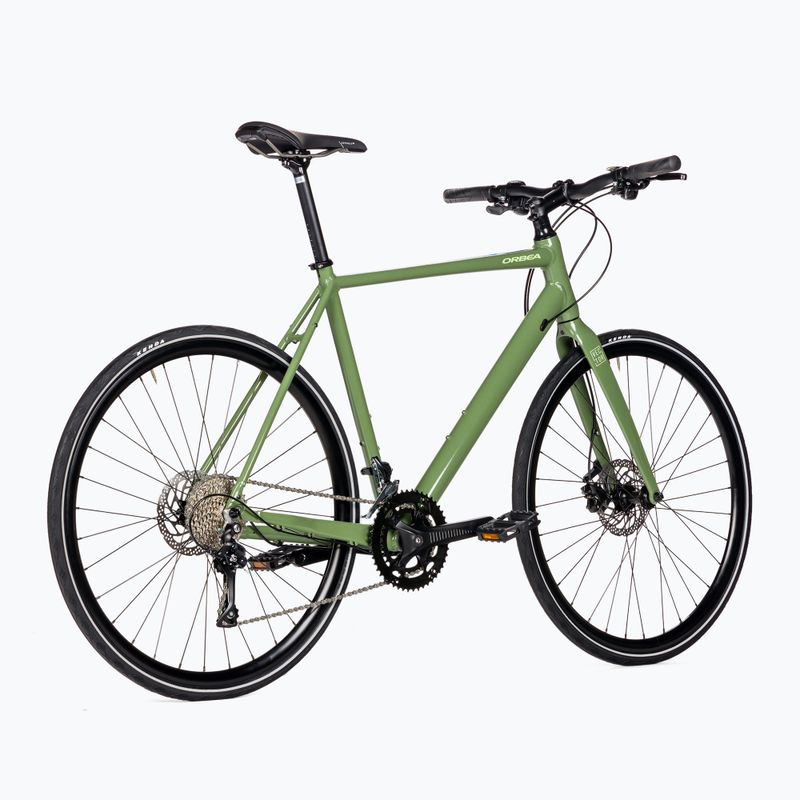

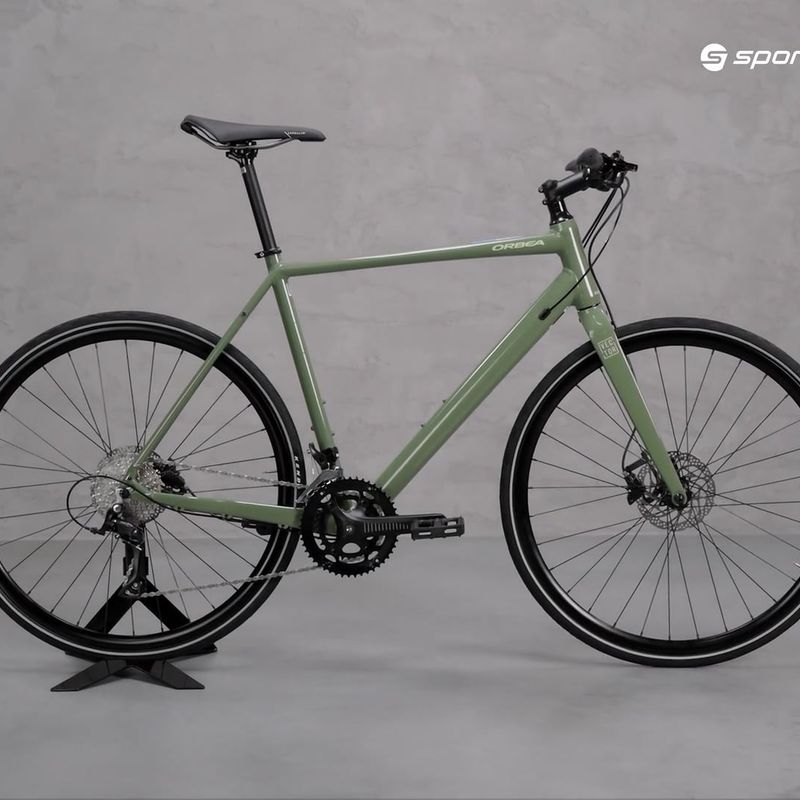

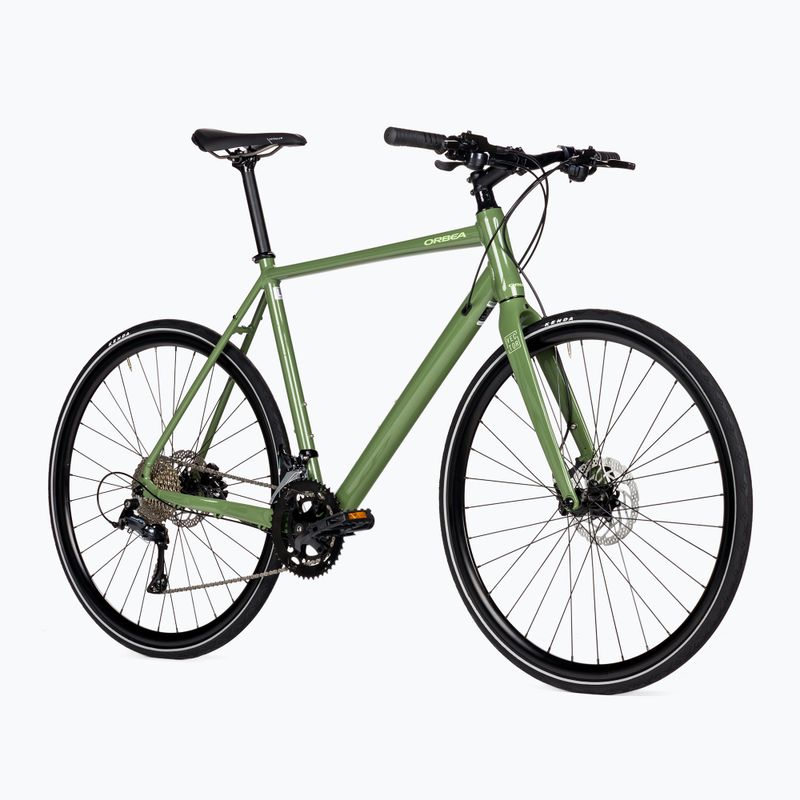

The Orbea Vector 20 city bike is a versatile two-wheeler with a lightweight aluminum frame and Shimano components.

Basic data

Brand Orbea
Country of origin of the brand Spain
Sport Bicycles
Gender Male
Season Year-round
Leading colour Green
Model/product code Vector 20 M40656RK
Purpose Cross/Fitness, City/urban
Code 2000008016

Frame

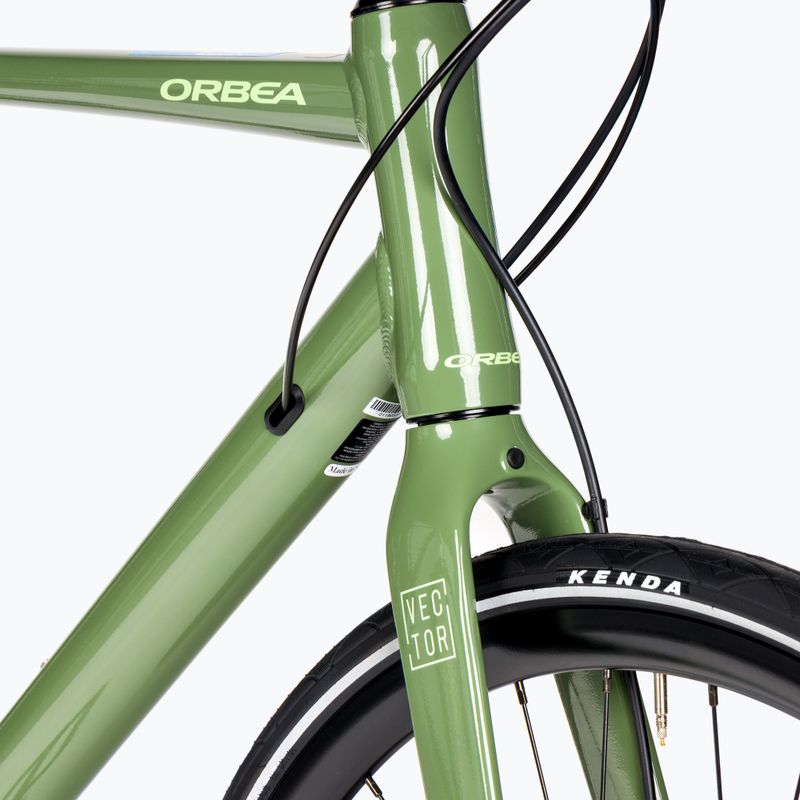

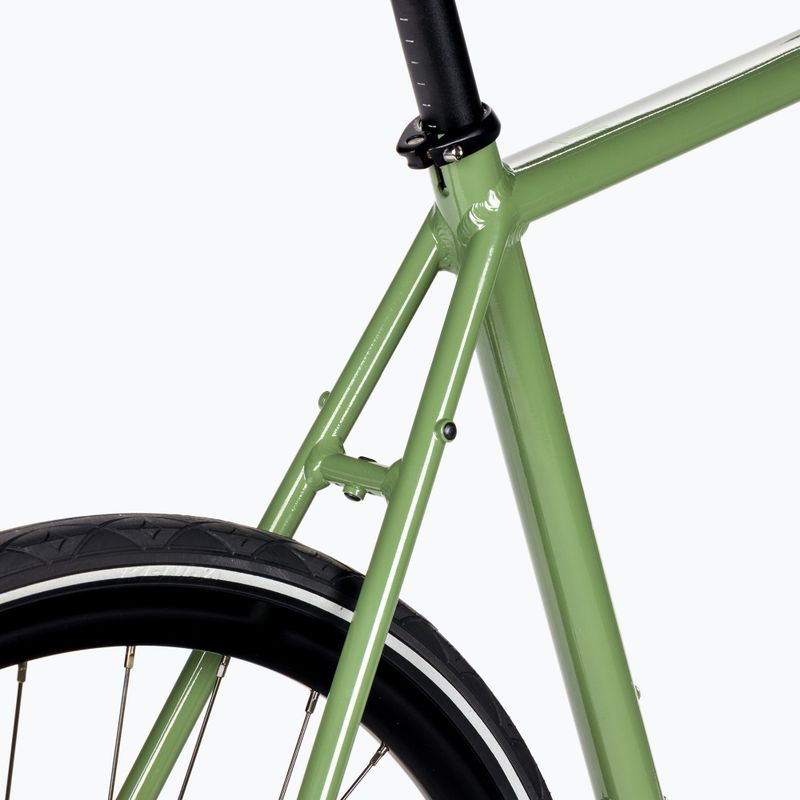

Frame Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping,135x9 QR, Carrier and Mudguard compatible, max 700x40C
Frame material Aluminium

Components

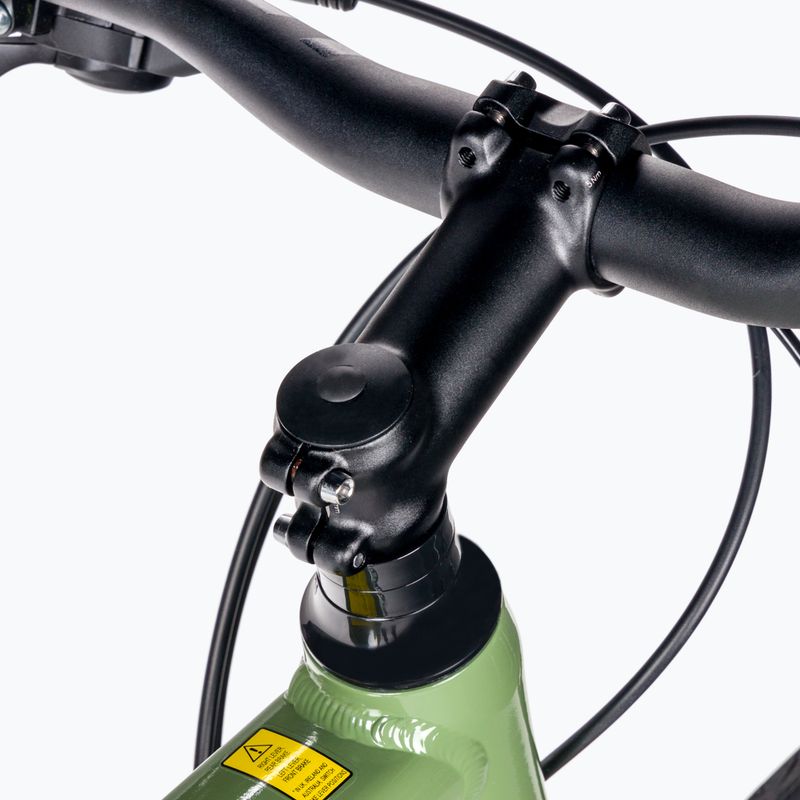

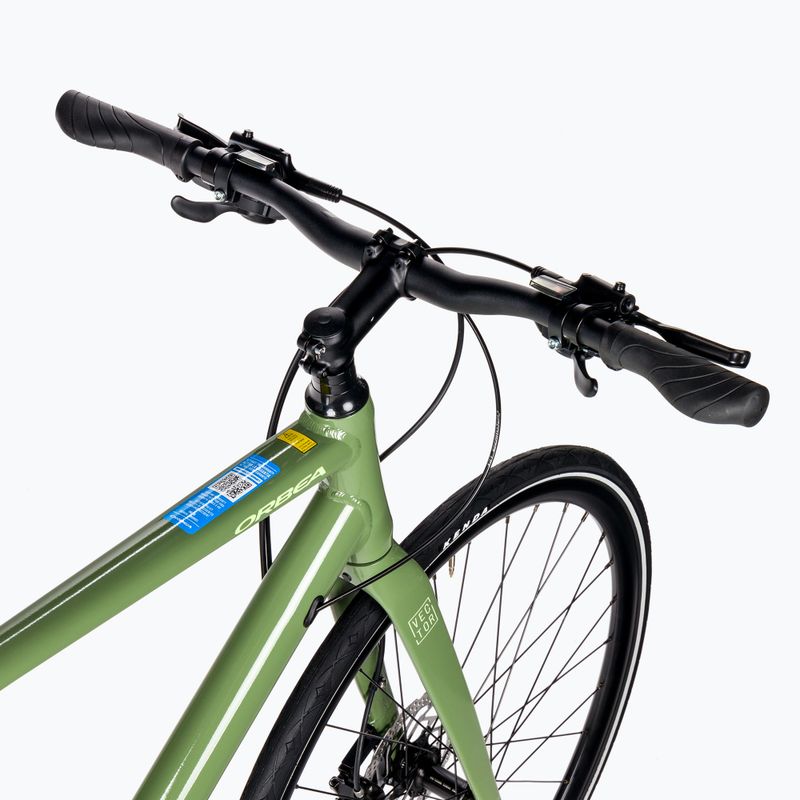

Steering wheel Alloy 31.8mm Riser 640mm
Handlebar width 640
Handlebar support Alloy 31.8mm interface 7º
Depreciation No
Rudders VP-Z104PD 1-1/8" Semi-Cartridge
Fork Speed 400mm Alloy Flat mount

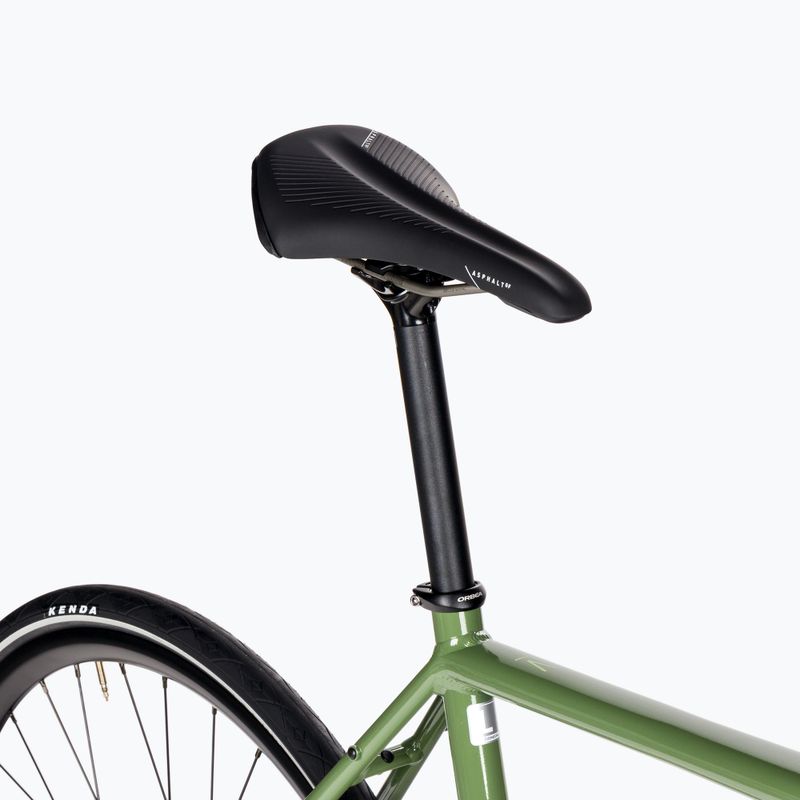

Saddle Selle Royal Asphalt GR
Saddle adjustment Vertical, Horizontal
Bar Alloy 27.2 Offset 0

Drive

Derailleurs 2x9
Number of gears 18
Front derailleur (model) Shimano Sora 3000

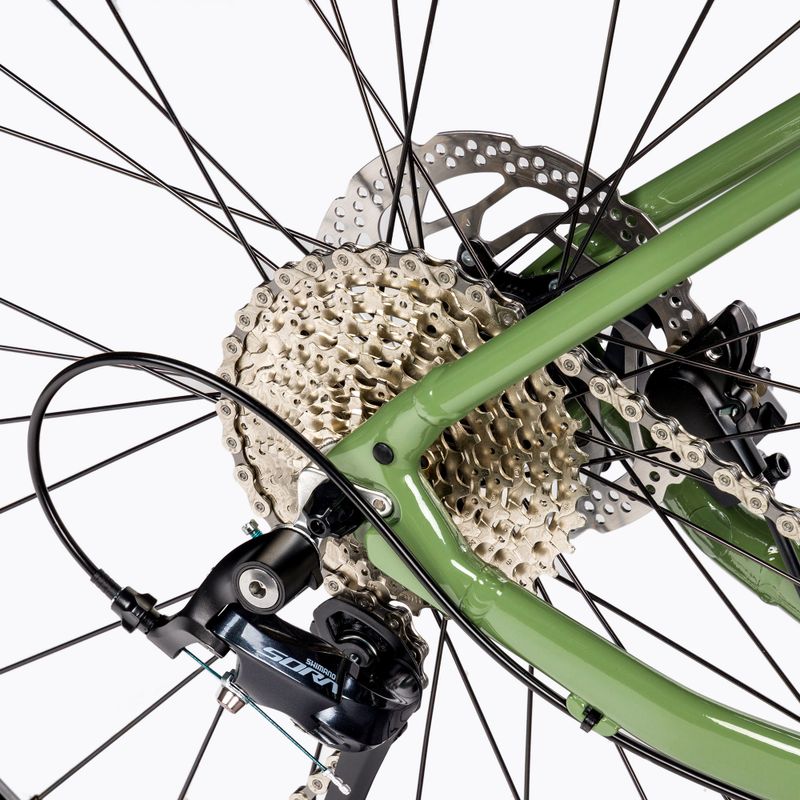

Rear derailleur (model) Shimano Sora 3000GS
Handles Shimano Sora

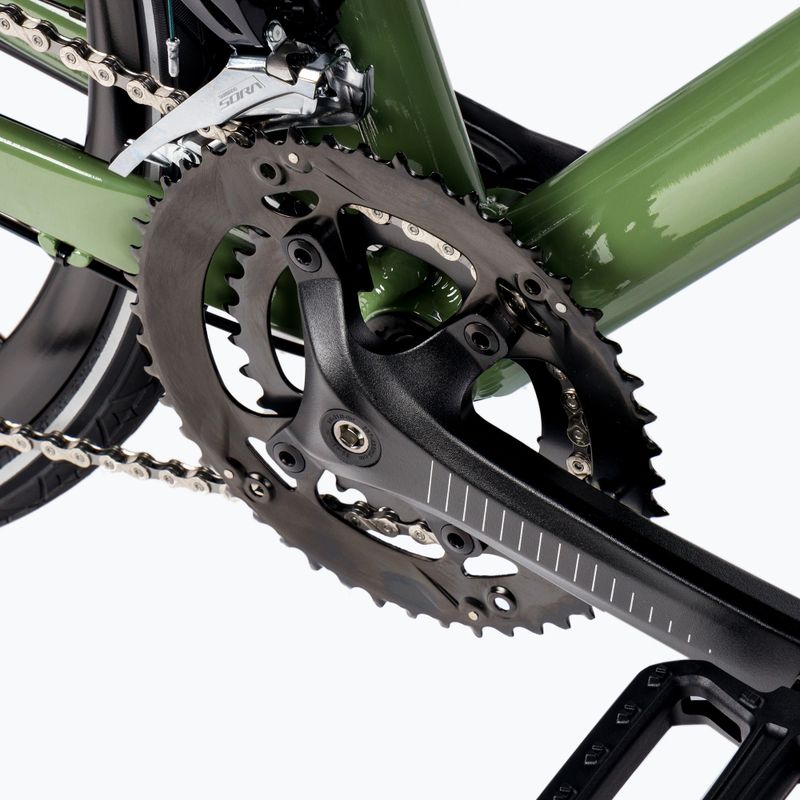

Crank mechanism Orbea Alloy 32x48t
Cassette / Freewheel Shimano HG400 11-34t 9-Speed
Chain KMC X9

Brakes

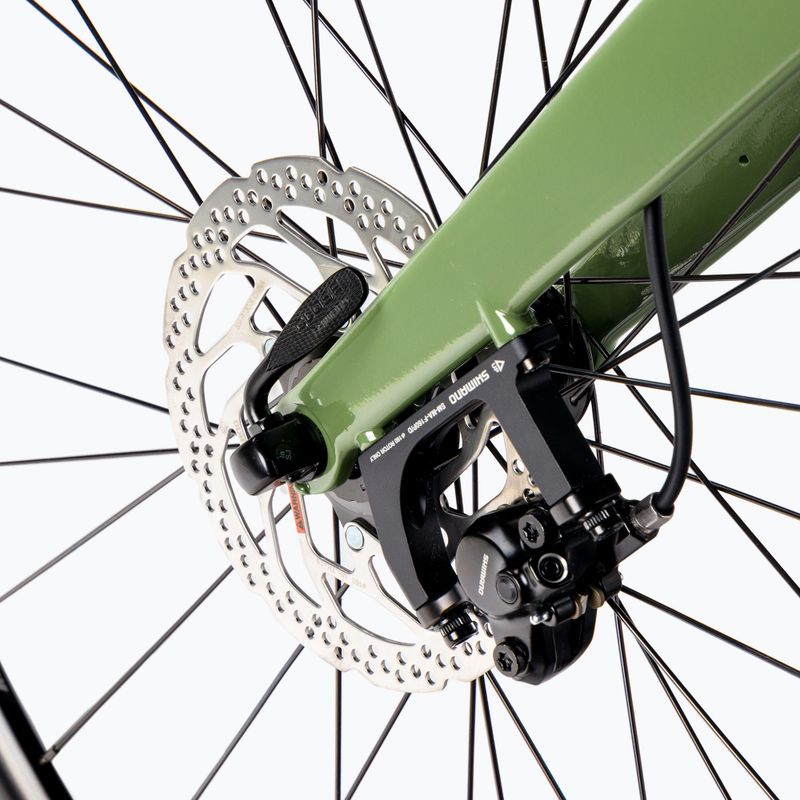

Brakes (model) Shimano MT200 Hydraulic Disc
Brake type Hydraulic discs

Wheels

Wheel size 28"
Wheels Orbea Airline Corsa Disc 700X19c
Tyres Kenda K1098 700x32 Reflective Tape

Additional information

Support No
Bell No
Lighting No
Mudguards No
Handlebar basket No
Luggage carrier No

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | info@orbea.com

Men's fitness bike Orbea Vector 20 green M40656RK (M40656RK)

The Orbea Vector 20 city bike is a lightweight and durable design with a balanced sporty geometry that provides intuitive handling, proper control, and balance on any terrain. Thanks to its versatility and compatibility with fenders and a rack, the bike can be equipped and loaded for commuting to work or exploring farther surroundings. Internal cable routing ensures safety and a minimalist style.

The Orbea Vector 20 is equipped with Shimano components, including: hydraulic disc brakes responsible for effective braking in all conditions, a 9-speed Shimano Sora drivetrain with a wide gear range for tackling tougher climbs. This model features sturdy wheels with abrasion-resistant tires that provide better traction and grip on uneven surfaces.

Men's fitness bike Orbea Vector 20 green M40656RK
Feedback

There are no reviews yet, be the first!

Review this product

Men's fitness bike Orbea Vector 20 green M40656RK

Men's fitness bike Orbea Vector 20 green M40656RK

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Men's fitness bike Orbea Vector 20 green M40656RK

No opinion

Bike assembly service available

Size L Sizes table
Choose an Option...

Choose an Option

Sizes table

    Size XS S M L XL
    Height (cm) 150-160 160-170 170-180 180-190 190-200
    A - Seat tube (mm) 430 480 525 555 580
    B - Horizontal pipe (mm) 521 546 559 580 601
    C - Steerer tube (mm) 109 127 150 170 200
    D - Rear triangle (mm) 435 435 435 435 435
    E - Support height (mm) 281 281 283 283 285
    F - Support lowering (mm) 70 70 68 68 66
    G - Wheelbase (mm) 1021 1037 1052 1063 1075
    H - Head angle 71 71 71 71,5 72
    I - Seat tube angle (°) 75 74 74 73,5 73
    J - Crossover (mm) 738 768 800 824 852
    K - Reach (mm) 378 388 395 405 410
    L - Stack (mm) 535 552 571 592 625
    M - Fork (mm) 400 400 400 400 400
