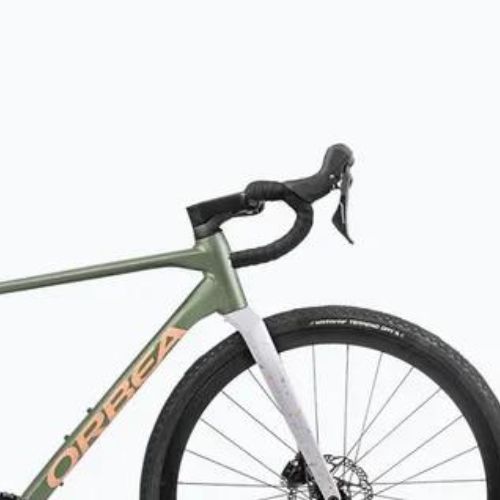

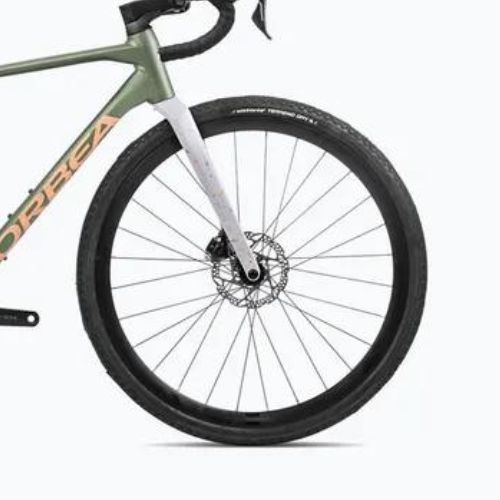

Orbea Terra H40 2024 artichoke/lilac gravel bike (R14102DF)

Frame

Frame Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5″, PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1

Frame material Aluminium

Components

Steering wheel OC Gravel GR31-R, Rise 15, Reach 70, Drop 110

Handlebar support OC Road Performance RP21, -6º

Grips Orbea Eva

Depreciation No

Rudders FSA 1-1/2″ Integrated Aluminium Cup

Fork Orbea Terra ICR, full carbon, 1-1/8″ – 1,5″ tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1

Fork material Carbon fibre

Saddle Prologo Akero AGX STN size 155mm

Bar SP 0.2 Carbon, 27.2mm, Setback 20

Frame material Carbon fibre

Drive

Type of derailleur Mechanical

Derailleurs 2x10

Number of gears 20

Front derailleur (model) Shimano GRX RX400

Rear derailleur (model) Shimano RD-RX400

Handles Shimano ST-RX400

Crank mechanism Shimano GRX RX600-10 30x46t

Cassette / Freewheel Shimano Tiagra HG-500 11-34t 10-Speed

Chain KMC X10

Brakes

Brakes (model) Shimano RX400 Hydraulic disc

Brake type Hydraulic discs

Wheels

Wheel size 28"

Wheels Alloy, Tubeless, 700c, 21c, 28h

Tyres Vittoria Terreno Dry Gravel 700x38c

Hubs Orbea Thru Axle 12x100mm M12x2 P1 Solid - front hub, Orbea Thru Axle 12x142mm M12x2 P1 Solid Inner Threaded - rear hub

Tubeless ready wheels Yes

Additional information

Folding condition of the bike Bike adjusted and pre-assembled

Other data

Sport Bicycles

Brand Orbea

Leading colour Green

Season Year-round

Model/product code Terra H40 R14102DF

Gender Male, Woman

Country of origin of the brand Spain

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model colour 2000090029

Below you will find information that will help you choose the right size when buying a Terra H40 bike from Orbea.

Size	XS	S	M	L	XL
Height (cm)	155-166	167-172	173-179	180-185	186-191
A - Seat tube (mm)	425	458	491	524	557
B - Horizontal pipe (mm)	526	539	558	570	590
C - Steerer tube (mm)	110	131	152	178	199
D - Rear triangle (mm)	430	430	430	430	430
E - Support height (mm)	278	278	278	280	280
F - Support lowering (mm)	78	78	78	76	76
G - Wheelbase (mm)	1020	1030	1039	1054	1063
H - Head angle	70	70,5	71	71	71,5
I - Seat tube angle (°)	74	74	73,5	73,5	73
J - Crossover (mm)	718	746	773	803	830
K - Reach (mm)	375	382	389	395	402
L - Stack (mm)	526	548	570	592	614
M - Fork (mm)	390	390	390	390	390

Advantages

Aluminium frame

This bike model has been made with the right materials to ensure maximum comfort. Durable aluminium was used for the frame, which stands out for its lightness. In addition, this material is characterised by a high strength index and resistance to bending.

Hydraulic disc brakes

This model of bike uses a reliable type of brake, the hydraulic disc. This type provides high braking power and modulation regardless of road conditions. In addition, the brakes have a low failure rate.

28" wheels

The 28-inch wheels are characterised by prolonged wear and allow faster speeds, which are far easier to maintain. Compared to smaller sizes, these wheels provide better stability at higher speeds.

Carbon fork

The material used to make this fork is characterised by extreme lightness. The carbon fork is characterised by its high ability to absorb the power generated when riding over rough terrain and combines strength and low weight.
