Orbea Terra H40 2024 combines innovation and functionality, delivering a bike that is both efficient on gravel roads and comfortable in the urban hustle. With its help, every road becomes a pleasure, and every trip — an unforgettable experience.

Basic data

Brand Orbea
Country of origin of the brand Spain
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour Green
Model/product code Terra H40 R14107DG
Code 2000090031

Frame

Frame Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5″, PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1
Frame material Aluminium

Components

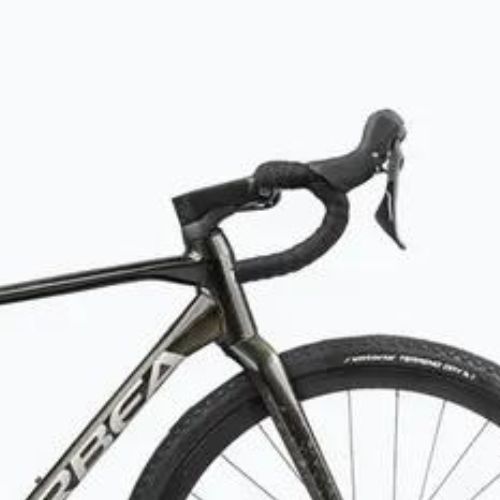

Steering wheel OC Gravel GR31, Reach 70, Drop 110
Handlebar support OC Road Performance RP21, -6º
Grips Orbea Eva
Depreciation No
Rudders FSA 1-1/2″ Integrated Aluminium Cup
Fork Orbea Terra ICR, full carbon, 1-1/8″ – 1,5″ tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
Fork material Carbon fibre
Saddle Prologo Akero AGX STN size 155mm
Bar SP 0.2 Carbon, 27.2mm, Setback 20
Frame material Carbon fibre

Drive

Type of derailleur Mechanical
Derailleurs 2x10
Number of gears 20

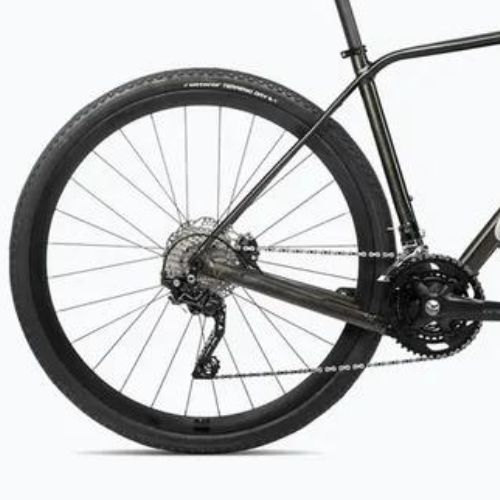

Front derailleur (model) Shimano GRX RX400
Rear derailleur (model) Shimano RD-RX400
Handles Shimano ST-RX400
Crank mechanism Shimano GRX RX600-10 30x46t
Cassette / Freewheel Shimano Tiagra HG-500 11-34t 10-Speed
Chain KMC X10

Brakes

Brakes (model) Shimano RX400 Hydraulic disc
Brake type Hydraulic discs

Wheels

Wheel size 28"
Wheels Alloy, Tubeless, 700c, 21c, 28h
Tyres Vittoria Terreno Dry Gravel 700x38c
Hubs Orbea Thru Axle 12x100mm M12x2 P1 Solid - front hub, Orbea Thru Axle 12x142mm M12x2 P1 Solid Inner Threaded - rear hub
Tubeless ready wheels Yes

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | info@orbea.com

Orbea Terra H40 2024 infinity green/ivory white gravel bike (R14107DG)

Orbea Terra H40 2024 is a gravel bike designed for diverse challenges. It performs excellently both on gravel trails and in the urban hustle. Its advanced construction and precise geometry guarantee comfort and stability regardless of conditions. High-quality components enhance its performance, making it the perfect companion for any journey. The Terra H40 is synonymous with functionality, comfort, and modern design, created for those who value reliability and style in one.

It is worth noting the exceptional frame design of the Terra H40 2024 bike. Made from hydroformed, triple-butted aluminum, it is designed to optimize strength and minimize weight. Its advanced geometry provides not only comfort and precise handling but also excellent response to every rider’s movement, which is especially important on variable gravel paths. The raised top tube of the frame further increases structural stiffness and stability, resulting in more confident handling both off-road and during city rides.

For lovers of longer trips, the bike offers numerous mounting points, allowing easy addition of fenders, three water bottles, and rear panniers. This is an ideal solution for those planning longer journeys and needing extra space for gear. Thanks to this, you can be fully prepared for any adventure, confident that everything necessary is within reach.

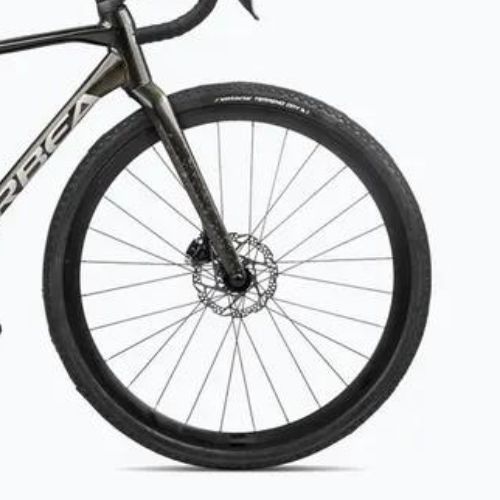

The Orbea Terra ICR fork, made entirely of carbon fiber, offers lightness, durability, and excellent damping properties. The fork’s construction is damped, which significantly improves riding comfort on rough terrain and gravel roads. The integrated fork with a steerer tube diameter from 1-1/8" to 1-1/2" and a 12x100 mm thru-axle provides increased steering precision and stability at higher speeds and in challenging terrain conditions.

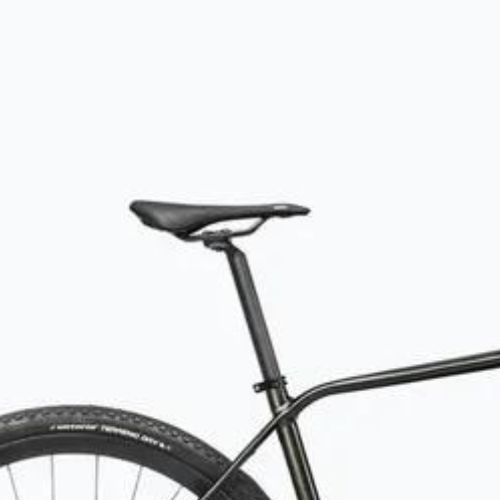

The SP 0.2 seatpost, made of carbon, has a diameter of 27.2 mm and provides 20 mm setback, offering additional cushioning when riding on uneven surfaces. The flexibility of carbon significantly absorbs vibrations, increasing user comfort, especially on longer distances and in tougher terrain.

Orbea Terra H40 is equipped with Vittoria Terreno Dry Gravel tires sized 700x38c, which provide excellent grip and performance on gravel while remaining efficient on harder surfaces. These versatile tires offer the perfect balance between traction and rolling resistance.

Advantages

Aluminium frame
This bike model has been made with the right materials to ensure maximum comfort. Durable aluminium was used for the frame, which stands out for its lightness. In addition, this material is characterised by a high strength index and resistance to bending.
Hydraulic disc brakes
This model of bike uses a reliable type of brake, the hydraulic disc. This type provides high braking power and modulation regardless of road conditions. In addition, the brakes have a low failure rate.
28" wheels
The 28-inch wheels are characterised by prolonged wear and allow faster speeds, which are far easier to maintain. Compared to smaller sizes, these wheels provide better stability at higher speeds.
Carbon fork
The material used to make this fork is characterised by extreme lightness. The carbon fork is characterised by its high ability to absorb the power generated when riding over rough terrain and combines strength and low weight.
  1. 100%

    plAntoni

    Highly recommended!

    After a few months of use, I can recommend with a clear conscience. A very nice bike. It weighs its own weight, but there is no way out with an alu frame and rims. In my case it is mainly used as an urban bike and occasionally for recreational gravel rounds outside the city.

    Translated.Show original
  2. 100%

    plArtur

    Excellent

    Super quality in a great paint job. Pure driving pleasure.

    Translated.Show original
  3. 100%

    plZbigniew

    Amazing

    A bike miracle. Arrived after the first service quick fitting and ready

    Translated.Show original

Review this product

Orbea Terra H40 2024 infinity green/ivory white gravel bike

Orbea Terra H40 2024 infinity green/ivory white gravel bike

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Orbea Terra H40 2024 infinity green/ivory white gravel bike

Bike assembly service available

Size Sizes table
Choose an Option...

Choose an Option

Sizes table

    Below you will find information that will help you choose the right size when buying a Terra H40 bike from Orbea.

    Size XS S M L XL
    Height (cm) 155-166 167-172 173-179 180-185 186-191
    A - Seat tube (mm) 425 458 491 524 557
    B - Horizontal pipe (mm) 526 539 558 570 590
    C - Steerer tube (mm) 110 131 152 178 199
    D - Rear triangle (mm) 430 430 430 430 430
    E - Support height (mm) 278 278 278 280 280
    F - Support lowering (mm) 78 78 78 76 76
    G - Wheelbase (mm) 1020 1030 1039 1054 1063
    H - Head angle 70 70,5 71 71 71,5
    I - Seat tube angle (°) 74 74 73,5 73,5 73
    J - Crossover (mm) 718 746 773 803 830
    K - Reach (mm) 375 382 389 395 402
    L - Stack (mm) 526 548 570 592 614
    M - Fork (mm) 390 390 390 390 390
