Marin Rift Zone XR 27.5 is a bike that knows no limits to fun and adventure on the trail, providing an unparalleled experience for both beginner and experienced mountain bikers.

Basic data

Brand Marin
Country of origin of the brand USA
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour Green
Model/product code Rift Zone XR 27.5 A-1297W-W1-19
Code 2000074245

Frame

Frame All New Series 3 6061 Aluminum, 27.5” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle
Frame material Aluminium

Components

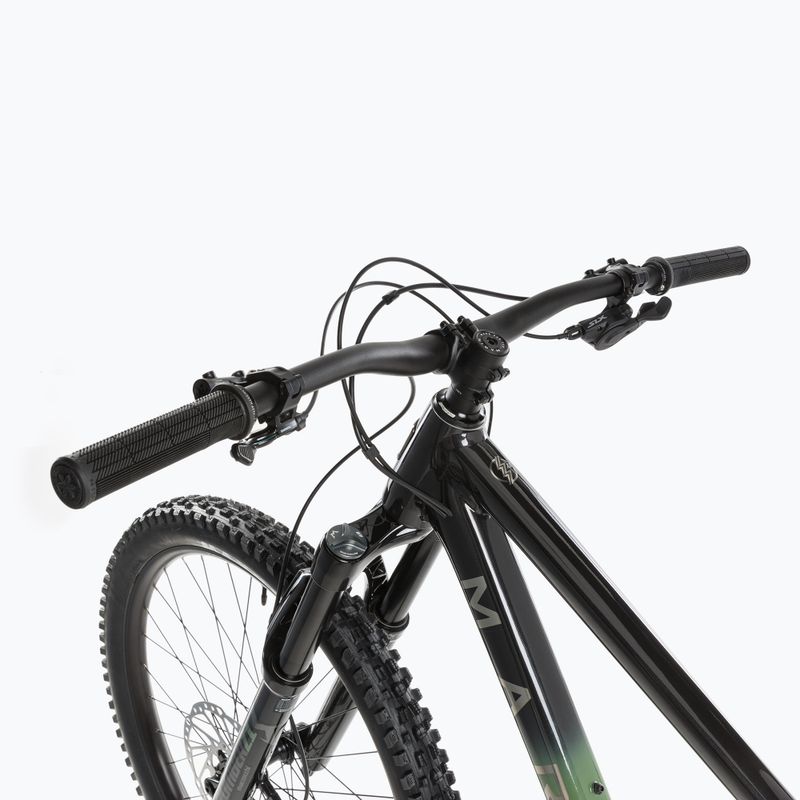

Steering wheel Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Handlebar material Aluminium
Handlebar support Marin 3D Forged Alloy, 35mm
Handlebar stem material Aluminium
Grips Marin Grizzly Lock On
Depreciation Full
Rudders FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Fork Marzocchi Bomber Z1 27.5", Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 37mm Offset

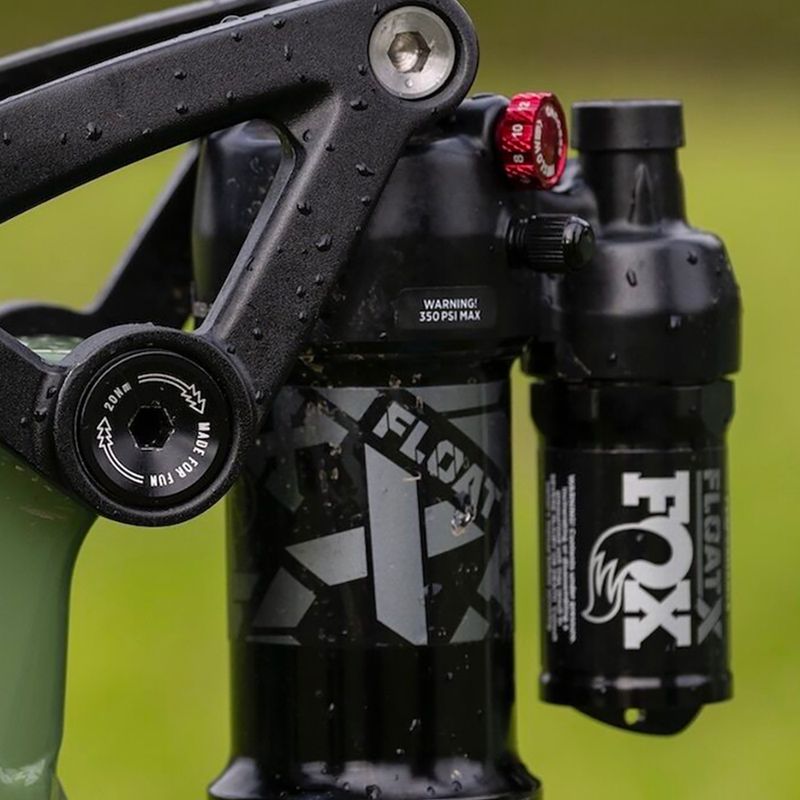

Damper Fox Float X, Performance Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x55mm, M8x30mm, M8x25mm

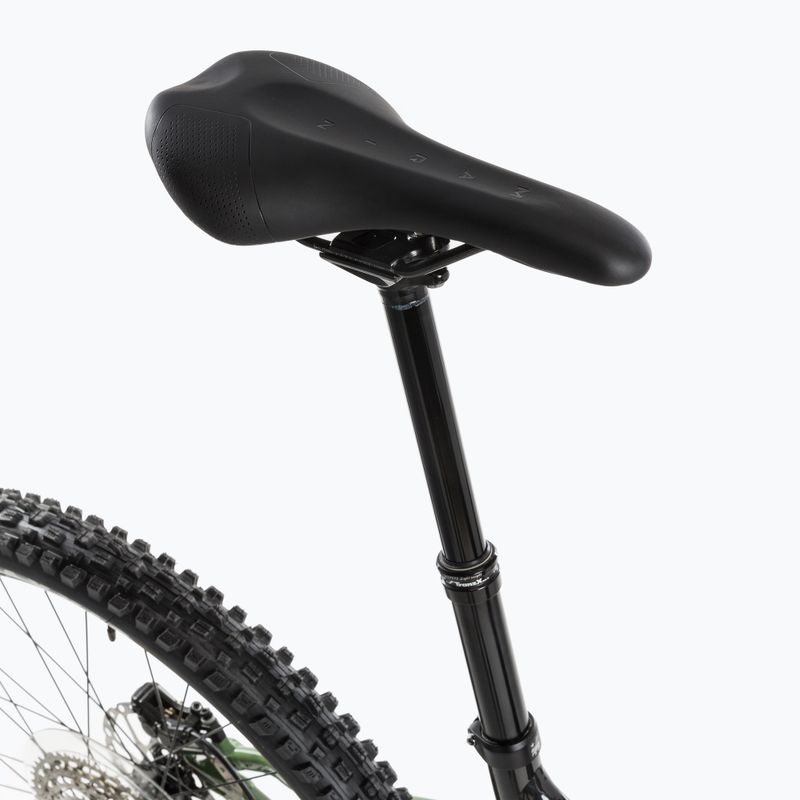

Saddle Marin Speed Concept
Bar TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm

Drive

Type of derailleur Mechanical
Derailleurs 1x12
Number of gears 12
Rear derailleur (model) Shimano XT, 12-Speed, SGS
Handles Shimano SLX, 12-Speed, SL-7100R
Crank mechanism FSA Grid, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

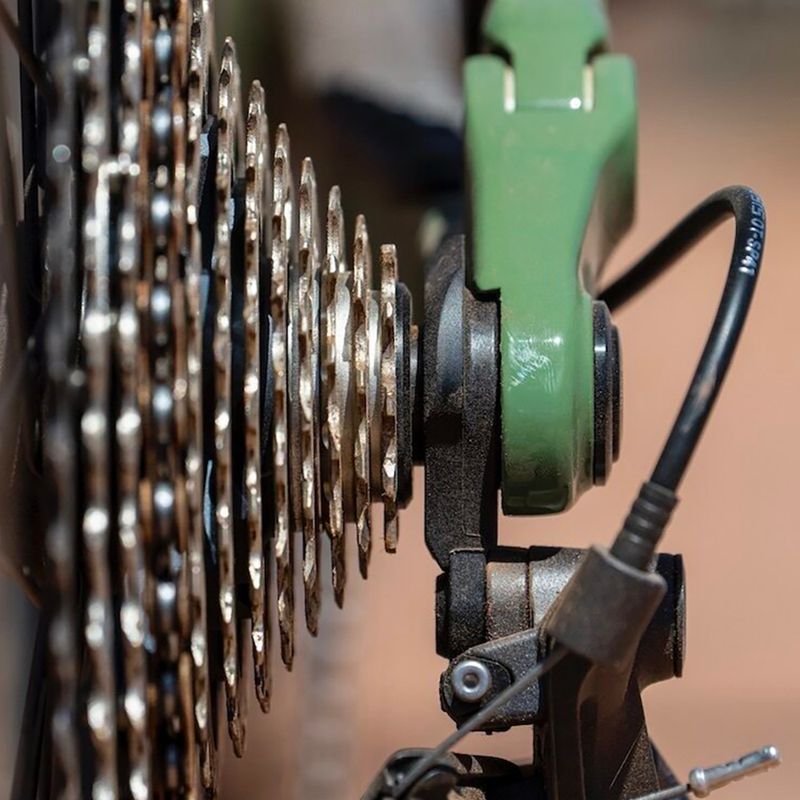

Cassette / Freewheel SunRace, 12-Speed, 11-51T, ED Black
Chain KMC X-12 Silver and Black

Brakes

Brakes (model) Shimano MT420 Hydraulic Disc
Brake type Hydraulic discs
Brake discs 180 mm/203 mm

Wheels

Wheel size 27,5"
Wheels Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
Tyres Maxxis Assegai, 27.5x2.5", MAXX TERRA, EXO, Tubeless Compatible
Hubs Forged Alloy, 148x12mm, Disc, 32H, HG Freehub Body, Forged Alloy, 110x15mm, Disc, 32H
spokes 14g Black Stainless Steel
Tubeless ready wheels Yes
Tubeless ready tyres Yes

Additional information

Pedals included No

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer Marin Bikes | 1450 Technology Lane, Suite 100, Petaluma, CA 94954, USA | uk-enquiries@marinbikes.com | MOTOR-LAND SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ | Kolejowa 362/364 05-092 Dziekanów Nowy Polska | bok@motor-land.com.pl

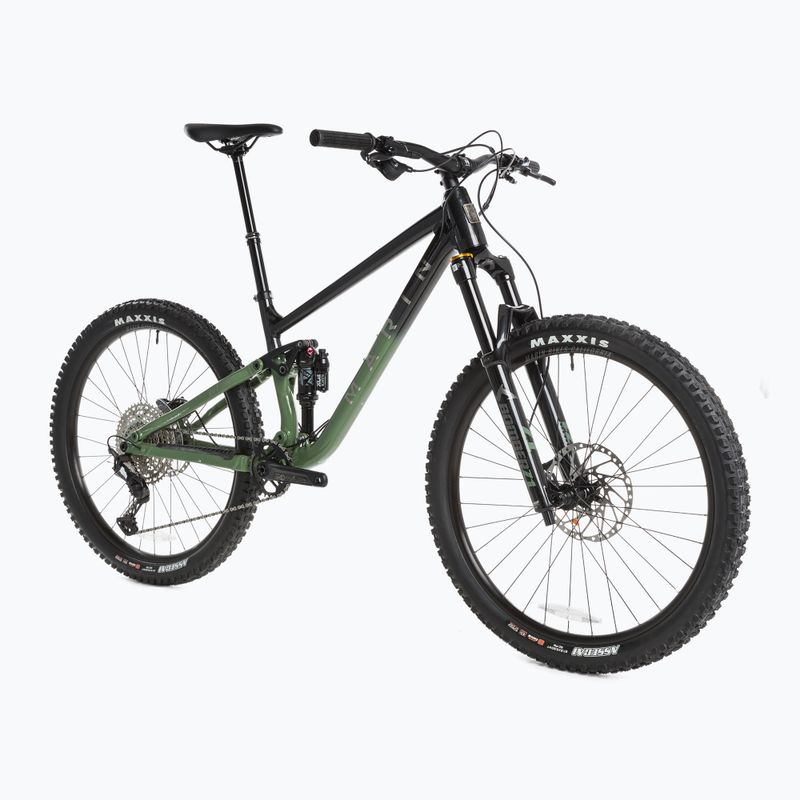

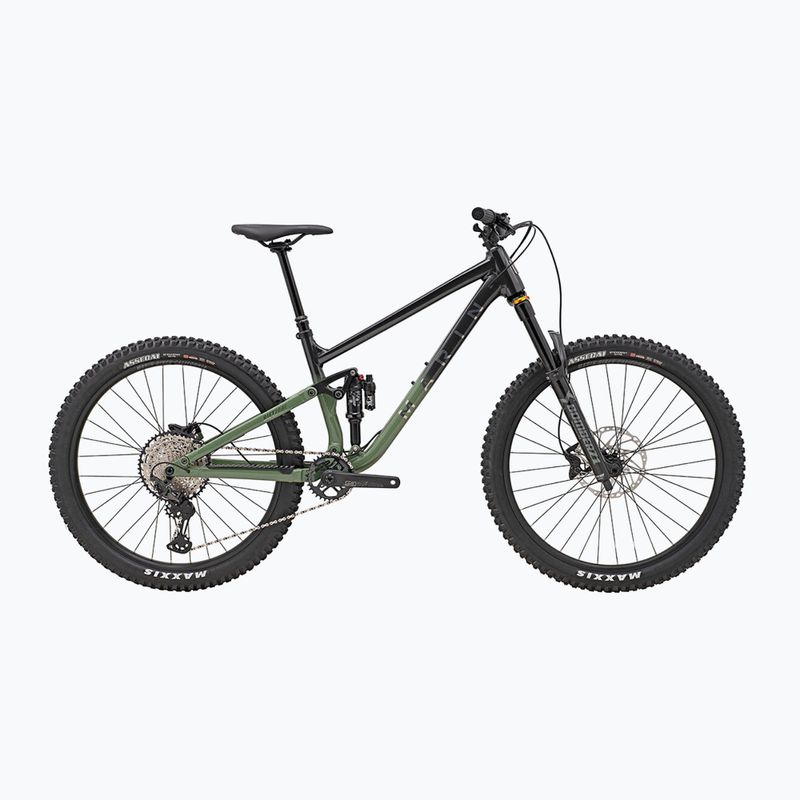

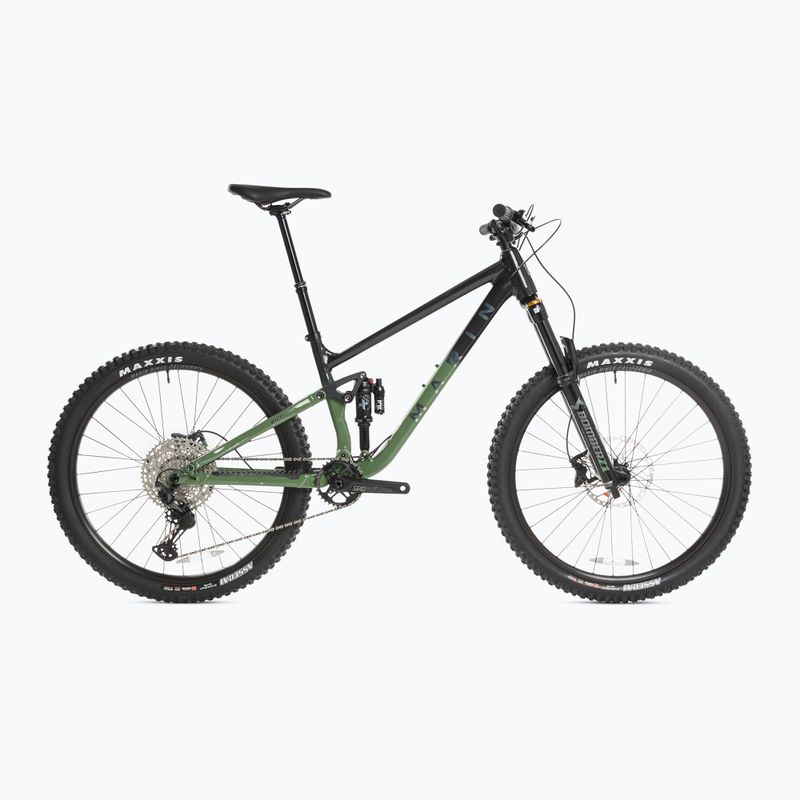

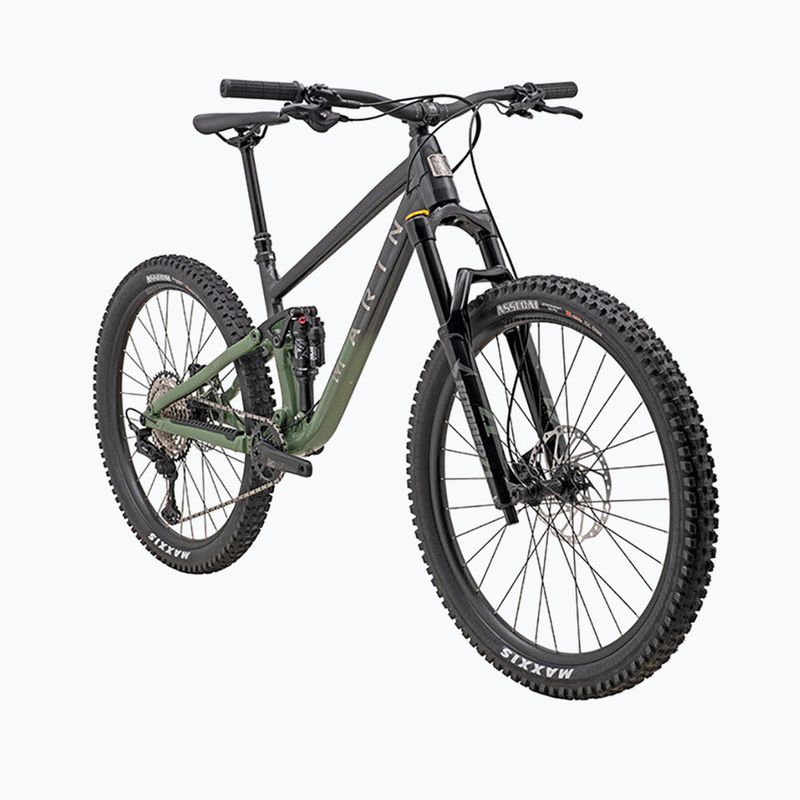

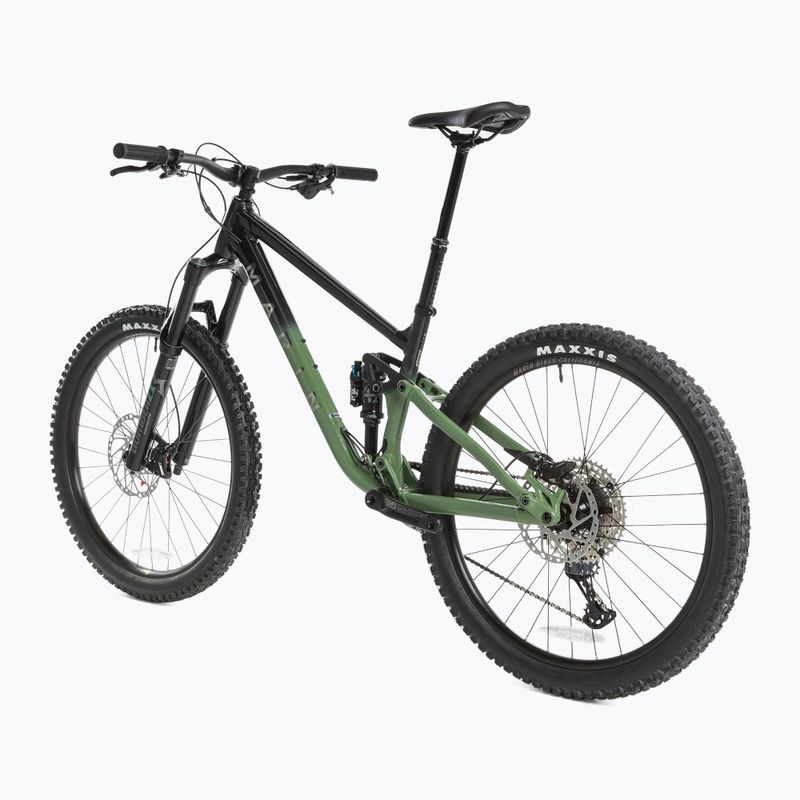

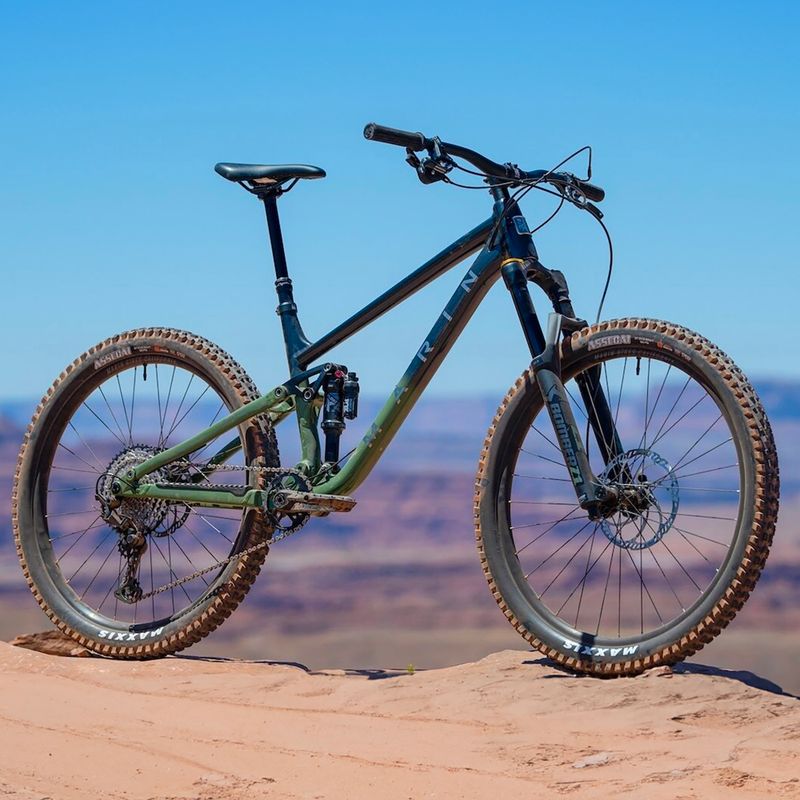

Marin Rift Zone XR 27.5 green/black mountain bike (A-1297W-W1-19)

Mountain bike Marin Rift Zone XR 27.5 is the epitome of joy and versatility on the trail. Designed for maximum fun, whether you plan a full-day escapade, quick laps on local tracks, or a mountain expedition. Rifts are a bike made for fun.

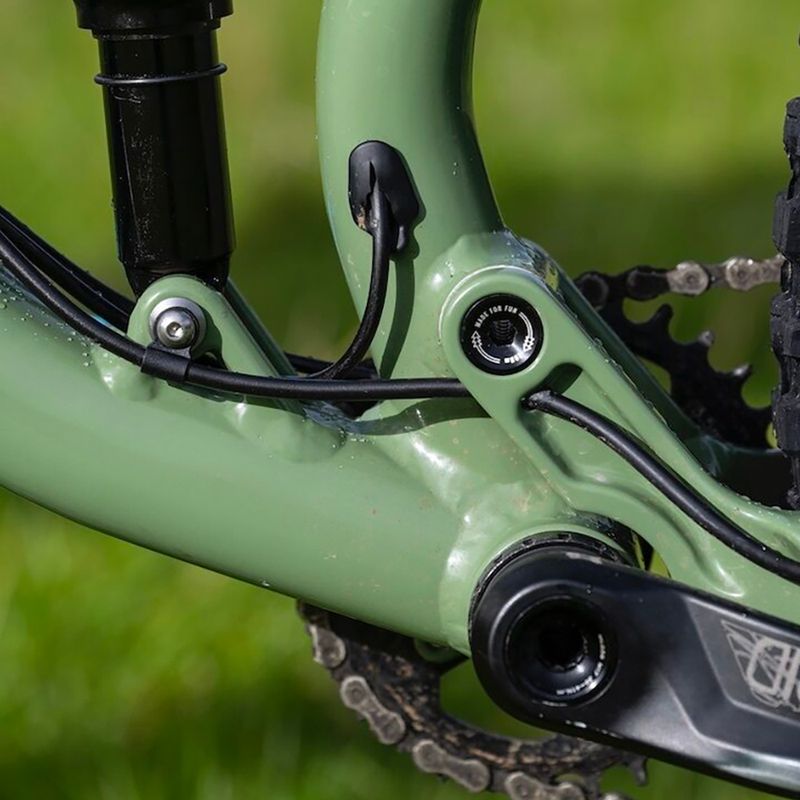

Marin Rift Zone 27.5" combines dynamic fun offered by 27.5" wheels, 130 mm rear suspension travel, a lightweight aluminum frame, and our incredibly comfortable MultiTrac suspension platform. All this guarantees endless enjoyment on the trails. Marin Rift Zone XR is a special edition bike that will surely satisfy riders seeking extreme experiences.

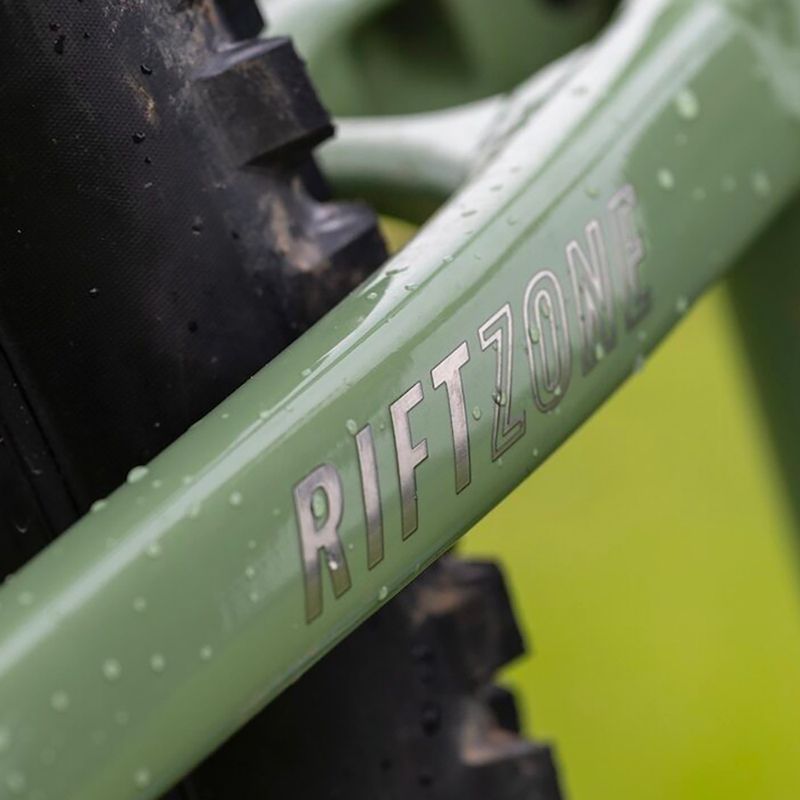

The modern Marin Rift Zone XR frame made from 3 6061 series aluminum stands out for its lightness and durability. Thanks to the use of butted and formed technology, the frame offers excellent stiffness and effective vibration damping. The design adapted for 27.5” wheels ensures stable and dynamic riding on varied terrain.

Marzocchi Bomber Z1 fork guarantees outstanding shock absorption and unparalleled control on challenging trails. With 140 mm travel and a hydraulic lockout system, this fork adapts to diverse riding conditions, providing smoothness and comfort. The Kabolt Bolt-On Axle and 37 mm offset increase steering precision and responsiveness to terrain changes.

Maxxis Assegai tires are a true game-changer for off-road riding enthusiasts. Designed for maximum grip on difficult, technical trails, Maxxis Assegai tires with MAXX TERRA rubber compound and EXO reinforcement are ready for any challenge.

Advantages

Aluminium frame
When designing this bike, the focus was on selecting the right materials to ensure the highest quality. Therefore, the frame is made of aluminium, which combines durability and low weight.
Hydraulic disc brakes
This mountain bike model uses hydraulic disc brakes, which have a very low failure rate, so they will be trouble-free even during frequent use. The undoubted advantage is greater braking power and modulation.
Tubeless ready tyres
The use of TLR (Tubeless Ready) technology has made it possible to use lower pressures and makes the tyres resistant to punctures. What's more, the system rules out the problem of ‘Snake Bite’, i.e. puncturing the inner tube by pinching it against the rim.
Full shock absorption
Allows easier traversing of off-road obstacles. Front and rear shock absorbers provide maximum wheel traction control and a balanced ride on the ground. The full suspension bike is very comfortable and soft to ride.
Drive 1x12
This bike uses 1x12 derailleurs, which provide smooth gradation and allow effortless gear changes. The large range of gear ratios allows you to adapt the gear to your current needs.
27.5" wheels
The 27.5-inch wheels that this bike model is equipped with are characterised by the fact that they are easy to accelerate and the bike is more agile. In addition, riding on wheels of this size allows for a dynamic ride and provides comfort on difficult surfaces.
Feedback

There are no reviews yet, be the first!

Review this product

Marin Rift Zone XR 27.5 green/black mountain bike

Marin Rift Zone XR 27.5 green/black mountain bike

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Marin Rift Zone XR 27.5 green/black mountain bike

No opinion

Bike assembly service available

Size Sizes table
Choose an Option...

Choose an Option

Sizes table

    Size S M L XL
    Height (cm) 160-168 168-178 178-188 188-193
    A - STACK 623,6 628,2 637,3 641,8
    B - REACH 435 460 485 515
    65,5 65,5 65,5 65,5
    D - Steering tube (mm) 110 115 125 130
    E - Kąt siodełka (°)
    77 77 77 77
    390 400 425 430
    579 605 632,1 663,2
    343 343 343 343
    35 35 35 35
    430 430 430 430
    1170 1205,1 1234,4 1266,3
    690,2 691,2 701,7 700,5
    44 44 44 44
