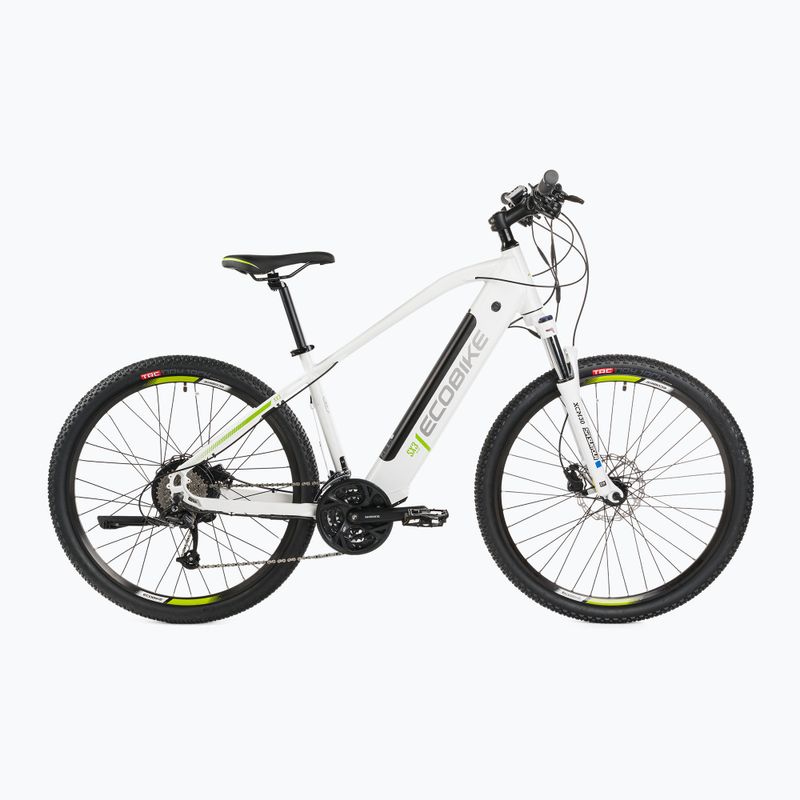

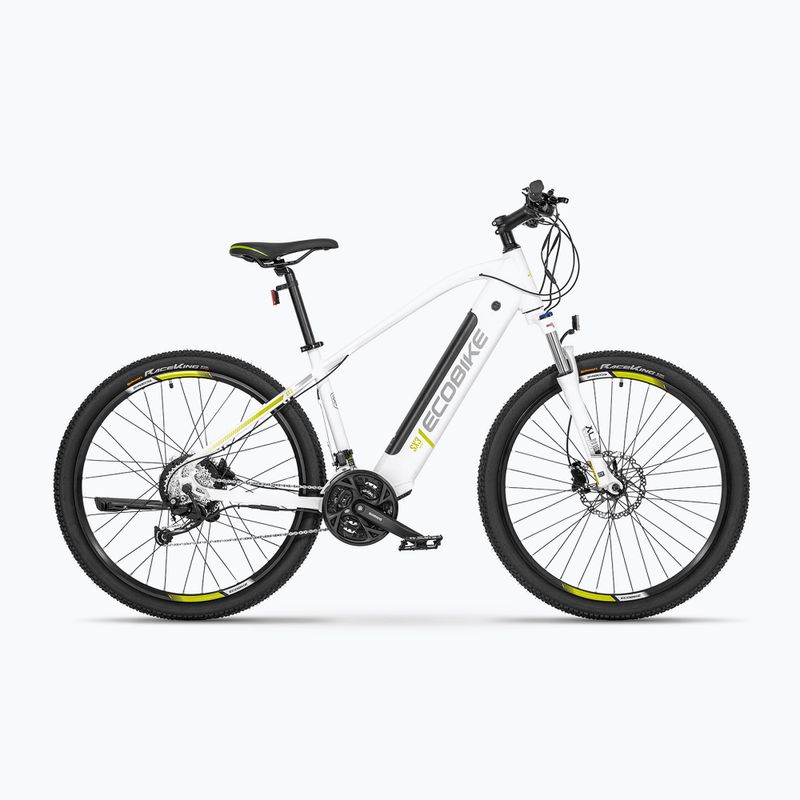

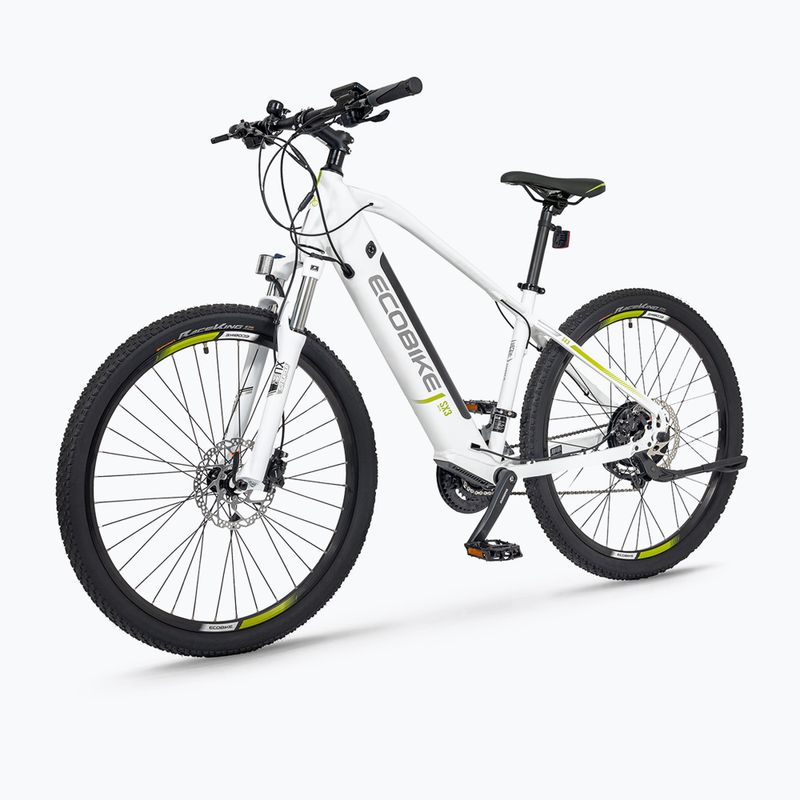

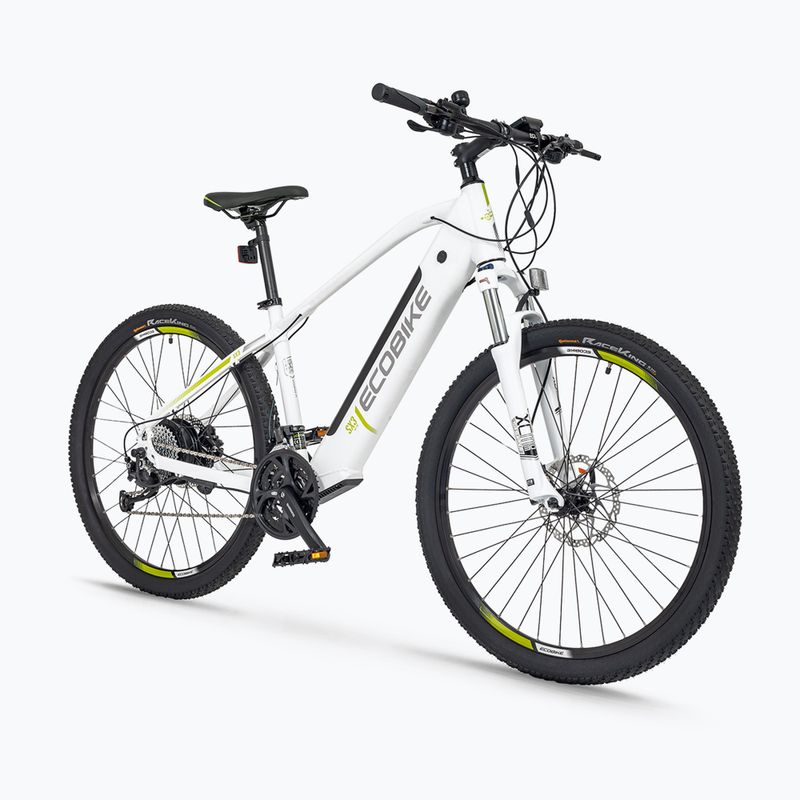

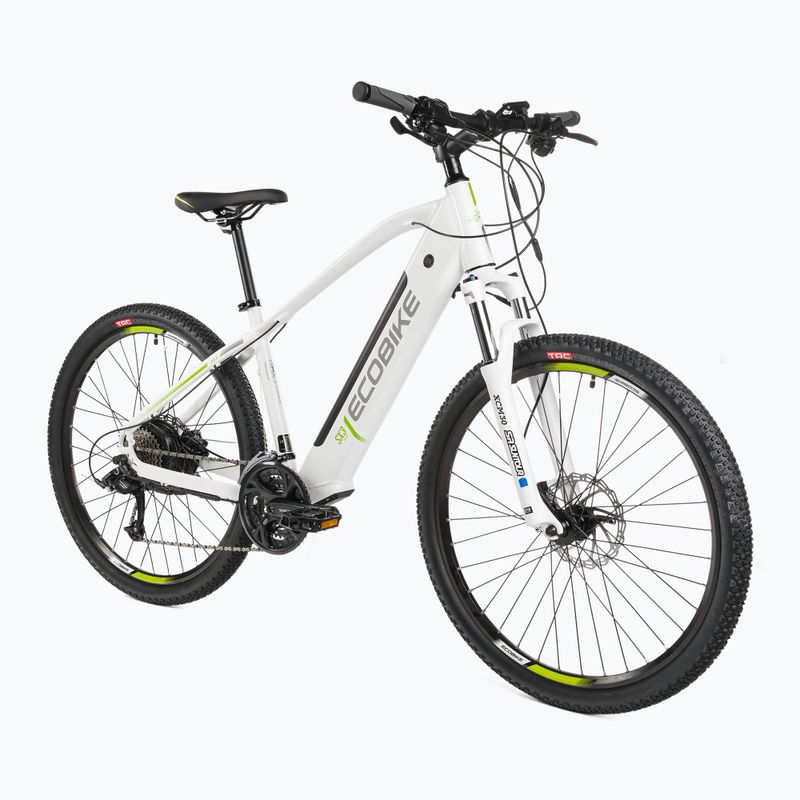

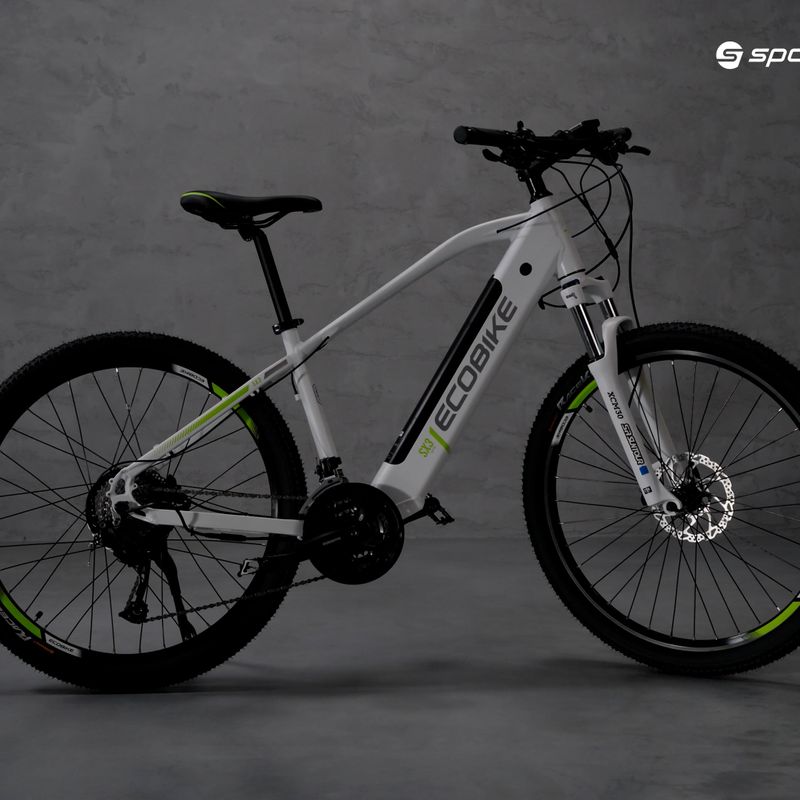

Electric bike EcoBike SX3/X-CR LG 13Ah white 1010401

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model/product code SX3/X-CR LG 13Ah 1010401

Leading colour White

Brand EcoBike

Country of origin of the brand Poland

Gender Male, Woman

Season Year-round

Engine location Hub

Engine power 250 W

Crank mechanism Shimano AFCM371C422CL

Wheel size 27 5"

Frame of hydroformed aluminium, 17"

Derailleurs 3x9

Sport Bicycles

Cassette / Freewheel SunRace MFE90 9CU / 13-32T / 9-speed

Rear derailleur (model) Shimano Alivio ARDM03100SGS 9-speed

Handles Shimano Altus SL-M2000

Depreciation Front

Battery location In the frame

Brakes (model) Shimano AMT200KLF9RX080 (hydraulic)

Purpose MTB

Maximum range 130 km

Chain KMC X9 / 11x128 / 112 mm

Bar Promax SP 252 (27,2 mm x 350 mm)

Tyres Continental Race King 27.5" x 2.2

Frame material Aluminium

Fork SunTour XCM

Charger 220-240V 42V / 2A / Type D

Engine model Bafang

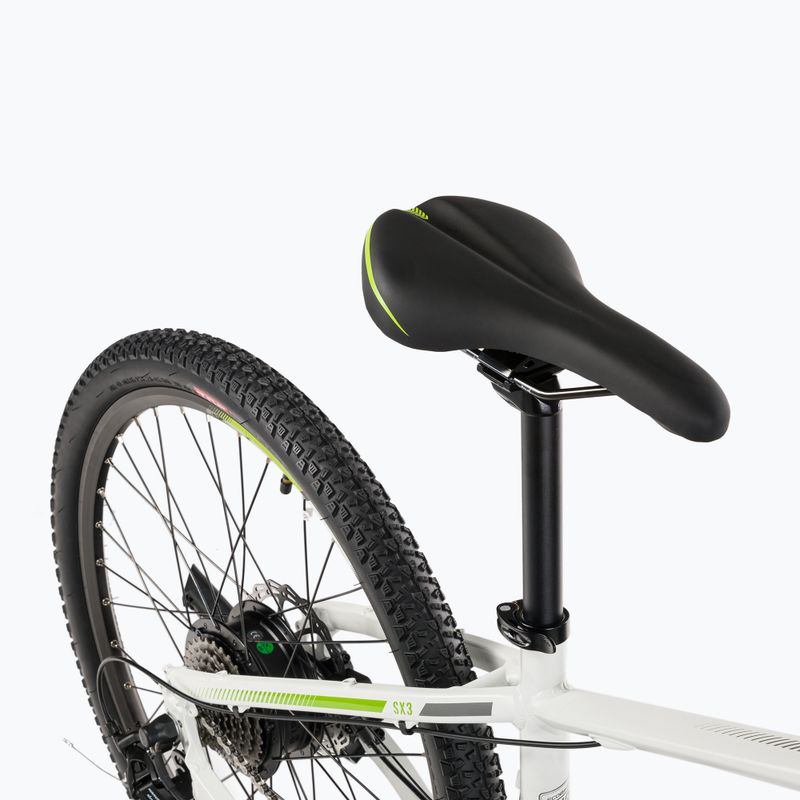

Saddle Velo VL-3363

Weight of bike (estimated) 25,5 kg

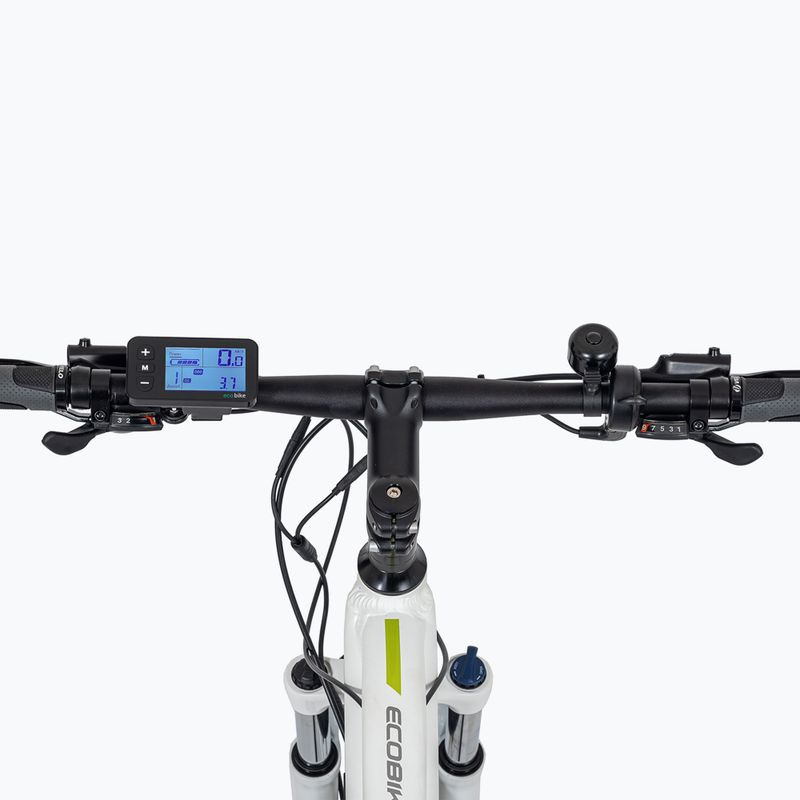

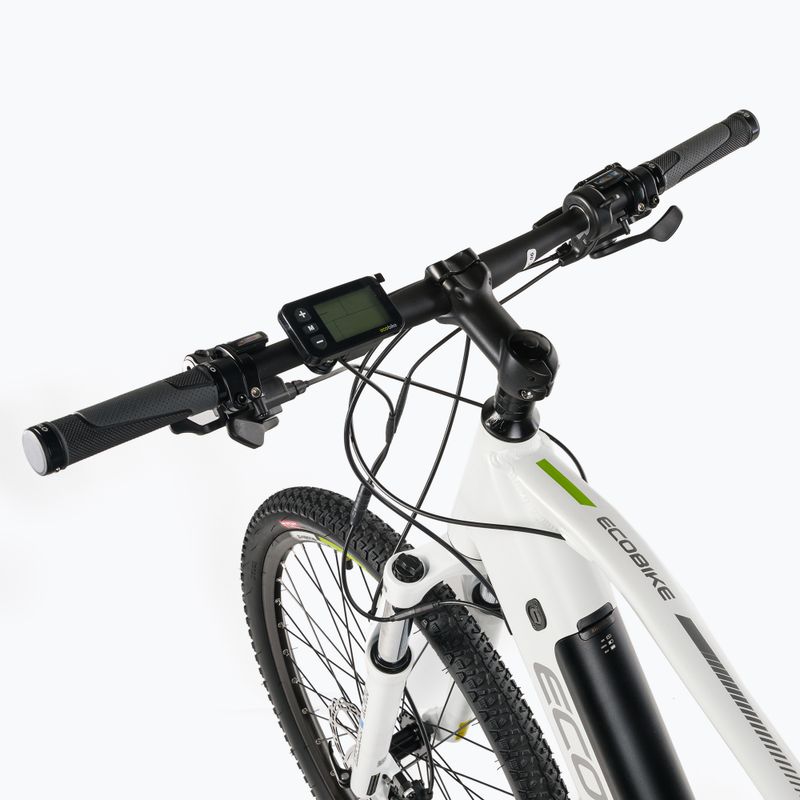

Steering wheel Zoom MTB-AL-312BT

Maximum engine power 560 W

Brake type Hydraulic discs

Number of gears 27

Front derailleur (model) Shimano Altus FD-M371 3-speed

Wheels Reinforced three-chamber wheels, Sapim spokes, 27,5"

Battery capacity 13Ah

Stan złożenia roweru Bike adjusted and pre-assembled

Hubs Shimano HB-TX505- front hub

Maximum torque 45 Nm

Battery type Lithium-ion

Maximum speed 35 km/h ( assistance limited to 25 km/h in the settings)

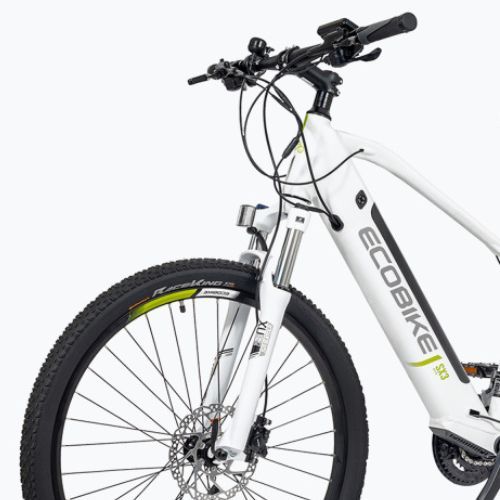

Electric bike EcoBike SX3/X-CR LG 13Ah white 1010401 2

Electric bike EcoBike SX3/X-CR LG 13Ah white 1010401

Sizes

Frame size	17"
Height (cm)	160-178
Wheel	27,5"
Max load (kg)	125

Product description

Advantages

Front cushioning

The cushioning makes cycling over uneven ground much more pleasant and comfortable. This model is equipped with front suspension, which ensures safety and absorbs the force when the front wheel hits an obstacle.

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Long range

This e-bike model has been designed to guarantee the highest possible level of quality. That is why the bike has been equipped with an optimised battery that provides a long range and freedom to explore the terrain.

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

27.5" wheels

The 27.5-inch wheels that this bike model is equipped with are characterised by the fact that they are easy to accelerate and the bike is more agile. In addition, riding on wheels of this size allows for a dynamic ride and provides comfort on difficult surfaces.
