Marin Bolinas Ridge 2 29 mountain bike blue A-1488G-G2-20

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code Bolinas Ridge 2 29 A-1488G-G2-20

Leading colour Blue

Brand Marin

Country of origin of the brand USA

Gender Male, Woman

Season Year-round

Handlebar stem material Aluminium

Crank mechanism Alloy Crank, Steel Chainrings, 42/34/24T

Grips Marin MTB, Closed End

Wheel size 29"

Frame Series 1 6061 Aluminum, 27.5”/29" Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, Chainstay Mounted Disc Brakes

Derailleurs 3x8

Cassette / Freewheel SunRace 8-Speed, 11-32T

Sport Bicycles

Rear derailleur (model) Shimano Altus, 8 speed

Handles Shimano Altus 3x8-Speed

Depreciation Front

Brakes (model) Tektro M275 Hydraulic Disc

Chain KMC Z51

Type of derailleur Mechanical

Handlebar support Marin Alloy, 31.8mm, 45mm

Bar Marin Alloy, 27.2mm

Tyres MTB, 27.5/29x2.25"

Frame material Aluminium

Fork SR Suntour XCM DS, 100mm Travel, Preload Adjustment, 46mm Offset

spokes Steel

Saddle Marin MTB

Steering wheel Marin 31.8 Riser, 12mm Rise, 780mm Width

Brake type Hydraulic discs

Number of gears 24

Front derailleur (model) Shimano FD-TY700

Wheels Marin, Double Wall Alloy

Stan złożenia roweru Bike adjusted and pre-assembled

Hubs Forged Alloy, Disc, 32H

Marin Bolinas Ridge 2 29 mountain bike blue A-1488G-G2-20 2

Sizes

Below you will find information that will help you choose the right size when purchasing a Bolinas Ridge bike from Marin.

Size	XS	S	M	L	XL
Height (cm)	146-157	157-165	165-175	175-183	183
A - STACK	580,8	585,5	616	620,5	625
B - REACH	400	415	430	445	465
	68,5	68,5	68	68	68
D - Steering tube (mm)	100	105	110	115	120
E - Kąt siodełka (°)	74	74	74	74	74
	330	381	431	481	520
	566,5	583	606,6	623	644,2
	307	307	311,5	311,5	311,5
	48	48	61	61	61
	430	430	455	455	455
	1084,5	1101,3	1160	1177	1199
	649,11	663,03	716,44	744,89	773,66
	44	44	51	51	51

Product description

Advantages

Front cushioning

The cushioning on the bike provides comfort when negotiating bumps in the road. This model features front wheel cushioning, which absorbs the force when hitting an obstacle and increases the level of safety.

Aluminium frame

The aluminium frame is characterised by its high resistance to scratches and damage. In addition, this material is characterised by its low weight, which makes carrying the bike no problem.

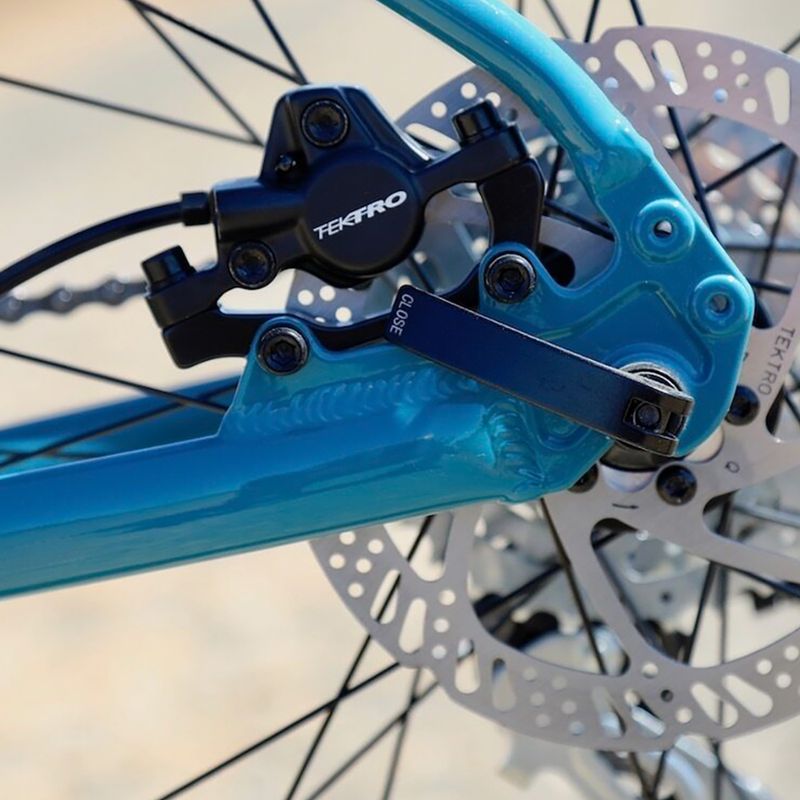

Hydraulic disc brakes

This mountain bike is equipped with hydraulic disc brakes, which have a very low failure rate so that use will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

29" wheels

The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over rough terrain. This size guarantees good stability when riding at higher speeds."
