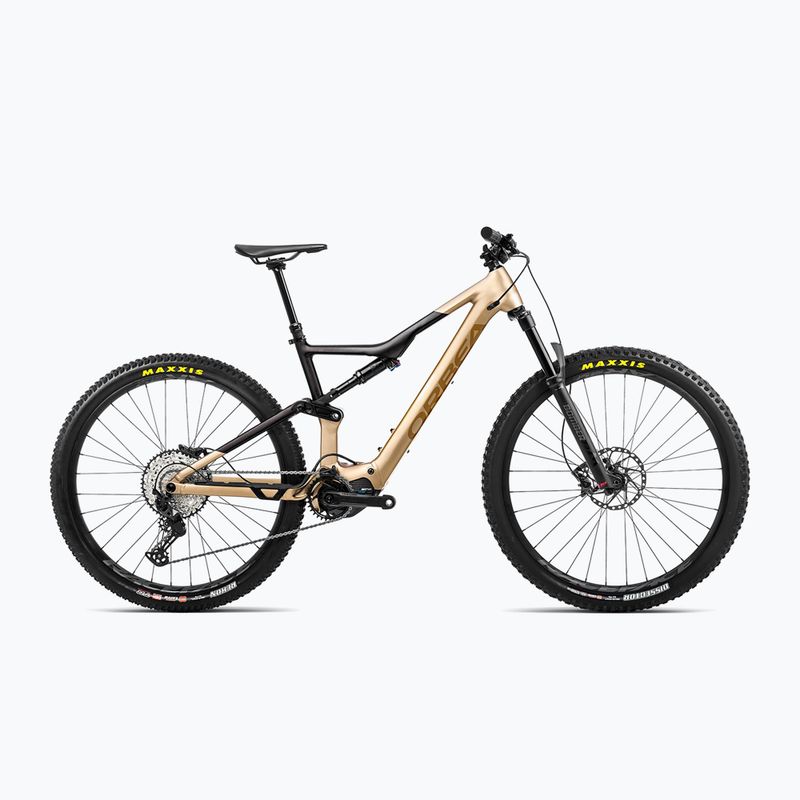

Orbea Rise H30 2023 electric bike gold-black M35517V5

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code Rise H30 M35517V5

Leading colour Gold

Brand Orbea

Country of origin of the brand Spain

Gender Male, Woman

Season Year-round

Engine location Central

Engine power 250 W

Crank mechanism E*thirteen e*spec Direct Mount 32T Boost / e*thirteen Plus Alu

Wheel size 29"

Frame Orbea Rise Hydro 140mm travel 29" Boost 12x148

Derailleurs 1x12

Sport Bicycles

Cassette / Freewheel Shimano CS-M6100 10-51t 12-Speed

Rear derailleur (model) Shimano Deore M6100 SGS Shadow Plus

Handles Shimano Deore M6100

Depreciation Full

Battery location In the frame

Brakes (model) Shimano MT410 Hydraulic Disc

Purpose MTB

Chain Shimano M6100

Type of derailleur Mechanical

Handlebar support OC Mountain Control MC20, 0º

Bar OC Mountain Control MC20, 31.6mm, Dropper

Tyres Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR / Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR

Frame material Aluminium

Fork Marzocchi Bomber Z2 140 QR15x110

Charger Orbea 2.Generation eBike Smart charger 42V/2-4A

Engine model Shimano EP600-RS

Saddle Selle Italia Model X FecAlloy Rail 145x248mm

Steering wheel OC Mountain Control MC31, Rise20, Width 800

Brake type Hydraulic discs

Number of gears 12

Wheels Alloy, Tubeless, 29", 29c, 32H

Handlebar width 800 mm

Battery capacity 540 Wh

Stan złożenia roweru Bike adjusted and pre-assembled

Maximum torque 85 Nm

Battery type Lithium-ion

Tubeless ready wheels Yes

Axle type 148 x 12 mm, 110 x 15 mm

Rudders Acros Alloy 1-1/8 - 1-1/2" Integrated

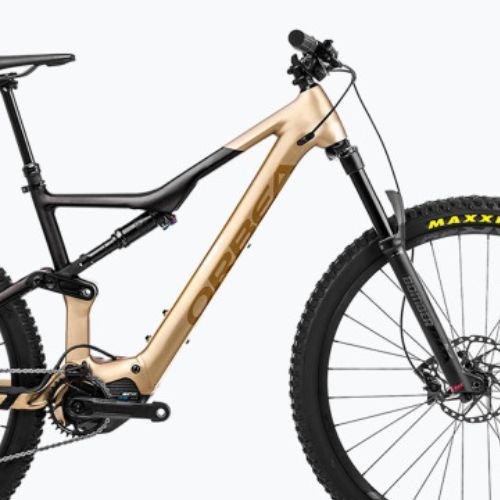

Orbea Rise H30 2023 electric bike gold-black M35517V5 2

Sizes

Size	S	M	L	XL
Height (cm)	150-165	160-175	170-185	180-198
A - Seat tube (mm)	381	419	457	508
B - Horizontal pipe (mm)	565	592	619	649
C - Steerer tube (deg)	95	105	120	140
D - Rear triangle (mm)	445	445	445	445
E - Support height (mm)	336	336	336	336
F - Support lowering (mm)	35/32	35/32	35/32	35/32
G - Wheelbase (mm)	1180	1205	1229	1255
H - Head angle	66/65,5	66/65,5	66/65,5	66/65,5
I - Saddle angle	77/76,5	77/76,5	77/76,5	77/76,5
J - Crossover (mm)	710	736	766	776
K - Reach (mm)	425	450	474	500
L - Stack (mm)	604	613	627	646
M - Fork (mm)	547	547	547	547

Product description

Advantages

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

Full shock absorption

Full suspension, i.e. both the front and rear wheels, allows you to negotiate obstacles in difficult terrain more comfortably. A bike with full suspension provides more grip and efficiency.

Drive 1x12

The 1x12 derailleurs used on this e-bike model guarantee smooth gradation and allow effortless gear changes. The large gear range allows you to adapt the gear to the current road conditions.

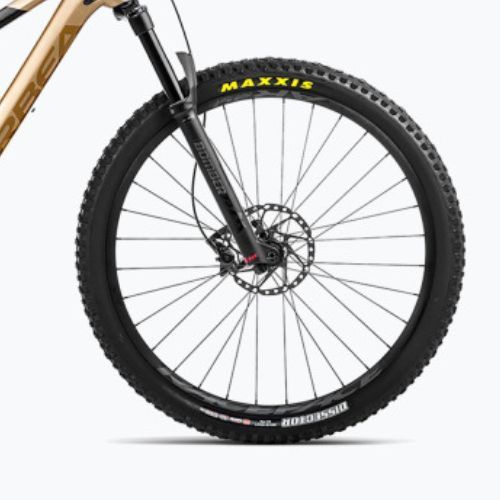

29" wheels

The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over difficult terrain. This size guarantees good stability when riding at higher speeds."
