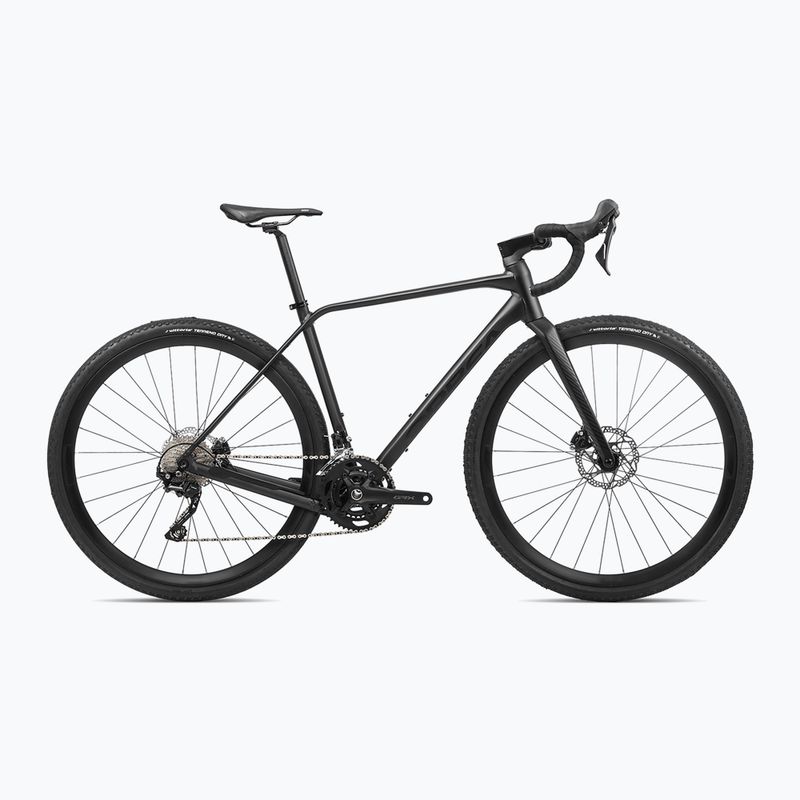

Orbea Terra H40 gravel bike black 2023 N13905D9

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code Terra H40 N13905D9

Leading colour Black

Brand Orbea

Country of origin of the brand Spain

Gender Male, Woman

Season Year-round

Crank mechanism Shimano GRX RX600-10 30x46t

Wheel size 28"

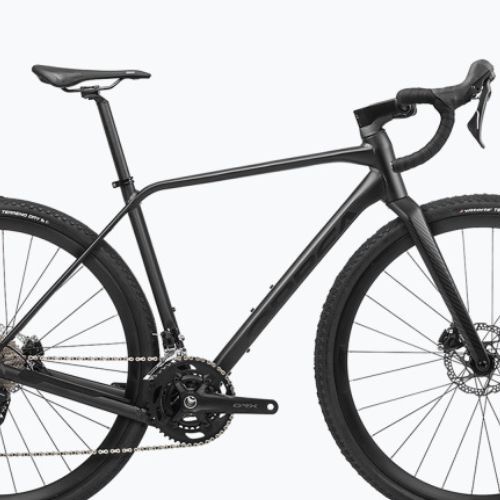

Frame Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1

Derailleurs 2x10

Cassette / Freewheel Shimano Tiagra HG-500 11-34t 10-Speed

Sport Bicycles

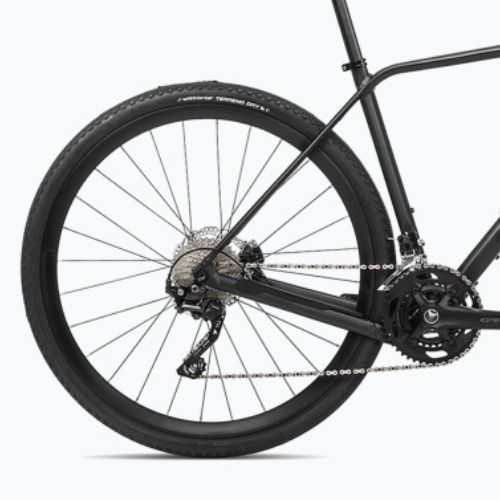

Rear derailleur (model) Shimano RD-RX400

Handles Shimano ST-RX400

Depreciation No

Fork material Carbon

Brakes (model) Shimano RX400 Hydraulic disc

Chain KMC X10

Type of derailleur Mechanical

Handlebar support OC RP21 Road Performance ICR, -6o, IFC01 Computer Mount Interface

Bar OC2 Carbon 27.2 Offset 20

Tyres Vittoria Terreno Dry Gravel G2.0 TNT 700x38c

Frame material Aluminium

Fork Orbea Terra OMR carbon disc fork, full carbon steerer

Saddle Fizik Aliante R5

Steering wheel OC GR30-R Gravel Riser, Reach 70, Drop 125, Flare 12, Rise 15, W/Di2 Hole

Brake type Hydraulic discs

Number of gears 20

Front derailleur (model) Shimano GRX RX400

Wheels Orbea wheel: Ready GR with 12mm E-Thru hubset Shimano RS470 28H

Stan złożenia roweru Bike adjusted and pre-assembled

Hubs Orbea Thru Axle 12x100mm M12x2 P1 Solid - front hub, Orbea Thru Axle 12x142mm M12x2 P1 Solid Inner Threaded - rear hub

Rudders FSA 1-1/2" Integrated Aluminium Cup

Orbea Terra H40 gravel bike black 2023 N13905D9 2

Sizes

Below you will find information that will help you choose the right size when buying a Terra H40 bike from Orbea.

Size	XS	S	M	L	XL
Height (cm)	155-166	167-172	173-179	180-185	186-191
A - Seat tube (mm)	425	458	491	524	557
B - Horizontal pipe (mm)	526	539	558	570	590
C - Steerer tube (deg)	110	131	152	178	199
D - Rear triangle (mm)	430	430	430	430	430
E - Support height (mm)	278	278	278	280	280
F - Support lowering (mm)	78	78	78	76	76
G - Wheelbase (mm)	1020	1030	1039	1054	1063
H - Head angle	70	70,5	71	71	71,5
I - Saddle angle	74	74	73,5	73,5	73
J - Crossover (mm)	718	746	773	803	830
K - Reach (mm)	375	382	389	395	402
L - Stack (mm)	526	548	570	592	614
M - Fork (mm)	390	390	390	390	390

Product description

Advantages

Aluminium frame

This bike model has been made with the right materials to ensure maximum comfort. Durable aluminium was used for the frame, which stands out for its lightness. In addition, this material is characterised by a high strength index and resistance to bending.

Hydraulic disc brakes

This model of bike uses a reliable type of brake, the hydraulic disc. This type provides high braking power and modulation regardless of road conditions. In addition, the brakes have a low failure rate.

28" wheels

The 28-inch wheels are characterised by prolonged wear and allow faster speeds, which are far easier to maintain. Compared to smaller sizes, these wheels provide better stability at higher speeds.

Carbon fork

The material used to make this fork is characterised by extreme lightness. The carbon fork is characterised by its high ability to absorb the power generated when riding over rough terrain and combines strength and low weight.
