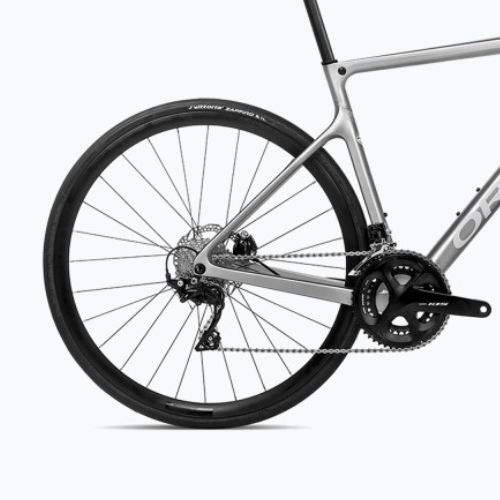

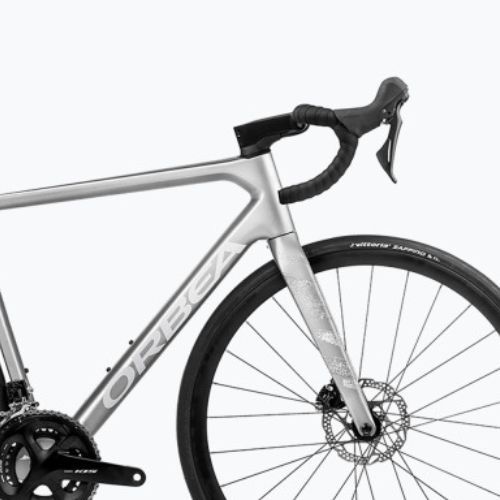

Orbea road bike Orca M30 grey 2023 N10755A1

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code Orca M30 N10755A1

Leading colour Grey

Brand Orbea

Country of origin of the brand Spain

Gender Male, Woman

Season Year-round

Crank mechanism Shimano 105 R7000 34x50t

Wheel size 28"

Frame Orbea Orca carbon OMR Disc, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm

Derailleurs 2x11

Cassette / Freewheel Shimano 105 R7000 11-30t 11-Speed

Sport Bicycles

Rear derailleur (model) Shimano 105 R7000 GS

Handles Shimano ST-7020

Fork material Carbon

Chain KMC X11

Type of derailleur Mechanical

Handlebar support OC Road Performance RP21, -6º

Bar Carbon, 27.2mm, Setback 20

Frame material Carbon

Fork Orbea carbon fork 2021, aluminium steerer, 1-1/8" head tube

Type of Product Endurance

Brakes (model) Shimano R7070 Hydraulic Disc

Saddle Fizik Aliante R5

Steering wheel OC RP30-R Road Performance Riser, Reach 70, Drop 125, Rise 15, Flare 5º

Brake type Hydraulic discs

Number of gears 22

Front derailleur (model) Shimano 105 R7000

Tyres Vittoria Zafiro V Rigid bead 700x28c

Stan złożenia roweru Bike adjusted and pre-assembled

Hubs Orbea Thru Axle 12x100mm M12x2 P1 Solid - front hub, Orbea Thru Axle 12x142mm M12x2 P1 Solid - rear hub

Wheels Alloy, Tubeless, 700c, 19c, 28H

Tubeless ready wheels Yes

Frame material Carbon

Rudders Acros Alloy 1-1/2" Internal Cable Routing

Orbea road bike Orca M30 grey 2023 N10755A1 2

Sizes

Size	51	55	57
Height (cm)	167-172	180-185	186-191
A - Seat tube (mm)	480	520	540
B - Horizontal pipe (mm)	535	560	576
C - Steerer tube (deg)	130	168	186
D - Rear triangle (mm)	408	408	408
E - Support height (mm)	267	269	269
F - Support lowering (mm)	72	70	70
G - Wheelbase (mm)	980	991	1002
H - Head angle	72,2	73	73,2
I - Saddle angle	73,7	73,5	73,2
J - Crossover (mm)	766	807	825
K - Reach (mm)	377	388	395
L - Stack (mm)	540	579	597
M - Fork (mm)	370	370	370

Product description

Advantages

Carbon frame

The frame of this road bike has been made from extremely lightweight carbon, so carrying the bike is not a problem. Carbon is distinguished by the fact that it is very effective in reducing the force of vibrations generated when riding over rough terrain.

Hydraulic disc brakes

This road bike is equipped with hydraulic disc brakes, which have an extremely low failure rate, ensuring trouble-free use, even during frequent use. In addition, they are distinguished by their greater braking power and modulation.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.

Carbon fork

The fork on this bike is made of carbon, which is characterised by its extreme lightness and ability to absorb the power generated when riding over rough terrain. This material combines strength and low weight.
