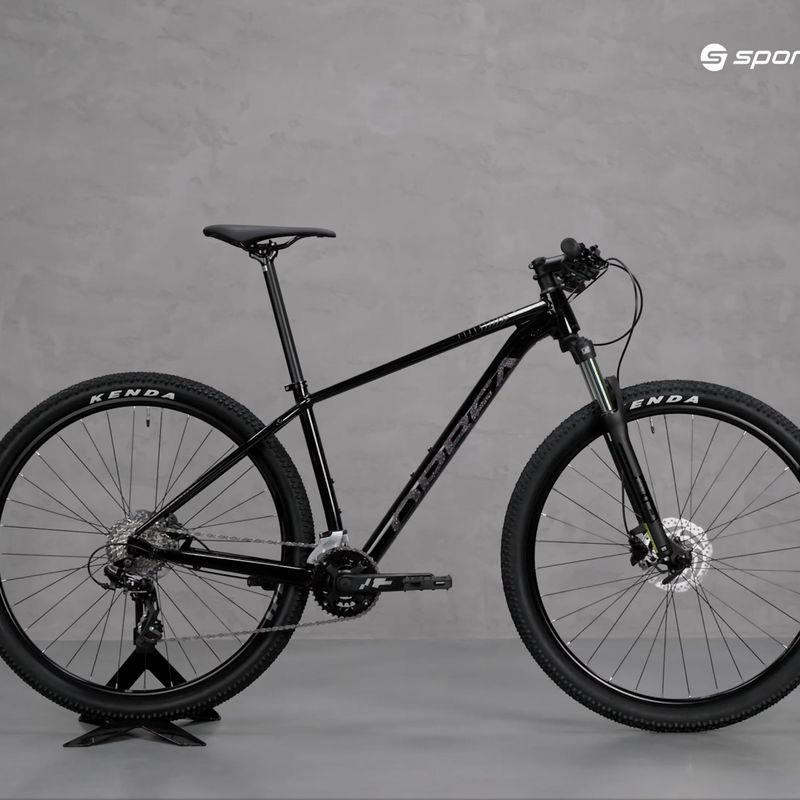

Orbea Onna 50 29 2023 mountain bike black N20717N9

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code Onna 50 29 N20717N9

Leading colour Black

Brand Orbea

Country of origin of the brand Spain

Gender Male, Woman

Season Year-round

Crank mechanism Alloy forged 22x36t 7/8S

Wheel size 29"

Frame Orbea Onna Alloy, Dropout 9x135, BSA BB, Internal cable routing

Derailleurs 2x8

Cassette / Freewheel Sun Race CSM66 11-34t 8-Speed

Sport Bicycles

Rear derailleur (model) Shimano Tourney TX800

Handles Microshift TS38

Depreciation Front

Tubeless ready tyres No

Brakes (model) Shimano MT200

Chain KMC X8

Handlebar support Alloy 31.8mm interface 7º

Bar Alloy 27.2 Offset 0

Tyres Kenda K1153 2.35" 22TPI

Frame material Aluminium

Fork SR Suntour XCE 28 Coil 100mm QR

Saddle Essax Adv soft135mm for Orbea

Steering wheel Alloy Flat 31.8mm 720mm

Brake type Hydraulic discs

Number of gears 16

Front derailleur (model) Shimano M315 31.8mm

Wheels Mach1 ER20 19c

Stan złożenia roweru Bike adjusted and pre-assembled

Rudders 1"-1/8 Semi-Integrated

Orbea Onna 50 29 2023 mountain bike black N20717N9 2

Orbea Onna 50 29 2023 mountain bike black N20717N9

Sizes

Size	S	M	L	XL
Height (cm)	155-170	165-180	175-190	185-195
A - Seat tube (mm)	388	430	470	540
B - Horizontal pipe (mm)	561	589	614	646
C - Steerer tube (deg)	95	95	105	120
D - Rear triangle (mm)	440	440	440	440
E - Support height (mm)	309	309	309	309
F - Support lowering (mm)	64	64	64	64
G - Wheelbase (mm)	1093	1121	1146	1180
H - Head angle	68,5	68,5	68,5	68,5
I - Saddle angle	74,5	74,5	74,5	74,5
J - Crossover (mm)	705	739	770	826
K - Reach (mm)	390	418	440	468
L - Stack (mm)	617	617	627	641
M - Fork (mm)	517,9	517,9	517,9	517,9

Product description

Advantages

Front cushioning

The cushioning on the bike provides comfort when negotiating bumps in the road. This model features front wheel cushioning, which absorbs the force when hitting an obstacle and increases the level of safety.

Aluminium frame

The aluminium frame is characterised by its high resistance to scratches and damage. In addition, this material is characterised by its low weight, which makes carrying the bike no problem.

Hydraulic disc brakes

This mountain bike is equipped with hydraulic disc brakes, which have a very low failure rate so that use will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

29" wheels

The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over rough terrain. This size guarantees good stability when riding at higher speeds."
