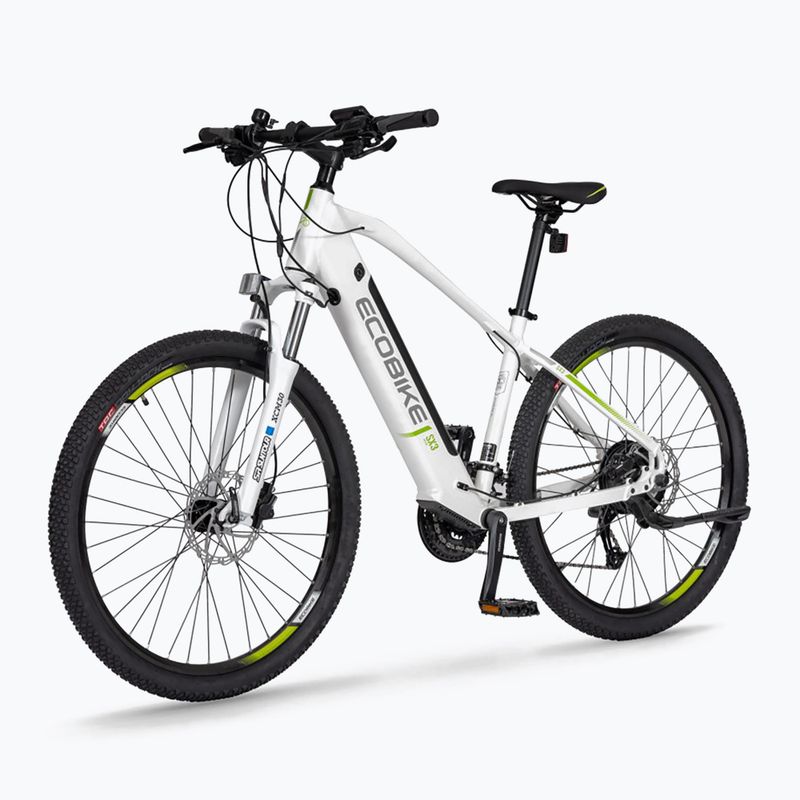

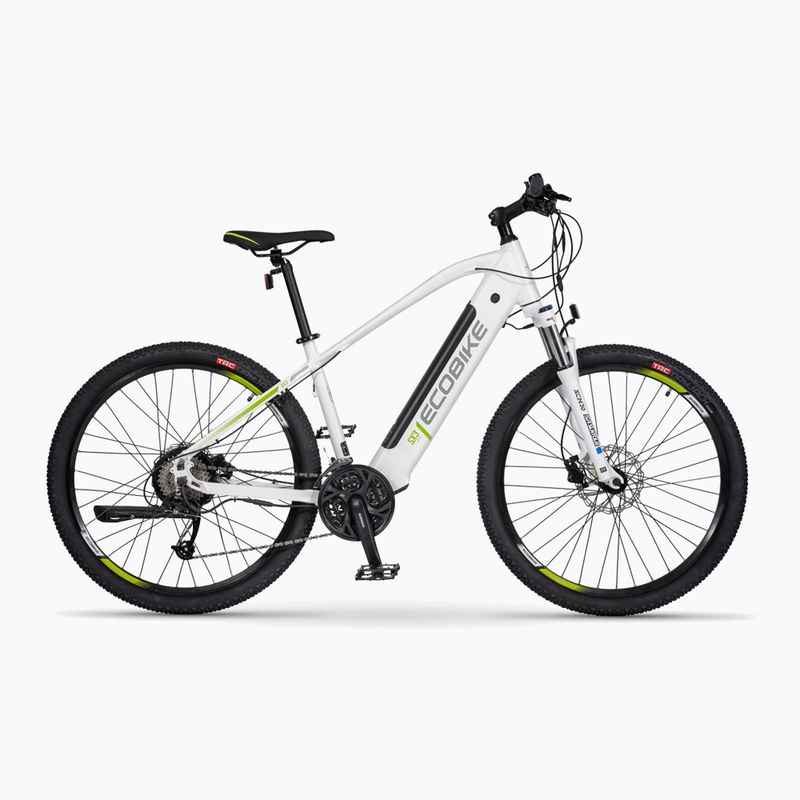

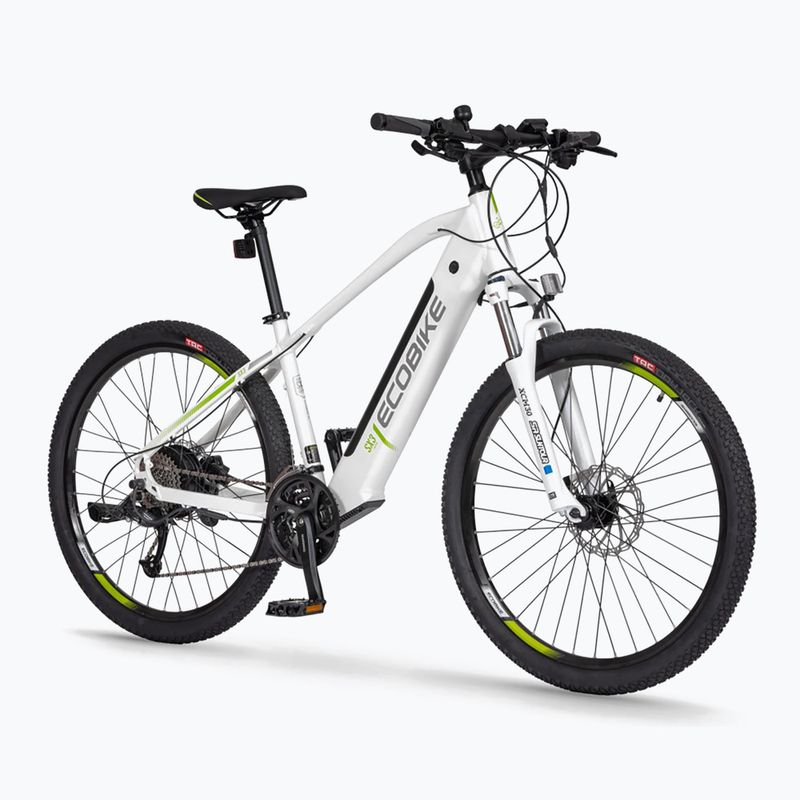

Electric bike EcoBike SX 3/17.5Ah LG white 1010401

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model/product code SX 3/17.5Ah LG el. 1010401(2023)

Leading colour White

Brand EcoBike

Country of origin of the brand Poland

Gender Male, Woman

Season Year-round

Engine location Hub

Engine power 250 W

Crank mechanism Shimano FCM371 44 x 32 x 22

Wheel size 27 5"

Derailleurs 3x9

Sport Bicycles

Cassette / Freewheel SunRace 13-32T

Rear derailleur (model) Shimano Alivio 9-speed

Handles Shimano Altus SL-M2000

Depreciation Front

Battery location In the frame

Brakes (model) Alhonga HJ-HT472

Purpose MTB

Maximum range 140 km

Chain KMC X9

Handlebar support Promax 10° / 90 mm

Bar PROMAX SP－252 (27,2 mm x 350 mm)

Tyres TRC Dryjack 27.5 "x2.1

Frame material Aluminium

Fork SunTour XCM, 100 mm

Engine model Bafang

Saddle Velo VL-3363

Weight of bike (estimated) 25,5 kg

Steering wheel Zoom 720 mm 31.8

Maximum engine power 540 W

Brake type Hydraulic discs

Number of gears 27

Wheels Reinforced three-chamber wheels

Battery capacity 17,5Ah

Stan złożenia roweru Bike adjusted and pre-assembled

Maximum torque 45 Nm

Battery type Lithium-ion

Electric bike EcoBike SX 3/17.5Ah LG white 1010401 2

Sizes

Frame size	17"
Height (cm)	158-175
A - Rura pozioma (mm)	585
B - Rura sterowa (mm)	160
C - Rura podsiodłowa (mm)	432
D - Wheel base (mm)	1085,7
E - Kąt siodełka (°)	73
F - Kąt główki (°)	70

Product description

Advantages

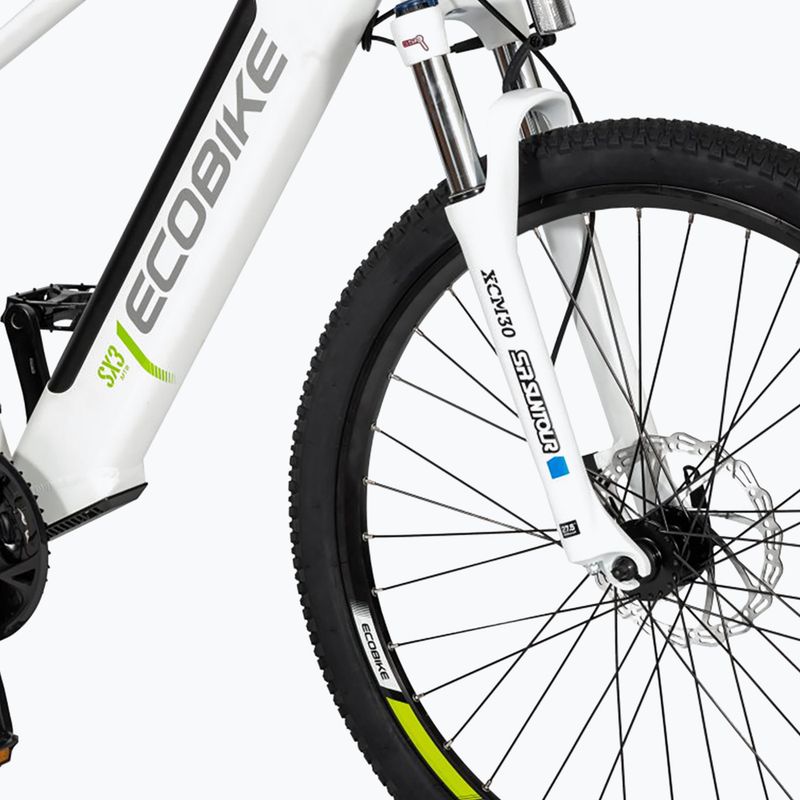

Front cushioning

The cushioning makes cycling over uneven ground much more pleasant and comfortable. This model is equipped with front suspension, which ensures safety and absorbs the force when the front wheel hits an obstacle.

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

27.5" wheels

The 27.5-inch wheels that this bike model is equipped with are characterised by the fact that they are easy to accelerate and the bike is more agile. In addition, riding on wheels of this size allows for a dynamic ride and provides comfort on difficult surfaces.
