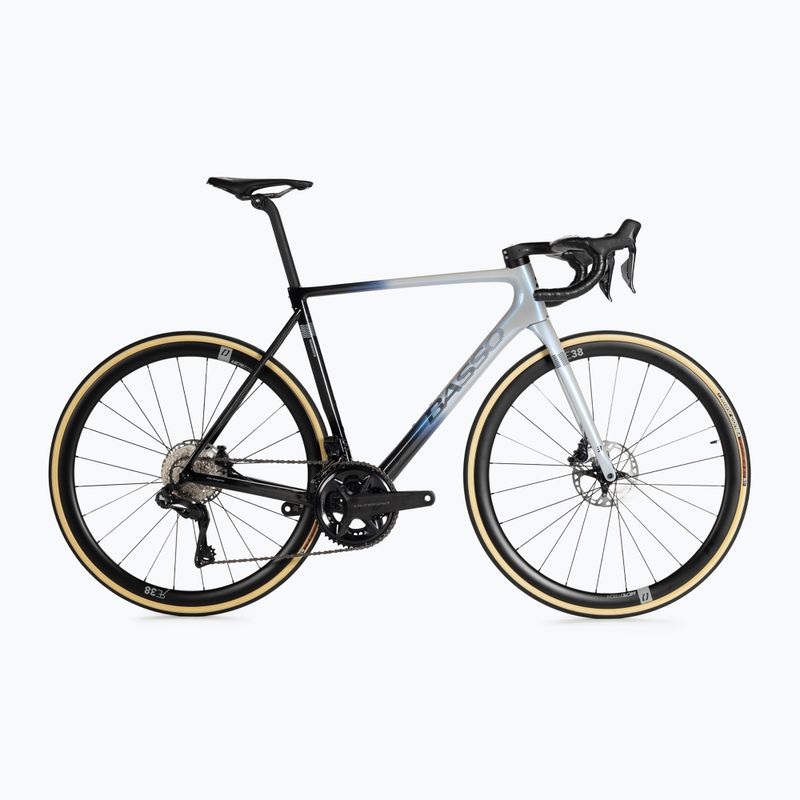

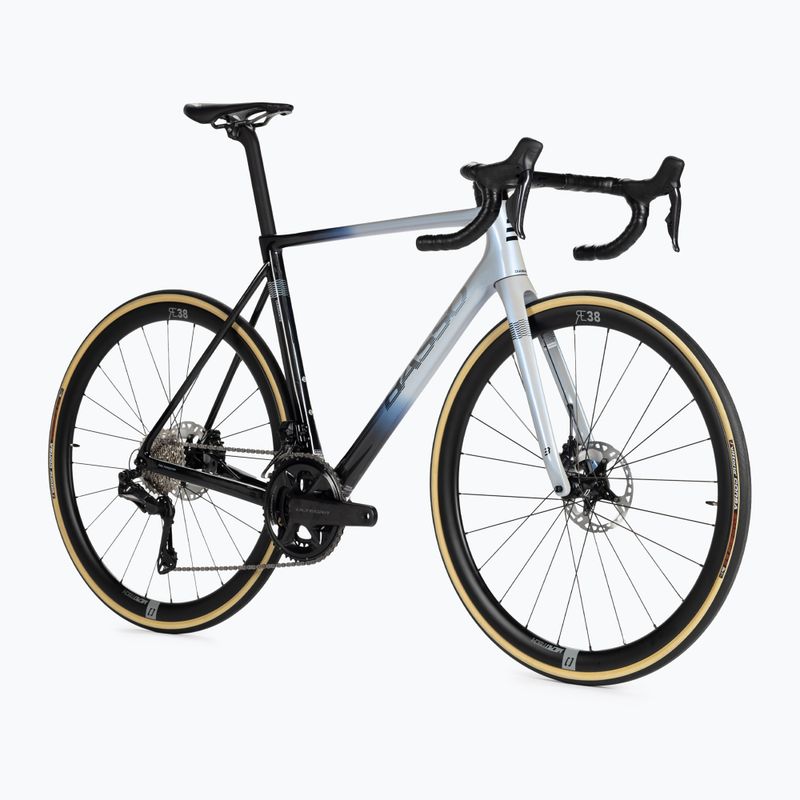

Basso Diamante Disc road bike silver DID3122

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code Diamante Disc DID3122

Leading colour Silver

Brand Basso

Country of origin of the brand Italy

Gender Male, Woman

Season Year-round

Crank mechanism Shimano Ultegra, 52/36T

Wheel size 28"

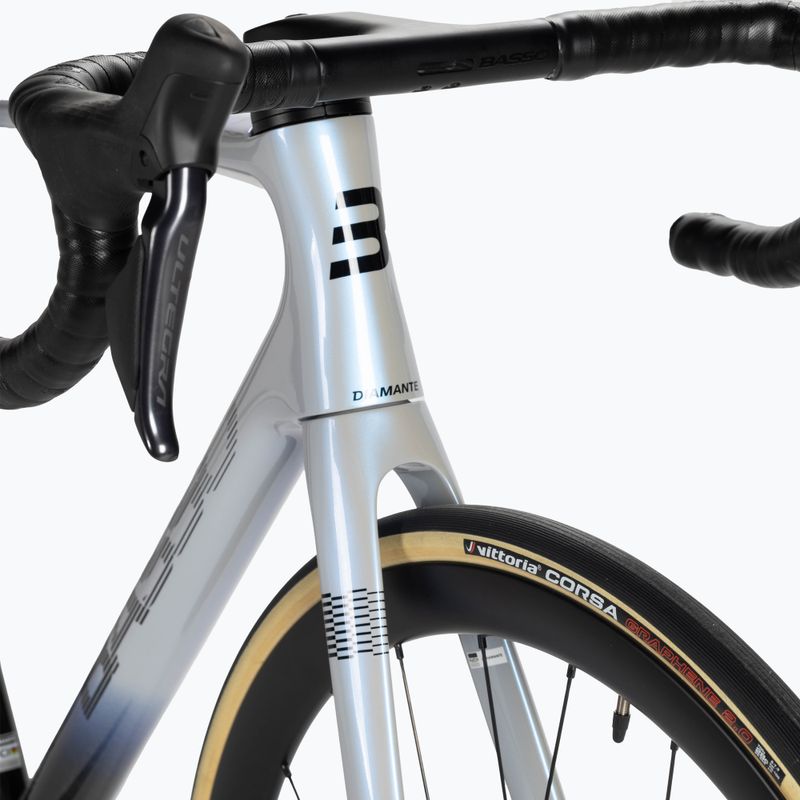

Frame Basso Diamante disc, 100% Torayca carbon fibre, new superlight carbon layup, internal cable routing, , 3B Gen2 system

Derailleurs 2x12

Cassette / Freewheel Shimano Ultegra 11-34T, 12 speed

Sport Bicycles

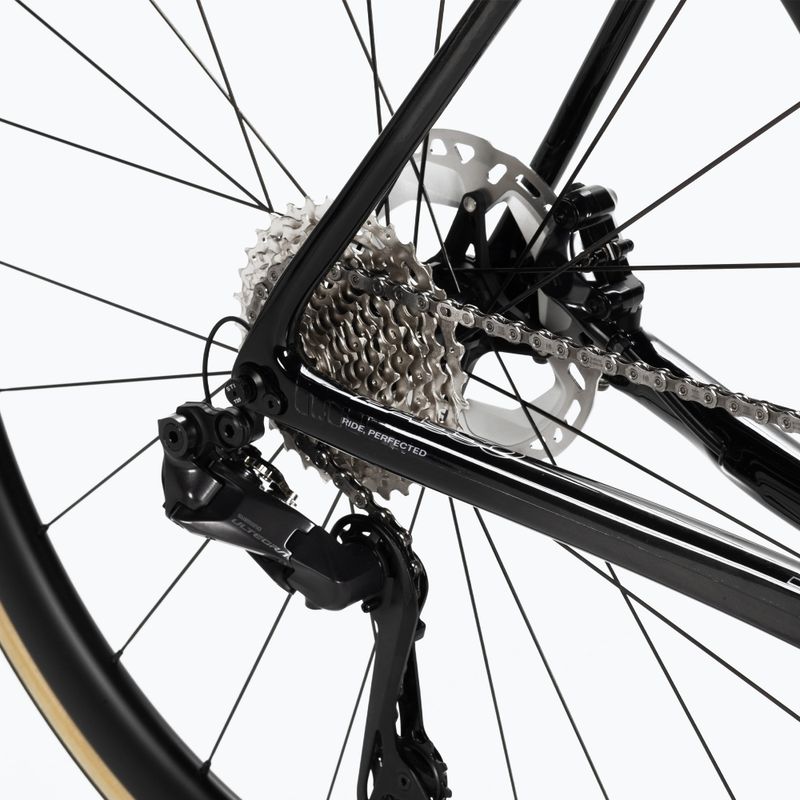

Rear derailleur (model) Shimano Ultegra Di2, 12 speed

Handles Shimano Ultegra Di2, 12 speed

Fork material Carbon

Chain Shimano Ultegra, 12 speed

Type of derailleur Electronic

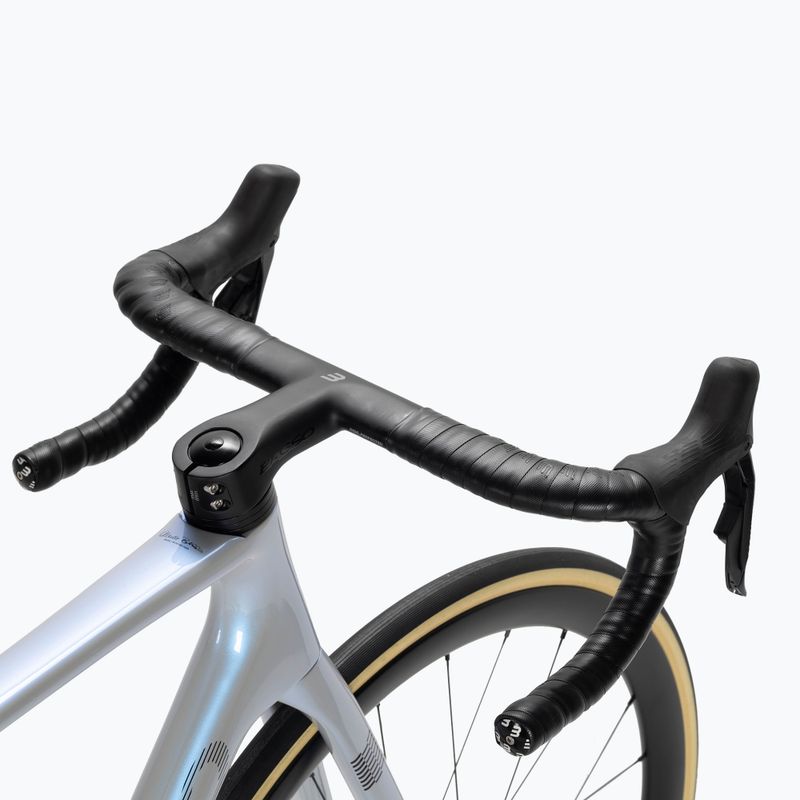

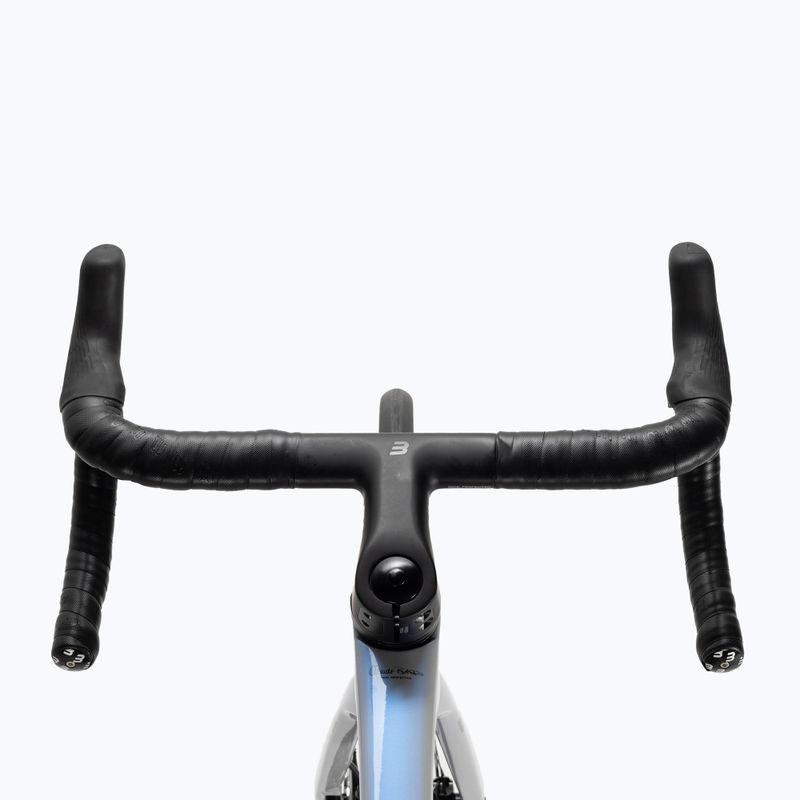

Handlebar support Basso Levita Integrated handlebar

Bar Basso Diamante carbon 3B Gen2 seatpost

Frame material Carbon

Fork NEW Basso Diamante disc, 100% Torayca carbon fiber, tapered, thru axle 125mm x 12mm

Type of Product Endurance

Brakes (model) Shimano Ultegra

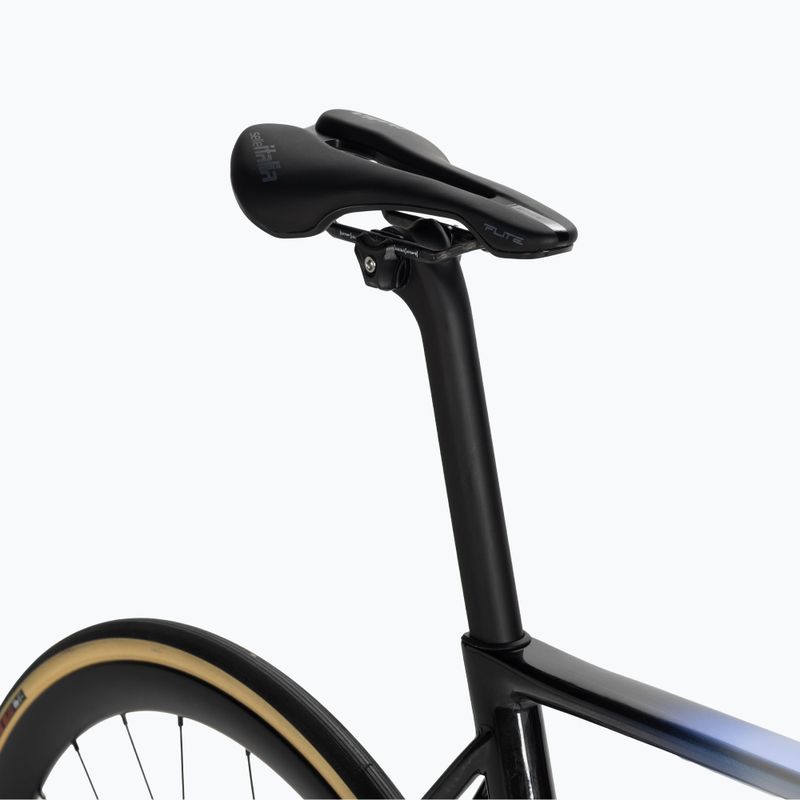

Saddle Selle Italia Flite Boost SuperFlow Carbon

Steering wheel Basso Levita Integrated handlebar

Brake type Hydraulic discs

Number of gears 24

Front derailleur (model) Shimano Ultegra Di2

Tyres Continental GP5000, 28mm

spokes Sapim CX

Stan złożenia roweru Bike adjusted and pre-assembled

Hubs Microtech CNC machined 7076 T6 alloy - front hub, Microtech CNC machined 7076 T6 alloy - rear hub

Wheels Microtech RE38 disc, 38mm UD T700 carbon, 23mm internal channel

Tubeless ready wheels Yes

Frame material Carbon

Rudders Diamante Integrated Cables Headset

Basso Diamante Disc road bike silver DID3122 2

Sizes

Size	53	56
Seatpost (A1)	530 mm	560 mm
Top tube (B)	545,4 mm	560 mm
REACH (R)	390,4 mm	392,2 mm
STACK (S)	540,3 mm	566,6 mm
Seat angle (C)	74°	73,5°
Head tube angle (D)	72,3°	73,5°
Rear triangle length (E)	400 mm	402 mm
Front Centre (F)	591,9 mm	589,5 mm
Head tube (H)	137 mm	155 mm
Handlebar width (M)	440 mm	440 mm
Bridge length (N)	110 mm	110 mm

Product description

Advantages

Carbon frame

The frame of this road bike has been made from extremely lightweight carbon, so carrying the bike is not a problem. Carbon is distinguished by the fact that it is very effective in reducing the force of vibrations generated when riding over rough terrain.

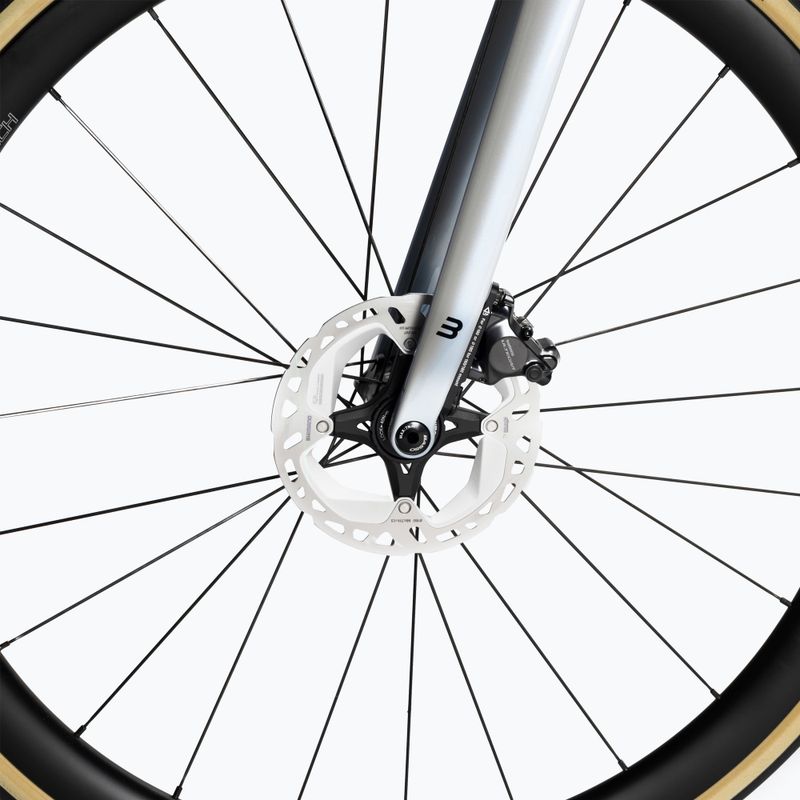

Hydraulic disc brakes

This road bike is equipped with hydraulic disc brakes, which have an extremely low failure rate, ensuring trouble-free use, even during frequent use. In addition, they are distinguished by their greater braking power and modulation.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.

Carbon fork

The fork on this bike is made of carbon, which is characterised by its extreme lightness and ability to absorb the power generated when riding over rough terrain. This material combines strength and low weight.
