Impressive for its low weight and performance, the Orbea Oiz M30 mountain bike features an I-Line shock absorber and high-quality Shimano components.

Basic data

Brand Orbea
Country of origin of the brand Spain
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour Black
Model/product code Oiz M30 N23705NV
Purpose MTB
Code 2000055905

Frame

Frame Orbea Oiz Carbon OMR, Fiberlink, Boost, PF BB, UFO2, I-line shock
Frame material Carbon fibre

Components

Steering wheel OC Mountain Performance MP30, Width 760
Handlebar support OC Mountain Performance MP21, -6º
Depreciation Full
Rudders Alloy 1-1/2", Black Oxidated Bearing
Fork Fox 34 Float SC Performance 120 Grip Remote Push-Unlock QR15x110
Damper Fox i-line DPS Performance 120mm Remote Push-Unlock Evol custom tune190x45mm
Saddle Selle Italia Model X FecAlloy Rail 145x248mm
Bar OC Mountain Control MC20, 31.6mm, Dropper

Drive

Derailleurs 1x12
Number of gears 12
Rear derailleur (model) Shimano SLX M7100 SGS Shadow Plus
Handles Shimano Deore M6100 I-Spec EV
Crank mechanism Shimano MT611 32t
Cassette / Freewheel Shimano CS-M7100 10-51t 12-Speed
Chain Shimano M6100

Brakes

Brakes (model) Shimano M6100 Hydraulic Disc
Brake type Hydraulic discs

Wheels

Wheel size 29"
Wheels Alloy, Tubeless, 25c, 32H
Tyres Maxxis Forekaster 2.35" FB 120 TPI Dual Exo, Maxxis Rekon Race 2.35" 120 TPI Exo TLR
Tubeless ready wheels Yes
Tubeless ready tyres Yes

Additional information

Lighting No
Mudguards No
Luggage carrier No

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | info@orbea.com

Orbea Oiz M30 mountain bike black 2023 N23705NV (N23705NV)

Orbea Oiz M30 is a mountain bike designed for riding in challenging terrain, with full suspension that provides much better control. It is a model that is perfect for XC competitions, and steep descents and demanding climbs will not be a problem. It will be appreciated by advanced cyclists as well as those who need a bike for weekend rides in the mountains.

The new carbon frame is lighter, stiffer, and more agile. The geometry includes a longer top tube and shorter rear stays for better responsiveness. A slacker head angle has resulted in increased control during fast descents. The frame is perfectly balanced, maintaining a balance between stiffness, which allows terrain control, and low weight.

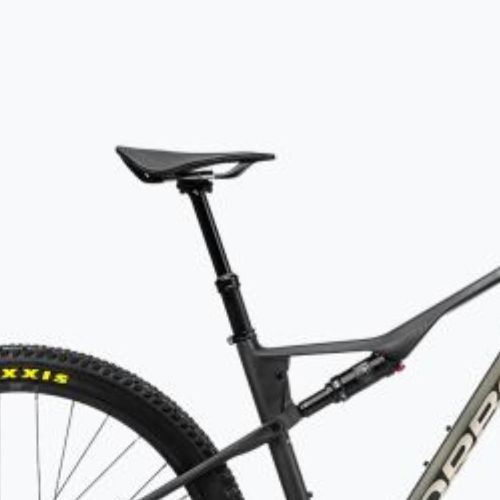

The mountain bike Oiz M30 is equipped with Orbea's patented I-Line shock absorber. Because it is recessed into the top tube, it is well protected, and the rider has space for a water bottle and easy access to the controls.

Cabling in this model has been partially routed inside the bike frame. This reduces the possibility of snagging cables while riding off-road, which positively affects increased riding safety. A highly desirable feature for aggressive riding in challenging terrain.

The Maxxis Rekon Race tire performs excellently in difficult terrain, providing traction thanks to its aggressive tread. The EXO sidewall reinforcement increases its durability, protecting against excessive wear. The whole is complemented by high-quality Shimano components.

Advantages

Carbon frame
When designing this bike, the focus was on selecting the right materials to ensure the highest quality. Therefore, the frame is made of carbon, which combines lightness and resilience in addition to effectively damping vibrations.
Hydraulic disc brakes
This mountain bike model uses hydraulic disc brakes, which have a very low failure rate, so they will be trouble-free even during frequent use. The undoubted advantage is greater braking power and modulation.
Tubeless ready tyres
The use of TLR (Tubeless Ready) technology has made it possible to use lower pressures and makes the tyres resistant to punctures. What's more, the system rules out the problem of ‘Snake Bite’, i.e. puncturing the inner tube by pinching it against the rim.
Full shock absorption
Allows easier traversing of off-road obstacles. Front and rear shock absorbers provide maximum wheel traction control and a balanced ride on the ground. The full suspension bike is very comfortable and soft to ride.

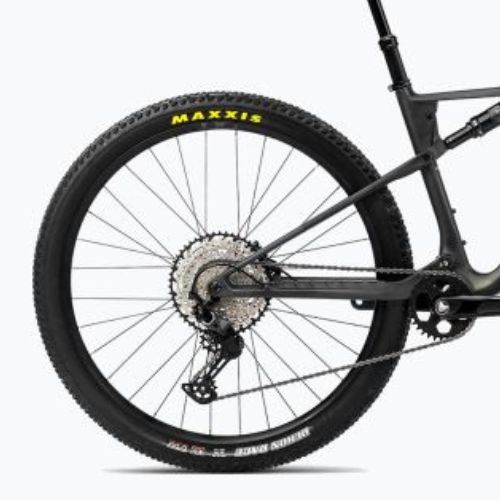

Drive 1x12
This bike uses 1x12 derailleurs, which provide smooth gradation and allow effortless gear changes. The large range of gear ratios allows you to adapt the gear to your current needs.
29" wheels
The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over difficult terrain. This size guarantees good stability when riding at higher speeds.
