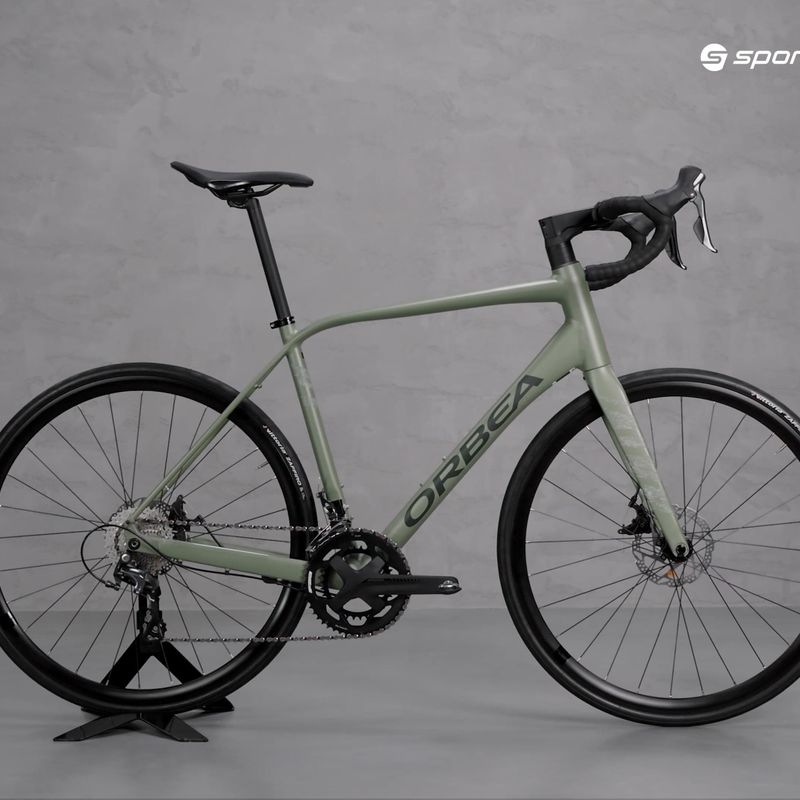

Orbea road bike Avant H40 green 2023 N10253A9 (N10253A9)

Frame

Frame Orbea Avant Hydro disc, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, SP 27,2mm, MMS system

Frame material Aluminium

Components

Steering wheel OC RP30-R Road Performance Riser, Reach 70, Drop 125, Rise 15, Flare 5º

Handlebar support OC Road Performance RP21, -6º

Depreciation No

Rudders Acros Alloy 1-1/2" Internal Cable Routing

Fork Orbea carbon fork 2021, aluminium steerer, 1-1/8" head tube

Fork material Carbon fibre

Saddle Fizik Aliante R5

Bar Alloy, 27.2mm, Setback 20

Frame material Aluminium

Drive

Type of derailleur Mechanical

Derailleurs 2x10

Number of gears 20

Front derailleur (model) Shimano Tiagra 4700

Rear derailleur (model) Shimano Tiagra 4700 GS

Handles Shimano Tiagra ST-4700

Crank mechanism FSA Omega Megaexo 34x50t

Cassette / Freewheel Sun Race CSMS1 11-34t 10-Speed

Chain KMC X10

Brakes

Brakes (model) Jagwire RideRever

Brake type Mechanical discs

Wheels

Wheel size 28"

Wheels Alloy, Tubeless, 700c, 19c, 28H

Tyres Vittoria Zafiro V Rigid bead 700x28c

Axle type 142 x 12 mm, 100 x 12 mm

Tubeless ready wheels Yes

Tubeless ready tyres Yes

Additional information

Lighting No

Mudguards No

Luggage carrier No

Folding condition of the bike Bike adjusted and pre-assembled

Other data

Sport Bicycles

Brand Orbea

Leading colour Green

Season Year-round

Model/product code Avant H40 N10253A9

Purpose Road

Gender Male, Woman

Country of origin of the brand Spain

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Type of Product Endurance

Code 2000054516

Size	47	49	51	53	55	57	60
Height (cm)	155-160	160-166	167-172	173-179	180-185	186-191	192-207
A - Seat tube (mm)	420	445	470	495	520	545	575
B - Horizontal pipe (mm)	511	526	539	553	569	586	597
C - Steerer tube (mm)	122	141	161	180	201	221	241
D - Rear triangle (mm)	425	425	425	425	425	425	425
E - Support height (mm)	264	264	264	266	266	266	266
F - Support lowering (mm)	75	75	75	73	73	73	73
G - Wheelbase (mm)	989	996	1004	1006	1020	1029	1038
H - Head angle	71	71,5	71,9	72,4	72,6	72,8	73
I - Seat tube angle (°)	74,5	74	73,75	73,5	73,5	73	73
J - Crossover (mm)	713	738	761	790	809	833	852
K - Reach (mm)	365	370	375	380	390	395	400
L - Stack (mm)	525	545	565	585	605	625	645
M - Fork (mm)	370	370	370	370	370	370	370

Advantages

Aluminium frame

The frame of this road bike is made of durable aluminium, which stands out for its high resistance to scratches and damage, in addition to its low weight, so carrying the bike is not a problem.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.

Mechanical disc brakes

This road bike is equipped with mechanical disc brakes, which have an extremely low failure rate and high braking power. In addition, their uncomplicated design ensures easy serviceability.

Carbon fork

The fork on this bike is made of carbon, which is characterised by its extreme lightness and ability to absorb the power generated when riding over rough terrain. This material combines strength and low weight.
