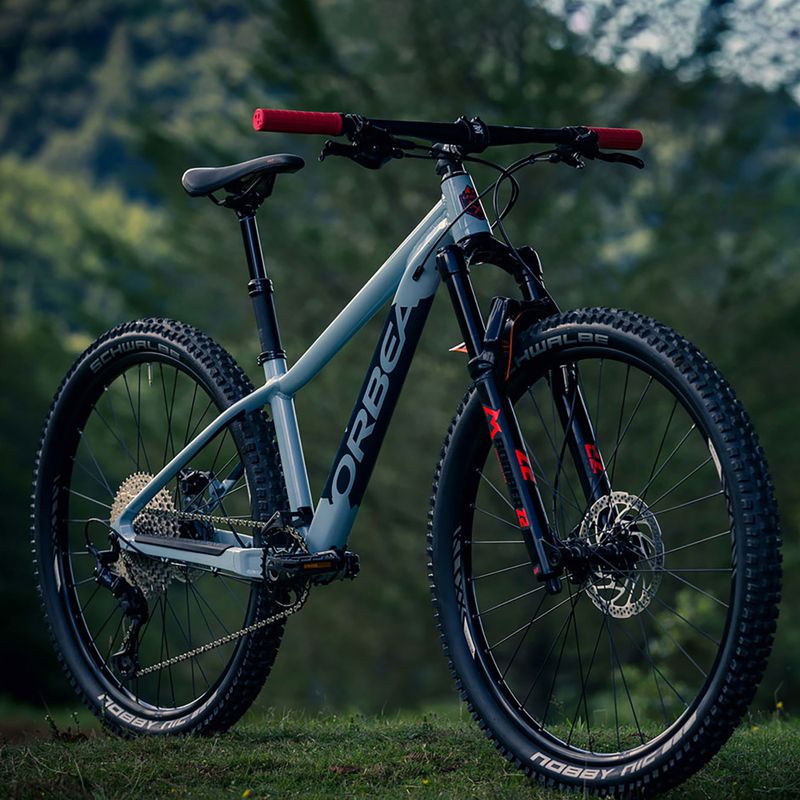

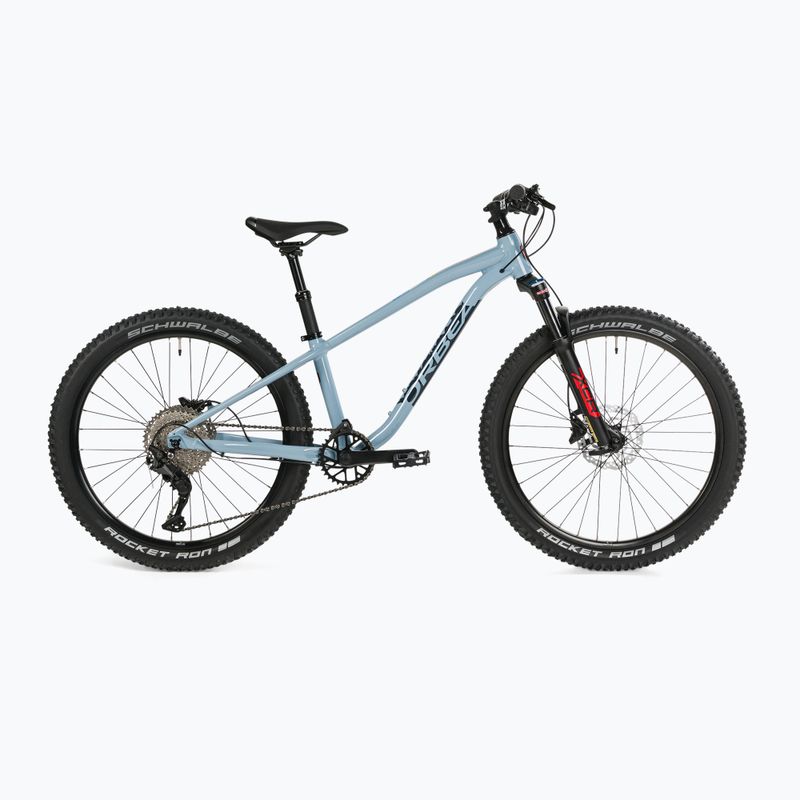

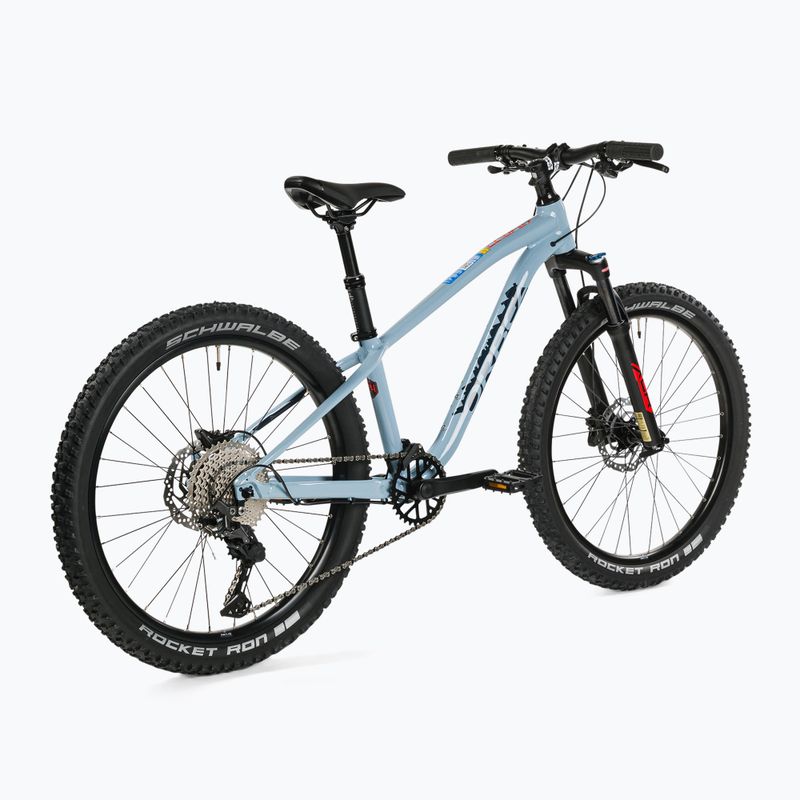

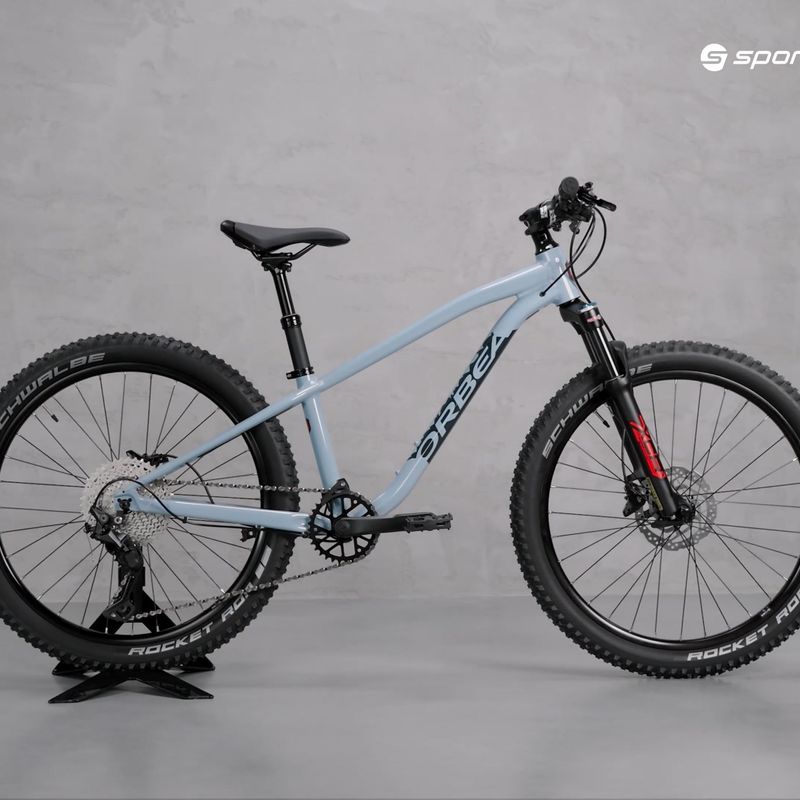

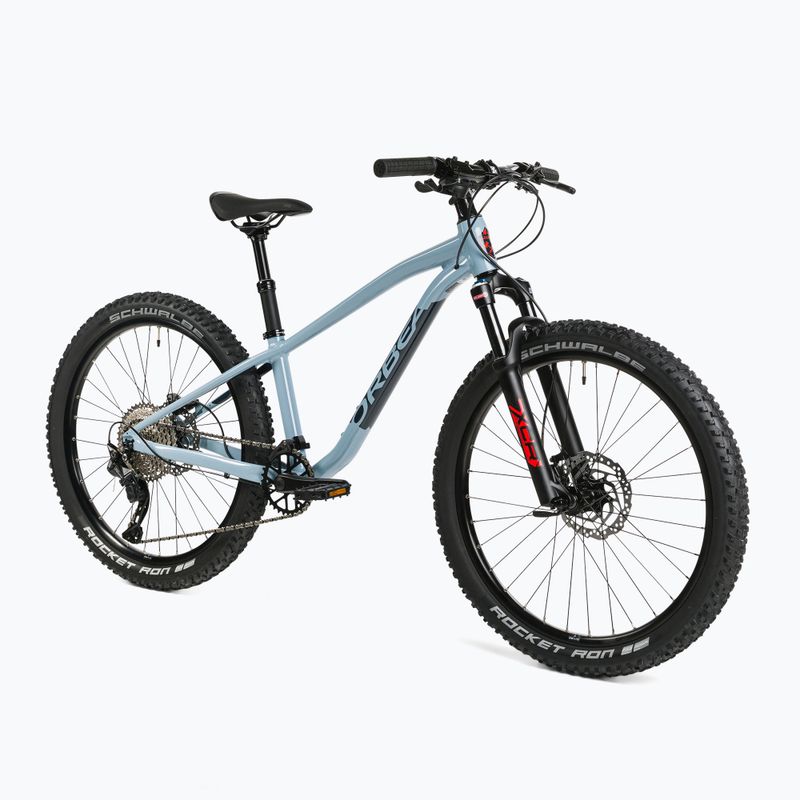

The children's bike Orbea Laufey 24 H20 is a durable model with an aluminum frame and Shimano components, which will allow comfortable riding on challenging trails.

Basic data

Brand Orbea
Country of origin of the brand Spain
Sport Bicycles
Gender Boy, Girl
Season Year-round
Leading colour Grey
Model/product code Laufey 24 H20 N01624I9
Code 2000055904

Frame

Frame Orbea Laufey 24 6061 Aluminum 2021, 135x9 QR, Post Mount Disc Mount, 31.6 Seat Post, Internal Cable Routing, Removable hanger
Frame material Aluminium

Components

Steering wheel Alloy 31.8mm Riser 560mm
Handlebar material Aluminium
Handlebar support Race Face Ride
Depreciation Front
Rudders VP-Z104PD 1-1/8" Semi-Cartridge

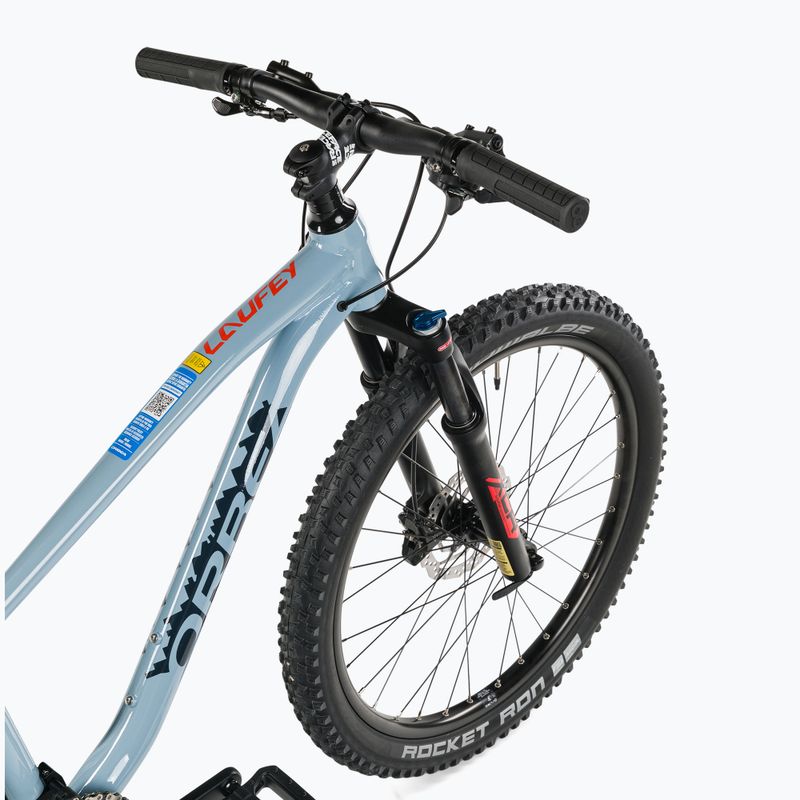

Fork SR Suntour XCR LO Air 80mm QR
Saddle Selle Royal Vivo Junior
Bar OC2 Dropper 31.6mm 75mm travel

Drive

Derailleurs 1x10
Number of gears 10
Rear derailleur (model) Shimano Deore M5120 SGS Shadow Plus
Handles Shimano Deore M4100
Crank mechanism Extra light 32t, 152mm, w/Chainguard
Cassette / Freewheel Sun Race 11-42t 10-Speed
Chain KMC X10

Brakes

Brakes (model) Shimano MT410 Hydraulic Disc
Brake type Hydraulic discs

Wheels

Wheel size 24"
Wheels Mach1 Klixx 23c Tubeless Ready
Tyres Schwalbe Rocket Ron Perf Foldable, 24x2.35
Axle type 135 x 9 mm
Tubeless ready wheels Yes

Additional information

Lighting No
Mudguards Yes
Luggage carrier No
Side wheels No
Maximum user weight 50 kg
Age of child 6-10 years
User height range 125 - 150 cm
Height to saddle 66,4 - 84,2 cm

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | info@orbea.com

Orbea children's bike Laufey 24 H20 grey 2023 N01624I9 (N01624I9)

The Orbea Laufey 24 H20 bike is an off-road model with 24" wheels, dedicated to children aged 6 to 9 years. It is a suitable choice for both beginners and advanced young cyclists who want to develop their skills on more challenging trails. It is equipped with reliable Shimano components, which guarantee smooth and precise performance on various terrains.

The aluminum frame consists of specially designed tubes with appropriate thickness and shape. The whole creates a very durable connection, unwanted flexing has been minimized, and the weight of the bike has also been reduced, which affects the comfort of use. You will maintain stability and control on the trail.

On the Laufey 24 H20 bike, you will find an aluminum crankset and chainring. Manufactured specifically for this bike model, they significantly reduce its weight. Wide Schwalbe Rocket Ron Perf Foldable tires with an aggressive tread have also been used, which increases the contact surface with the ground, ensuring better grip on corners and during braking. The tread blocks provide good traction when riding in difficult off-road conditions.

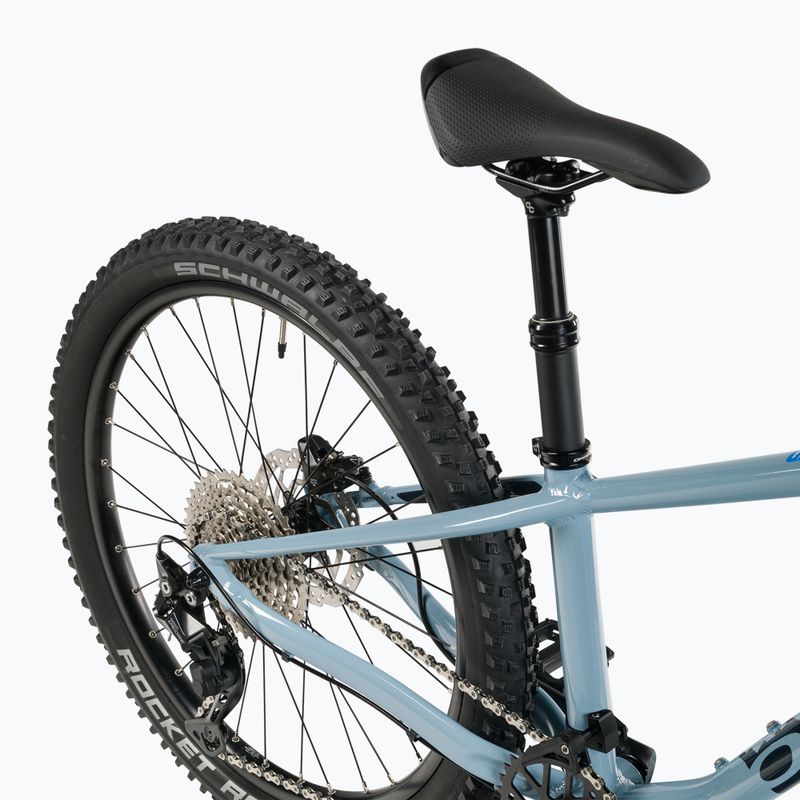

The rear derailleur, Shimano Deore M5120, features a low-profile design that prevents damage from stones and is equipped with a chain stabilizer that prevents the chain from dropping during riding. Gear shifting will be efficient, even in tough terrain, and the system operates very quietly.

Orbea children's bike Laufey 24 H20 grey 2023 N01624I9
Kellys children's bike bottle pink RANGIPO 022
Size
350 ml
Choose an Option...

Choose an Option

  • 350 ml €3.89
Add to Wish List
Strider 14x Sport bike stand black
Size
OS
Choose an Option...

Choose an Option

  • OS €29.99 €21.99
Add to Wish List
Feedback

There are no reviews yet, be the first!

Review this product

Orbea children's bike Laufey 24 H20 grey 2023 N01624I9

Orbea children's bike Laufey 24 H20 grey 2023 N01624I9

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Orbea children's bike Laufey 24 H20 grey 2023 N01624I9

No opinion

Bike assembly service available

Size OS Sizes table
Choose an Option...

Choose an Option

Sizes table

    Size OS"
    Size (inches) 24"
    Height (cm) 125-150
    A - Seat tube (mm) 300
    B - Horizontal pipe (mm) 515
    C - Steerer tube (mm) 100
    D - Rear triangle (mm) 395
    E - Support height (mm) 288
    F - Support lowering (mm) 35
    G - Wheelbase (mm) 1019
    H - Head angle 66
    I - Seat tube angle (°) 74
    J - Crossover (mm) 593
    K - Reach (mm) 366
    L - Stack (mm) 520
    M - Fork (mm) 445
