Basic data

Sport Bicycles
Brand Orbea
Leading colour Green
Season Year-round
Model/product code Vibe H10 EQ M31049YJ
Purpose City/urban
Gender Male, Woman
Country of origin of the brand Spain
Code 2000054532

Frame

Frame Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminium 2021
Frame material Aluminium

Components

Steering wheel Alloy 31.8mm 12mm Rise 700mm
Handlebar support OC1 31.8mm interface -6º
Grips Brooks Comfort Cambium 130mm
Depreciation No
Rudders Acros Alloy 1-1/2" Internal Cable Routing
Fork Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm
Fork material Carbon fibre
Saddle Brooks Cambium C15 283x140
Bar Alloy 27.2 Offset 20

Drive

Derailleurs 1x12
Number of gears 12
Rear derailleur (model) Shimano XT M8100 SGS Shadow Plus
Handles Shimano Deore M6100
Crank mechanism OC 42t, w/Chainguard
Cassette / Freewheel Sun Race CSMZ80 11-51t 12-Speed Metallic E-bike
Chain KMC X12

Brakes

Brakes (model) Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
Brake type Hydraulic discs

Wheels

Wheel size 28"
Wheels Ready GR
Tyres Kenda K1052 700x45C Reflective type TLR
Axle type 100 x 12 mm, 135 x 9 mm
Hubs Orbea Thru Axle 12x100mm M12x2 P1 Hollow - front hub
Tubeless ready wheels Yes
Tubeless ready tyres Yes

Engine

Engine model Mahle motor hub X35 Plus 25kmh ( brushless )
Engine location Hub
Engine power 250 W

Battery

Battery type Lithium-ion
Battery capacity 248 Wh
Battery location In the frame
Maximum range 70 km
Charger Mahle X35

Additional information

Support Yes, Ursus Mooi R90 rear alloy adjustable
Lighting Yes, Lezyne Ebike POWER STVZO PRO E115 310 lumens (front), Lezyne FENDER STVZO (rear)
Mudguards Yes, CURANA Apollo 55mm
Luggage carrier Yes, Orbea Vibe rear luggage carrier (max: 15 kg)
Weight of bike (estimated) 21,2 kg

Warnings and producer's data

Standards, certificates CE
Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | [email protected]

Other data

Service label Bike assembly service available

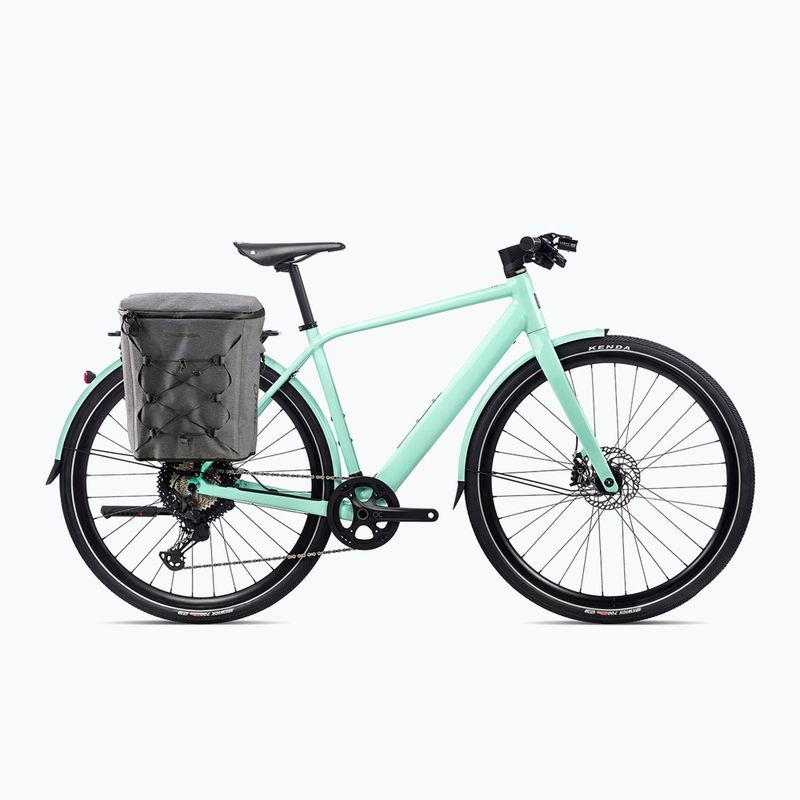

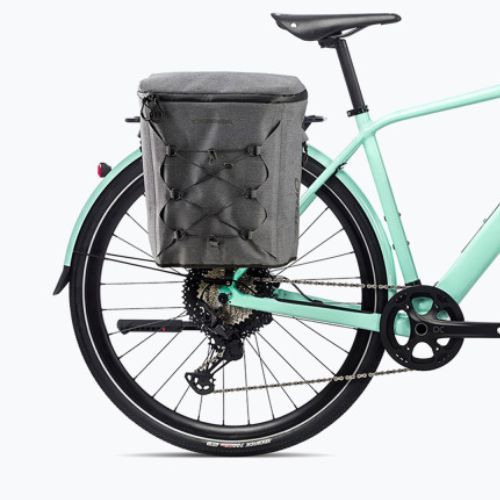

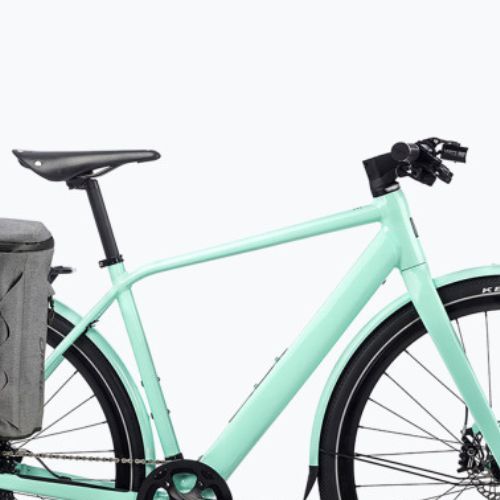

Orbea Vibe H10 EQ electric bike green M31049YJ (M31049YJ)

Advantages

Aluminium frame
The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.
Long range
This e-bike model has been designed to guarantee the highest possible level of quality. That is why the bike has been equipped with an optimised battery that provides a long range and freedom to explore the terrain.
Hydraulic disc brakes
The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.
28" wheels
The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.
Tubeless ready tyres
Thanks to the use of Tubeless Ready (TLR) technology, the tyres are resistant to punctures and lower pressures can be applied. Furthermore, the system eliminates the problem of ‘Snake Bite’, i.e. puncturing the inner tube by pinching against the rim.
Rudy Project Protera + black bicycle helmet HL800011
Size
55-58 cm (S-M)
59-61 cm (L)
Choose an Option...

Choose an Option

  • 55-58 cm (S-M) €179.99 €119.99
  • 59-61 cm (L) €179.99 €119.99
Add to Wish List
Elite Custom Race+ bidon basket black and white EL0140643
Size
OS
Choose an Option...

Choose an Option

  • OS €15.99
Add to Wish List
CamelBak Podium bicycle bottle black 1875001071
Size
710 ml
Choose an Option...

Choose an Option

  • 710 ml €14.99
Add to Wish List
Bike stand Orbea Onna/MX black
Size
27.5"-29"
Choose an Option...

Choose an Option

  • 27.5"-29" €42.99
Add to Wish List
Feedback

There are no reviews yet, be the first!

Review this product

Orbea Vibe H10 EQ electric bike green M31049YJ

Orbea Vibe H10 EQ electric bike green M31049YJ

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Orbea Vibe H10 EQ electric bike green M31049YJ

No opinion

Bike assembly service available

Size M Sizes table
Choose an Option...

Choose an Option

Sizes table

    Size S M L XL
    Height (cm) 150-165 165-180 180-195 195-205
    A - Seat tube (mm) 455 490 530 575
    B - Horizontal pipe (mm) 507 530 547 571
    C - Steerer tube (mm) 109 140 175 210
    D - Rear triangle (mm) 435 435 435 435
    E - Support height (mm) 280 280 280 280
    F - Support lowering (mm) 76 76 76 76
    G - Wheelbase (mm) 1026 1048 1065 1091
    H - Head angle 70 70,5 71,5 72
    I - Seat tube angle (°) 75 74,5 74 74
    J - Crossover (mm) 775 809 842 881
    K - Reach (mm) 380 395 410 430
    L - Stack (mm) 546 580 615 650
    M - Fork (mm) 410 410 410 410
