Orbea Oiz M-Pro TR is a full-suspension mountain bike with a carbon frame and Shimano components — the perfect combination for challenging trails.

Basic data

Brand Orbea
Country of origin of the brand Spain
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour Grey
Model/product code Oiz M-Pro TR M24017TS
Purpose MTB
Code 2000048562

Frame

Frame Orbea Oiz Carbon OMX, Fiberlink, Boost, PF BB, UFO2, I-line shock
Frame material Carbon fibre

Components

Steering wheel OC MP10 Mountain Performance Carbon, Width 760, Sweep 9
Handlebar support OC MP20 Mountain Performance, -8º
Depreciation Full
Rudders Acros Alloy 1-1/8 - 1-1/2" Integrated
Fork Fox 34 Float SC Factory 120 FIT4 Push-Unlock remote control QR15x110
Saddle Selle Italia SLR Boost Fill Titanium Rail 316 Ø7 mm
Bar OC MC20 Mountain Control Dropper, 31,6mm, 125mm travel

Drive

Derailleurs 1x12
Number of gears 12
Rear derailleur (model) Shimano XTR M9100 SGS Shadow Plus
Handles Shimano XT M8100 I-Spec EV
Crank mechanism Race Face Next-SL 34t
Cassette / Freewheel Shimano CS-M8100 10-51t 12-Speed
Chain Shimano M8100 12s

Brakes

Brakes (model) Shimano XT M8100 Hydraulic Disc
Brake type Hydraulic discs

Wheels

Wheel size 29"
Wheels OC XC TEAM, 30 mm internal width, Tubeless ready, 28H
Tyres Maxxis Rekon Race 2.35" 120 TPI Exo TLR
Tubeless ready wheels Yes
Tubeless ready tyres Yes

Additional information

Lighting No
Mudguards No
Luggage carrier No

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | info@orbea.com

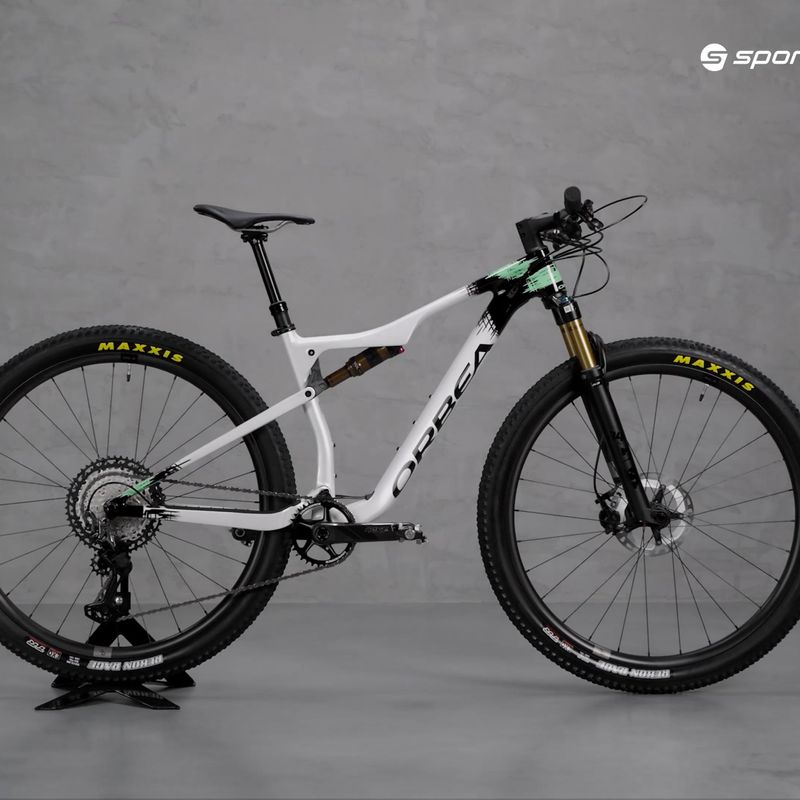

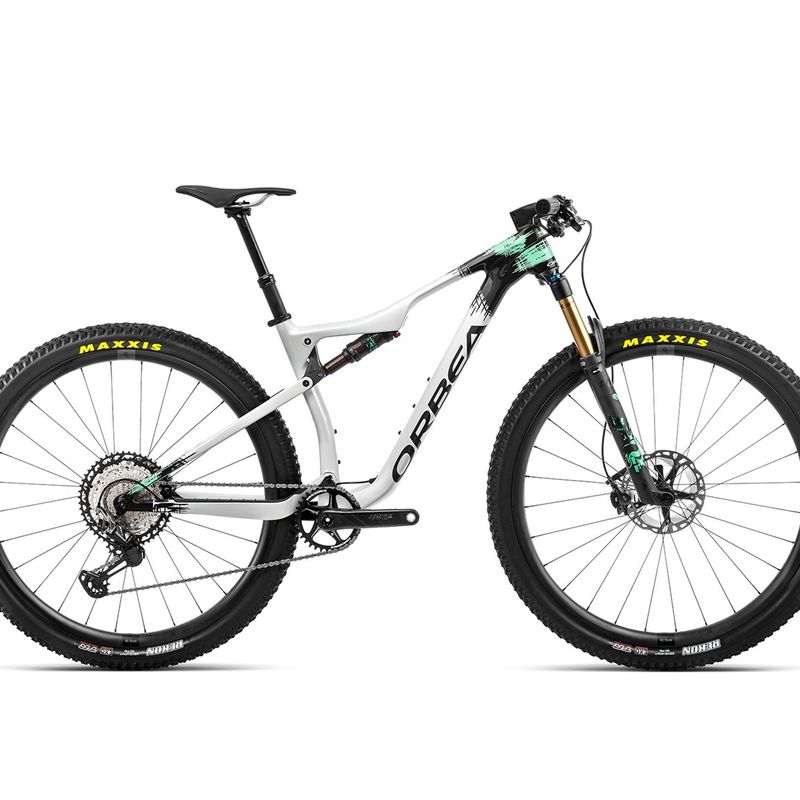

Orbea Oiz M-Pro TR mountain bike black/grey M24017TS (M24017TS)

The mountain bike Oiz M-Pro TR from the brand Orbea is a machine designed for agility and maximum performance on race forest trails. It will help you reach the podium during an XC race, but it is also perfect for demanding weekend rides on mountainous, uneven tracks.

The frame is made of carbon, which allows for low weight and high stiffness. This material also absorbs minor vibrations, making the ride more comfortable. The improved frame design, with supports reduced by 5 mm, translates into even greater agility and ease of maneuvering on technical mountain trails. The bike's geometry allows for adopting a comfortable position behind the handlebars, which in turn increases comfort and control over the bike on difficult sections of the trail

Full suspension - with a travel of 120 mm - guarantees excellent handling on uneven, varied terrain, where bumps will be very well absorbed. The unique design with the shock absorber recessed into the top tube enhances aesthetics and minimizes the risk of damage. Additionally, it provides space on the frame that can be used for mounting a water bottle.

The bike also features a 12-speed Race Face Next-SL 34t crankset and a Shimano CS-M8100 10-51t 12-Speed cassette, allowing for easy gear shifting.

Maxxis Rekon Race is a high-quality tire designed for mountain bikes. It is characterized by low weight and low rolling resistance, providing very good control and stability when riding on various surfaces. The EXO reinforcement reduces the risk of abrasion.

Advantages

Carbon frame
When designing this bike, the focus was on selecting the right materials to ensure the highest quality. Therefore, the frame is made of carbon, which combines lightness and resilience in addition to effectively damping vibrations.
Hydraulic disc brakes
This mountain bike model uses hydraulic disc brakes, which have a very low failure rate, so they will be trouble-free even during frequent use. The undoubted advantage is greater braking power and modulation.
Drive 1x12
This bike uses 1x12 derailleurs, which provide smooth gradation and allow effortless gear changes. The large range of gear ratios allows you to adapt the gear to your current needs.
29" wheels
The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over difficult terrain. This size guarantees good stability when riding at higher speeds.
Orbea Oiz M-Pro TR mountain bike black/grey M24017TS
  1. 100%

    plŁukasz

    Comfortable

    For the price, it is suitable for off-road as well as city driving Ergonomic, stiff shock absorber, a little bumpy over bumps

    Translated.Show original

Review this product

Orbea Oiz M-Pro TR mountain bike black/grey M24017TS

Orbea Oiz M-Pro TR mountain bike black/grey M24017TS

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Orbea Oiz M-Pro TR mountain bike black/grey M24017TS

Bike assembly service available

Size M Sizes table
Choose an Option...

Choose an Option

Sizes table

    Size S M L XL
    Height (cm) 155-170 165-180 178-190 185-198
    A - Seat tube (mm) 405 432 470 520
    B - Horizontal pipe (mm) 567 596 619 643
    C - Steerer tube (mm) 90 95 105 120
    D - Rear triangle (mm) 430 430 430 430
    E - Support height (mm) 334 334 334 334
    F - Support lowering (mm) 40 40 40 40
    G - Wheelbase (mm) 1096 1126 1150 1176
    H - Head angle 68 68 68 68
    I - Seat tube angle (°) 74 74 74 74
    J - Crossover (mm) 724 739 749 756
    K - Reach (mm) 397 425 446 466
    L - Stack (mm) 593 598 608 622
    M - Fork (mm) 524 524 524 524
