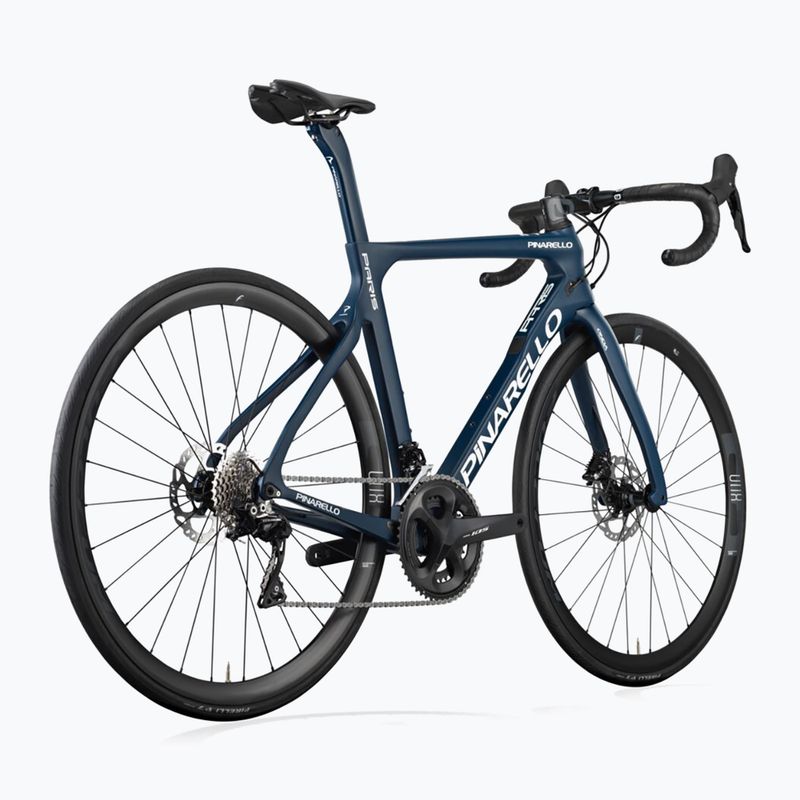

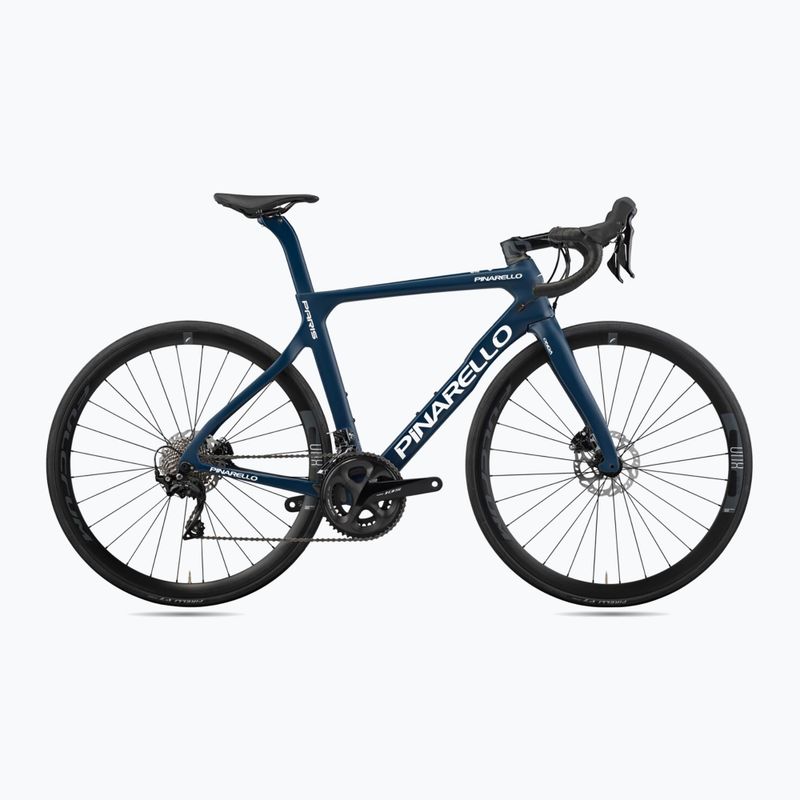

Pinarello Paris Disc 105 2x11 road bike blue C1447020122-13089

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code Paris Disc 105 2x11 C1447020122-13089

Leading colour Blue

Brand Pinarello

Country of origin of the brand Italy

Gender Male, Woman

Season Year-round

Crank mechanism Shimano 105 R7000 11s

Wheel size 28"

Frame Torayca T600 UD, internal cable routing, Italian BB, UCI approved

Derailleurs 2x11

Cassette / Freewheel shimano 105 r7000 11-28T, 11-speed

Sport Bicycles

Rear derailleur (model) Shimano 105 R7000 11s

Handles Shimano 105 R7000 11s

Handlebar width 46 cm

Fork material Carbon

Chain Shimano CN-HG601 11s

Type of derailleur Mechanical

Handlebar support Tiger Aero Alu TiCR

Bar Pinarello Aero Seatpost

Frame material Carbon

Fork Paris Onda with ForkFlap™, tapered head tube

Type of Product Endurance

Brakes (model) Shimano 105 R7000

Saddle Most Lynx Aircross FEC Alloy Large 145mm

Steering wheel Jaguar XA

Brake type Hydraulic discs

Brake discs Shimano 105 R7000, 160 mm

Number of gears 22

Front derailleur (model) Shimano 105 R7000 11s

Tyres Pirelli P7 - Black, 60tpi Nylon breaker, 28mm

Stan złożenia roweru Bike adjusted and pre-assembled

Hubs FULCRUM 12x100 - front hub, FULCRUM 12x142- rear hub

Wheels FULCRUM RACING 500 DB C17 AFS

Frame material Carbon

Pinarello Paris Disc 105 2x11 road bike blue C1447020122-13089 2

Sizes

Size	430	460	490	515	530	545	560	580	600
CE - Rura podsiodłowa (realna długość)	425	450	470	495	510	525	540	560	590
L - Efektywna dlugość górnej rury	492	509	525	536	545	555	565	577	590
A [°] - Kąt rury podsiodłowej	75,25	74,5	74	73,75	73,5	73,25	73	72,75	72,5
B [°] - Kąt główki	70	70,5	71	71,5	72	72,25	72,5	72,5	72,5
P - Długość tylnego trójkąta	415	415	415	415	415	415	415	415	415
T - Główka ramy	119	124	136	145	155	167	181	205	226
D - Opuszczenie supportu	67	72	72	72	72	72	72	67	67
R - wysunięcie widelca	52	52	52	47	47	47	47	47	47
G - Długość widelca (oś główki)	373	373	373	373	373	373	373	373	373
REACH	347,4	357,5	367,2	373,6	377,5	381,6	385	388,9	292,9
STACK	512,4	524	537,2	549,2	560,5	572,8	587,1	605	625

Product description

Advantages

Carbon frame

The frame of this road bike has been made from extremely lightweight carbon, so carrying the bike is not a problem. Carbon is distinguished by the fact that it is very effective in reducing the force of vibrations generated when riding over rough terrain.

Hydraulic disc brakes

This road bike is equipped with hydraulic disc brakes, which have an extremely low failure rate, ensuring trouble-free use, even during frequent use. In addition, they are distinguished by their greater braking power and modulation.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.

Carbon fork

The fork on this bike is made of carbon, which is characterised by its extreme lightness and ability to absorb the power generated when riding over rough terrain. This material combines strength and low weight.
