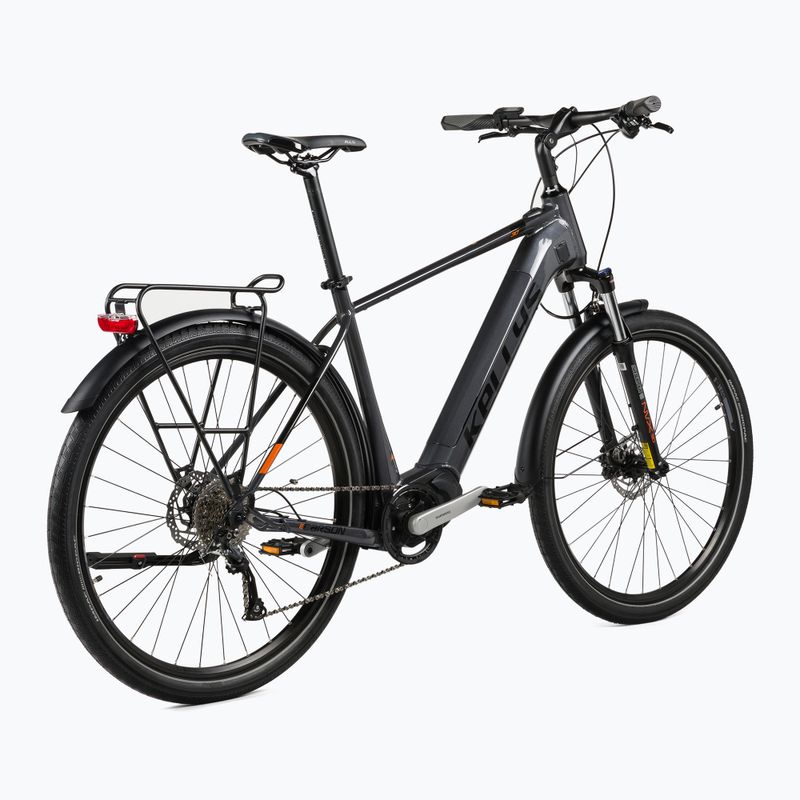

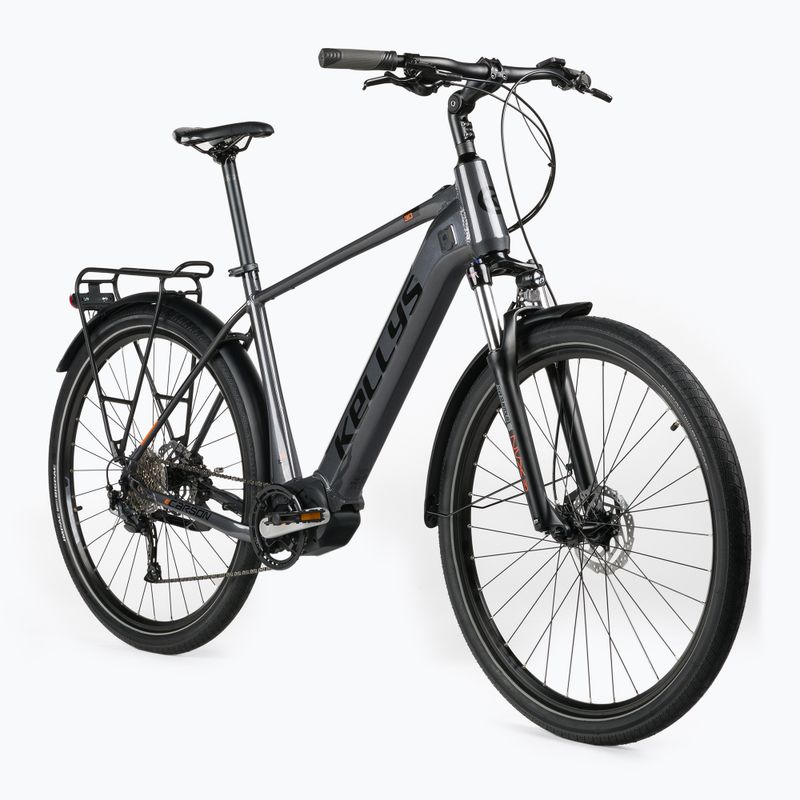

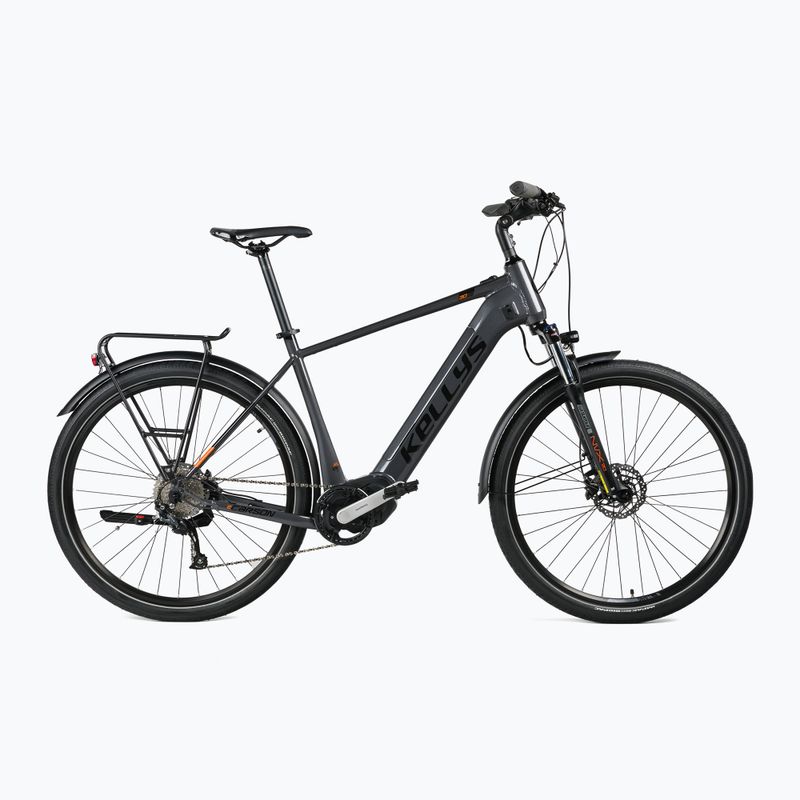

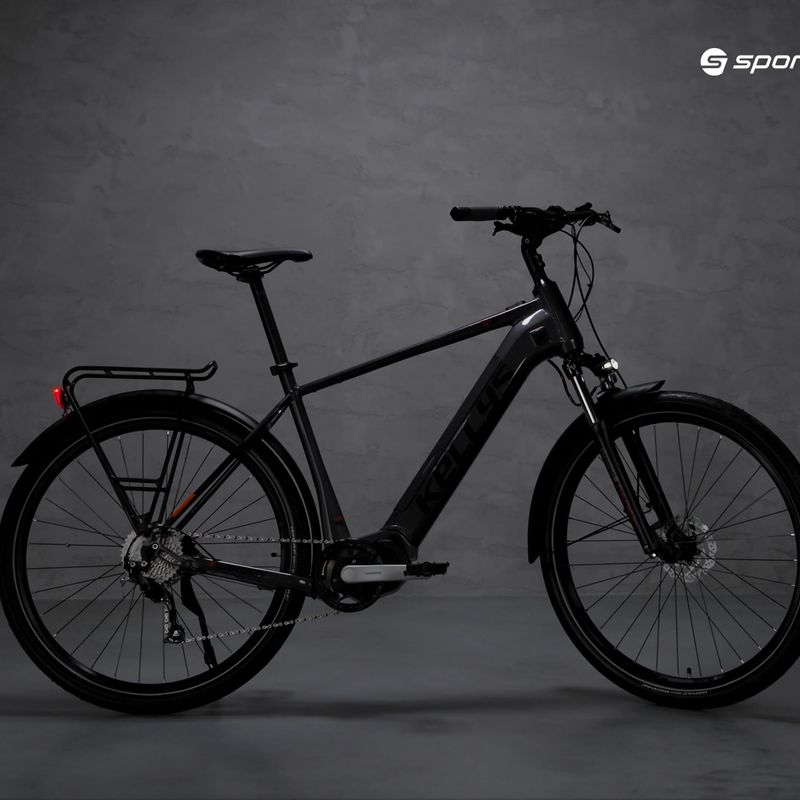

Kellys E-Carson 30 28" 725Wh electric bike grey 69641

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model/product code E-Carson 30 28" 725Wh 69641

Leading colour Grey

Brand Kellys

Country of origin of the brand European Union

Gender Male, Woman

Season Year-round

Engine location Central

Engine power 250 W

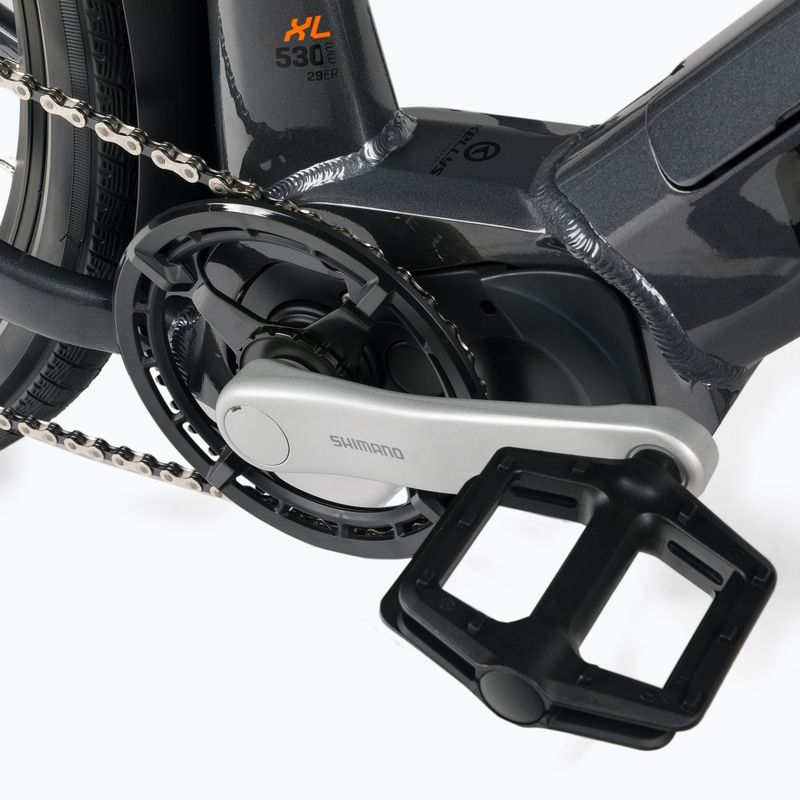

Crank mechanism SHIMANO E5000 (38T) - length 175mm

Wheel size 28"

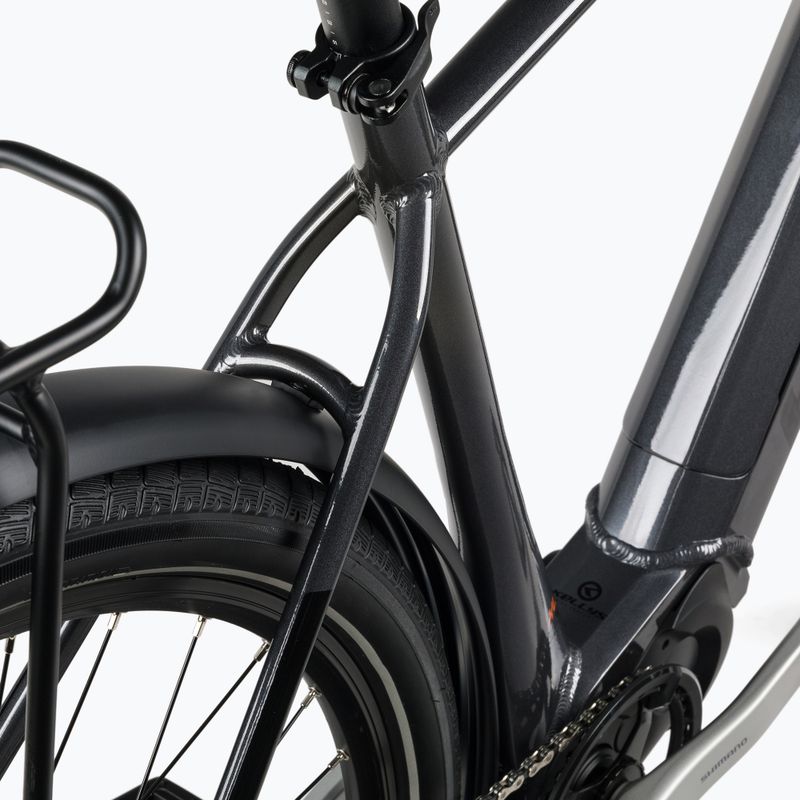

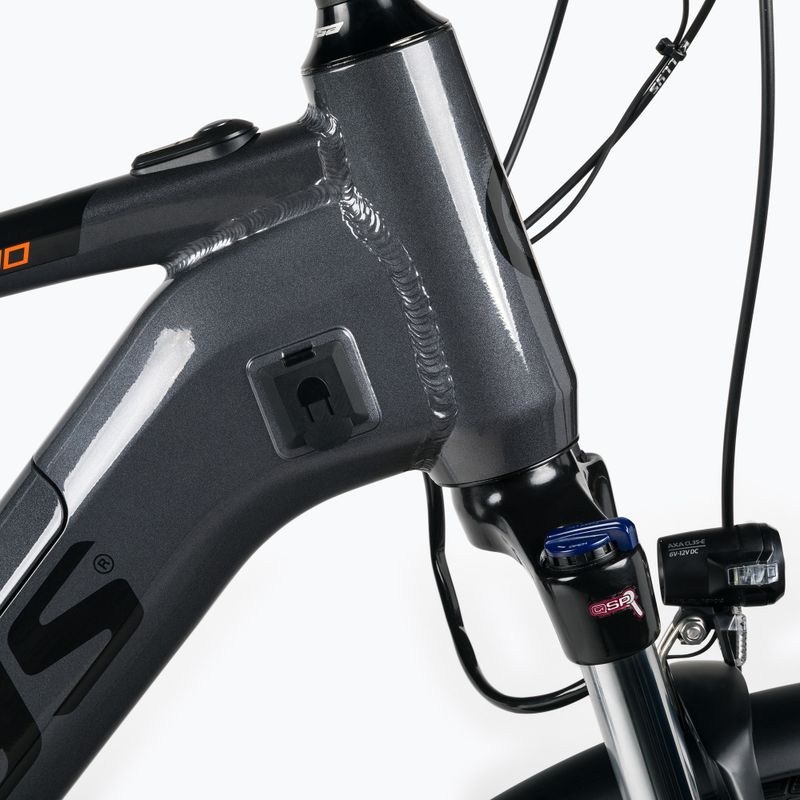

Frame KELLYS E-CARSON R series - advanced robotic welded 6-series aluminium alloy, integrated removable battery, 1.5“ tapered HT

Derailleurs 1x9

Sport Bicycles

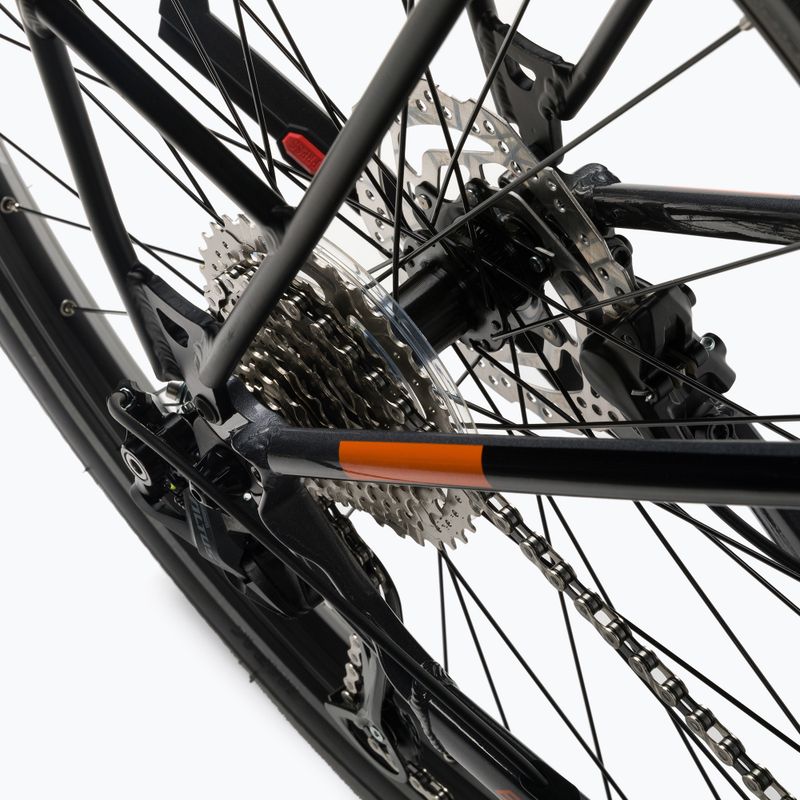

Cassette / Freewheel SHIMANO CS-HG201-9 (11-36T)

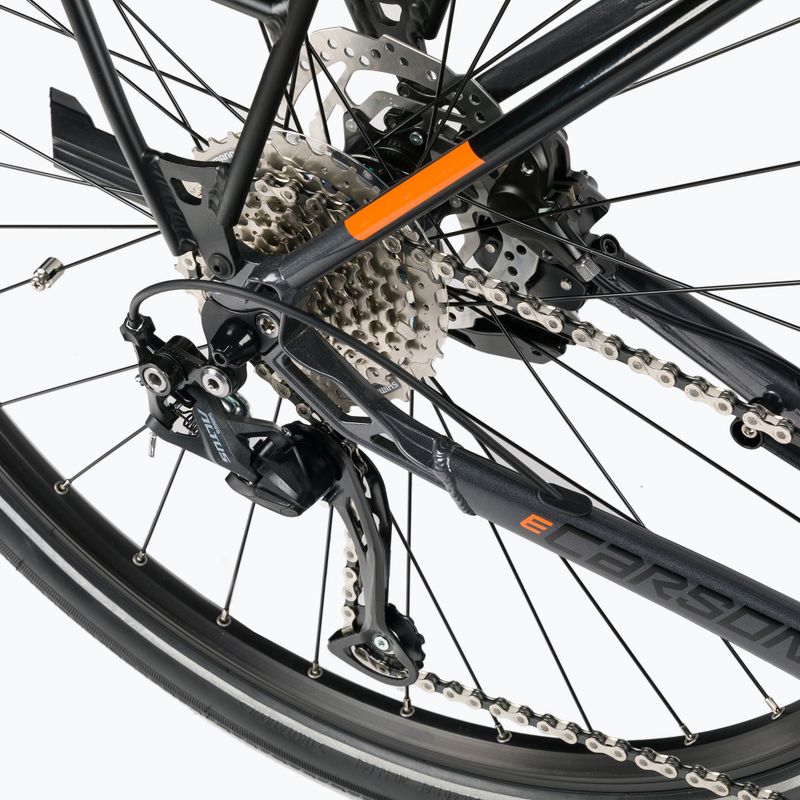

Rear derailleur (model) SHIMANO Altus M2000 (direct mount)

Handles SHIMANO Altus SL-M2000 Rapidfire Plus

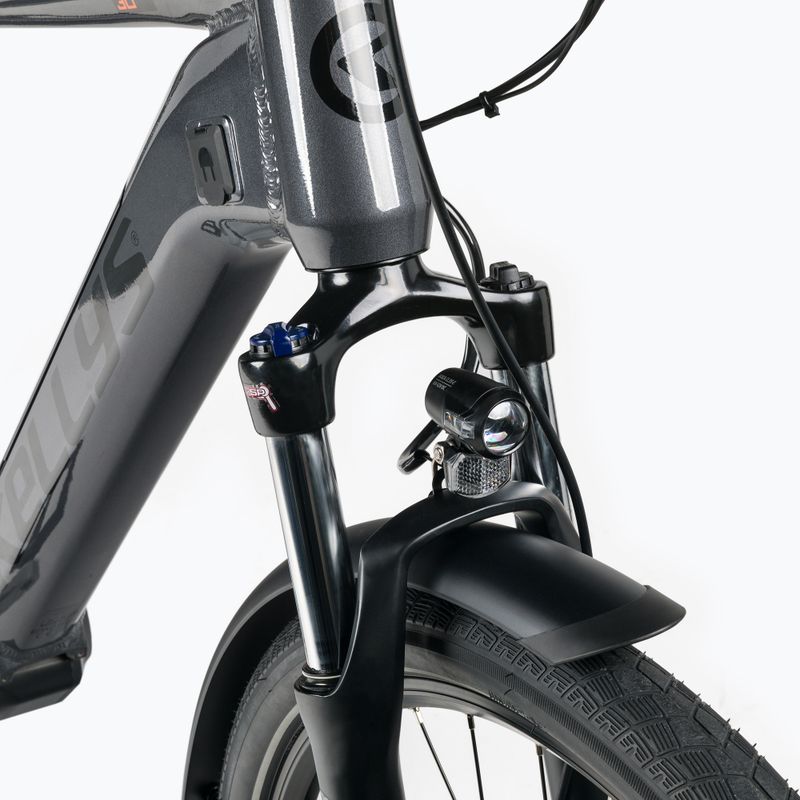

Depreciation Front

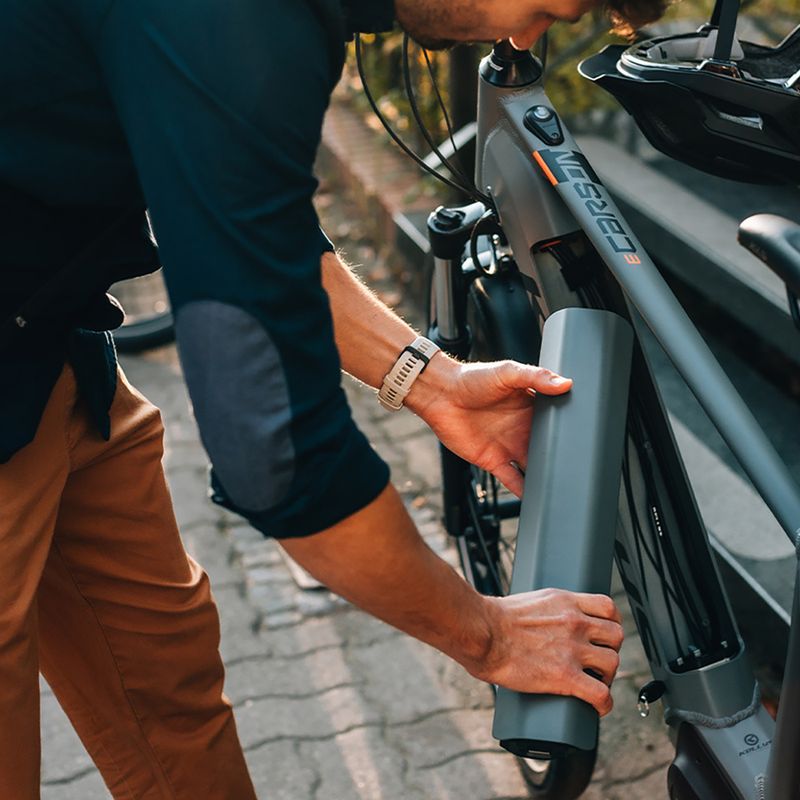

Battery location In the frame

Brakes (model) Shimano MT200

Purpose Trekking

Maximum range 170 km

Chain KMC e9S

Tubeless ready tyres No

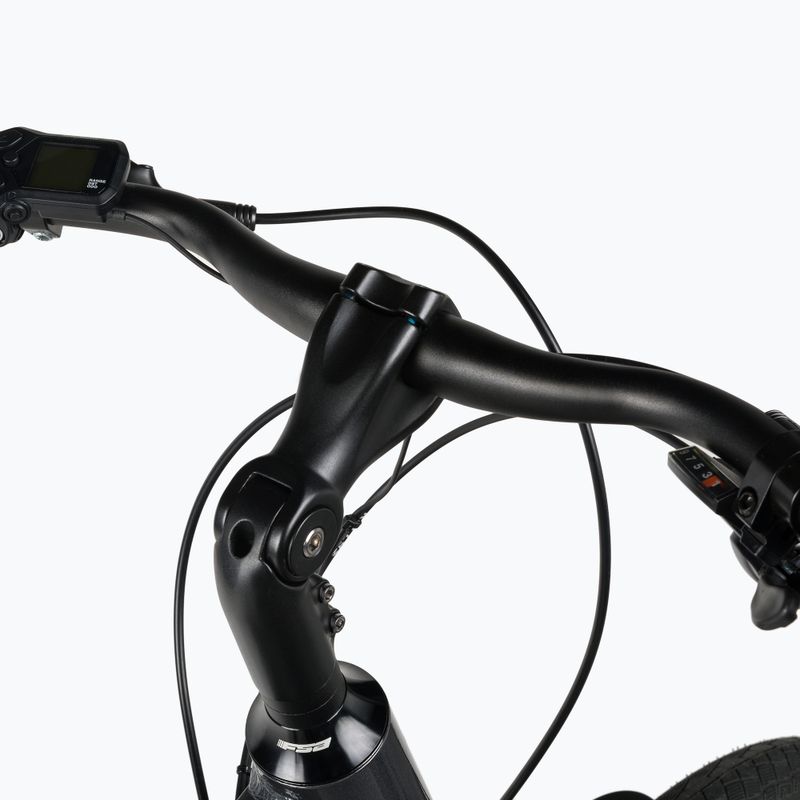

Handlebar support KLS Active - diam 28.6mm / bar bore 31.8mm / 8° / length 75mm (M), 90mm (L - XL)

Bar KLS Active - diam 30.9mm / length 350mm (S), 400mm (M - L)

Tyres IMPAC Bigpac 55-622 (28x2.15) TwinSkin, ReflectiveLine

Engine model SHIMANO STEPS E5000, 36V

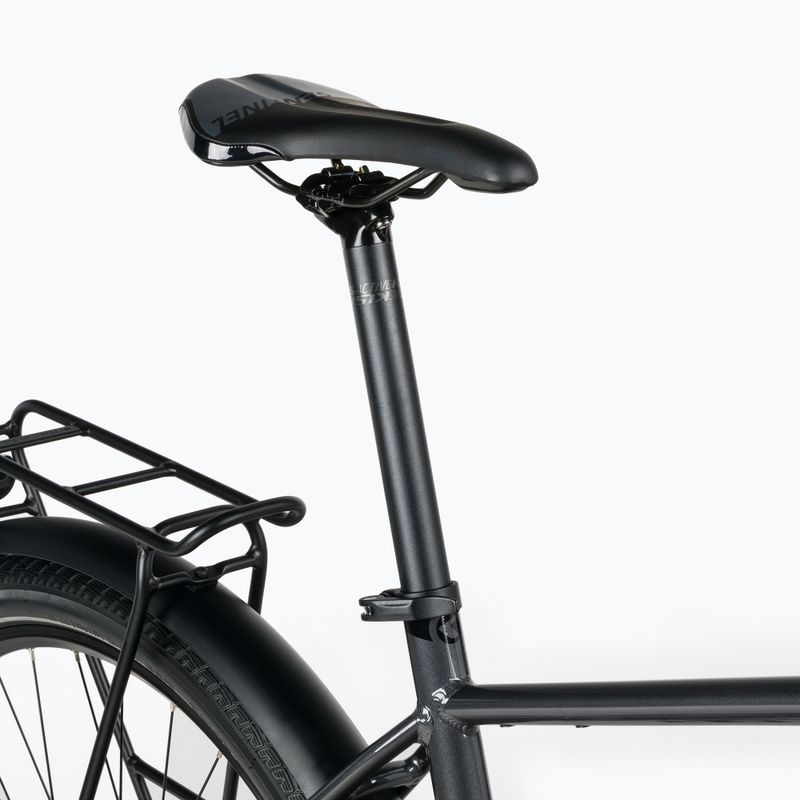

Saddle KLS Sentinel 2

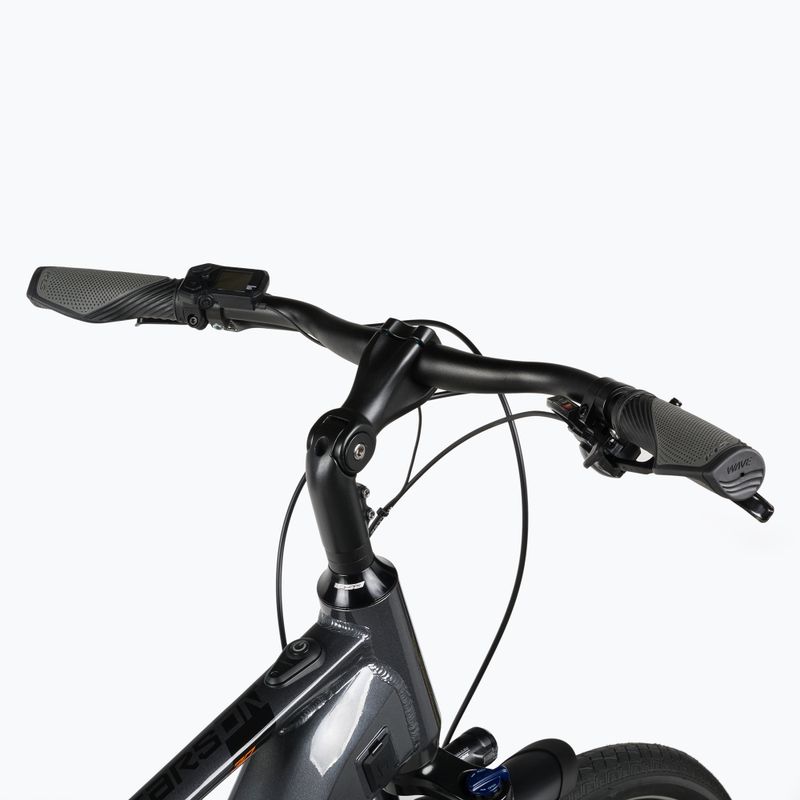

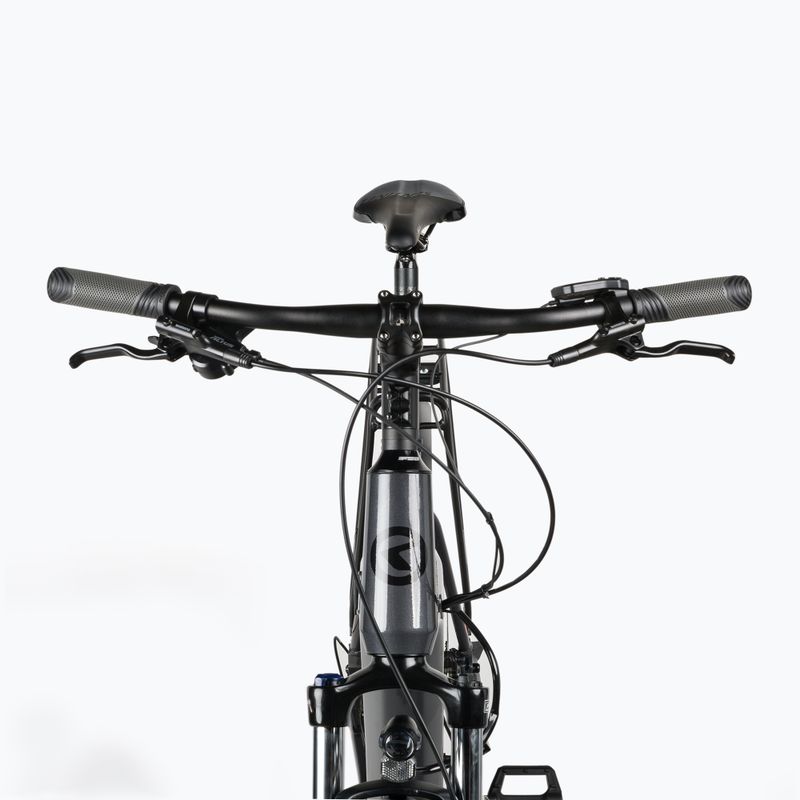

Steering wheel KALLOY RiseBar - diam 31.8mm / width 640mm

Brake type Hydraulic discs

Number of gears 9

Wheels KLS Draft Disc 622x21 rims

Battery capacity 20Ah

Stan złożenia roweru Bike adjusted and pre-assembled

Hubs Shimano HB-TX505- front hub, Shimano HB-TX505- rear hub

Maximum torque 40 Nm

Battery type Lithium-ion

Tubeless ready wheels No

Kellys E-Carson 30 28" 725Wh electric bike grey 69641 2

Kellys E-Carson 30 28" 725Wh electric bike grey 69641

Sizes

Size	M	L	XL
Height (cm)	170-180	178-190	188-200
S/T (mm)	460	500	530
L (mm)	617	648	680
Reach (mm)	410	440	470
Stack (mm)	676	681	686
H/T (mm)	160	165	170
S/T (°)	73	73	73
H/T (°)	69	69	69
BB (mm)	60	60	60
RC (mm)	460	460	460
WB (mm)	1156	1188	1220

Product description

Advantages

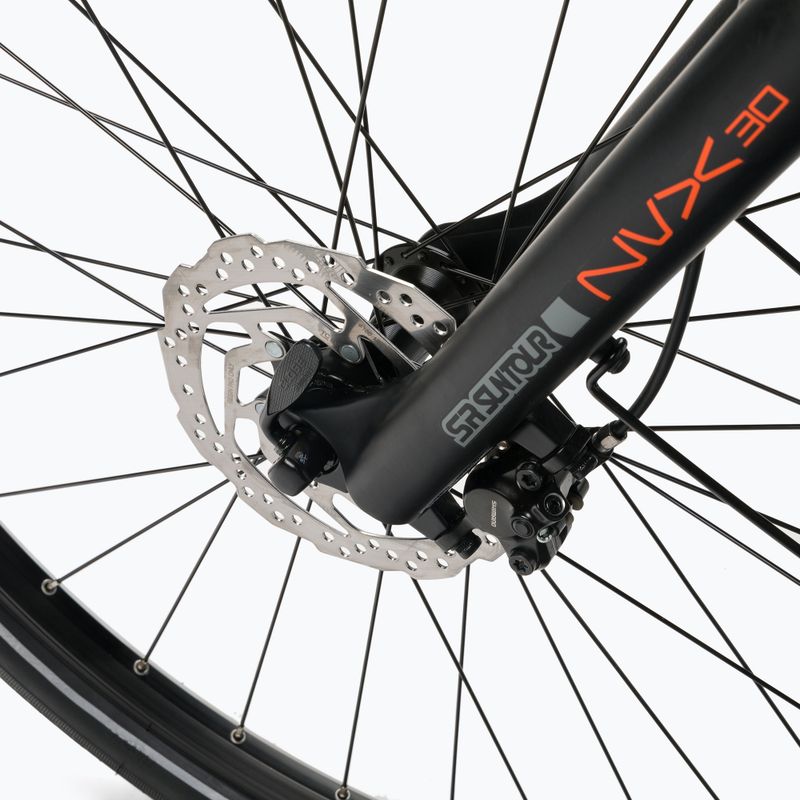

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.
