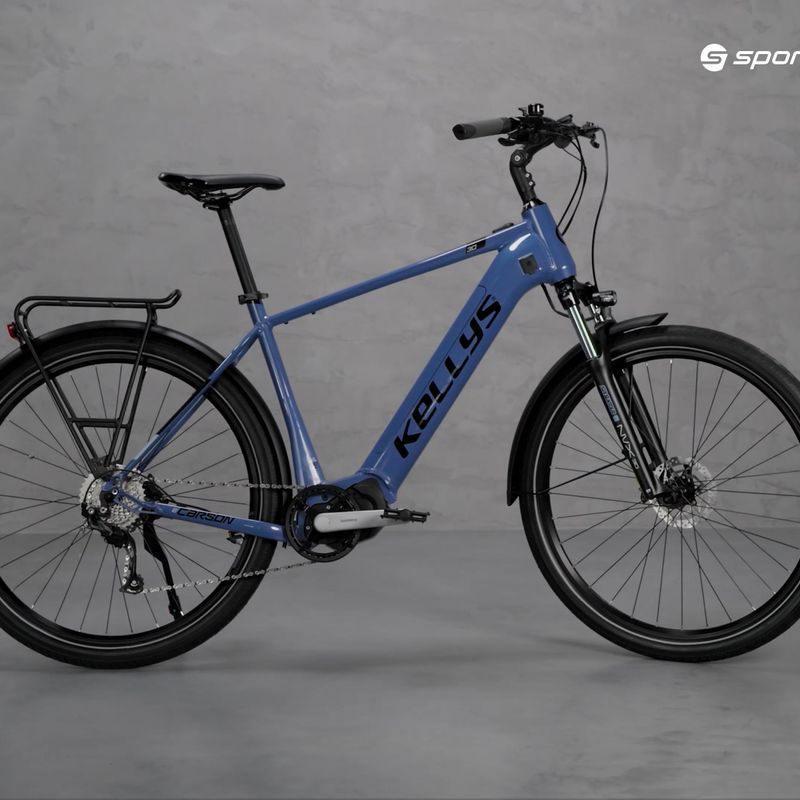

Kellys E-Carson 30 28" electric bike 725Wh blue 69638 (69638)

Frame

Frame KELLYS E-CARSON R series - advanced robotic welded 6-series aluminium alloy, integrated removable battery, 1.5“ tapered HT

Frame material Aluminium

Components

Steering wheel KALLOY RiseBar - diam 31.8mm / width 640mm

Handlebar support KLS Active - diam 28.6mm / bar bore 31.8mm / 8° / length 75mm (M), 90mm (L - XL)

Depreciation Front

Rudders FSA 1.5 semi-integrated

Fork SR SUNTOUR NVX30 NLO (29), 100mm, coil spring

Saddle KLS Sentinel 2

Bar KLS Active - diam 30.9mm / length 300mm (M), 350mm (L - XL)

Drive

Derailleurs 1x9

Number of gears 9

Rear derailleur (model) SHIMANO Altus M2000 (direct mount)

Handles SHIMANO Altus SL-M2000 Rapidfire Plus

Crank mechanism SHIMANO E5000 (38T) - length 175mm

Cassette / Freewheel SHIMANO CS-HG201-9 (11-36T)

Chain KMC e9S

Brakes

Brakes (model) Shimano MT200

Brake type Hydraulic discs

Wheels

Wheel size 28"

Wheels KLS Draft Disc 622x21 rims

Tyres IMPAC Bigpac 55-622 (28x2.15) TwinSkin, ReflectiveLine

Hubs Shimano HB-TX505- front hub, Shimano HB-TX505- rear hub

Tubeless ready wheels No

Tubeless ready tyres No

Additional information

Lighting Yes

Mudguards Yes

Luggage carrier Yes

Folding condition of the bike Bike adjusted and pre-assembled

Other data

Sport Bicycles

Brand Kellys

Leading colour Blue

Season Year-round

Model/product code E-Carson 30 28" 725Wh 69638

Purpose Trekking

Gender Male, Woman

Country of origin of the brand European Union

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model colour 2000044121

Engine model SHIMANO STEPS E5000, 36V

Engine location Central

Engine power 250 W

Maximum torque 40 Nm

Battery type Lithium-ion

Battery capacity 720 Wh

Battery location In the frame

Maximum range 170 km

Size	M	L	XL
Height (cm)	170-180	178-190	188-200
S/T (mm)	460	500	530
L (mm)	617	648	680
Reach (mm)	410	440	470
Stack (mm)	676	681	686
H/T (mm)	160	165	170
S/T (°)	73	73	73
H/T (°)	69	69	69
BB (mm)	60	60	60
RC (mm)	460	460	460
WB (mm)	1156	1188	1220

Advantages

Front cushioning

The cushioning makes cycling over uneven ground much more pleasant and comfortable. This model is equipped with front suspension, which ensures safety and absorbs the force when the front wheel hits an obstacle.

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.
