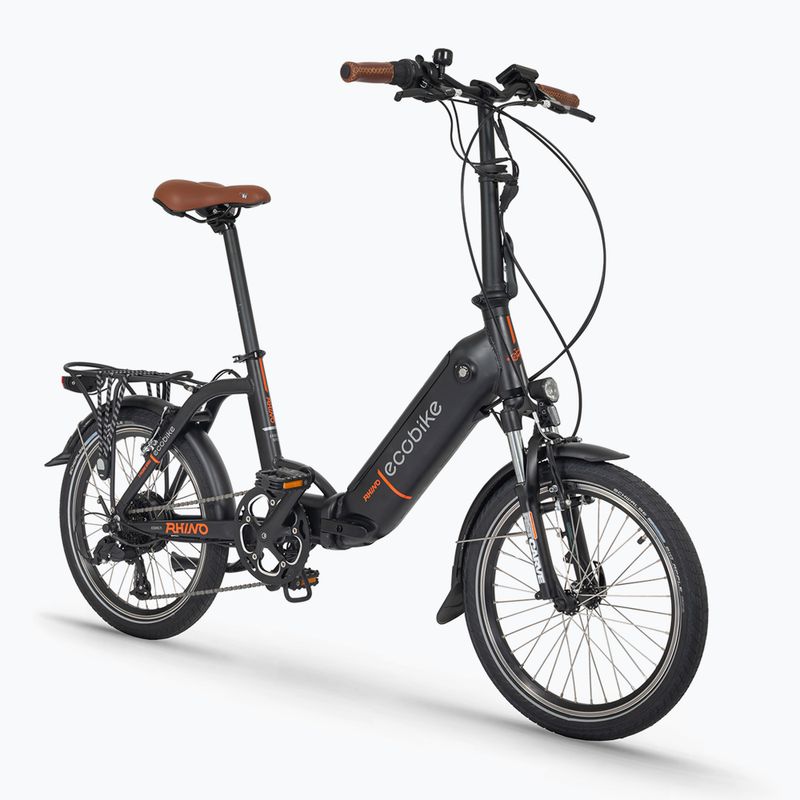

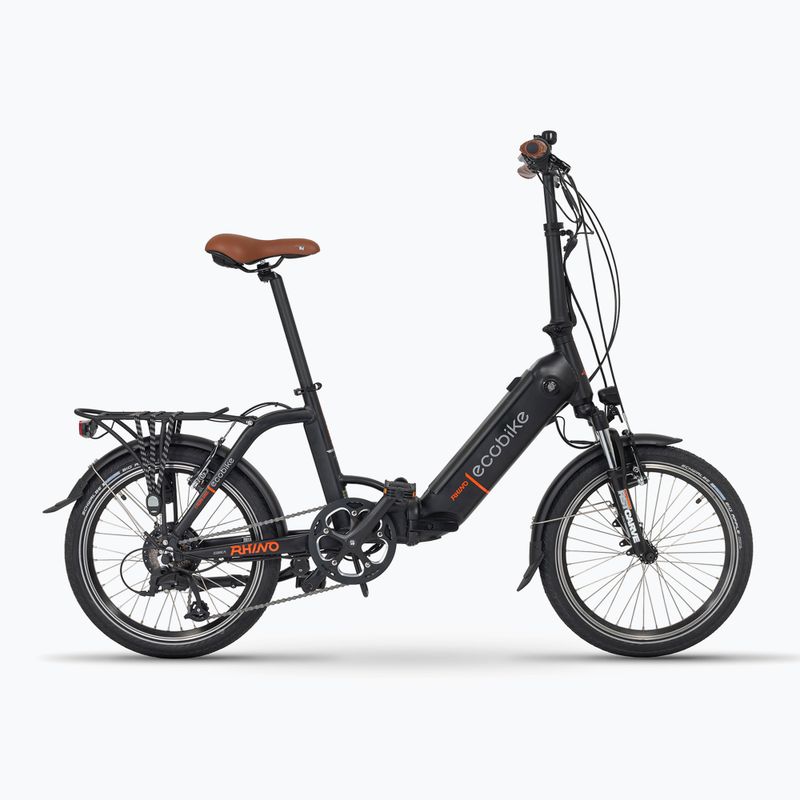

EcoBike Rhino 13Ah Greenway Smart BMS electric bike black 1010203

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model/product code Rhino 13Ah Greenway Smart BMS 1010203

Leading colour Black

Brand EcoBike

Country of origin of the brand Poland

Gender Male, Woman

Season Year-round

Engine location Hub

Engine power 250 W

Crank mechanism Topwheel SOLID 252AA8 (177 mm x 46T)

Wheel size 20"

Frame of hydroformed aluminium, Foldable

Derailleurs 1x6

Sport Bicycles

Cassette / Freewheel Shimano AMFTZ5006428 6-speed 14-28T

Rear derailleur (model) Shimano Tourney 6-speed

Handles Shimano Tourney SL RS35 6R

Depreciation Front

Battery location In the frame

Brakes (model) Promax TX-117

Purpose City/urban

Maximum range 110 km

Chain KMC Z7 106 L

Bar ZHD SP01 (33.9 mm x 580 mm)

Tyres Schwalbe 20 x 2.0 Big Apple

Frame material Aluminium

Fork RST CARVE-P-20

Charger 220-240V 42V 2A Type D

Engine model Bafang

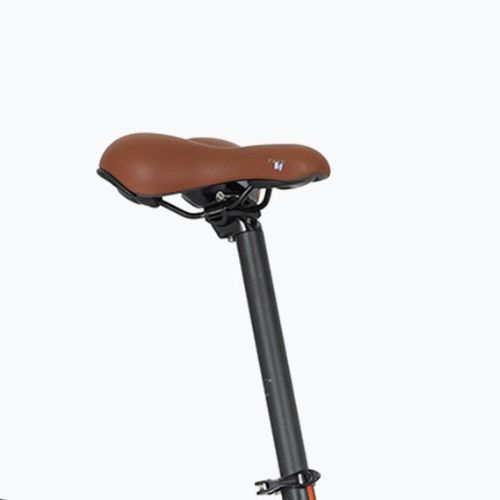

Saddle Selle Royal Freeway

Weight of bike (estimated) 21,8 kg

Steering wheel PROMAX HB－T305 (25,4mm – 640mm)

Maximum engine power 320 W

Brake type V-Brake

Number of gears 6

Wheels Reinforced three-chamber wheels, Sapim spokes, 20"

Battery capacity 13Ah

Stan złożenia roweru Bike adjusted and pre-assembled

Hubs JOY 751DSE - front hub

Maximum torque 35 Nm

Battery type Lithium-ion

Maximum user weight 125 kg

EcoBike Rhino 13Ah Greenway Smart BMS electric bike black 1010203 2

Sizes

Frame size	38 cm (15")
Height (cm)	160-180
Wheel	20"
Bike length (cm)	162
Folded dimensions (length x width x height) [cm]	95 x 70 x 45

Product description

Advantages

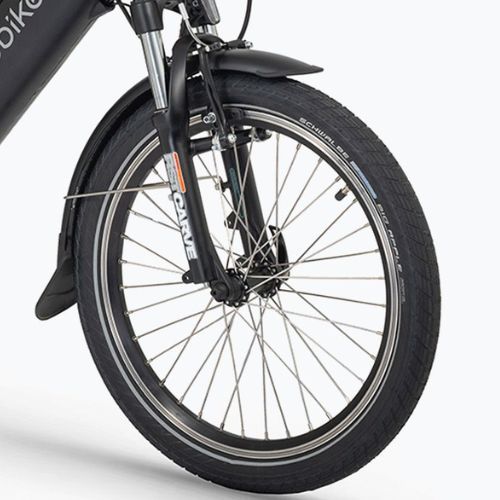

Front cushioning

The cushioning makes cycling over uneven ground much more pleasant and comfortable. This model is equipped with front suspension, which ensures safety and absorbs the force when the front wheel hits an obstacle.

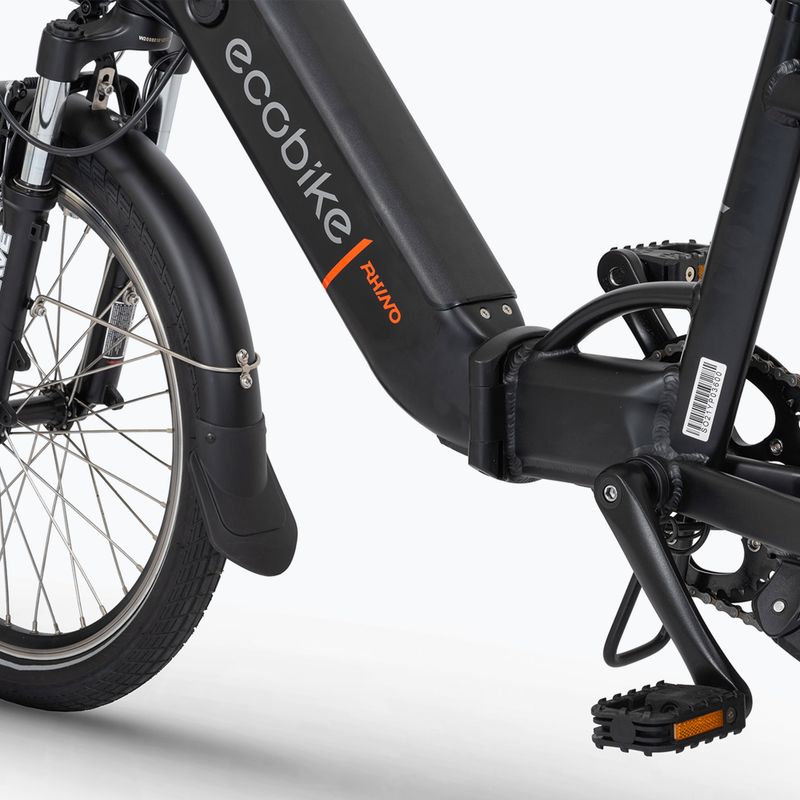

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Long range

This e-bike model has been designed to guarantee the highest possible level of quality. That is why the bike has been equipped with an optimised battery that provides a long range and freedom to explore the terrain.

V-brake type

A particular model of bicycle is equipped with V-Brake. This type is characterised by its ease of fitting and maintenance and its high durability. V-Brakes are used on most bicycles because of their versatility.
