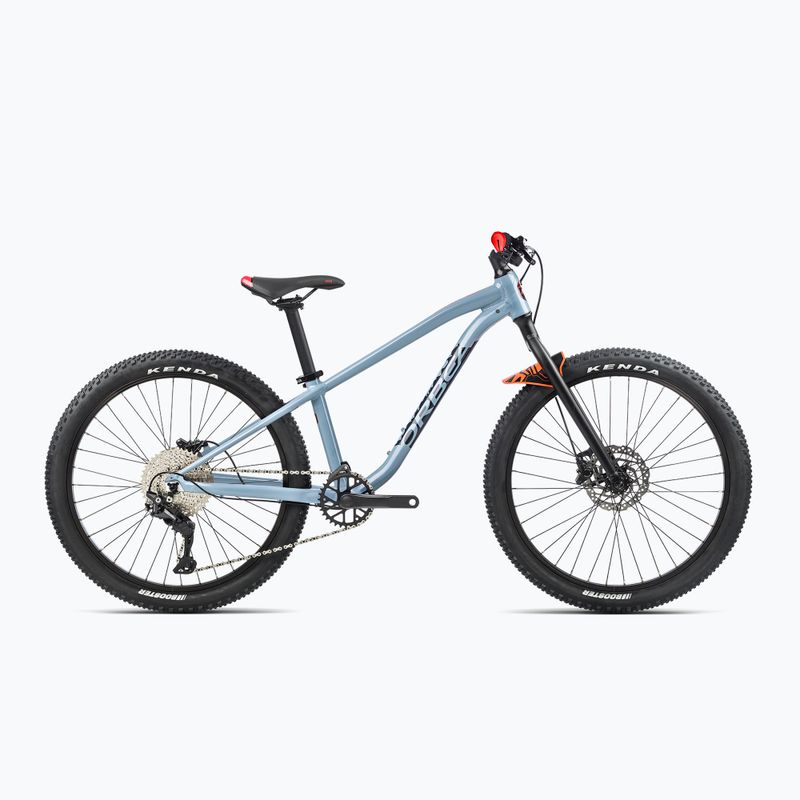

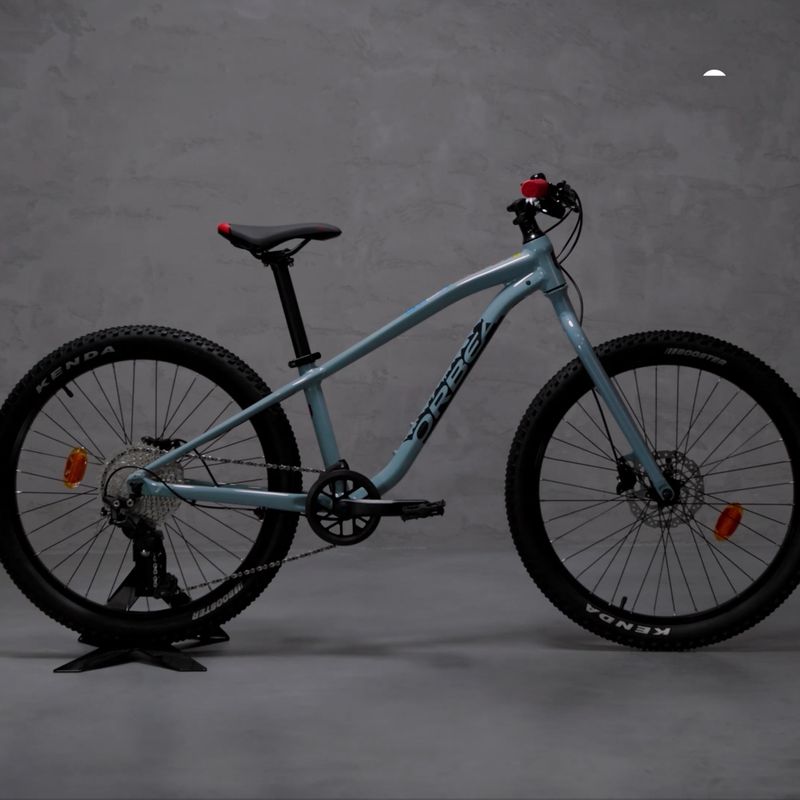

Orbea children's bike Laufey 24 H30 blue M01524I9

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code Laufey 24 H30 M01524I9

Leading colour Blue

Brand Orbea

Country of origin of the brand Spain

Gender Boy, Girl

Season Year-round

Lighting No

Crank mechanism Extra light 32t, 152mm, w/Chainguard

Wheel size 24"

Frame Orbea Laufey 24 6061 Aluminum 2021, 135x9 QR, Post Mount Disc Mount, 31.6 Seat Post, Internal Cable Routing, Removable hanger

Derailleurs 1x10

Sport Bicycles

Cassette / Freewheel Sun Race 11-42t 10-Speed

Rear derailleur (model) Shimano Deore M5120 SGS Shadow Plus

Handles Shimano Deore M4100

Depreciation Front

Brakes (model) Shimano MT400 Hydraulic Disc

Chain KMC X10

Handlebar support Digit Alloy 31,6x300mm Offset 0

Bar Digit Alloy 31,6x300mm Offset 0

Tyres Kenda Booster K1277 24x2.20" 30TPI

Frame material Aluminium

Fork Orbea Laufey 24 6061 Aluminum 2021, 100x9 QR, Post Mount Disc Mount, Mini Fender ready

Mudguards Yes

Saddle Selle Royal Vivo Junior

Steering wheel Alloy 31.8mm Riser 560mm

Brake type Hydraulic discs

Number of gears 10

Wheels Orbea Alloy 24"

Luggage carrier No

Stan złożenia roweru Bike adjusted and pre-assembled

Side wheels No

Rudders VP-Z104PD 1-1/8" Semi-Cartridge

Orbea children's bike Laufey 24 H30 blue M01524I9 2

Orbea children's bike Laufey 24 H30 blue M01524I9

Sizes

Size	OS"
Size (inches)	24"
Height (cm)	125-150
A - Seat tube (mm)	300
B - Horizontal pipe (mm)	515
C - Steerer tube (deg)	100
D - Rear triangle (mm)	395
E - Support height (mm)	288
F - Support lowering (mm)	35
G - Wheelbase (mm)	1019
H - Head angle	66
I - Saddle angle	74
J - Crossover (mm)	593
K - Reach (mm)	366
L - Stack (mm)	520
M - Fork (mm)	445

Product description

Advantages

Mudguards included

This bike is equipped with mudguards to provide protection when riding in adverse weather conditions. This means you don[t have to worry about dirt and mud coming out from under the wheels.

Aluminium frame

The junior bike has been designed with attention to every element. Its frame is made of durable aluminium, which stands out for its low weight. In addition, this material is characterised by its strength and resistance to deformation.

Hydraulic disc brakes

This bike uses hydraulic disc brakes, which have a very low failure rate, so they will last a long time. This type provides high power and braking modulation no matter what the road conditions are.

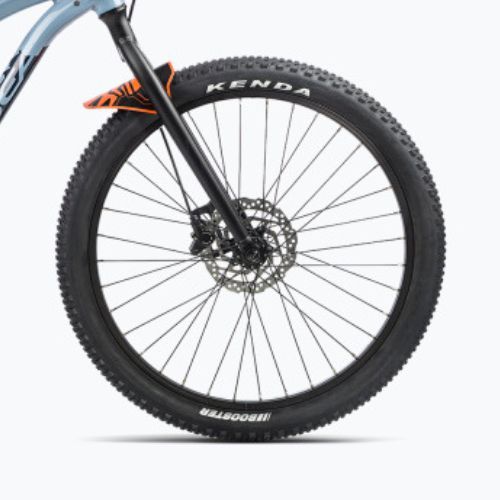

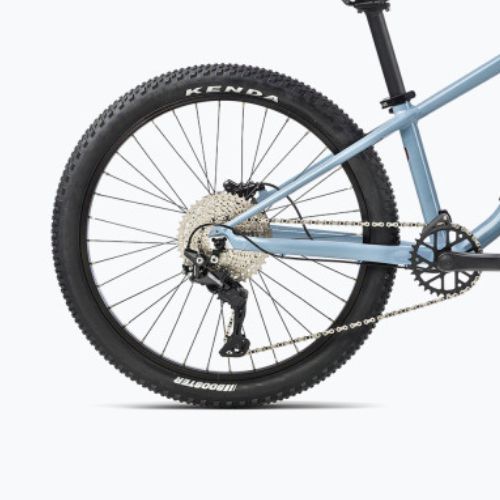

24" wheels

The 24-inch wheels used on this model of the bike ensure low weight and high strength and agility. With this size, the ride will become much more comfortable and enjoyable.
