Basic data

Sport Bicycles
Brand Orbea
Leading colour Grey
Season Year-round
Model/product code Urrun 10 M36818VJ
Purpose MTB
Gender Male, Woman
Country of origin of the brand Spain
Code 2000022557

Frame

Frame Urrun, Hydroformed Alloy 6061 series, 12x148mm Boost, Integrated battery, Internal Cable, Carrier and kickstand compatible
Frame material Aluminium

Components

Steering wheel OC 35mm, 35.0x780mm, 20mm
Handlebar support OC1 35mm -6º
Depreciation Front
Fork Fox 34 Float Performance 120 Grip 3-Position, QR 15 x 110mm, E-Bike Optimized
Saddle Sell Royal Vivo
Bar OC MC20 Mountain Control Dropper, 31.6mm, 100mm travel

Drive

Derailleurs 1x12
Number of gears 12
Rear derailleur (model) Shimano XT M8100 SGS Shadow Plus
Handles Shimano XT M8100
Crank mechanism Shimano Steps EM600
Cassette / Freewheel Shimano CS-M7100 10-51t 12-Speed
Chain Shimano M6100

Brakes

Brakes (model) Magura MT5 E-STOP. Hydraulic Disc, Easy Route Connection
Brake type Hydraulic discs

Wheels

Wheel size 29"
Wheels RACE FACE AR 30
Tyres Maxxis Rekon, 29x2.40, 120 TPI, 3CMaxxTerra, Exo+ TLR
Tubeless ready wheels Yes
Tubeless ready tyres Yes

Engine

Engine model Shimano EP8-RS
Engine location Central
Engine power 250 W
Maximum torque 60

Battery

Battery type Lithium-ion
Battery capacity 540 Wh
Battery location In the frame
Maximum range 150 km
Charger Orbea Smart Charger (42V-4A)

Additional information

Lighting No
Mudguards No
Luggage carrier No

Warnings and producer's data

Standards, certificates CE
Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | [email protected]

Other data

Service label Bike assembly service available

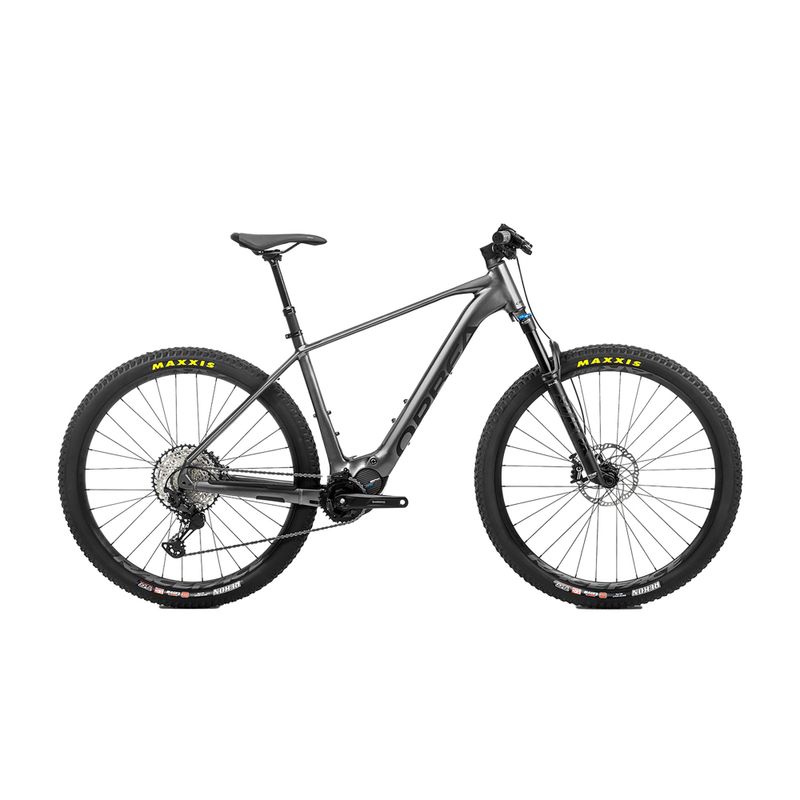

Orbea Urrun 10 electric bike grey M36818VJ (M36818VJ)

Advantages

Front cushioning
The cushioning makes cycling over uneven ground much more pleasant and comfortable. This model is equipped with front suspension, which ensures safety and absorbs the force when the front wheel hits an obstacle.
Aluminium frame
The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.
Hydraulic disc brakes
The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.
Tubeless ready tyres
Thanks to the use of Tubeless Ready (TLR) technology, the tyres are resistant to punctures and lower pressures can be applied. Furthermore, the system eliminates the problem of ‘Snake Bite’, i.e. puncturing the inner tube by pinching against the rim.
Drive 1x12
The 1x12 derailleurs used on this e-bike model guarantee smooth gradation and allow effortless gear changes. The large gear range allows you to adapt the gear to the current road conditions.
29" wheels
The use of 29’ wheels allows for greater and better tyre contact with the ground, making it much easier to overcome bumps when riding over rough terrain. This size guarantees good stability when riding at higher speeds.
UVEX bike helmet Viva 3 black S4109840115
Size
52-57 cm
56-62 cm
Choose an Option...

Choose an Option

  • 52-57 cm €66.99 €52.99
  • 56-62 cm €66.99 €52.99
Add to Wish List
CamelBak Podium Chill bicycle bottle 710 ml black
Size
710 ml
Choose an Option...

Choose an Option

  • 710 ml €19.99 €17.99
Add to Wish List
Elite bicycle kit Custom Race Plus basket + Elite Fly Tex Maillot Jaune 550 ml bottle black
Size
550 ml
Choose an Option...

Choose an Option

  • 550 ml €23.99
Add to Wish List
Bike stand Orbea Onna/MX black
Size
27.5"-29"
Choose an Option...

Choose an Option

  • 27.5"-29" €42.99 €38.99
Add to Wish List
Feedback

There are no reviews yet, be the first!

Review this product

Orbea Urrun 10 electric bike grey M36818VJ

Orbea Urrun 10 electric bike grey M36818VJ

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Orbea Urrun 10 electric bike grey M36818VJ

No opinion

Bike assembly service available

Size Sizes table
Choose an Option...

Choose an Option

Sizes table

    Size S M L XL
    Height (cm) 155-170 165-180 175-190 185-200
    A - Seat tube (mm) 400 453 483 533
    B - Horizontal pipe (mm) 565 579 608 645
    C - Steerer tube (mm) 110 115 132 153
    D - Rear triangle (mm) 445 445 445 445
    E - Support height (mm) 322 320 320 320
    F - Support lowering (mm) 54 56 56 56
    G - Wheelbase (mm) 1143 1150 1173 1220
    H - Head angle 65,5 66 66 66
    I - Seat tube angle (°) 74,8 74,6 74,6 74,5
    J - Crossover (mm) 798 826 848 882
    K - Reach (mm) 395 405 440 460
    L - Stack (mm) 631 628 647 666
    M - Fork (mm) 533,5 533,5 533,5 533,5
