Marin San Quentin 1 27.5 Mountain Bike is a sturdy hardtail designed for off-road riding. It combines a lightweight, durable frame with reliable components, providing comfort, control, and stability on various trails, making it perfect for active riding enthusiasts.

Basic data

Brand Marin
Country of origin of the brand USA
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour Black
Model/product code San Quentin 1 27.5 740683002
Code 2000199740

Frame

Frame Series 2 6061 Aluminum 27.5" Wheel, Double Butted, Internal Cable Routing, 141mm Open Dropout, 73mm Threaded BB
Frame material Aluminium

Components

Steering wheel Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Handlebar support Marin Alloy, 45mm
Grips Marin MTN, Closed End
Depreciation Front
Rudders FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Fork SR Suntour XCM34 Boost 15x110mm Spacing, 130mm Travel, Coil Spring, Bolt-On Thru-Axle
Saddle Marin Speed Concept
Bar Marin Alloy, 30.9mm

Drive

Type of derailleur Mechanical
Derailleurs 1x9
Number of gears 9
Rear derailleur (model) microSHIFT RD-M9195M, 9 Speed, With Clutch
Handles microSHIFT SL-M9195-R, 1x9 with Bearings
Suport Sealed Cartridge Bearing, Square Taper
Crank mechanism Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
Cassette / Freewheel SunRace, 9-Speed, 11-46T
Chain KMC X9

Brakes

Brakes (model) Tektro M275 Hydraulic Disc
Brake type Hydraulic discs
Brake discs 180 mm / 180 mm

Wheels

Wheel size 27,5"
Wheels Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible
Tyres Delium Versatile, All-Around Construction, 2.5", Wire-Bead Tubeless
Hubs Forged Alloy, Sealed Bearings, Alloy Axle, QR type, 141mm Width, Disc, 32H, Shimano Standard Freehub Body, Forged Alloy, 110x15mm, Sealed Cartridge Bearing, Disc, 32H
spokes 14g Black Stainless Steel
Tubeless ready wheels Yes
Tubeless ready tyres Yes

Additional information

Pedals included Yes

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer Marin Bikes | 1450 Technology Lane, Suite 100, Petaluma, CA 94954, USA | uk-enquiries@marinbikes.com | MOTOR-LAND SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ | Kolejowa 362/364 05-092 Dziekanów Nowy Polska | bok@motor-land.com.pl

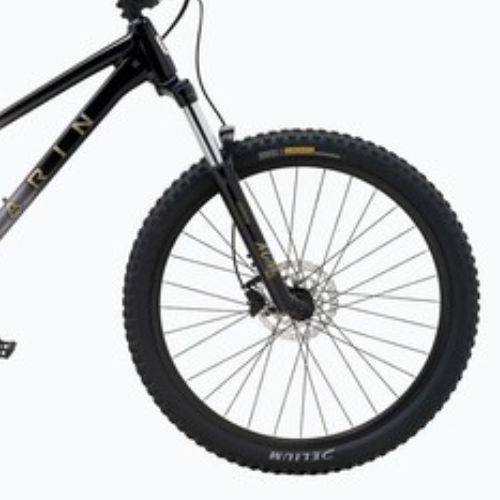

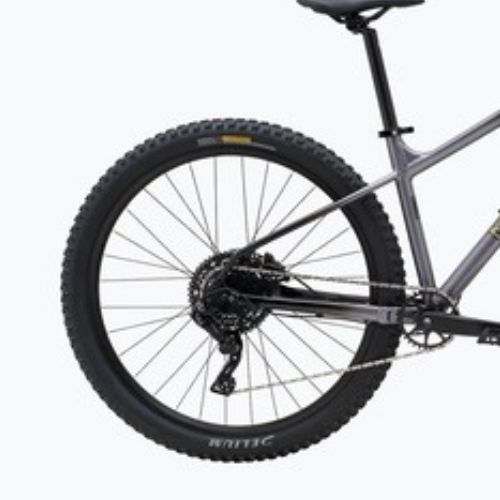

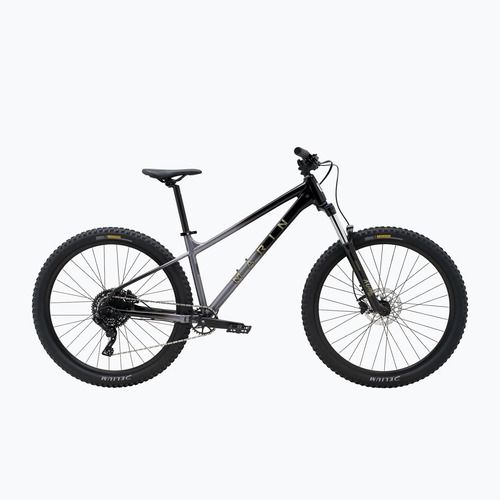

Mountain bike Marin San Quentin 1 27.5 grey fade (740683002)

Marin San Quentin 1 27.5 Mountain Bike in Grey Fade is an excellent choice for off-road riding enthusiasts looking for reliable equipment to tackle demanding trails. Built on a sturdy Series 2 6061 aluminium frame, it offers the durability and lightweight necessary for dynamic riding. The SR Suntour XCM34 suspension fork with 130 mm travel provides comfort and control when navigating uneven terrain, making this bike an ideal companion for mountain expeditions.

Precision Drive Components

The Marin San Quentin 1 27.5 mountain bike features precision drive components that ensure smooth and reliable gear shifting. The microSHIFT RD-M9195M rear derailleur with 9 gears and a clutch function provides excellent adjustment to diverse terrain conditions. The microSHIFT SL-M9195-R shifters with bearings allow for quick and intuitive gear changes, enhancing control over the bike in challenging situations.

Advanced Hydraulic Brakes

The Tektro M275 hydraulic brakes used on the Marin San Quentin 1 27.5 grey fade guarantee confident and effective braking in all weather conditions. The 180 mm brake discs provide even and strong stopping power, which is crucial during high-speed descents. Combined with a precisely designed frame and components, this bike offers high stability and safety on the trail.

Wheels and Tyres Ready for Challenges

The Marin Aluminum Double Wall wheels with a 29 mm internal width, compatible with a tubeless system, allow for easy conversion to tubeless solutions, increasing riding comfort and reducing the risk of punctures. The 2.5" Delium Vesatile tyres feature a versatile design that performs excellently on various surfaces, providing grip and control. This makes the bike ready for any challenges that the terrain may present.

Marin San Quentin 1 27.5 Mountain Bike - Features:

  • Series 2 6061 aluminium frame ensuring durability and lightness;
  • SR Suntour XCM34 suspension fork with 130 mm travel for riding comfort;
  • Precision microSHIFT RD-M9195M rear derailleur with 9 gears and clutch;
  • microSHIFT SL-M9195-R shifters with bearings for quick gear changes;
  • Tektro M275 hydraulic brakes for effective stopping;
  • 180 mm brake discs for strong stopping power;
  • Marin Aluminum Double Wall wheels compatible with tubeless system;
  • Wide 2.5" Delium Vesatile tyres for versatile grip;
  • Marin Alloy seat post with a diameter of 30.9 mm for stability;
  • Marin Forged Alloy crankset with narrow and wide chainring for drive efficiency.
